Mapping Electric Fields in the Lab
Most people struggle with electric field mapping labs because they overthink the equipment and underthink the technique. The concept is straightforward. You place two conductive electrodes on conductive paper or in an electrolyte tank, apply a voltage, and trace equipotential lines using a probe. From those lines, you draw field lines perpendicular to them. The rest is report writing. Here is how it actually works when you are sitting at a bench at 11pm with tired hands and a deadline looming.
Electric Field Mapping Lab Report Answers
Start by setting up your electrodes correctly. Parallel plates give you a uniform field between them and fringe fields at the edges. A point and a ring or two concentric circles give you a radial field that looks like the one around a charged sphere. Pick your geometry and make sure the contacts are clean. That sounds obvious, but I have seen students skip this and then wonder why their equipotential lines looked like garbage. Clean the paper or the tank surface, press the electrodes down firmly, and use clip leads instead of loose wires whenever possible. Next, calibrate your probe setup. Connect a digital multimeter or a potentiometer circuit between the probe and the ground reference. Apply a known voltage, say 10 volts across your electrodes, and verify that the reading changes linearly as you move the probe. If it does not, check your contacts and wiring. A bad contact point will cause erratic readings that ruin your entire data set. Once the setup is stable, begin tracing equipotential lines. Set the multimeter to a fixed voltage reading, like 2.0 volts. Move the probe around until you hit exactly 2.0V, then mark that spot on the paper. Move to another point that also reads 2.0V and mark it. Do this across the entire region between your electrodes. You want at least eight to ten points per equipotential line to make the curve meaningful. Repeat for different voltage levels, spacing them evenly if you want a clean final plot.

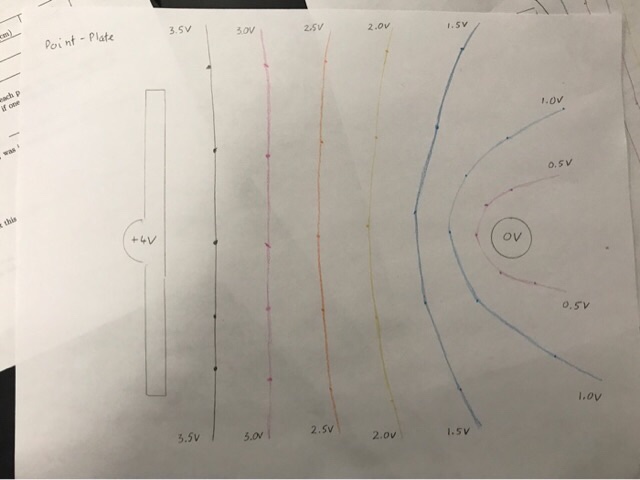

After you have all your equipotential points, connect them smoothly. These are your lines of constant potential. Then draw field lines perpendicular to each equipotential line at every intersection point. Field lines start at the positive electrode and end at the negative one. They never cross. They are denser where the field is stronger, which means closer together near sharp edges or small electrodes. For the report, include a diagram of your setup, the raw data table with all voltage and position readings, the plotted equipotential lines, the derived field lines, and a section comparing your results to the theoretical predictions. For parallel plates, the field should be uniform and the equipotential lines should be equally spaced parallel lines. For a point charge geometry, the equipotentials should be concentric circles and the field lines should radiate outward. Any deviation from these patterns needs an explanation, usually fringe effects or poor contact resistance. One thing most lab manuals do not tell you: the conductive paper has finite resistance, and the probe draws a small current. This means the act of measuring slightly disturbs the field you are trying to measure. It is a second-order effect, but it shows up as inconsistency when you re-measure the same point. I spent an afternoon once troubleshooting what I thought was a wiring fault, only to realize I was pressing too hard with the probe and creating variable contact resistance. The workaround was simple. Use a light touch, let the probe tip just graze the paper surface, and take each reading quickly before the contact degrades. It cut my measurement variation from about five percent down to under one percent.
Get the Full Details
Another counter-intuitive point that beginners miss is the relationship between equipotential spacing and field strength. The field magnitude is approximately the voltage difference between adjacent equipotential lines divided by the perpendicular distance between them. This means closely spaced equipotential lines indicate a strong field, not a weak one. Students often draw the conclusion backwards and label high-field regions as low-field regions in their analysis. Keep this straight and your report will be better than most. Also, be honest about limitations in your report. Conductive paper is not perfectly uniform. Manufacturing variations create local resistance changes that warp your equipotential lines in unpredictable ways. The electrolyte tank method is more accurate but introduces its own problems: evaporation changes the concentration over time, and the probe can cause convection currents in the fluid. Neither method gives you a perfect map. The best you can do is acknowledge the error sources and estimate their impact. A typical undergraduate lab setup has an uncertainty of around three to eight percent depending on technique, and saying so in your report shows you actually understand what is happening. Download links for lab report templates and sample data sets are scattered across university course pages. The most useful ones I have found are on open engineering course repositories, though many require a .edu login. If you cannot access those, the approach is simple enough that you can build your own template in Excel or Google Sheets. Create columns for electrode geometry, applied voltage, probe position coordinates, measured potential, calculated field strength, and theoretical field strength. The rest is just plotting and comparison.
The hardest part of this lab is not the math. It is the patience required to take consistent measurements and the discipline to catch sloppy technique before it ruins your data. Set up cleanly, measure lightly, double-check your contacts, and draw your field lines perpendicular to your equipotentials. Everything else follows from there.
