What You Actually Need to Know Before Starting a G Body Manual Swap
The G body platform covers cars like the Monte Carlo, Caprice, Grand Prix, and Regal from 1978 to 1988. They left the factory with THM200, THM200-4R, or THM350 automatics. A G Body Manual Transmission Conversion Kit gets you from that automatic configuration to a clutch pedal and stick shift, but it's not as clean as buying a bolt-on crate part and going. You'll be cutting, fitting, and adapting things that weren't designed to work together this way. A proper kit includes the shifter assembly, console modification, clutch pedal and master cylinder, clutch line hardware, and usually the adapter between your existing bellhousing and a manual gearbox. Some vendors bundle in a crossmember too. You need to verify what's included before you order. Several kits on the market leave out the throwout bearing fork or the clutch hydraulic slave cylinder, which means another trip to the parts store mid-build.
G Body Manual Transmission Conversion Kit Selection
The first decision is what transmission you're going with. The T5 five-speed from a 1980s Camaro, Firebird, or inline-six truck is the most common swap because the bellhousing pattern matches small-block V8s. The THM180 from a C10 truck works too, but it's narrower and you'll have a different shifter position to deal with. The Muncie M20 or M21 from a vintage muscle car is overkill for a street car and requires significant adaptation work. Most people picking up a conversion kit are going T5, so the advice below assumes that setup. The second decision is the engine. If you have a small-block Chevy, you're in luck. The T5 uses the same bellhousing bolt pattern as the THM200/350 family. You'll still need the adapter plate to go from the automatic length to the manual length, which changes your driveshaft dimensions. A 1988 T5 from a 5.0L Mustang works, but the input shaft spline count is different from a 1984 T5 from an inline-six truck. Get the right one and you save yourself a fabrication job later. Let me tell you about a detail most guides skip. The shifter linkage geometry on the T5 isn't identical to the THM200-4R you're removing. Even with the correct crossmember and adapter plate, the shifter boot opening in the console will be in the wrong spot unless you cut and weld. I ran into this on a 1980 Monte Carlo build last spring. I had the kit installed, everything bolted together, and the shifter was sitting roughly two inches forward of where the console opening was. The solution was cutting the floor pan just enough to relocate the console mount and repositioning the shifter bracket on the transmission itself. Took about forty minutes with a cutoff wheel and a plasma cutter, then grinding smooth. It's a known issue. Check your shifter position before you bolt the crossmember down.
Installation Walkthrough
Start by removing the automatic transmission. Drain the fluid, disconnect the throttle valve linkage on a THM200-4R, pull the shift linkage, disconnect the tailhousing extension if equipped, and unplug the speedometer cable. Support the transmission, unbolt the torque converter from the flexplate, and lower it out. Don't let the torque converter dangle by the pump—either leave it on the transmission or remove it and cap the pump port. Install the bellhousing adapter plate. This is the piece that bolts to your engine's bellhousing and provides the manual transmission mount point. Most kits use a TCI or QuickTime adapter. Apply threadlocker to the bolts and torque them to spec. I typically run them at 65 pound-feet for the adapter plate bolts on a small-block Chevy. Over-torquing will crack the aluminum adapter. Under-torquing will let it leak clutch fluid past the seal. Mount the T5 to the adapter plate with the supplied bolts. Use the correct throwout bearing fork and pivot ball. The pivot ball seat in the bellhousing needs to be clean and free of debris. I've seen builders skip this and end up with a shifter that feels notchy and vague because the fork has micro-movement it shouldn't have. That's a ten-second cleanup that saves an hour of troubleshooting.
Get the Full Details
Now the crossmember. The manual transmission is shorter than the automatic, so the rear crossmember location shifts forward. Most conversion kits include a new crossmember, but verify the mount points align with your frame. On some G bodies, the original crossmember bolt holes are in the wrong place and you'll need to drill and tap new ones or fabricate a bracket. The 1985 Caprice I worked on had a mismatch where the front mount clearance was only three-sixteenths of an inch off. I filed the frame rail until it seated properly. Not ideal, but functional. Install the shifter assembly through the floor. You'll need to cut the floor pan for the shifter hole. Mark the position carefully with the transmission in neutral and the shifter in the center gate position. Use a hole saw or cutoff wheel. Deburr the edges and prime the cut metal before you drive the car. I learned that one the hard way. Rust started showing on an untreated cut edge after six months of road salt exposure. Wire the clutch safety switch. The switch mounts on the clutch pedal bracket and prevents the starter from engaging without the clutch depressed. Run a 12-gauge wire to the starter solenoid circuit. This is critical for the neutral safety function on a THM200-4R swap because the neutral safety switch on the transmission side won't work with a manual gearbox. Without this wiring, your car won't start.

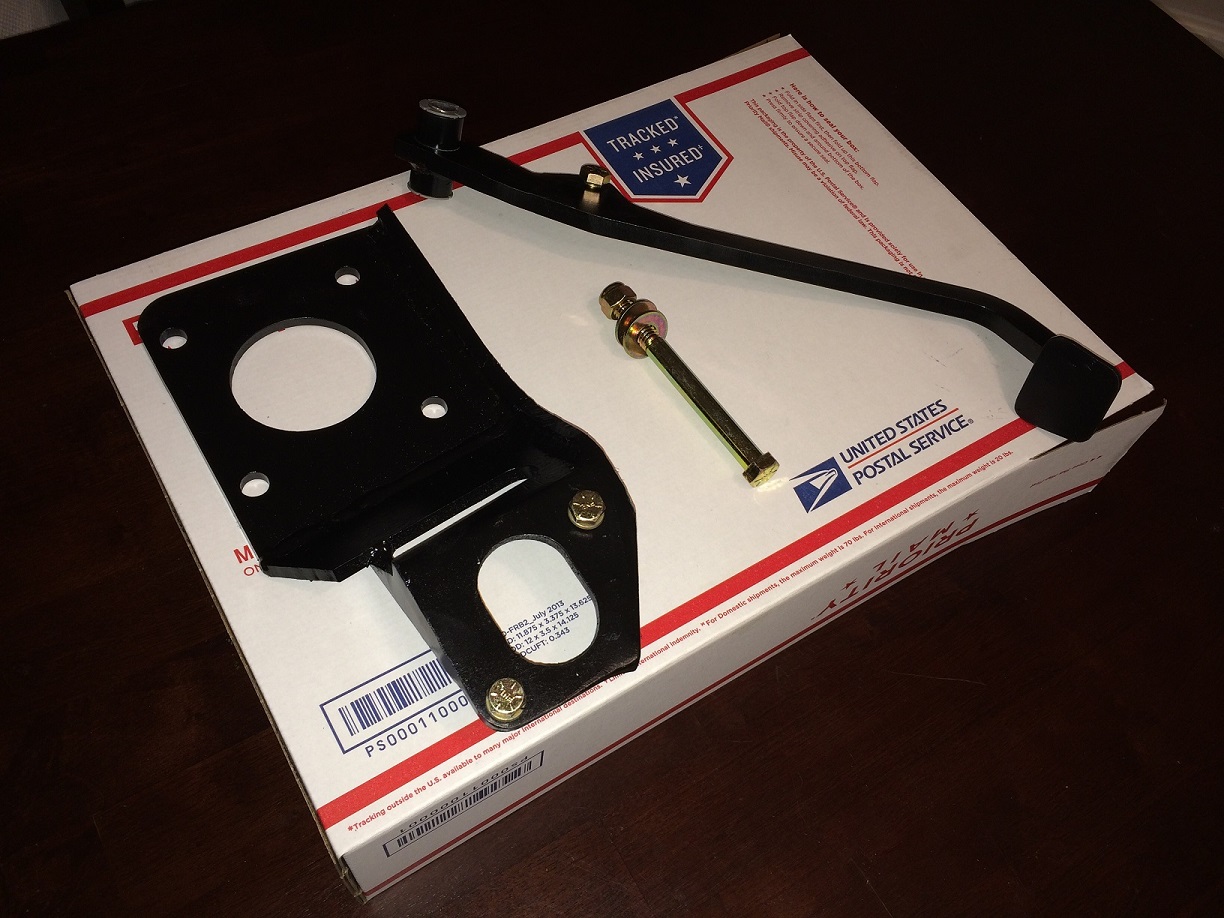

Hook up the clutch hydraulic system. The master cylinder bolts to the firewall on the brake booster or to a separate bracket depending on your kit. Bleed the system thoroughly. A spongy clutch pedal is the most common complaint after a G Body Manual Transmission Conversion Kit install, and it's almost always because someone didn't bleed it long enough. I run a two-person bleed with a clear hose on the slave, but a one-person vacuum bleeder works fine if you're patient. Expect to spend at least twenty minutes on the bleed cycle. Connect the driveshaft. Since the manual transmission is roughly four inches shorter than the THM200-4R, your driveshaft will need to be shortened or replaced. Measure from the transmission output flange to the rear differential pinion flange with the suspension at ride height. Add two inches for pinion angle correction. Send the measurement to a driveshaft shop and wait a week. I've seen people try to reuse the automatic driveshaft by trimming it themselves with a chop saw. That ends poorly. A balanced driveshaft is worth paying for.
Common Pitfalls and How to Avoid Them
One issue that catches people off guard is the clutch master cylinder bore size. Many conversion kits include a slave cylinder but ship with a master cylinder sized for an automatic brake booster setup. If your master bore is too large, you'll get a low, spongy pedal because there isn't enough hydraulic pressure to push the slave fully. The fix is a 7/8-inch bore master cylinder, which costs about thirty dollars at any auto parts store. This is a fifty-dollar problem that costs nothing to prevent. Another thing to watch for is the tachometer signal. If your G body has a factory tach, it pulls signal from the ignition coil negative terminal. The T5 doesn't interfere with this, but if you're also converting to an aftermarket engine management system, the tach signal might need to be re-routed. I had a 1982 Grand Prix where the tach died after the swap and it turned out the Holley harness I installed didn't include the pink wire to the coil negative. Took me an afternoon to diagnose because the tach seemed unrelated to the transmission work. Also consider your engine ECU or carburetor setup. The THM200-4R on later G bodies uses a kickdown solenoid and a TV cable that adjusts shift timing based on throttle position. When you remove the automatic, that TV cable becomes dead weight. If you have a carbureted engine with a manual throttle linkage, you'll need to fabricate a bracket to route the throttle cable past the conversion kit components. The shifter bracket can interfere with wide-open throttle travel if you don't check clearance first.
There's a limitation to be aware of with these kits. The shifter cable or linkage in most conversion kits is designed for a standard T5 throw distance. If you plan to run a close-ratio T5 with a short-throw shifter ball, the stock linkage may not accommodate the reduced throw. You'll need an aftermarket shifter modification kit, which runs another hundred to two hundred dollars. This isn't a flaw in the conversion kit itself, but it's a cost that most budget estimates don't include.
What This Doesn't Solve
A G Body Manual Transmission Conversion Kit gets the gearbox and shifter installed. It does not fix a worn clutch hydraulic slave, a bent shifter fork, a cracked bellhousing adapter, or a driveshaft vibration from improper angles. If your car has rusted frame rails where the crossmember mounts, no conversion kit will make that structurally sound. You need to address frame condition before you invest in a manual swap on a project that hasn't been solidified. The kit also doesn't include a clutch pedal pad in most cases. You'll need to fabricate or source one separately. And the boot that covers the shifter shaft is usually a basic rubber piece that looks cheap. Several builders swap in a billet aluminum boot from a performance parts supplier because the stock one degrades faster than you'd expect in sun exposure. If you're working with a big-block engine, this conversation changes significantly. The T5 bellhousing doesn't bolt to a big-block without an adapter, and the adapter adds length that throws off your driveshaft calculation even more. For big-block G bodies, the TH400 manual swap or a ZF S5-42 are more realistic options. The conversion kit landscape for big-block swaps is much smaller and more expensive.
Bottom Line
Doing a G Body Manual Transmission Conversion Kit is a weekend project if you have the right tools and a basic understanding of driveline geometry. It becomes a month-long headache if you skip the fitment checks and assume everything will align because it's a "kit." Budget an extra couple hundred dollars for parts the kit doesn't include. Check your shifter position before you cut anything. And bleed the clutch hydraulics properly. That's about it.
