Understanding the Gardner Denver Auto Sentry S Controller
The Auto Sentry S is a compressor management system used on many Gardner Denver rotary screw units. It handles sequencing, load/unload cycling, and protection logic. The manual isn't particularly detailed about every fault code, but it covers the basics of wiring, parameter setup, and common alarms. If you're working on a unit that's throwing an error and you need to get it running again, the manual gets you most of the way there. I spent about three weeks last year troubleshooting a series 3 Auto Sentry S on a 75 HP unit that kept hitting a phase imbalance fault. The manual lists it as code 8, but it doesn't explain that the fault can also trigger if the voltage drops below 380V on a 400V system. The workaround was adjusting the under-voltage threshold in the parameter menu rather than chasing electrical issues that didn't exist. That sort of thing won't save you hours, but it saves you from replacing contactors that are fine.

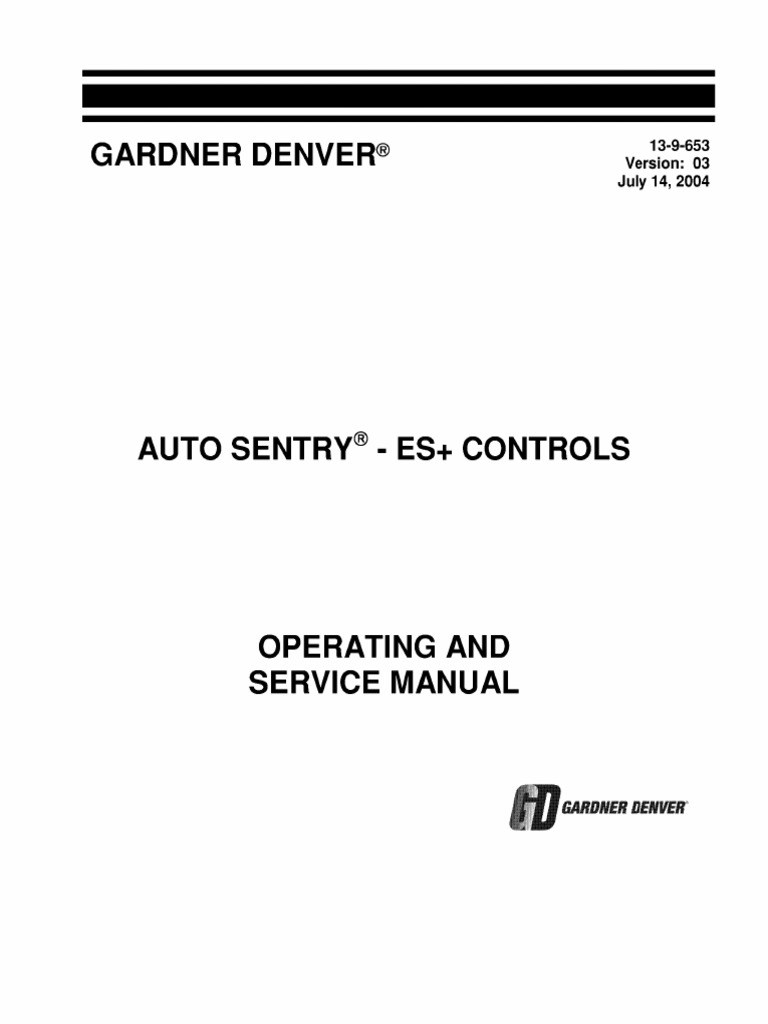

Gardner Denver Auto Sentry S Manual
The manual is available as a PDF from Gardner Denver's support portal. You'll need to create an account and register your equipment serial number before you can access it. It's roughly 45 pages and covers installation, wiring diagrams, parameter configuration, and fault codes. The wiring section is the most useful part — the terminal layout is clearly labeled, and the L1/L2/L3 power connections are easy to trace if you know what you're looking for. The parameter list starts on page 28. It's organized by function group: motor protection, sequencer settings, and alarm thresholds. Most parameters are read-only on standard units, but a few let you adjust the unloading pressure differential and the time delay between load and unload cycles. The default settings work for most applications, so don't change them unless you've measured the actual system demand and confirmed the defaults are causing issues. I've seen operators lower the unload pressure setpoint to 95 PSI on a system that runs at 100 PSI, thinking it would save energy. It didn't. The compressor just cycled more frequently and consumed more power overall. Fault codes run from 1 through 15, with some models using extended codes in the 20s. Code 1 is a high temperature alarm, code 3 is a low oil pressure fault, code 6 is a motor overload, and code 8 is the phase imbalance I mentioned. The manual lists the cause and remedy for each, but the remedies are sometimes vague. For code 8, it says "check power supply" without mentioning that you should also check the voltage sensing relay on the board itself. Those relays fail occasionally, usually from thermal cycling over several years of operation.
The sequencer section explains how multiple compressors communicate using the RS-485 bus. Each unit has a master and slave designation that you set with a dip switch on the PCB. Getting this wrong is the most common reason I see two Auto Sentry S units fight each other on the same manifold. One will load while the other unloads in rapid succession, and the system pressure will oscillate instead of staying stable. The fix is straightforward — verify the address settings and make sure the RS-485 daisy chain is continuous with no open connections. One thing the manual doesn't cover well is communication failures between the Auto Sentry S and a third-party BMS or PLC. If you're integrating it into a building management system, you'll need the Modbus mapping document, which is separate and not included in the standard manual. It's available on request from Gardner Denver technical support, but they don't always send it promptly. Having the register map in hand before you start wiring saves you a lot of back-and-forth. The download link isn't something I can embed directly here since it requires account registration on the Gardner Denver website. Search for "Auto Sentry S manual PDF" and you'll find it on their support page. The file is named roughly as "AutoSentryS_Installation_Operation_Manual.pdf" and it's around 2.1 MB. Make sure you're downloading the version that matches your unit's series number — there are at least three revisions over the years, and the wiring diagrams differ between them.
Get the Full Details
If you're dealing with a specific fault and the manual isn't helping, the next step is usually checking the PCB itself. The Auto Sentry S board has a diagnostic LED that blinks in patterns corresponding to internal faults. That information isn't in the standard manual, but it's documented in the service notes that Gardner Denver technicians use. If you can get ahold of those through a local distributor, they fill in a lot of the gaps.
