Setting Up the Garrison Programmable 7 Day Thermostat

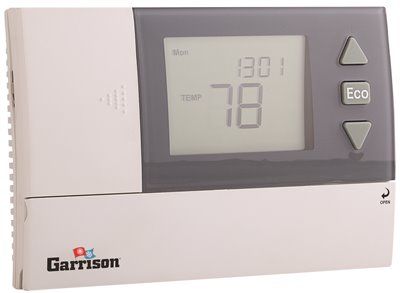

The Garrison 7-day programmable thermostat is one of those units that shows up in a lot of older homes and apartment buildings across the Midwest. It's not complicated, but it's also not intuitive. The manual is adequate if you actually read it, which most people don't until they're sweating or freezing and wondering why the schedule they set three weeks ago is doing absolutely nothing. I spent a Saturday last fall wrestling with one of these while trying to get my rental property to a rentable temperature, and I've dealt with enough of them since to know where the pain points are. The unit runs on either 4 AA batteries or hardwired 24V power, depending on the model variant. Most of the Garrison 7-day models in the wild are battery-powered. I'd recommend lithium AA batteries if you're going that route—standard alkalines tend to die off in about six to eight months during heavy heating or cooling seasons, and the low-battery indicator doesn't always trigger reliably until the voltage drops below what the display can still manage. So you're looking at either frequent replacement or unexpected shutdowns mid-season. Lithiums hold up significantly better and last closer to a full year in normal cycling conditions.

Garrison Programmable 7 Day Thermostat User Manual: Navigation and Basic Setup

When you pull the front cover off the wall plate, you'll see a simple membrane keypad underneath. There's no backlit screen, so reading it in a dark hallway at 6 AM requires a flashlight or phone light. The display shows current temperature, setpoint, day of the week, time of day, and the active program period. That's it. No fancy graphics. Programming the 7-day schedule works by setting four time-temperature blocks for each day. You can use the same schedule for all seven days, or vary individual days. The sequence goes like this: press PROGRAM, then use the up and down arrows to set the first transition time (usually 6:00 AM for a wake period), followed by the target temperature. Move through HEAT to COOL transitions for the remaining three blocks. Once you've cycled through all four periods for the current day, you can either copy that day's schedule to the rest of the week by pressing the COPY DAY key, or manually program each day individually. Copying saves a lot of time unless you specifically need different weekend or weekday schedules, which is the more common setup for occupied residences. The manual itself walks through this process in maybe eight pages with diagrams. The version I have is the Garrison GST-7D, and your model number may vary slightly in label placement and a couple of key functions. If you've lost the manual, Garrison's website has PDF versions available under their support section, though the download links rot faster than you'd expect. Archive.org usually has a cached copy if theirs is broken, which it was for me when I needed it most.

Advanced Programming and Common Pitfalls

Here's where most people mess up: the thermostat has a HOLD function and a TEMP OVERRIDE function that do completely different things, and the manual buries the distinction in fine print. HOLD locks your current setpoint indefinitely until you manually cancel it. TEMP OVERRIDE temporarily shifts the temperature for up to 4 hours and then returns to the programmed schedule. If you're changing the temperature manually and expecting it to snap back, you might be hitting HOLD instead. I've had tenants call me complaining that their heat wouldn't turn off, only to find they'd been sitting on HOLD for three days because they adjusted it once and forgot about it. The RUN vs PROGRAM mode toggle is another thing worth understanding. When the display says RUN, the unit is following your schedule. When it says PROGRAM, you're editing. If your thermostat seems frozen and won't respond to temperature adjustments, check whether it's accidentally stuck in PROGRAM mode. It happens more often than you'd think, especially after someone changes batteries and the unit resets into programming state. One counter-intuitive detail that trips people up: the Garrison 7-day model uses a deadband setting, typically adjustable between 1 and 4 degrees Fahrenheit. The default is usually 2 degrees. This means if you set the heat to 70 and the deadband is 2, the system won't kick on cooling until the temperature reaches 72, and won't kick on heating until it drops to 68. Some HVAC contracts get confused by this and assume the thermostat is faulty when the equipment doesn't fire immediately at the setpoint. It's not a bug. It's by design to prevent short cycling, which kills compressors and furnace heat exchangers over time. If you're troubleshooting a system that seems unresponsive, check the deadband before calling a technician.

Another nuance worth knowing: the fan control switch on the back of the unit. You can set it to AUTO, where the fan only runs when heating or cooling is actively happening, or to ON, where it runs continuously. The manual recommends AUTO for efficiency, but continuous fan operation does help with air circulation and filter life in homes with central HVAC systems. The tradeoff is higher electricity usage—usually an extra 50 to 150 watts depending on your blower motor. If you're on a tight electric bill, stick with AUTO. If you have poor air distribution or allergies, ON mode makes a noticeable difference.

Sensor Placement and Calibration

The built-in temperature sensor in these Garrison units is positioned behind the front cover, which means it reads the air temperature right at the thermostat location. This is standard, but it also means the unit has no remote sensor capability. If your thermostat is installed on an exterior wall, in direct sunlight from a nearby window, or near a heat-generating appliance, your readings will be skewed. I replaced a Garrison unit in a second-floor bedroom that sat directly above a poorly insulated attic hatch. The thermostat was reading 3 degrees higher than the rest of the house because of radiant heat from the ductwork running above the ceiling. Moving the unit to an interior wall brought the readings back into alignment without any calibration adjustment needed. If you suspect calibration drift, the Garrison 7D has a calibration offset feature accessible through the service menu. You hold the MODE button while powering on the unit to enter calibration mode, then adjust the offset in half-degree increments. The range is typically plus or minus 5 degrees. I calibrate these once a year against a separate mercury thermometer I keep near the unit, and I've found that factory calibration tends to drift about 0.5 to 1 degree after 18 to 24 months of use. Not a disaster, but enough to notice in a tightly controlled environment like a greenhouse or wine storage room where these units occasionally get repurposed.

Troubleshooting That Actually Works

When these thermostats fail, it's usually one of three things: dead batteries, a tripped circuit breaker on the HVAC system, or a loose low-voltage wire connection at the terminal block. The first two are obvious. The third is where people waste time. If you've confirmed the batteries are fresh and the HVAC breaker is on, take the faceplate off and check that the W, Y, G, and R wires are seated firmly in their terminals. The spring-clamp terminals on the Garrison units can loosen over time, especially during thermal expansion and contraction cycles. A wire that looks connected might be resting against the terminal rather than being gripped by it. Pull each wire gently to confirm it's held tight, and reseat any that move. I also want to flag a specific failure mode I've seen repeatedly: the thermostat displays normally but the system won't respond to any programming changes. This is almost always a failed capacitor on the internal board, and it's not user-repairable without soldering equipment. The cost of a replacement board runs about $40 to $60, and the cost of a new thermostat runs about $80 to $120 depending on where you buy it. Sometimes it's cheaper to just replace the whole unit. But if yours is still within warranty—which is typically one year from purchase—you should go through Garrison's support channel first rather than attempting a board swap. There's also a firmware quirk worth noting: if the thermostat loses power for more than about 30 seconds, it resets to factory defaults and clears all programmed schedules. This happens with routine battery changes if you leave the old batteries in place while inserting new ones, because the brief interruption in power triggers the reset. Always remove all four batteries before inserting fresh ones, or accept that you'll need to reprogram the schedule afterward. I mark the calendar when I change batteries specifically so I remember to verify the schedule hasn't been wiped.

Installation Considerations

If you're installing a new Garrison 7-day thermostat to replace an older non-programmable unit, you'll need to verify that your HVAC system is compatible with a programmable thermostat. Most conventional forced-air systems are, but heat pump systems and multi-stage heating systems may require a thermostat with additional terminal assignments. The Garrison 7D supports standard single-stage heating and cooling, heat pump with auxiliary heat, and some dual-fuel configurations. Check the wiring diagram in the manual against your existing setup before you start tearing anything apart. The wall plate uses standard old-work electrical box mounting, which means it fits over a 2-inch diameter hole in the wall. If you're replacing an old thermostat that was mounted differently, you may need a coverage plate or a new electrical box. I've run into situations where the existing hole was too small and the low-voltage wires couldn't reach the new terminal block properly, forcing me to fish longer wires through the wall before installation could proceed. It's a five-minute problem if you're prepared for it and a two-hour problem if you aren't. One final note on longevity: these units are generally solid for 5 to 8 years of normal use. The mechanical relay contacts inside wear out over time, and you'll start noticing symptoms like the system failing to engage on schedule changes or the display flickering even with fresh batteries. At that point, replacement is more economical than repair. I've seen a few that last 10 years or more, but that's the exception, not the rule. Plan on replacing one every decade as part of routine HVAC maintenance, and you'll avoid the surprise of it failing during the middle of a heat wave or a freeze.
