Finding and Using the GE Giraffe Omnibed Service Manual

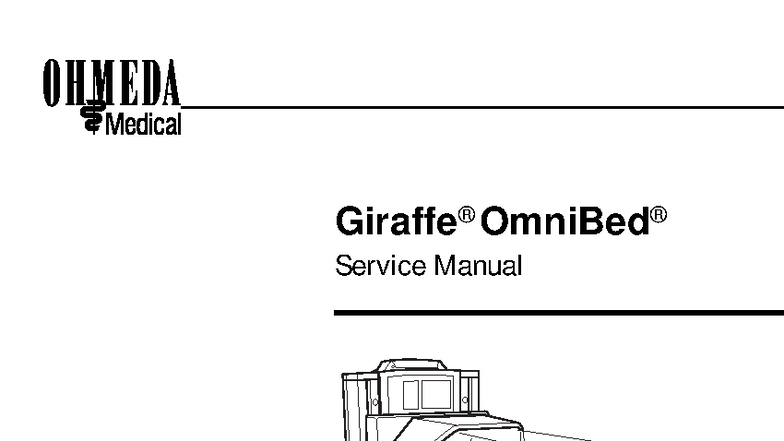

The GE Giraffe Omnibed is a multi-function neonatal critical care system. It combines an incubator, radiant warmer, and transport isolette into one unit. When something goes wrong, the service manual is the primary reference for technicians. Downloading and reading it correctly matters more than most people realize. I spent a long time working on these units in clinical engineering departments. The manual itself is dense. It covers electrical schematics, pneumatics, software fault codes, and calibration procedures. If you jump into a repair without reading the relevant section first, you will make things worse. The official manual is available through GE Healthcare's service portal. You need a service account to access it. Contact your local GE representative or check the official GE Healthcare service documentation site. Third-party PDFs exist online, but they are often outdated or incomplete versions. Use the current revision from GE directly whenever possible.
One practical thing that trips people up: the manual is organized by subsystem, not by symptom. If the unit reports a temperature fault, you do not go straight to the temperature section. You start with the alarm diagnostics chapter, which points you to the correct subsystem based on the error code. Reading that mapping section first saves hours of searching. I remember a specific case where a unit displayed an intermittent fan fault. The error code pointed to the blower motor circuit. I replaced the motor, cleared the alarm, and sent it back. It failed again within two days. The manual mentioned a secondary diagnostic path for "intermittent" faults that most people skip. The actual issue was a loose harness connector on the main control board, not the motor. A small amount of contact cleaner and reseating the connector fixed it permanently. The manual covers this exact scenario, but only in a subsection about connector integrity checks during advanced troubleshooting. That section is easy to overlook if you are reading on screen instead of printing the full document. Here is the actual process I follow when servicing these units.
First, pull the service history from the unit's internal log. It records every fault, every calibration event, and every power-on cycle. This tells you whether the current problem is recurring or brand new. It also reveals if a previous technician replaced parts unnecessarily. Second, verify the firmware version. GE has released multiple updates to the Giraffe Omnibed software over the years. Some bugs were fixed in later revisions. Running outdated firmware can cause false fault codes that disappear after an update. The manual includes a firmware version table that correlates each revision to known issues. Check it before opening the cabinet. Third, use a multimeter to confirm power rails before swapping components. I have seen technicians replace control boards that were perfectly fine because a blown fuse was causing the board to under-volt. The manual provides test point values for every major board. Use them. Do not guess.
Get the Full Details
The calibration procedure is where most mistakes happen. The temperature and humidity sensors require a dry-block calibrator, not just a reference thermometer. The manual specifies the exact procedure: stabilize the dry block at 37.0 degrees Celsius, let the unit equilibrate for twenty minutes, then record the offset. Adjust through the service menu only after recording the baseline. Skipping the recording step means you lose the calibration trace that hospital biomed teams require for compliance audits. There are limitations worth noting. The service manual does not cover every possible failure mode. Some issues, particularly with aging sensors and corroded connectors, require engineering judgment beyond what the document provides. The manual assumes you have the proper test equipment, which many smaller hospital repair shops do not. In those cases, replacing entire sub-assemblies becomes the default approach, even when a single component might be at fault. This increases cost and downtime significantly. Another constraint: the manual is written primarily for trained service engineers. The language assumes familiarity with biomedical terminology and electrical safety standards. If you are a clinical staff member trying to troubleshoot independently, you will find the content difficult to navigate. The user manual handles routine operations and basic alarm responses. Reserve the service manual for technical repairs only.
The pneumatic system deserves special attention. The Giraffe Omnibed uses a combination of pressure regulators and solenoid valves to manage airflow and temperature. A slow leak in the pneumatic manifold can cause delayed response times and temperature instability. The manual includes a leak test procedure, but it requires a manometer and a sealed test setup that is not always available in field conditions. Without proper leak testing, you may chase electronic symptoms when the root cause is purely mechanical. If you cannot access the official manual through GE's service portal, your options are limited. Contacting the hospital's original equipment vendor may provide a copy if they hold a service contract. Some biomedical equipment dealers also maintain archived service documentation. Buying used manuals from auction sites carries the risk of receiving obsolete versions, so verify the revision number against the unit's serial plate before relying on any downloaded document. The serial number location on the Giraffe Omnibed is on the rear panel near the power inlet. It determines which hardware revision you are working on, which in turn determines which manual revision applies. Two units with similar appearances can have different internal wiring layouts depending on their manufacturing date. Always match the manual revision to the serial range before proceeding with any repair.
