Reading Generator Wiring Diagrams Without Losing Your Mind

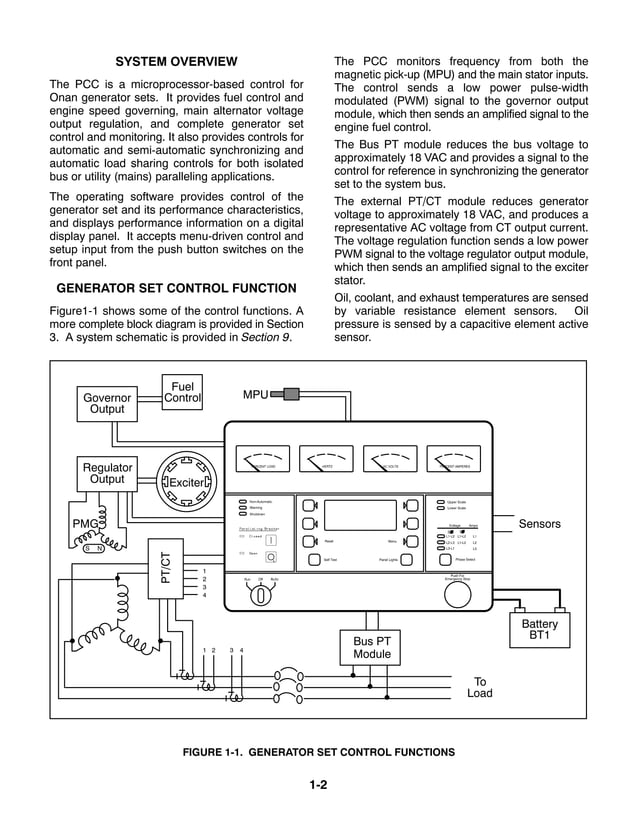

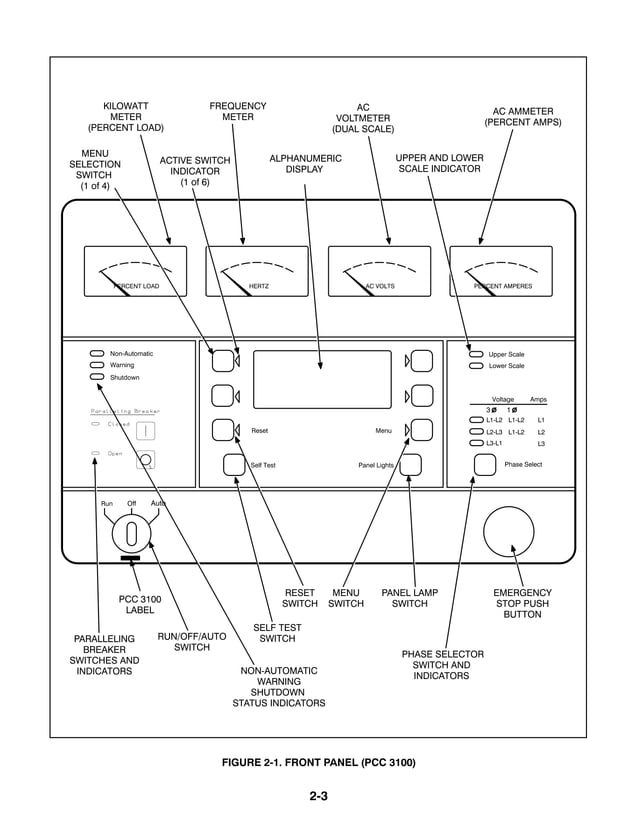

Most people approach generator service manuals like they are reading a novel. They aren't. A Generator Service Manual Diagram is a technical map, usually multi-page, showing electrical connections, control logic, and sometimes mechanical layouts for a specific make and model. The trick is knowing how to navigate it before you ever touch a screwdriver. I pulled a diagram for a Cummins Onan 7500LP last year. The manual had forty-three pages of schematics. The problem was on page twelve, relay K3, which controlled the engine shutdown circuit during an overload condition. The diagram showed the relay wired to terminal 86 on the main control board, but the actual board had three nearly identical connector footprints stacked vertically. One wrong connection and you would either kill the engine permanently or leave it running when it should shut down. I traced the wire with a multimeter, confirmed the harness pinout against the wiring legend on page four, and found the real issue was a fractured trace on the PCB that the diagram couldn't show. You won't find that in any manual.
How to Use a Generator Service Manual Diagram

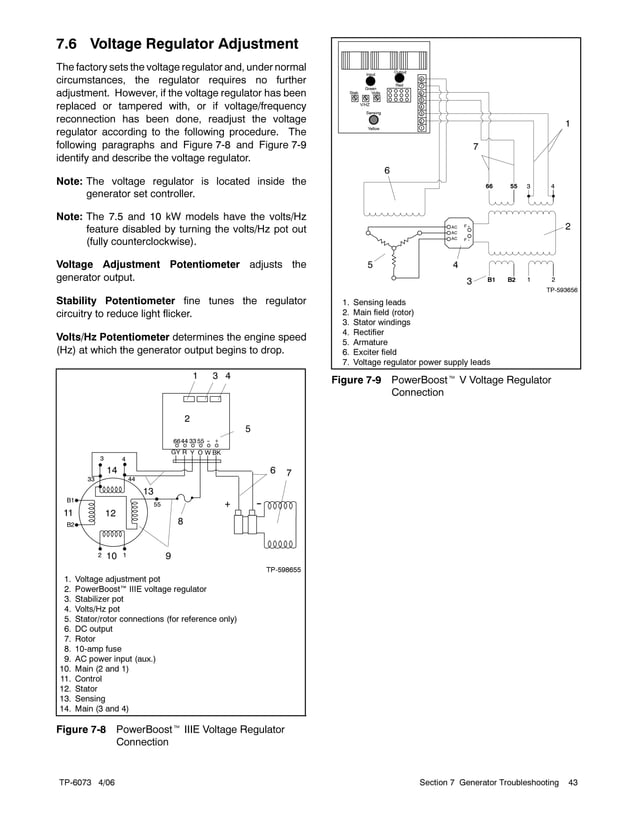

Start with the legend or symbols page. Every manufacturer uses slightly different conventions for relays, sensors, fuses, and protective devices. A dashed line might mean a mechanical linkage on one brand and an electrical signal path on another. Spend five minutes here and you will save twenty minutes later trying to figure out what that squiggle next to the voltage regulator actually represents. Find your diagram type first. Generators typically have three: the main power circuit, the control circuit, and the excitation or AVR circuit. The power circuit shows how the alternator outputs connect to the breakers and transfer switch. The control circuit handles startup sequences, shutdown triggers, and alarms. The excitation circuit is where most troubleshooting fails because people ignore it entirely. If your generator won't build voltage, the problem is almost always in the excitation path, not the power path. Trace from the power source to the load, not the other way around. Most technicians instinctively start at the symptom and work backward. That approach works until you hit a complex control loop with multiple interlocks. Start at the battery or the excitation source and follow the circuit forward. You will see every component the current passes through, including protections and switches you might otherwise skip.
I worked on a Generator Service Manual Diagram for a Honda EU3000is where the error code pointed to a stator winding fault. The diagram made it look straightforward: measure resistance between the three stator leads, compare to specification, replace if out of range. The specification was 0.3 to 0.5 ohms per phase. My readings were 0.28, 0.29, and 0.27. Within tolerance, technically. But the generator still wouldn't hold voltage under load. The manual didn't mention that these particular windings had developed an inter-turn short that only manifested under thermal stress. A cold resistance check missed it completely. I had to load-test the alternator output while monitoring voltage drop across each phase to confirm the fault. Took three hours instead of thirty minutes.
Get the Full Details
Common Mistakes That Waste Afternoon
Assuming the diagram matches the actual unit. Manufacturers revise control boards mid-production run without always updating the manual. If your serial number falls in a revision window where they swapped the main control board or changed the excitation method, the diagram on page thirty-two is now wrong for your specific unit. Check the revision date on the manual against the nameplate serial number before you start troubleshooting anything. Misreading connector orientations. Pin one is never in the same place twice across different manufacturers. Some put it at the top left, some at the bottom right, some use a keying notch that the diagram doesn't indicate. Always verify pin assignment with a physical connector or a continuity test before inserting a test lead. Ignoring ground references. A lot of generator diagrams use different ground symbols for chassis ground, signal ground, and power ground. Treating them as interchangeable causes phantom voltage readings and false diagnoses. Signal ground can float relative to chassis ground by a volt or two in noisy environments, and that difference will throw off your diagnostics if you aren't accounting for it.
These diagrams also have real limitations. They show intended wiring, not installed reality. If someone previously replaced a component with an aftermarket part, rerouted a wire, or spliced a connection, the diagram is now inaccurate for your generator. They also rarely show mechanical relationships. A diagram might show that a centrifugal switch closes at 1800 RPM, but it won't tell you where that switch is physically located or how to adjust the gap. You need the mechanical sections of the manual for that, and a lot of cheaper service guides merge everything into one document without clear separation. If you can't find a factory diagram for your exact model, an after-market option like the AllData or Clymer manuals sometimes have better cross-reference tables than the OEM publication. Not always, but often enough that it is worth checking before you spend money on a replacement manual you might not need.
