Getting the Right Generator Technical Manual Without Losing Your Mind
Most people grab whatever manual is sitting at the top of a Google search and assume it's correct. That's how you end up with a wiring diagram for a 2016 unit when your actual generator is from 2021. The manuals exist, they're scattered across manufacturer portals, third-party repositories, and PDF archives that haven't been updated since 2018. The real problem isn't finding one. It's making sure it's the right one. Start with the manufacturer. Every major brand — Generac, Cummins, Kohler, Onan — has a support or parts section on their website. You'll need the exact model number and serial number. If you don't have those, they're on the data plate mounted on the generator frame. It's usually a silver or white sticker. Take a picture of it before you tear anything apart. You will lose that panel one day. Enter your model into the manufacturer's portal. Some require you to create an account. Others let you download immediately. Generac's site asks for registration. Cummins lets you browse freely. Kohler puts most of their documentation behind a login wall but not a paywall. Onan is similarly straightforward.
If the manufacturer no longer supports the model — which happens frequently with units older than ten years — try the Generator Technical Manual archives at sites like ManualsLib or Scribd, though you should verify everything you find there against a known-good source. I once spent three hours debugging a fuel solenoid issue because I was following a manual for the wrong voltage configuration. The part number looked identical. The manual had a slightly different engine revision. For universal reference material, the Generators and Motor-Generator Sets: Application Guide from the Electrical Generating Systems Association covers topics most OEM manuals skip. It's not specific to any one brand but it fills gaps in understanding.

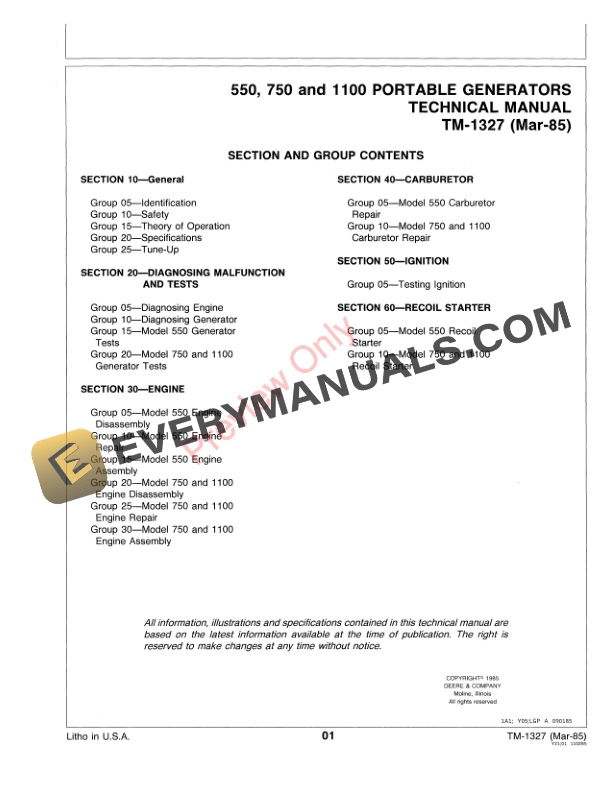

What a Proper Manual Actually Contains
A complete technical manual for a standby or portable generator typically includes five sections. The first is the specification sheet — rated kW, kVA, alternator details, engine displacement, fuel type, and electrical characteristics. The second is the installation guide covering pad preparation, clearance requirements, ventilation sizing, and transfer switch integration. The third is the maintenance schedule with torque specs, fluid capacities, and service intervals. The fourth is the troubleshooting section with fault code tables and diagnostic flowcharts. The fifth is the wiring schematic, and this is where most people hit a wall. The schematic isn't one drawing. It's a set of interconnected diagrams — control board layout, AVR connections, starting circuit, voltage sensing lines, and communication bus wiring if the unit has remote monitoring. Cross-reference every wire by color and terminal number. Wire colors change between production runs. A blue wire in a 2019 manual might be green on a 2022 unit with the same model designation.
Get the Full Details
The Fault Code Trap
Here's something beginners consistently miss. Fault codes are not standardized across manufacturers, and they're not even consistent within a single manufacturer's line. A code 501 on a Generac 20kW means something completely different than a code 501 on a Kohler 20kW. Even within the same brand, a firmware update can reassign codes. The manual will list them, but only for the specific firmware version your controller is running. Check the firmware version printed on the control board screen. If it doesn't match the manual's stated compatibility, look for an addendum or updated PDF on the manufacturer's site. I ran into this with a Cummins Onan MDKGD 7.0 generator. The fault code table listed error 12 as a coolant temperature sensor circuit malfunction. The unit was throwing error 12. I replaced the sensor, cleaned the connections, recalibrated — nothing. The manual was for firmware version 3.2 and the unit was on 4.1. In 4.1, error 12 was changed to a low oil pressure switch fault. Firmware changelog was buried in a separate document that wasn't linked from the main manual page. Took me two weeks to find it.
When the Manual Is Wrong and You Have to Figure It Out
Technical manuals are written by teams of people who sometimes disagree about what's most useful. They contain typos. Wiring diagrams have stale part numbers. Torque specs occasionally reference the wrong bolt size. This isn't theory — I've seen it happen repeatedly. The workaround is building your own reference alongside the manual. Photograph every connection before you disconnect anything. Label wires with masking tape and a fine marker. Use a multimeter to verify continuity rather than trusting the color code alone. The manual says a particular wire should read 12VDC at terminal 3 during cranking. Measure it. If it reads 8VDC, the manual's diagram is describing an ideal condition, not your unit's actual state. That 4V drop is your problem, not a bad component.
Limits of Using a Generic Manual
A technical manual will not diagnose a failing bearing. It won't tell you why your generator is vibrating at 1800 RPM but not at 1500 RPM. It doesn't account for installation environment — altitude derating, ambient temperature effects, fuel quality variations, or voltage sag from long cable runs. The spec sheet assumes standard atmospheric conditions at sea level. If you're at 5,000 feet, your generator loses roughly 3% of its rating per thousand feet of elevation. The manual mentions this in passing. It doesn't bold it. If you need something more practical than a static PDF for daily reference, consider running software like GeneratorView or the OEM's own diagnostic tool if one exists. These connect directly to the controller and pull live data — voltage under load, fuel trim values, excitation current. A manual gives you the blueprint. These tools show you what's actually happening right now. The best approach combines both. Keep the manual for reference and procedure. Use active diagnostics for understanding. That's the only way to avoid the kind of mistake that costs you a weekend and a replacement alternator.
