Working With the Genie Gth 5519
The GTH-5519 is Genie's medium-boom telehandler, roughly 55 feet of reach when fully extended. It's a workhorse, and like anything that sees daily use on a jobsite, it breaks. When it does, you need accurate information fast. That's where the service manual comes in, though not always in the way you'd expect. Genie doesn't exactly advertise their documentation for free. The official path runs through their Parts and Service website, which requires creating an account and usually a dealer login to access the full manual library. If you're a certified technician or shop owner, this is the route to go. The PDFs are comprehensive — wiring diagrams, hydraulic schematics, torque specs, adjustment procedures, fault code listings. All of it. Third-party sources exist too, but the quality varies wildly. Some are scanned copies of outdated editions. Others are incomplete. I've seen mechanics pay good money for a "full service manual" that turned out to be just the operator's handbook plus a few pages of troubleshooting. Check the table of contents before you commit.
My usual approach is to pull the dealer portal version, download the sections I need rather than the entire massive PDF, and then archive them locally. Saves time later when you're greasy-handed under a machine trying to find a specific hydraulic circuit diagram at 6 AM.

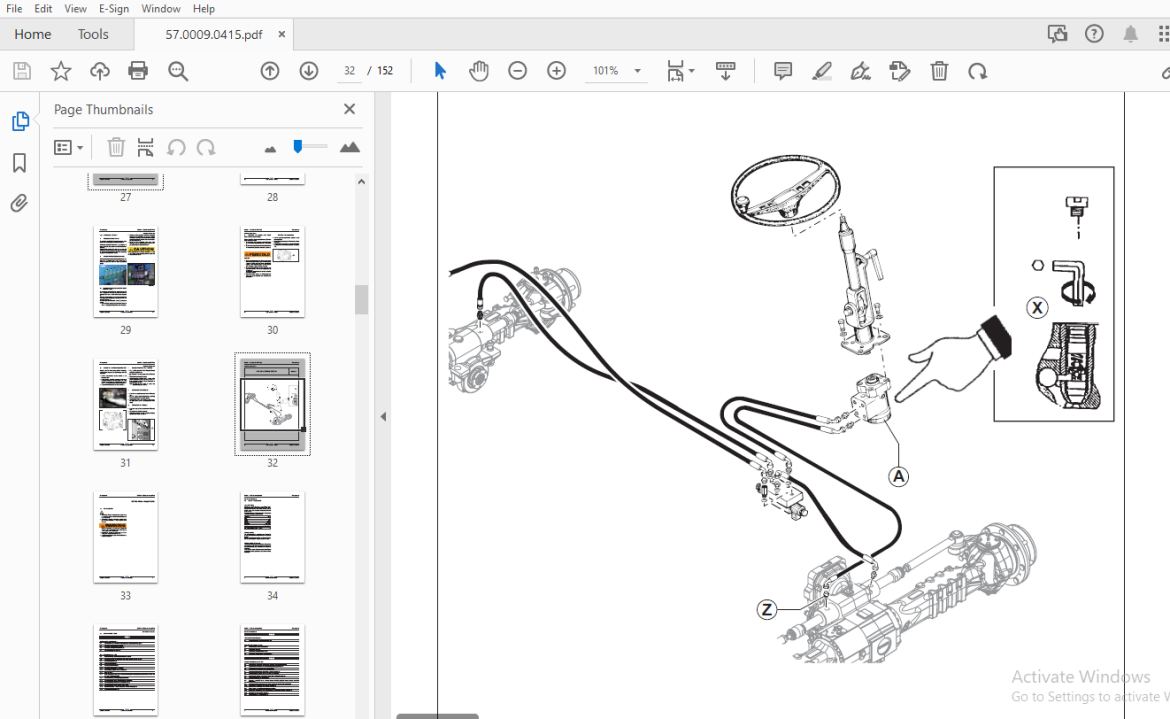

What the Manual Actually Covers
It's not one single document. The GTH-5519 service information is split across several volumes. You've got the maintenance manual for routine service intervals — fluid changes, filter replacements, lubrication points. Then there's the diagnostic section with error codes pulled from the machine's controller. The electrical section alone is hundreds of pages because this thing has a lot of sensors and solenoids. And the hydraulic schematics are their own beast, showing flow paths for the boom, steer, and attachment circuits under load and relief conditions. The most useful part for field work is the fault code reference. The GTH-5519 uses Genie's proprietary diagnostics system, and when a code pops up on the display, the manual tells you what it means, where to test, and what the expected readings should be. I can't tell you how many times I've seen someone replace a component based on a code without actually verifying the circuit first. The code will point you in the right direction, but it won't do the diagnosis for you.
Get the Full Details
A Specific Problem I Hit Recently
Last winter I was troubleshooting a GTH-5519 that kept throwing an intermittent fault on the auxiliary hydraulics. The code pointed to a pressure sensor circuit issue, but the sensor readings looked normal when I checked them. The manual's diagnostic flowchart said to check continuity between the sensor and the controller harness, and I did — three times, different connection points. Everything measured good. What I eventually found was a cracked wire inside the insulation, right where the harness flexed near the boom pivot. You can't see it from the outside. Multimeter continuity tests don't catch it when the wire only breaks under movement. I had to wiggle the harness while watching the live sensor data on the display, watching the voltage spike and drop. That wasn't in the manual, obviously. But the manual did tell me which wire to trace and what the resistance spec was, which saved me from fishing through the whole loom blind. Once I identified the general area, a simple visual inspection with a flashlight and some patience found the hairline fracture.
Common Pitfalls I See
The biggest mistake people make is treating the manual as a replacement for actual troubleshooting logic. It's a reference, not a diagnostic robot. The wiring diagrams are excellent, but they show the ideal state of the system. They don't account for corrosion in connectors, degraded insulation, or the kind of vibration damage that happens on a machine that's been bouncing around a job site for five years. Always verify what the manual says by measuring actual values in the field. Another thing: torque specs. The manual has them, but they're based on clean, dry threads. If you're dealing with a bolt that's been in place for years and is coated in oil and grime, the actual clamping force will be different. I usually add about ten percent to the spec on old hardware, just to account for the friction variable. Doesn't hurt, and it prevents under-torquing something critical. Hydraulic adjustments are another area where the manual can mislead if you follow it rigidly. Pressure relief settings are given as exact numbers, but your actual system pressure varies with temperature. Cold hydraulic fluid is thicker, so pressures read higher at startup. The manual assumes a standard temperature. If you're adjusting a relief valve on a cold machine, expect to recheck it after it's warmed up. I've seen people set a relief valve correctly according to the book, only to have the system overpressurize once the fluid thinned out.
Limitations You Should Know
The official Genie manuals are only as current as the revision date stamped on them. If your machine has been modified — and a lot of telehandlers get aftermarket attachments, changed-out components, or repaired with non-OEM parts — the diagrams may not match your actual setup. I've worked on GTH-5519s where someone had swapped the main control valve with a used unit from a different model year, and the schematic showed connections that simply didn't exist on my machine. In those cases, you need to map the actual wiring yourself rather than trusting the book blindly. The electronic diagnostic section is also somewhat locked behind Genie's proprietary interface. The manual describes what the codes mean, but actually reading live data and performing active tests requires the Genie diagnostics tool or compatible software. Without that, you're working partially blind on electrical issues. There are aftermarket solutions that claim compatibility, but they don't always support every function, and some don't update quickly enough when Genie releases firmware changes. If you're doing major work on these machines, I'd recommend having the official manual on hand alongside whatever diagnostic tool you can get. They complement each other. The manual gives you the specs and the maps. The tool gives you the live data. Use both.
The GTH-5519 is a solid machine. The service documentation is thorough when you can get it. Just remember that a manual is a starting point, not the finish line. Your own observations and measurements will always beat what's printed on the page.
