Understanding the Bristol District Map Sheet

If you are working in the Bristol area and need to understand what is underground, the British Geological Survey map sheet E264 is the starting point. It covers a fairly urbanized region, which makes things harder than you might expect. The underlying geology is messy. You have Carboniferous Limestone to the west and south, Mercia Mudstone and New Red Sandstone forming the broader basin fill, and then all sorts of superficial deposits — river gravels, alluvium, made ground — that complicate any straightforward reading of the bedrock map. I spent years trying to reconcile BGS map data with actual ground conditions around Bristol. What follows is not a summary of the official legend. It is what happens when you try to use that data in practice.

Geology Of The Bristol District A Brief Explanation Of The Geological Map Sheet E264

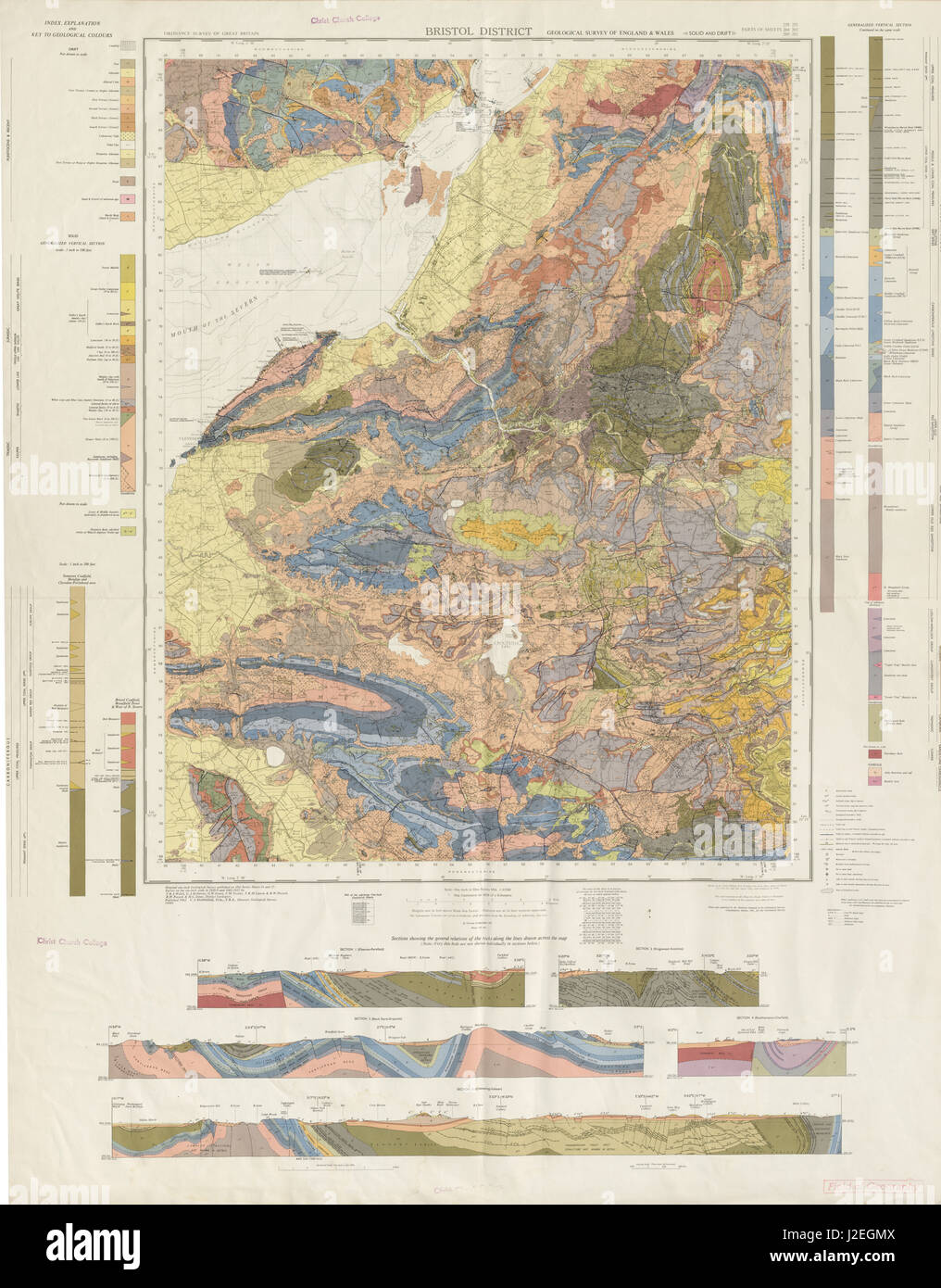

The sheet itself is a 1:50,000 scale solid and drift geology map. The solid geology shows the bedrock units: mainly Dinantian Carboniferous Limestone, Westphalian Coal Measures, and overlying Permian and Triassic sequences. The Mercia Mudstone Group forms a significant portion of the eastern part of the sheet. You will also find the Penarth Group at the western margins where the limestone interface occurs. The superficial deposits include River Severn and Avon gravels and silts, glacio-fluvial deposits in places, and extensive urban made ground that the standard map barely acknowledges. The trick is that the published map tends to smooth over the complexity. The BGS does its best, but at 1:50,000 scale, narrow fault strands and localised sandstone bodies get generalized. I learned this the hard way on a site investigation near St George, Bristol. The map showed solid Carboniferous Limestone. The trial pits hit weathered limestone at about 2.5 metres, then saprolite, then completely altered rock. The published map gave no indication of the depth to competent rock, which turned out to vary by tens of metres across a single building plot because of solution features and paleokarst. What I ended up doing was pulling the 1:10,000 scale digital terrain data, cross-referencing it with old mining records from theCoal Authority, and then using a ground-penetrating radar survey to map the top of the limestone surface. That took about three days and cost roughly £8,000. Without it, the foundation design would have been a guess. Another thing the map does not highlight clearly is the influence of the Bristol Channel Palaeovalley. This is an ancient river channel system that cuts through the Carboniferous Limestone and infills with Triassic and superficial materials. It runs roughly southwest to northeast through the southern part of the sheet. If you are doing any kind of tunneling or deep excavation, ignoring this feature is a reliable way to encounter unexpected ground conditions. The infill materials are compressible and variable. They do not behave like the surrounding bedrock at all.

The fault network is another area where the map understates the problem. The Mendip and Cotswold fault systems create a complex pattern of displacement across the region. Some of these faults are still active in a geological sense. I have seen cases where a fault zone was mapped as a single line, but the actual damaged and fractured rock extended 30 to 40 metres either side. This matters if you are designing retaining structures or assessing seismic risk. The map shows the fault trace. It does not show the damage zone. There is also the issue of water. The Carboniferous Limestone is a major aquifer. The BGS provides groundwater protection data, but the map sheet itself does not integrate this well. During my work on a development near Clifton, we encountered a sudden inflow of water at 8 metres depth. The map suggested we were in relatively impermeable Mercia Mudstone, but a minor fault had brought the limestone into contact with the excavation. The groundwater level was perched above the main aquifer due to the mudstone seal, and the pressure was significant. We had to install continuous dewatering for six weeks. A pre-construction hydrogeological assessment would have caught this, but it required going beyond the basic map data. If you need to access the actual map, you can download it directly from the British Geological Survey website. They offer both PDF and vector formats. The vector data is more useful if you plan to overlay it with other GIS layers. The digital data is free for non-commercial use, but commercial licensing requires a separate agreement. The BGS also provides a companion explanatory memoir for each sheet, which gives more detail on the local stratigraphy and structural geology. For E264, the memoir is worth reading, though it was last updated in the late 1990s and some of the interpretations have been refined since then.

The main limitation of relying solely on this map sheet is that it is a snapshot. The geological understanding of the Bristol area has improved significantly with new borehole data, environmental sampling programmes, and advanced geophysical techniques. The published map cannot keep pace with every new finding. If you are doing something critical — a foundation design, a tunnel alignment, a contaminated land assessment — you need to supplement the map with site-specific investigation. The map is a guide, not a complete picture. Another practical issue is that the map covers a large urban area where made ground and anthropogenic deposits are widespread. The BGS labels this as "made ground" on the superficial deposits map, but that term covers everything from Victorian-era rubble to modern construction waste. The composition and engineering properties vary enormously. I once had a client insist that a borehole log showing "made ground" at 5 metres depth was sufficient for their basement design. It was not. The made ground included loose fill with a high void ratio and significant contamination. We needed a detailed geotechnical investigation with sampling and testing, which the map alone could not provide. For most practical purposes, the E264 sheet gives you a solid foundation for initial planning and desktop studies. It tells you broadly what is there and where the major geological boundaries lie. But the differences between what the map shows and what you actually find in the ground are where projects tend to go wrong. The Bristol district is geologically interesting but structurally complicated, and that complexity does not always translate cleanly onto a 1:50,000 map.
