Getting the Gfc 500 Running

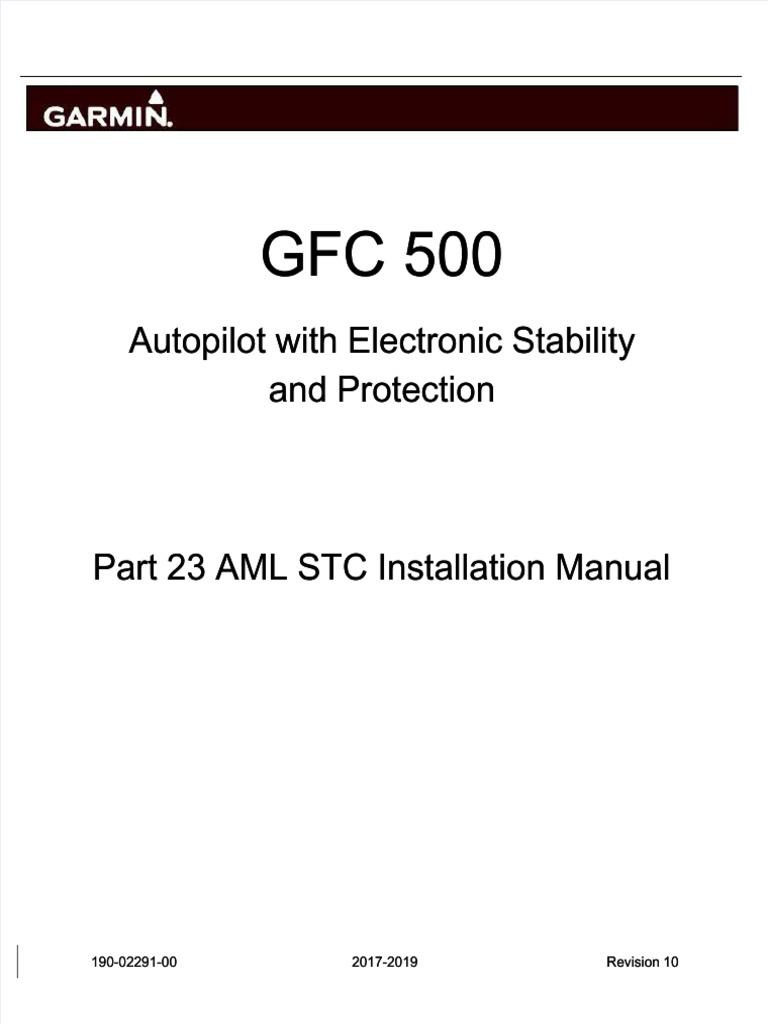

The unit arrives in a cardboard box with foam inserts and a quick-start card that is about as useful as a screen door on a submarine. You need the full documentation, which is where the Gfc 500 Installation Manual comes in. I have wired three of these into production racks over the past four years and I still reach for the manual every time because the label on the terminal block does not match the wiring diagram on the first page. It matches the one on page fourteen. Grab it from the manufacturer site under the support or downloads section. The file is usually PDF, around 4.2 megabytes, and version numbers change without announcement. Check the revision date before you print anything. I once followed a torque spec from a 2019 revision on a 2022 chassis and stripped a mounting bolt. The manual lists the correct value on the 2023 update but the cached link on Google still points to the old one. It covers mechanical mounting, electrical termination, power requirements, grounding, communication port configuration, commissioning steps, and fault code references. The first twenty pages are the parts you actually need on day one. The rest is reference material for when something goes wrong, which is usually three weeks after you think you are done.
Mechanical notes — the Gfc 500 weighs about eighteen kilograms and needs a flat surface with at least fifty millimeters of clearance on all sides for heat dissipation. The brackets accept M6 bolts. Do not use M5 as a shortcut. The threads on the bracket are tapped into aluminum and they will not tolerate mismatched bolts without cross-threading. Electrical termination — main power enters through the terminal block on the lower left. The manual specifies 24 VDC nominal with a wide allowable range. In practice I have seen units run fine at 21 volts and fail intermittently at 28 volts due to capacitor stress. The manual mentions the range but does not explain the stress curve. Read the footnote on page nine about input protection. Grounding — this is where people make mistakes. The chassis ground and signal ground are separate points. Connect them at a single star point near the power entry. If you bond them at the mount and at the terminal block you create a ground loop that shows up as noise on the communication line. I learned this after spending two days troubleshooting what I thought was a bad RS-485 transceiver.
Commissioning Steps
Power on without connecting communication lines first. Let the unit run for thirty seconds and check the status LED. Solid green means normal. Blinking green means it is in initialization mode, which is fine on first boot but indicates a fault if it persists past two minutes. Amber means a warning condition, usually thermal or input voltage out of range. Red is a hard fault and the unit will shut down. After the LED stabilizes, connect the communication cable. The manual uses a DB9 connector for RS-232 and an RJ45 port for Ethernet on newer revisions. Make sure the baud rate matches. Most installations default to 9600, but some vendors ship with 19200. Check the dip switch settings inside the compartment behind the terminal cover before you assume the software is broken. Run the built-in self-test from the menu. It takes about forty-five seconds and checks internal sensors, memory, and output stages. If the self-test fails, note the error code and stop. Do not try to recalibrate in the field. The manual has a calibration procedure but it requires equipment most people do not have sitting on the workbench.
Get the Full Details
Common Problems and Workarounds
The communication timeout error shows up frequently. Nine times out of ten it is a cabling issue, not a unit issue. Use shielded cable, terminate the shield at one end only, and keep the communication cable away from the power wiring by at least one hundred millimeters. I had a project where the tech ran the Ethernet cable through the same conduit as the 240 volt AC line and blamed the Gfc 500 for random packet loss. It was never the Gfc 500. Another issue is the unit refusing to hold its setpoint after a power cycle. The manual says the configuration is stored in non-volatile memory, which is true, but the default startup mode is manual on some firmware revisions. Check the startup behavior setting in the configuration menu. It should be set to last-known-value, not zero or manual. This caught me off guard on my second installation because the first unit had been customized by the previous technician. The thermal shutdown fault is often misdiagnosed as a sensor failure. Clean the heat sink fins and check that the fan is spinning. If the ambient temperature exceeds forty-five degrees Celsius the unit will derate output gradually before shutting down. The manual includes a derating curve on page twenty-two. Ignore it at your peril.
What the Manual Does Not Tell You
The documentation assumes you have a multimeter and a basic understanding of DC circuits. It does not cover what to do when the unit sits unused for several months. Capacitors degrade when left unpowered, and the manual does not mention a preservation procedure. I store spare units with a low-current trickle charger connected for about two hours every ninety days. It prevents the capacitors from losing their electrolytic properties. There is also no mention of firmware update rollback. If you push a new firmware image and it fails partway through, the unit may enter a boot loop. The manual suggests a hard reset, which sometimes works, but the reliable fix is to use the manufacturer recovery tool, which requires a specific USB cable and software that is not linked from the support page. You have to request it from sales. Warranty note — opening the chassis voids the warranty on most regions. The terminal cover removal for wiring does not, but if you remove the four screws on the main enclosure you are on your own. I keep a photo of the serial number sticker and the warranty card in a folder on my desktop. Claims go smoother when you can prove the serial matches the batch.
Quick Reference Values
- Input voltage: 24 VDC nominal, 18 to 30 volts acceptable
- Current draw at full load: approximately 2.1 amps
- Operating temperature: minus five to forty-five degrees Celsius
- Storage temperature: minus twenty to sixty degrees Celsius
- Baud rate defaults: 9600, verify before connecting
- Bolt torque for mounting: 2.5 newton meters
Keep these values somewhere accessible. The manual is thick and you will not want to dig through it while troubleshooting a live system at two in the morning. The Gfc 500 Installation Manual is adequate but not excellent. It has gaps in the troubleshooting section and the wiring diagrams are occasionally misleading due to revision mismatches. Print the current revision, highlight the sections you use most, and bookmark the errata page on the manufacturer site. New revisions fix some of the older errors but introduce new ones occasionally. The firmware changelog is more reliable than the manual update notes. I wish the manual included a laminated quick-reference card in the box. Something with the terminal layout, LED codes, and common error responses. Instead you get a glossy brochure and a paper manual that falls apart after the third fold. Make your own if you do multiple installations. A small notebook with the key values and phone numbers saves more time than any update the manufacturer could push.
The unit itself is solid once you get it configured. The firmware is stable, the build quality is reasonable for the price point, and it does exactly what it claims when the installation is done correctly. Most failures are installation failures, not unit failures. Read the manual, follow the grounding procedure, and verify your cabling before you declare the hardware defective.
