Working With the MZ66 When Something Breaks
The MZ66 is one of those older Grove booms that still shows up on job sites everywhere. It's a diesel-powered, vertical mast manlift with a roughly 66-foot working height, and when a seal goes or a cylinder starts drifting, you need the right part numbers fast. The parts manual is where you find them, but it's not laid out in a way that makes things easy for someone who hasn't used it before. I pulled one apart myself a few years back—swapping the outrigger cylinder seals on a machine that had been sitting outdoors for months. The manual I used was the factory-issued Grove MZ66 parts breakdown, and honestly, it's decent if you know how to read it. It's not like modern digital catalogs with cross-references and interactive diagrams. It's a printed-style document with exploded views and tabular part lists. You work with what's there.
Where to Find the Grove Manlift Parts Manual MZ66
Official copies tend to circulate through authorized Grove or Terex dealers, since Terex absorbed the Grove aerial products line back in the mid-2000s. Your local dealer should be able to pull the current version for you if you give them the serial number. That matters because Grove changed some component suppliers around 2003 to 2005, and parts that look identical can have different numbers depending on when your machine was built. There are also a number of third-party sites that host scanned PDFs of the manual. Search terms like Grove MZ66 parts manual PDF or Grove boom lift parts catalog MZ66 will turn up a handful of results. Some of those scans are crisp, some are barely legible. I'd recommend checking the quality before you commit to using it for ordering. A blurred part number can mean ordering the wrong seal kit and waiting two weeks for a return exchange. If you're working through a dealer, ask for the revision date on the manual. The most useful revisions are the ones that include the late-model component changes, especially for the hydraulic system. The early printings list some hoses and fittings that were superseded later.
How the Manual Is Organized

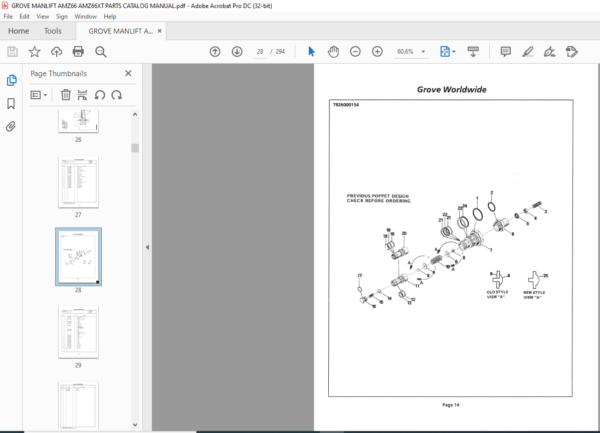

The MZ66 parts manual is divided into sections by major assembly. You'll typically find sections covering the carrier or undercarriage, the boom structure, the rotation platform, the hydraulic power unit, the control system, and the outrigger assemblies. Each section has exploded diagrams followed by a parts list table. The tables include part numbers, descriptions, quantities, and sometimes cross-reference numbers to earlier or later part numbers. The exploded views are the main value here. They show you how components fit together and which hardware goes where. But they're not always perfectly aligned with the text tables, and occasionally a fastener or a shim is shown in the diagram but omitted from the parts list. I've seen this happen with the boom pivot pin retainers on certain serial ranges. If a part looks like it should be there and isn't listed, check the service manual instead. The service manual has more detail on those borderline items. One thing the manual doesn't do well is group parts by function or system in a way that helps you troubleshoot. It's organized by physical assembly, not by hydraulic circuit or electrical system. So if you're trying to find all the parts related to the tilt correction circuit, you'll need to flip between the platform section and the power unit section. It's not ideal, but it's what you get with a parts-only document.
Get the Full Details
Using the Manual to Order Parts
When you're ordering, always write down the machine serial number alongside every part number you pull from the manual. Grove and Terex both maintain serial-specific parts lists, and a part number that was valid for serial 45000 might not apply to serial 52000. The manual itself won't always call this out clearly. The dealer's parts system will, but only if you provide the serial number upfront. I learned this the hard way on a drive cylinder rebuild. The manual listed a specific cylinder assembly number, and I ordered it based on the diagram alone. When it arrived, it didn't match the mounting configuration on my machine. The serial number on my unit fell in a range where Grove had switched to a different cylinder brand with slightly different mounting brackets. The part was functionally correct but physically incompatible. Swapping it cost me a week of downtime and a return shipping charge. After that, I started verifying every critical part against the serial number before placing orders. It adds maybe ten minutes to the process, but it prevents the kind of delay that really hurts on a jobsite.
Common Parts People Look For
The most frequently ordered parts for the MZ66 tend to fall into a few categories. Hydraulic cylinder seal kits are near the top—especially for the boom lift cylinder and the outrigger extend cylinders. These see the most wear because they're exposed to environmental contamination on outdoor sites. If you're seeing slow drift or external weeping, a seal kit is usually the first thing to check. Second are the slew ring bearings and related hardware. The rotation assembly on the MZ66 carries a lot of cyclic load, and the slew ring is a wear item. You'll know it's time to inspect it when you start feeling play in the platform or hearing grinding during rotation. The parts manual will list the bearing assembly number, the bolt torque specs, and the tightening sequence. Follow the sequence. These bolts are torqued to a specific pattern, and doing it in any other order can distort the ring and cause premature failure. Third are the electrical connectors and solenoid valves in the control circuit. The MZ66 uses a mix of mechanical controls and hydraulic solenoids, and the solenoid valves on the control manifold are known to fail intermittently. When a function becomes erratic—say the boom lifts only partway before stalling—the solenoid is a likely culprit. The parts manual will show you the valve assembly number and the individual coil and spool part numbers if you need to replace just one component rather than the whole valve.
Limitations of the Manual
The biggest limitation is that the parts manual is static. It doesn't account for field modifications or aftermarket additions that many owners make over the life of the machine. If someone has welded a custom bracket onto the platform or installed an after-market auxiliary hydraulic circuit, the manual won't reference any of that. You'll need to physically inspect the machine and compare it against the diagrams to figure out what's original and what's been added. Another limitation is that some sub-assemblies are listed as complete assemblies only. If you need a single O-ring inside a valve block, the manual might only list the valve block as a whole unit. In those cases, you need the service manual or a schematic to break the assembly down further. The parts manual alone won't help you there. Also, the manual doesn't include torque specifications for every fastener. Some are listed in the service manual, some are standard metric values you'd need to look up separately. Don't guess on the critical structural bolts—boom pins, slew ring fasteners, carrier frame joints. Get the specs from the service manual or confirm with the dealer.
A Practical Workflow
Here's how I approach it when I'm working on an MZ66. I start by looking at the symptom and identifying which assembly is involved. Then I go to the corresponding section in the parts manual and trace the components down to the part level. I note the part number and the serial number range it applies to. Next, I check the service manual for any additional details—torque specs, replacement procedures, known issues for that serial range. Finally, I verify everything with the dealer's parts system using the machine's serial number before placing the order. This process takes me about 20 to 30 minutes for a standard repair. Ordering by guessing from the manual alone might save ten minutes but risks getting the wrong part, which costs hours or days in correction. The extra time upfront pays for itself quickly. Keep the manual somewhere accessible on site. A lot of people treat it as reference-only and leave it in the office. But when a machine is down and the crew is waiting, having it on hand with a highlighter and a notepad makes the difference between a quick fix and a half-day of figuring things out from scratch.
