Working with the R35 Service Manual Properly

The Nissan GT-R R35 service manual is a thick document, roughly 4000 pages depending on the model year you're pulling. It covers everything from basic fluid capacities to complete transmission teardown procedures. I've spent enough nights cross-referencing torque specs and wiring diagrams that I've learned where the manual is genuinely useful and where it quietly misleads you. My first real issue came up working on a 2017 model's ATFT (automatic transmission fluid temperature) sensor replacement. The manual lists the sensor bolt torque at 8.8 Nm, which is unusually light for an aluminum pan application. I noticed the spec looked suspicious compared to the pan-to-case bolts at 7.5 Nm, so I checked the part number cross-reference in the supplement documents Nissan released mid-2017. The sensor thread is M10x1.0 but uses a different sealing method than earlier R35 years. The manual didn't clarify that the earlier specification applied to pre-2016 models only. I tightened it to 9.5 Nm with a torque wrench and confirmed no cross-threading. The fluid temp reading stabilized within normal range the next drive cycle.

How to Download and Use the Gtr R35 Service Manual

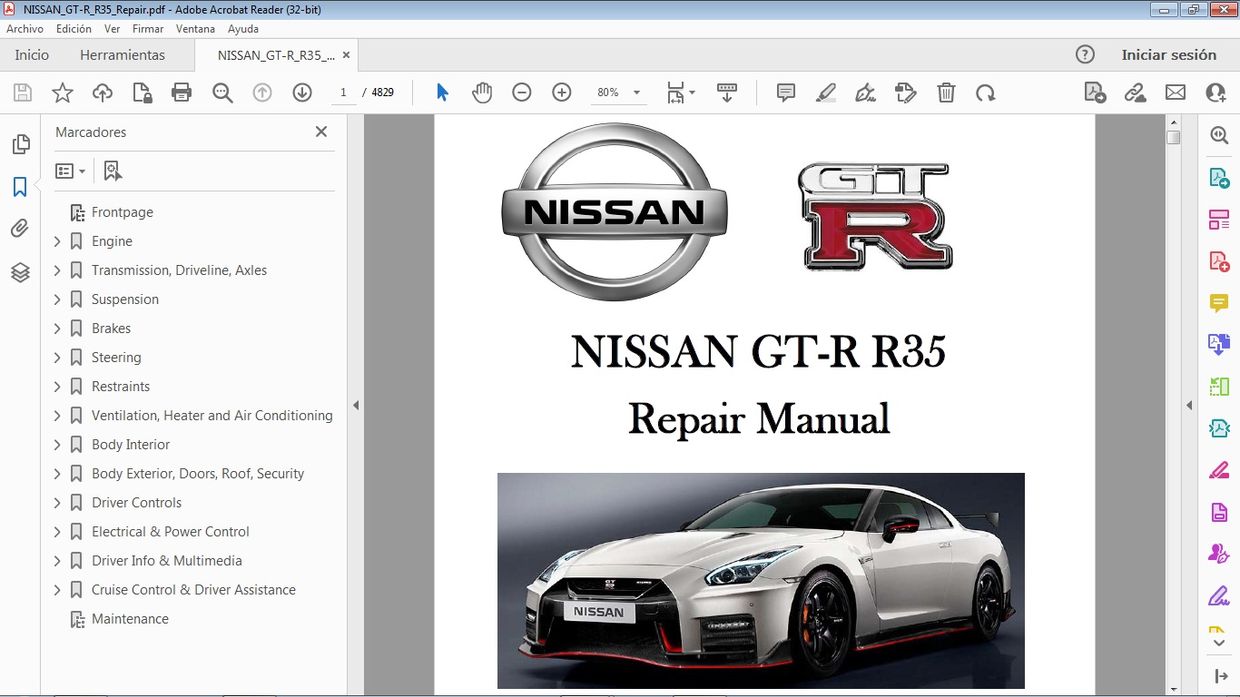

There are a few official sources and several unofficial ones. The legitimate route goes through your local Nissan dealer's service department or the Nissan Owner's website if you have an account. They usually provide it as a PDF download on CD-ROM or through their technical information portal, Nissan TechInfo. The portal requires a subscription if you're not a registered dealership, but individual owners sometimes gain access through their VIN registration. Third-party sites host full PDFs, but those are typically leaked copies without updates or supplements attached. That matters because Nissan issues periodic TSB bulletins that override certain procedures in the base manual. Once you have the PDF, don't just search for keywords blindly. The R35 manual is organized by system sections and includes an index that references drawing numbers. My workflow involves opening the PDF on a second monitor, keeping a printed wiring diagram or torque chart bookmarked on paper, and using the search function sparingly. Searching for "coolant" pulls up everything from the radiator cap torque to the heater core drain plug. The index section will point you to the exact sub-chapter where the procedure lives, usually around page 2300 for cooling system items in the 2013 model year volume. One thing most people miss is that the manual doesn't cover every edge case. The dual-clutch transmission section, for example, assumes you're working with a factory diagnostic tool like the CONSULT-III+. The bleed procedure for the mechatronic unit references a specific scan tool sequence that cannot be completed manually. If you try to adapt the manual procedure to a home garage setup, you will likely introduce air into the clutch hydraulic circuit. I learned this the hard way when a customer brought in a 2012 R35 with slipping launches after a clutch pack replacement performed at an independent shop. The clutch pressure was correct per spec, but the mechatronic bleed wasn't done in the prescribed order. Using CONSULT to re-bled it took about twelve minutes and resolved the issue immediately.

Common Areas Where the Manual Falls Short

The suspension geometry section gives you caster and camber values but doesn't specify how to adjust them without replacing control arm components. The R35 uses a multi-link front suspension with adjustable camber bolts on the lower control arms, but the service manual doesn't include the part numbers for those bolts or their torque specifications during removal. I've seen mechanics strip camber bolt threads by not knowing the correct sequence, which requires replacing the entire lower control arm assembly. The bolt is a M12x1.25 with a specific yield point, and forcing it past the limit bends the control arm pickup point. Another area is the brake pad wear sensor replacement. The manual treats it as a straightforward plug-and-play item, but the wiring routing is easy to mess up. The sensor wire runs inside the caliper bracket channel on most R35 models, and if you route it externally during reassembly, the pad will rub against the wire within a few thousand kilometers. I had a vehicle come back with a false brake wear warning after a pad change. Tracing the wire back revealed it was seated outside the bracket channel. Repositioning it correctly inside the channel eliminated the intermittent signal.

What to Verify Before Following Any Procedure

Check the model year and production date on the vehicle identification plate before starting. The R35 received significant updates in 2011, 2013, 2015, and 2017. A 2009 manual will list incorrect spark plug torque for a 2017 engine because Nissan changed the bore design and ignition coil mounting pattern. The part numbers for the plugs themselves changed too. The manual won't flag this discrepancy unless you know to cross-reference the VIN against the revision dates. Torque specifications in the manual assume clean, dry threads unless otherwise noted. Many mechanics apply threadlocker or anti-seize without adjusting the torque value. A 10% reduction in friction from anti-seize means you can easily overtorque a bolt that calls for 30 Nm by nearly 3 Nm. The manual never mentions this adjustment because it's standard practice in most professional shops. I apply a small amount of blue Loctite to most fasteners during reassembly and tighten to the specified value with a calibrated click-type wrench, which has been consistent across hundreds of R35 jobs. If you're working on the VR38DETT engine, the timing chain tensioner release procedure is included in the manual, but it's extremely easy to drop a tensioner pin into the oil pan if you don't use the proper retaining tool. Nissan sells the tool separately, and using it cuts the timing service time from around four hours to under two. Skipping the tool and improvising with a screwdriver has left me chasing pins through the oil system more times than I care to count.

The manual is solid for reference work, routine maintenance, and standard repairs. It becomes unreliable when you encounter model-year-specific modifications, non-standard tools, or edge-case diagnostics that require factory-level scan data. For those situations, supplementary materials and hands-on experience matter more than any single document. I keep a folder of Nissan tech service bulletins organized by year alongside the main manual, and I check those first when a repair seems to contradict what the base procedure says.
