Understanding Your Hampton Bay Landscape Lighting Transformer
Most people buying a Hampton Bay transformer from Home Depot just want to hook it up and forget about it. The problem is these things are simple but finicky if you don't know what you're doing. The manual is basically a one-page diagram with some warnings, which isn't nearly enough information for the actual problems that show up. I've dealt with more of these than I care to count, mostly in my own rental properties and a few times helping neighbors who'd already started digging trenches for fixes. The official manual typically runs about three pages. It covers the basics: turning the switch to automatic or manual, setting the timer, adjusting the light sensor, and connecting your low-voltage wires to the terminal block. That's it. What they don't tell you is that the photoelectric cell on most models tends to drift after a year or two, causing lights to stay on during the day or never turn on at night. You can buy replacement sensors for around twelve dollars, or you can bypass it entirely and wire the transformer directly to the timer circuit. The terminal block uses screw-down connections for the low-voltage side and quick-connect tabs for the line voltage input. Here's where beginners mess up: they treat the screw terminals like they're on a high-voltage panel. They're not. These are soft connections, maybe two amps per screw. Strip about a quarter inch of insulation, insert the wire, and snug it down. Don't torque them like you're mounting a breaker. Over-tightening cracks the terminal block housing on these units, and that's when water gets inside and everything shorts out.
Common Problems and What Actually Works
The single most common issue I see is the transformer humming or clicking repeatedly. Usually this means the internal relay is failing. On my own unit last fall, I noticed it was cycling on and off every thirty seconds like a broken metronome. The lights would flash in unison, then go dark, then repeat. I traced it to the relay contacts pitting from arcing over time. The fix wasn't replacing the transformer, which costs between forty and eighty dollars depending on the model. I opened the case, cleaned the relay contacts with contact cleaner and a small piece of sandpaper, and it's been running fine for two years since. The whole thing took about ten minutes. Another issue is the timer not advancing. The mechanical timers on older Hampton Bay models use a small synchronous motor that runs off the line voltage. If the lights don't turn on at the scheduled time, check whether the timer dial is actually moving. Sometimes the gear train inside strips, especially if someone forced it while advancing the settings. I found a used replacement timer assembly on eBay for eighteen dollars once. Before ordering parts though, make sure the problem isn't just the fuse. There's a resettable thermal fuse inside that trips if the transformer overheats, usually from running too many watts near the maximum rating. Pull the cover, locate the fuse on the primary side, and test it with a multimeter for continuity.
Wiring Guidelines That Matter
The manual tells you to keep wire runs under one hundred feet for twenty-one gauge wire. That's accurate but incomplete. If you're running wire past that distance, you need to either step up to eighteen gauge or use a multi-zone setup with individual transformers. Voltage drop is what kills these systems, not the transformer itself. You'll notice the lights at the end of your run are noticeably dimmer than the ones closest to the transformer. That's not a defect, that's physics. A half volt drop across a long run of thin wire makes a real difference with LED fixtures compared to older halogen bulbs. When connecting wire to the terminal block, use ring terminals or fork terminals if you're running multiple strands to the same screw. The manual shows bare wire inserted directly, but that's a recipe for a poor connection after a few thermal cycles from expansion and contraction. Ring terminals keep the connection solid and make future troubleshooting a lot easier.
Get the Full Details
Downsides You Should Know About
Hampton Bay transformers are adequate for basic residential landscape lighting but they have real limitations. The build quality is budget tier, which is expected at the price point. The weatherproof enclosure is decent but the gasket degrades over time, especially in direct sunlight. I've seen units where UV exposure made the rubber seal brittle within three years, letting moisture in during heavy rain. Replacing the gasket is possible but tedious because it's glued in place. The automatic photocell is another weak point. It's not adjustable in sensitivity, so if you have nearby artificial lighting like a porch light or street lamp shining on the sensor, the transformer won't turn off at dusk. You can shade the sensor with a small piece of electrical tape, but that reduces its effectiveness at detecting darkness too. I ended up replacing the photocell with a hardwired smart plug on a couple of my setups, which gives me full scheduling control through my home automation system and eliminates the sensor problem entirely. If you're doing a larger installation with more than twenty or thirty lights, I'd recommend looking at a higher-grade transformer from a dedicated landscape lighting company. The Hampton Bay units work fine for small yards with a handful of path lights, but they start showing their limits when you push them toward capacity.

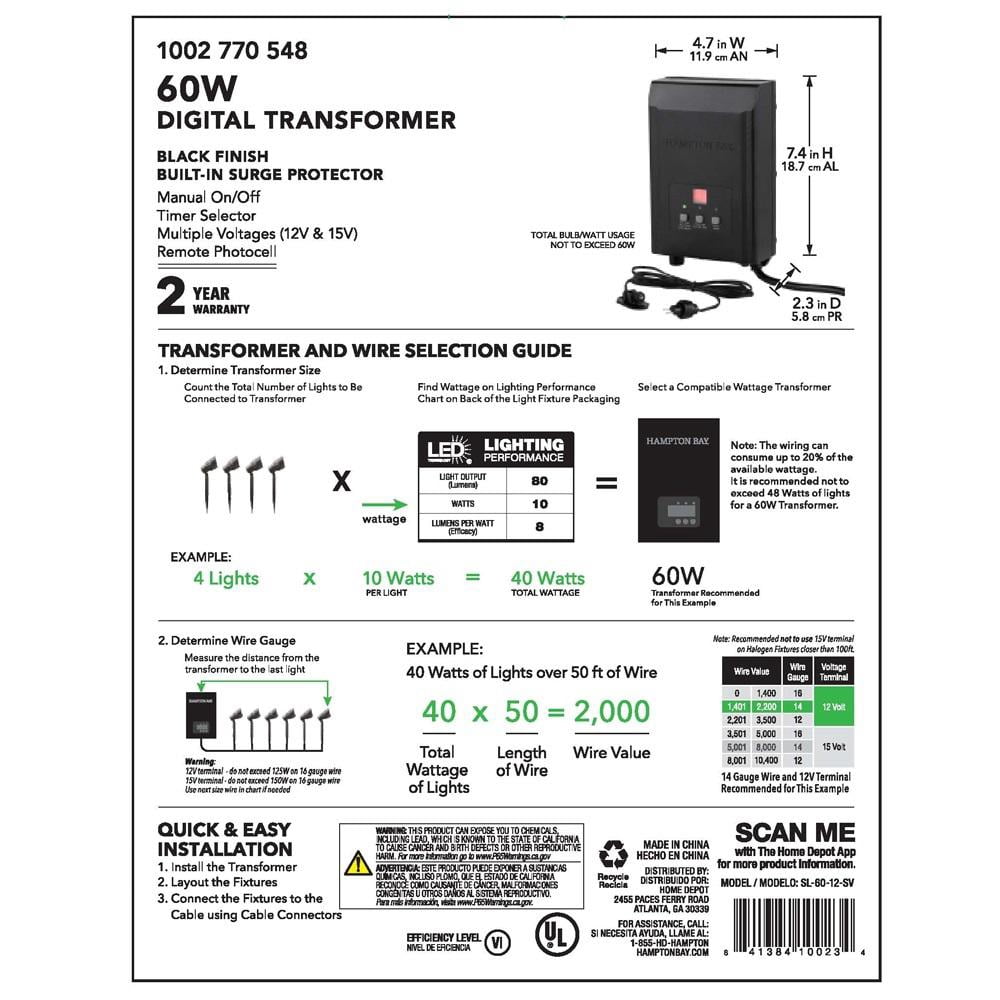

Hampton Bay Transformer Manual Download and Model Numbers
The manual varies by model number, which is printed on the label inside the enclosure. Common models include the HBTL1224, HBTL500, and HBTL750 series. The model number determines the wattage rating and whether it includes a timer. You can usually find the PDF manual on the Home Depot website by searching the model number, or on third-party sites like ManualsLib. Sometimes Home Depot's own page lists a different manual than what came with your unit, especially if they updated the design without changing the model number. The label inside will also show the input voltage and maximum wattage. Don't exceed the rated wattage. These transformers have thermal protection but it's not infinite. Running them at or near capacity constantly will shorten their life significantly. A twenty percent margin above your total load is a reasonable target. If you're stuck on a specific issue with your transformer and can't find the right manual, post the model number and a description of what's happening. The solutions are usually straightforward once you know where to look.
