Working On Your S10's Heating And Cooling System
The Chevy S10 HVAC system spans multiple generations and engine families, which makes finding one definitive manual nearly impossible. You're looking at a system that varies significantly between the 1982 to 1993 first generation and the 1994 to 2004 second generation, and even within those generations there are differences depending on whether you have the base 2.2-liter four-cylinder, the 2.5-liter four, or one of the V6 options. The manual you need depends heavily on your specific year, engine, and whether your truck came with manual climate controls or the more complicated automatic HVAC system that GM called Tri-Zone in some applications. Official service manuals for the S10 came out through GM as shop manuals, and those are still the most accurate source material available. Haynes and Chilton also published S10-specific guides that cover HVAC removal and replacement fairly well, though they tend to gloss over electrical troubleshooting. If you want free information, GM's official technical service bulletins from the 1990s and early 2000s are searchable through several databases, and some of them address recurring HVAC failures that are not documented in any retail manual. The General Motors Service Manual downloadable versions for your specific VIN year are worth looking into if you can find them, since they include wiring diagrams that aftermarket manuals typically omit. The S10 heater system uses a standard layout: coolant runs through the heater core, which sits inside the HVAC housing on the passenger side of the firewall. A blend door controls how much air passes through the core versus bypassing it entirely. The AC system runs from the compressor on the engine, through the accumulator or receiver drier, condenser in front of the radiator, and then through the evaporator core inside that same passenger-side housing. The blower motor pushes air across both cores depending on your control selections.

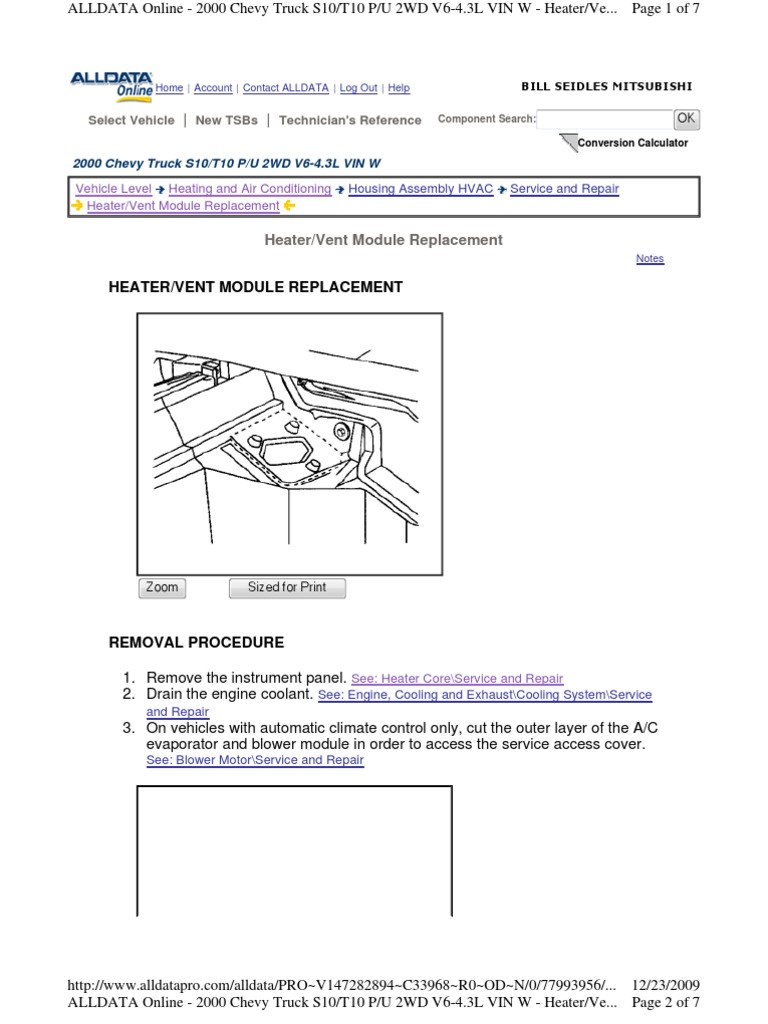

One thing most people miss is that the S10 HVAC housing is a single assembly bolted to the firewall. To get to the evaporator core, you have to remove the entire housing from the vehicle, disassemble it on the bench, and replace the evaporator separately from the heater core. This is not intuitive and it is not well documented in many manuals. I spent an afternoon trying to figure out why my evaporator was leaking before realizing the service manual diagram showed a bolt pattern I couldn't access without dropping the whole assembly. Removing the housing takes the dash panel screws, the HVAC-to-firewall bolts, and usually the defroster ductwork. It is a two-hour job with basic hand tools if you go slow and label everything as you go.
Common Failure Points That Manuals Don't Emphasize
The blend door actuators on first-generation S10s are plastic gears housed in small electric motors that fail repeatedly. When yours goes bad, you get no heat or no cold depending on which position the stuck door settles into. The actuator itself is bolted to the outside of the HVAC housing and is accessible without full removal in most cases, but the screws strip easily. I recommend using a magnetic tip screwdriver and replacing the actuator with an updated version if you can find one, since the original GM part still uses the same cheap plastic gears. Second-generation models had the same issue but with a different mounting pattern. The heater core itself is prone to clogging from stopped cooling system maintenance. If your heater blows cool air at idle but warms up when you rev the engine, the core is partially blocked. Flushing it through the heater hoses with a garden hose can sometimes restore flow, but if the core is severely corroded internally, replacement is the only fix. The replacement process requires draining the coolant, disconnecting the two small hoses at the firewall, removing the four retaining nuts on the heater core housing inside the engine bay, and lifting the core out from underneath the truck. It is straightforward but messy and takes roughly forty-five minutes.
Get the Full Details
Electrical Troubleshooting That Actually Matters

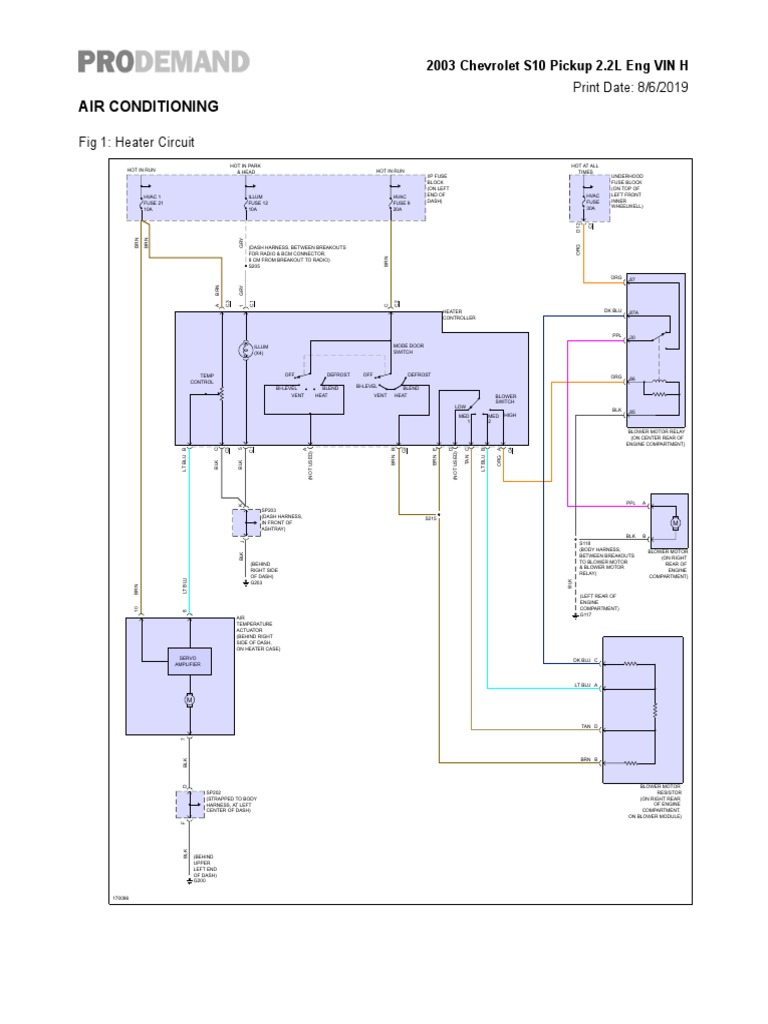

The blower motor circuit on the S10 runs through a resistor pack mounted near the blower housing under the dash on the passenger side. When the resistor fails, you typically lose all speeds except high, which bypasses the resistor entirely. Testing is simple: check for power at the blower motor connector with the switch on, then check voltage drop across the resistor pack at each speed position. If you have power at the motor but it won't run, the motor itself is dead. If you have no power at the resistor output, the switch or wiring upstream is the problem. The resistor packs fail at a predictable rate around 100,000 to 150,000 miles, so if you are doing HVAC work and the truck has that mileage, replace it preemptively. AC compressor clutch engagement is controlled through the pressure switches and the climate control module or manual switches depending on your setup. If your AC compressor will not engage, check the low-pressure switch first. It is located on the accumulator tank on the passenger side frame rail. Disconnect the electrical connector and jump it with a paperclip to see if the clutch engages. If it does, the switch is faulty or the system is low on refrigerant. If it still won't engage, the problem is upstream in the wiring or the clutch coil itself. I had a truck where the clutch engaged only when I wiggled the connector at the pressure switch, which turned out to be a corroded terminal inside the plastic housing. Cleaning the terminals with contact cleaner fixed it temporarily, but replacing the switch was the permanent solution.
Refrigerant Handling And System Recharging
The S10 used R12 refrigerant in all first-generation models and switched to R134a in 1994 and later. This matters enormously because the oils are incompatible and the service fittings are different. If you are working on a pre-1994 truck that has been retrofitted to R134a, check the service port covers and the accumulator label to confirm what the system actually contains. Running R134a through R12 fittings will damage seals and cause leaks. The charging procedure is standard for any automotive AC system: evacuate the system with a proper recovery machine, pull a vacuum for at least thirty minutes, then charge by weight using the specification sticker under the hood. Do not charge by pressure alone, especially in humid conditions, because the readings will be misleading. No printed or digital manual covers every variation that exists in the real world. The S10 was built at multiple plants, had numerous option packages, and ran through many model years with incremental changes that are not always documented. A manual might show a component location that differs by a few inches depending on whether your truck has air conditioning, power steering, or a different engine. Wiring colors can vary between model years even within the same generation. If you are relying solely on a manual without cross-referencing your actual vehicle, you will make mistakes. Always verify component locations against your specific truck before ordering parts or starting disassembly. The most useful single resource I found for my own S10 work was a combination of the GM shop manual for the specific year, the wiring diagram supplement, and a set of factory service bulletins relevant to the symptom I was dealing with. Those bulletins addressed issues like blend door actuator failures and AC pressure switch problems that were not covered adequately in the standard manual. If you are serious about this work, invest in the GM service information subscription or find a scanned copy of the year-specific shop manual online. The Haynes manual is adequate for basic mechanical work but will leave you guessing on electrical diagnostics.
