Measuring Heat Capacity In Practice

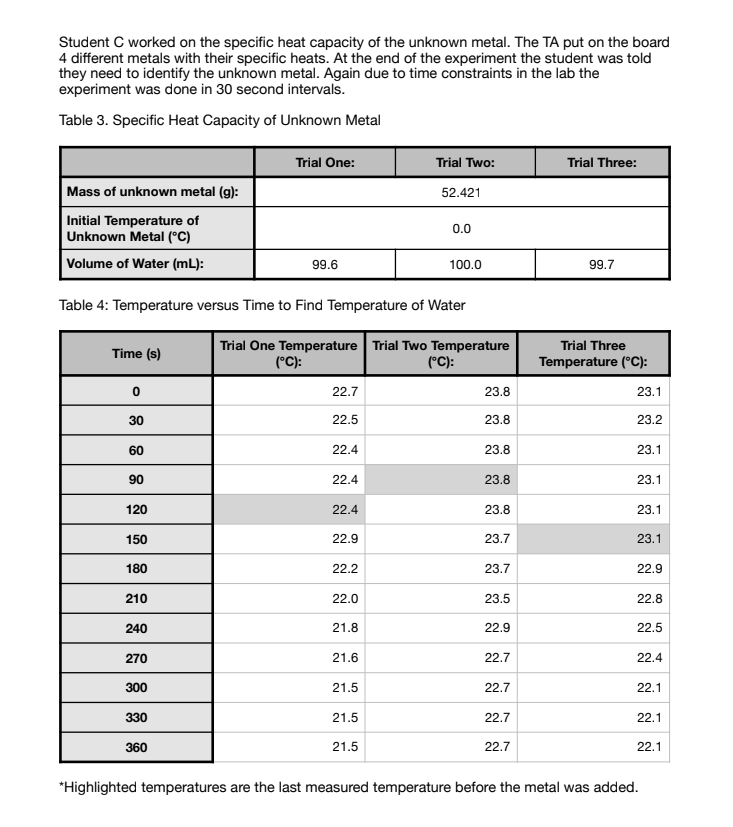

The most common way people actually get this number is through a differential scanning calorimeter, but you don't always need one. I ran a simple setup once using an insulated cup, a thermocouple, and a known mass of aluminum shot. You heat the aluminum to a stable temperature, drop it into water at a known temperature, and watch the equilibrium. From there you back-calculate the heat capacity using conservation of energy. The trick is getting all the heat to transfer before you stop logging. I once lost about 12% of my data because the cup wasn't sealed well enough during the swap, and the ambient draft from the HVAC kicking on made things worse. Wrap the whole thing in a towel, seal the lid, and wait at least twice as long as you think you need to before reading the final temperature. The value most people look up is around 0.897 J/g·K at room temperature. That number is solid for 99.9% pure aluminum near 25°C, but it shifts depending on alloy composition and temperature range. I spent months characterizing different aluminum alloys for a thermal management project and learned pretty quickly that the standard textbook number doesn't apply cleanly across the board. 6061, for example, runs slightly lower due to the magnesium and silicon additions. 1100 commercial purity aluminum tracks closer to the pure value. If you're doing precise work, you need to know what alloy you have and whether the datasheet is even referring to the same temperature range. The mass-specific heat capacity is what engineers usually care about, but sometimes volumetric heat capacity matters more. Multiply by density and you get about 2.43 MJ/m³·K for pure aluminum. That's useful when you're sizing a heat sink and the geometry is fixed. You can't just swap in a lighter material without recalculating everything. One of the more annoying things I've dealt with is thermal conductivity coupling into your measurements. Aluminum conducts heat so fast that temperature gradients inside your sample can cause problems in certain testing setups. If your sample is thick and your heating rate is aggressive, the surface reads a different temperature than the core during a DSC run, and your result drifts. Slow ramp rates fix this, but they also lengthen the test. Usually 2 to 5 K/min is a reasonable compromise for most work.
There's another pitfall with temperature-dependent heat capacity that catches people off guard. The value changes noticeably as you move away from room temperature. Near 100°C it drops slightly, and the trend continues upward through about 500°C before plateaus. Some simulation tools use a single constant and it works fine for rough estimates, but if you're modeling something like a brake rotor or a soldering process where temperatures swing wildly, that constant assumption introduces real error. I had a thermal simulation fail to match experimental data until I realized I'd fed in a 25°C heat capacity value and the part was actually cycling between 150 and 350°C during operation. Plugging in a temperature-dependent function from a materials database fixed the discrepancy immediately. Alloys add another layer of complication. The addition of copper, zinc, magnesium, or silicon changes the specific heat capacity. Most engineering alloys stay within about ±5% of pure aluminum's value, but precision applications can't ignore that gap. If you're designing for thermal buffering where every joule counts, check the supplier's datasheet instead of defaulting to the generic number. Some suppliers provide Cp curves; others only list a single value at room temperature, which may or may not be accurate for your temperature range. Phase transitions in aluminum are worth noting even though they happen far above normal operating conditions. Melting occurs at 660°C, and the latent heat of fusion is about 398 J/g. That's separate from heat capacity but often confused when people read raw material tables. You won't hit this in any everyday application, but if you're doing casting simulation or high-temperature process work, dropping the latent heat into your model is necessary for accurate results.
A practical edge case I encountered involved using aluminum as a reference standard in a calorimetry lab. The standard reference material for DSC calibration is sapphire, not aluminum, but some older protocols used high-purity aluminum because it's cheap and readily available. The problem was that aluminum oxidizes on the surface over time, and that oxide layer added a small but measurable amount of mass that wasn't participating in the same thermal behavior as the bulk metal. This skewed calibration at the sub-millijoule level. I solved it by cleaning the surface mechanically before each use and storing the samples in a desiccator. It didn't eliminate the issue entirely but brought repeatability within acceptable bounds for our work. One thing beginners often miss is that specific heat capacity assumes constant pressure for solids and liquids, which is a safe assumption at normal conditions, but it matters when you're dealing with pressurized systems. The difference between Cp and Cv for aluminum is tiny at room pressure but becomes relevant in high-pressure environments like powder metallurgy or certain manufacturing processes. The gap is small enough that most people never bother distinguishing them, but if you're working in a field where pressure changes significantly, it's worth knowing the distinction exists.
Get the Full Details
