Working With Heat Pump Manuals and Parts Lists
What Goes Into a Proper Heat Pump Technical Manual Parts List

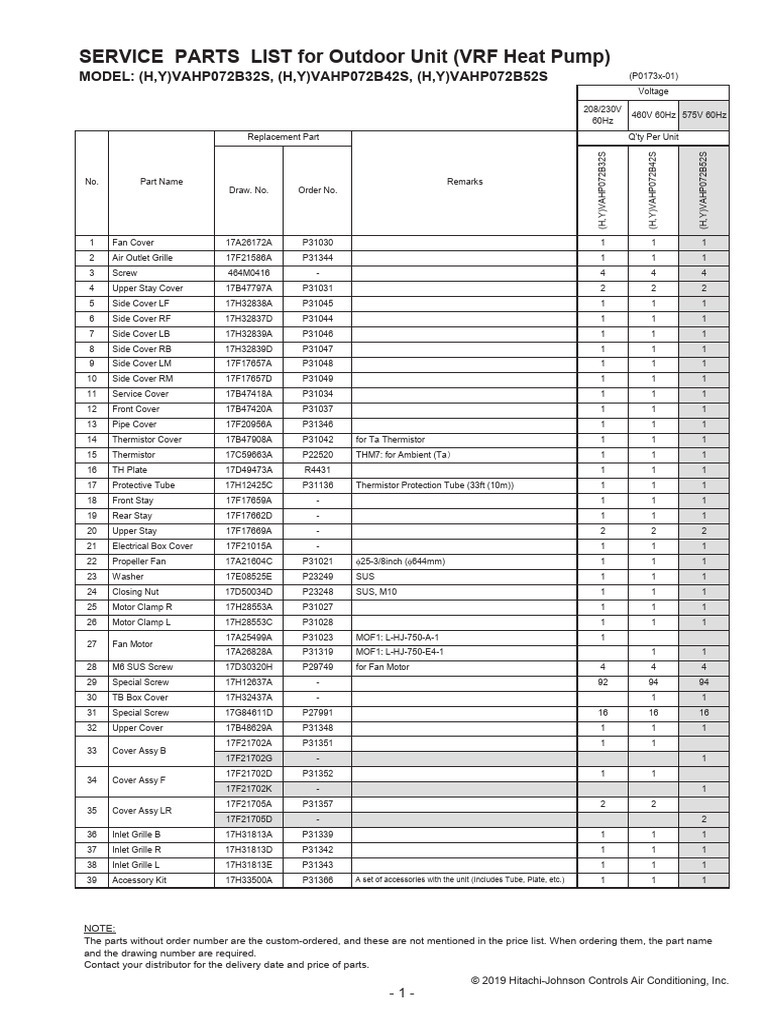

A parts list in a heat pump manual is not an inventory catalog. It is a reference document that ties a specific model number to every replaceable component the manufacturer considers serviceable. You will find it broken into sections — indoor unit, outdoor unit, electrical board, refrigerant circuit, controls, and sometimes a separate sub-list for optional accessories. The structure itself tells you something most technicians ignore. If a part appears in the exploded diagram but not in the parts list, it is either not replaceable individually or it ships pre-assembled as a module. I spent two hours once looking for a bracket that was glued during manufacturing. The diagram showed it. The parts list did not. It was not sold separately. That took a while to figure out. Your first step should be locating the correct manual for your exact model and serial number range. Manufacturers change parts mid-production run. A 2021 indoor coil assembly may share the same part number across three model families, but the controller firmware revision can dictate which sensor kit is compatible. The serial number matters more than the model number here. Always check the date code on the data plate against the revision notes in the manual's appendix if one exists.
How to Read the Parts List Efficiently
Start with the refrigerant section. The compressor, electronic expansion valve, and four-way reversing valve are the highest-cost items and the ones most likely to be substituted with aftermarket alternatives. The OEM part number in the manual will usually include a suffix code that indicates material changes or process revisions. A -B suffix does not mean better. It means the part went through a second revision. Sometimes that revision fixed a known leak path. Sometimes it changed a gasket material because the first one failed in cold climates. You need the revision note to know which. Move to the electrical section next. The main control board, display board, and sensor assemblies have part numbers that are completely independent between indoor and outdoor units. I once ordered an outdoor board using only the model number and got a board that fit physically but was coded for a different refrigerant charge. The heat pump ran, but the superheat targets were wrong. The submittal sheet inside the manual did not flag this — it was buried in a cross-reference table on page forty-seven. You have to actually read that table instead of assuming part interchangeability based on. The sensor section is where people waste the most money. The discharge temperature sensor, the line temperature sensor, the ambient sensor, and the defrost sensor all look identical on the shelf. They have different resistance curves. A 10K thermistor at 25°C is not interchangeable with a 5K thermistor at the same temperature even if the connectors match. The parts list will show the resistance value and tolerance. Write it down before you order anything.
Download and Source the Correct Manual
Most manufacturers host their manuals on their technician portal rather than their consumer website. You will need a contractor account. Daikin, Mitsubishi Electric, Samsung, LG, and Trane all require separate registration. The parts list PDF is usually linked from the troubleshooting section, not the installation guide. If you search the site directly for your model number plus "parts list" or "service manual," you will typically find it within the first three results. Some brands like Mitsubishi and Daikin put the exploded diagrams in a separate file from the written parts breakdown. Download both. They sometimes use different numbering systems. Third-party parts sites aggregate these lists, but they are often weeks or months behind the manufacturer's revision. If a part has been superseded, the aftermarket listing may still show the old number. Cross-reference everything against the manual before placing an order. I had a job last year where a supplier's website listed a fan motor as compatible with a Fujitsu model. The manual showed the motor had a different shaft diameter and the mounting holes were two millimeters off. The old number was still live on their site. Took three days to get the right one.
Get the Full Details
Common Mistakes and Where the Process Breaks Down
The biggest issue is assuming the parts list covers everything you might need. It does not. Consumables like O-rings, flare nuts, and pipe insulation are sometimes listed in an installation manual but omitted from the parts breakdown. You will find yourself at the store buying a box of 5/8-inch O-rings when the manual actually calls for a specific size and material that the distributor keeps in a different section. Check the installation torque specs and the flare nut specifications early. They are rarely in the same PDF. Another blind spot is the refrigerant line set. The parts list will show the service valve cores and dust caps. It will not typically include the copper tubing or vacuum port fittings because those are considered field-supplied materials. If you are doing a full system replacement, you need to source the line set separately. The manual's specification section will tell you the required tubing diameter and wall thickness for your model's capacity. Use that, not the old line set dimensions, because newer models with variable-speed compressors sometimes require different sizing than their predecessors. The defrost board and relay are another area where people get burned. The parts list may show a single defrost timer part number, but the actual component on the board is a solid-state relay that fails more often than the timer itself. Replacing the whole board when a $4 relay is bad is common but unnecessary if you can identify the relay part number from the board silkscreen and order it directly. The manual will not help you with this. You need the board photo and the relay marking code. I keep a folder of common board layouts and relay part numbers from past jobs. It saves me from replacing $200 boards regularly.
When the Parts List Does Not Help
Sometimes the manual is simply outdated. Manufacturers issue field service bulletins that change part numbers without updating the publicly available manual. If a part you ordered does not fit or the replacement does not resolve the issue, check for a service bulletin. The manufacturer's tech support line can pull this information if you give them the serial number and the part number in question. This step takes time and you will be on hold for twenty minutes minimum, but it is faster than ordering the wrong replacement twice. Another scenario is aftermarket or generic replacements. Some third-party parts are functionally equivalent but have different part numbers across distributors. The heat pump will work fine with a generic compressor contactor from Amazon, but the installer who comes after you will not be able to find it in the OEM manual. This is a real problem for resale or warranty work. If the unit is under manufacturer warranty, use only OEM parts and document everything. The labor coverage is often voided if non-OEM components are installed and a subsequent failure occurs. For older units past their useful warranty window, the cost-benefit analysis shifts. A parts list for a twelve-year-old unit may show components that are no longer manufactured. In those cases, the workaround is usually adapting a compatible part from a similar capacity model within the same brand family. The manual's cross-reference section at the back is the only reliable place to start. If it is not there, you are into engineering judgment territory and should document the substitution thoroughly for the next technician.
A Practical Workflow
Here is the sequence I use now instead of the one I used to waste time on for the first five years of my career. Identify the exact model and serial number. Pull the latest service manual from the manufacturer portal. Open the parts list PDF and the exploded diagram PDF side by side. Note any suffix changes on high-cost components. Cross-reference with the current distributor's inventory. Check for service bulletins affecting those part numbers. Order the parts. If anything does not match physically or electrically, stop and re-check the serial range before proceeding further. This process takes about fifteen minutes for a standard residential unit and about forty-five minutes for a commercial variable-refrigerant-flow system. The manual is a starting point, not a complete guide. The real knowledge is in the revision notes, the cross-reference tables, and the bulletin archives. Most of the cost overruns and delays I have seen on heat pump service calls trace back to skipping those three things and treating the parts list as the final word.
