Hhmi Photosynthesis Worksheet Answer Key

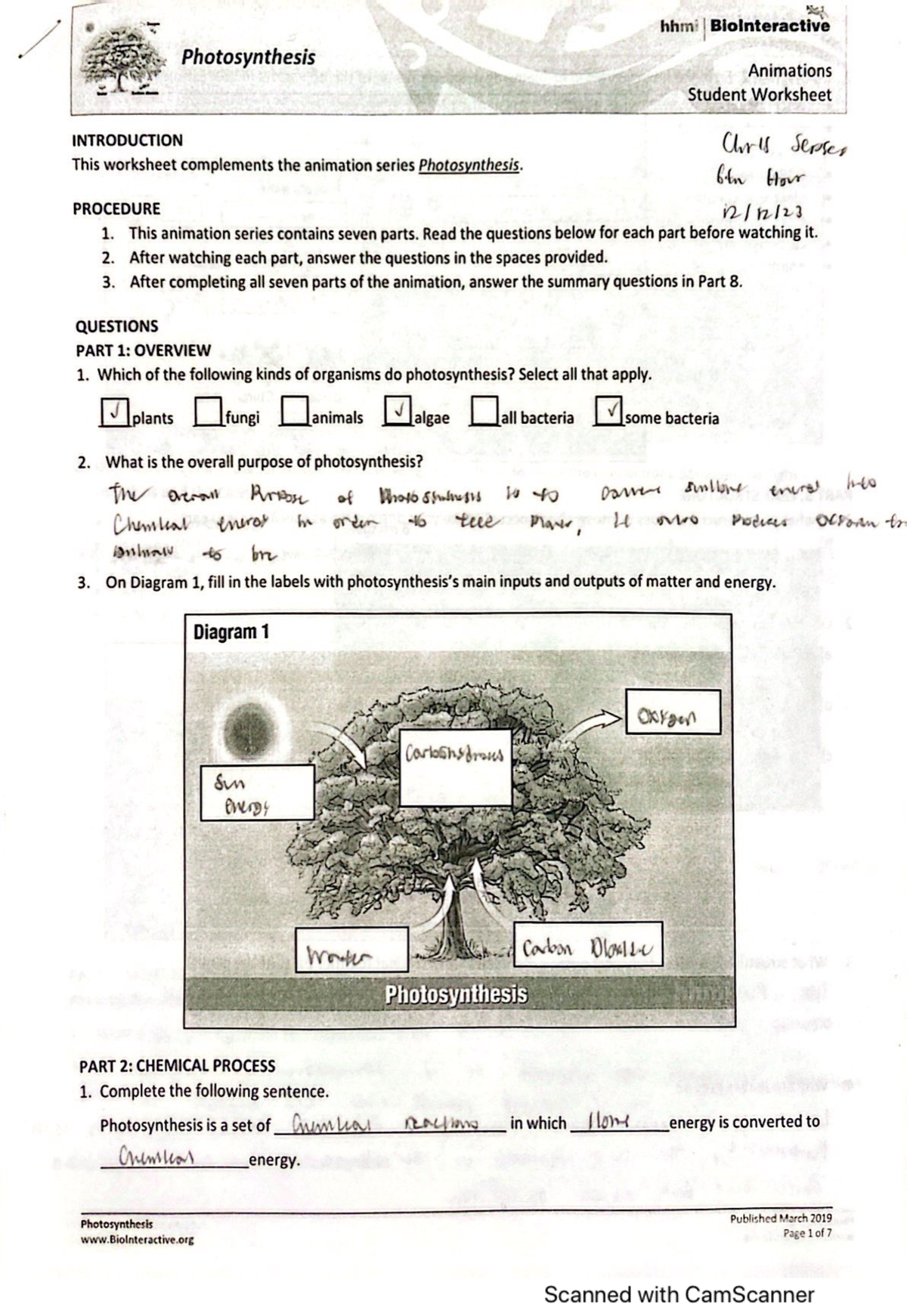

HHMI Photosynthesis Worksheets

I spent a lot of time with these worksheets while helping students prepare for AP Biology labs. The HHMI BioInteractive set covers the light-dependent reactions, Calvin cycle, and chloroplast structure. You can find them on their website under the Teaching Sheet Resources section. Most people grab the answer key and move on, but there is actually something to learn here if you look carefully.

The worksheets are well-designed. They walk students through interpreting data from Engelmann's experiment, tracing isotope-labeled oxygen, and mapping electron transport chain components. The answer key that circulates online matches most questions, but it does not always reflect the latest version of the worksheet. HHMI updates their materials occasionally without much fanfare, so the answers may not line up with what you are reading. Here is what actually matters when you use this key. The questions about ATP synthase rotation are where most students lose points. The key will say 3 protons per ATP, but the actual stoichiometry depends on whether you count the phosphate translocators correctly. Some professors expect 4 H+ per ATP when including the Pi import step. I ran into this exact problem last semester when a grading rubric marked 3 as wrong and expected 4. Double-check which convention your instructor uses before writing that number down. The Calvin cycle question about net G3P production is another trap. The standard answer is one G3P per three CO2 fixed, but the worksheet sometimes asks about the full cycle output after six turns. Make sure you are counting the correct number of turns for whatever the question specifies. I had a student argue with me for twenty minutes because the answer key said 2 G3P and his textbook said 1 — both were right for different turn counts.

There is also a common mistake around the Z-scheme diagram. Students regularly label photosystem II before photosystem I in the electron flow path because of the naming confusion. The answer key will show PSII upstream, which looks backwards if you think about the order of discovery rather than the order of electron flow. Write that down somewhere because it shows up on every exam I have ever seen.

How to Actually Use These

Do not just look at the answers. Work through the Engelmann prism experiment question first. It asks you to predict where aerobic bacteria would cluster under different light wavelengths, and the reasoning matters more than the final answer. The bacteria accumulate in the blue and red regions because those are where chlorophyll absorbs most strongly. If you skip the explanation, you will forget it by test day. The rubisco question is worth extra attention. It asks why C3 plants close stomata on hot days and what happens to photorespiration. The answer key gives the standard response about oxygenase activity increasing relative to carboxylase activity. But the deeper point is that Rubisco's oxygen affinity has not changed — the O2 to CO2 ratio in the leaf airspace shifts because stomatal closure restricts CO2 entry more than O2 exit. That distinction separates students who understand from those who memorized. I have found that the worksheet on chlorophyll fluorescence is the most useful for lab preparation. It connects directly to the DCMU inhibition experiment most courses run. The answer key mentions that DCMU blocks electron flow between QA and QB in PSII. Understanding why that stops NADPH production and ATP synthesis helps you explain the whole chain reaction, not just fill in blanks.

Where This Breaks Down

The answer key has gaps. It does not address C4 and CAM adaptations in detail, even though some versions of the worksheet include those pathways. If your class covers mesophyll and bundle sheath cell, you will need a separate resource. The key also skips the proton gradient quantification — how many protons actually cross per electron pair. That number changes depending on whether Q cycling is involved, and the worksheet never asks you to calculate it. Another limitation is the assumed background knowledge. The worksheets jump into data interpretation without reviewing basic chloroplast ultrastructure. If you do not already know where each component sits, the answer key will not help you understand why. The thylakoid lumen pH drops to around 4 during active photosynthesis while the stroma rises to about 8. That ten-thousand-fold difference drives ATP synthesis, but the key never puts those numbers in front of you.

What I Recommend Instead

Use the HHMI worksheets as a starting point, not the final word. Pair them with the Campbell Biology chapter on photosynthesis for the mechanistic details the key omits. The Alberts Molecular Biology of the Cell diagrams on the electron transport chain are clearer than anything in the worksheet. And if you want actual data to practice with, the HHMI site also has a virtual lab on photosynthesis rates that lets you change light intensity and CO2 concentration interactively. The worksheets take about forty-five minutes to complete if you read carefully. The answer key cuts that in half, but you learn less. I usually have students do the worksheet first without looking, then spend another twenty minutes going back through the ones they missed. That second pass is where the actual learning happens.
