Working with the Hitachi 120 Ex Excavator Parts Manual
The Hitachi 120 Ex Excavator Parts Manual is not a single document. It is a collection of exploded-view diagrams, part-number tables, cross-reference indexes, and sometimes hydraulic schematic inserts that vary depending on the serial number range of the machine. Most people treat it like a simple catalog. It is more accurate to think of it as a lookup system that only works if you approach it correctly. I spent years tracking down parts for these machines in yard environments where downtime costs real money. The manual itself is straightforward once you know how to navigate it, but there are enough traps in here to make an otherwise simple part order go sideways. I am going to walk through how to actually use it, what trips people up, and where it falls apart.
Hitachi 120 Ex Excavator Parts Manual – Where to Find It and How to Read It

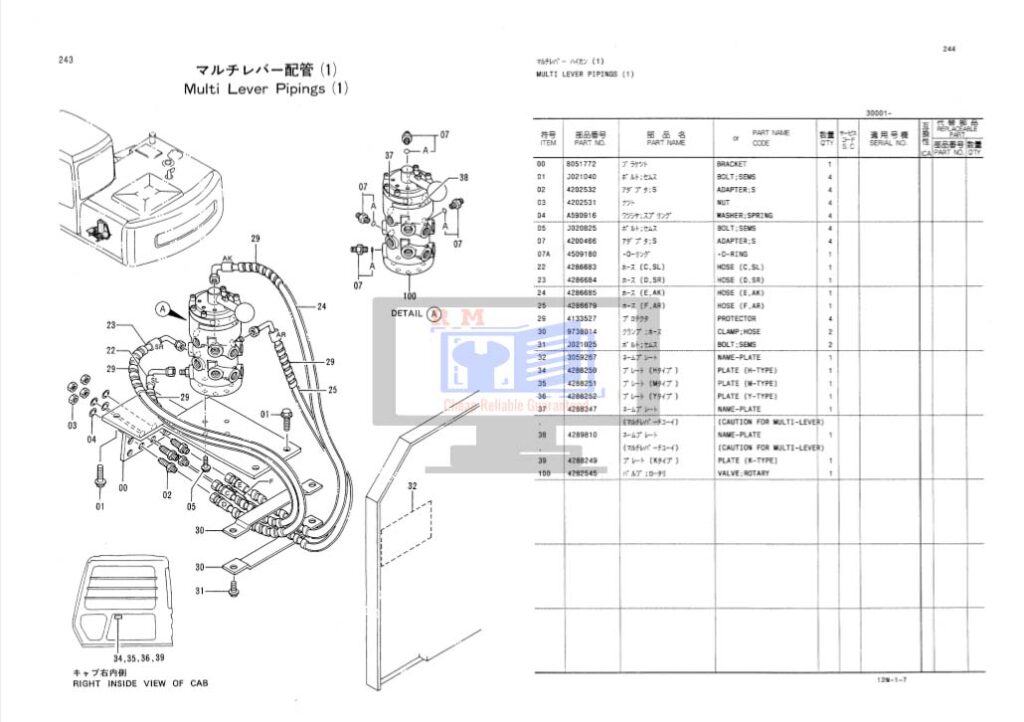

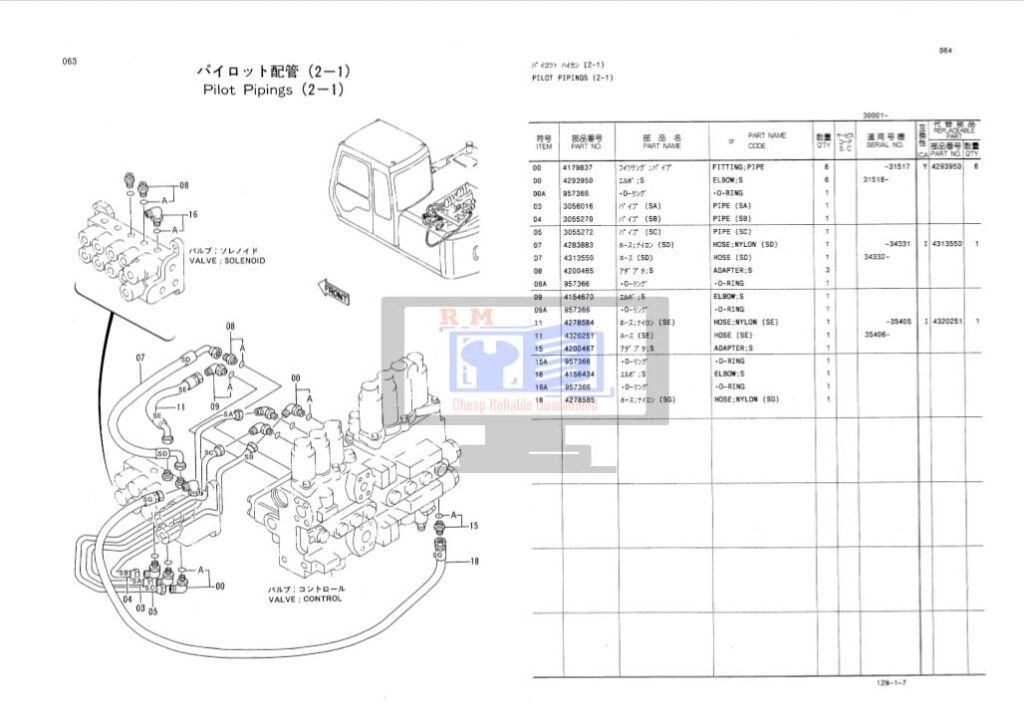

You will find this manual referenced under Hitachi Construction Machinery part numbering systems, sometimes listed as part of the P series documentation or within the broader ZAXIS parts catalog structure depending on the region and year of manufacture. The 120 Ex is an older machine, so you may encounter it under both the Hitachi brand and the older Hitachi-Zosi nomenclature. This dual naming is one of the first things that causes confusion. The manual is organized by major assembly. You will see groups like the undercarriage, boom, stick, bucket, cabin, engine compartment, hydraulic pump section, final drive assemblies, and the swing mechanism. Each section contains an exploded diagram with numbered callouts pointing to individual components, and a corresponding table listing part numbers, descriptions, quantities, and sometimes supersession information. The key is learning to read from the diagram to the table and back again without mixing up reference numbers. Here is how the process actually works in practice. You identify the assembly you need a part from. You locate that assembly in the manual. You count or trace the callout number on the exploded view. You then move to the parts table for that section and look up the corresponding part number. You verify the serial number range because Hitachi frequently changed component suppliers and part designs mid-production run on the 120 Ex. A part that fits a machine with serial number below a certain threshold may not be interchangeable with one above it, even if the external dimensions appear identical.
I encountered a specific issue recently when a contractor needed a seal kit for the stick cylinder on a 120 Ex. The manual listed two different seal part numbers depending on whether the cylinder was manufactured before or after a certain serial cutoff. The cylinder looked identical externally. I had the machine on-site, disassembled the old cylinder, and measured the internal diameters and groove widths. The newer seal kit would not seat properly on the older cylinder bore because the groove depth differed by approximately half a millimeter. I ended up sourcing the correct kit by matching the cylinder casting date code directly rather than relying on the manual alone. The manual got us to the right section but could not resolve the sub-variation without the physical verification step.
Get the Full Details
Counter-Intuitive Details Most People Miss
One thing that catches people off guard is that Hitachi does not always list the exact fastener specifications in the parts manual. You will find the part number for a bolt, but you may not find the torque specification, the thread-locking requirement, or the grade marking unless you cross-reference into the separate service manual. I have seen mechanics reuse old bolts on critical hydraulic fittings because the parts book did not indicate that the original was a one-time-use crush-washer bolt. The joint leaked within two weeks and caused unnecessary downtime. Another detail that is not obvious from the manual alone is that some part numbers in the 120 Ex system include suffix letters that denote material or supplier variations. A part number ending in A might come from a different manufacturer than the same number ending in B, and while they are functionally interchangeable in most cases, there are exceptions. I once installed a swing bearing bolt that was marked as an exact cross-reference match according to the manual. The threaded engagement depth was slightly shorter because the supplier had changed the thread pitch specification without updating the main part number. It seated but did not achieve proper clamp load. Torquing it to spec caused the threads to strip in the hub casting. The fix was to source the original Hitachi-manufactured bolt and verify the pitch with a thread gauge before installation on any critical structural fastener.
Practical Workflow for Using the Manual
Start with the serial number plate on the machine. Write it down before you open anything. This number determines which version of the parts manual applies to your specific unit. Hitachi production changed over the years, and the 120 Ex had multiple revisions across its production run. Without the serial number, you are guessing, and guessing with excavator parts leads to ordering the wrong component and waiting two to three weeks for a replacement that will also be incorrect. When you locate the relevant section, do not assume the diagram is fully up to date. Hitachi occasionally revised diagrams without updating every printed copy in circulation. Cross-reference the part number against the latest supersession notice if one is available. These notices are sometimes distributed separately from the main parts manual and may not be included in every printed edition. For the undercarriage parts specifically, which is one of the most commonly serviced areas on the 120 Ex, the manual will list roller assemblies, track shoes, sprockets, and tension mechanisms. The part numbers here are relatively stable, but track chain pitch wear can make a direct replacement problematic if the existing chain has stretched beyond tolerance. A new sprocket paired with a worn chain will fail prematurely. The manual does not always flag this interaction clearly. Measure the existing chain stretch before ordering replacement drive components.
Hydraulic cylinder rebuilding is another area where the manual serves as a starting point rather than a complete solution. The seal kit part numbers are generally reliable, but the cylinder barrel condition, piston rod scoring, and inner sleeve wear are not covered in a parts manual. Inspect those surfaces during disassembly. If the rod has visible scoring deeper than a light polish mark, replacing seals alone will result in a leak within weeks. The parts manual will give you the seal kit number, but it will not tell you whether the underlying hardware needs refurbishment or replacement.
Limitations of the Manual
The most significant limitation is that the Hitachi 120 Ex Excavator Parts Manual covers the machine as originally configured. It does not account for field modifications, aftermarket attachments, or parts substitutions that occurred during the machine's operational life. Many of these excavators have been in service for decades, and previous owners or repair shops may have made changes that are not documented anywhere except in your own maintenance records. If a machine has had a non-original hydraulic pump installed or an aftermarket attachment coupler welded onto the stick, the parts manual will not reflect those changes. Another limitation is regional variation. Parts manuals for machines sold in different markets sometimes use different part numbers for functionally identical components due to local supplier contracts. If you are importing a manual or comparing part numbers across regions, verify compatibility through a physical measurement or a direct cross-reference with an authorized dealer before ordering. If you cannot locate a specific section of the manual or if the diagrams are unclear, the most practical alternative is to contact an authorized Hitachi parts dealer with the serial number and a clear photograph of the assembly in question. They can pull the correct diagram from their database and confirm whether superseded part numbers apply to your unit. This typically resolves ambiguities faster than trying to interpret a faded or incomplete printed manual.
The manual is a tool, not an authority. It provides the framework for identification, but real-world application requires verification at multiple steps. Serial numbers, physical measurements, and service records fill the gaps that the documentation leaves open. That is how you avoid ordering the wrong part and having to deal with the consequences later.
