Finding parts for the Ex75UR-3 without losing your mind

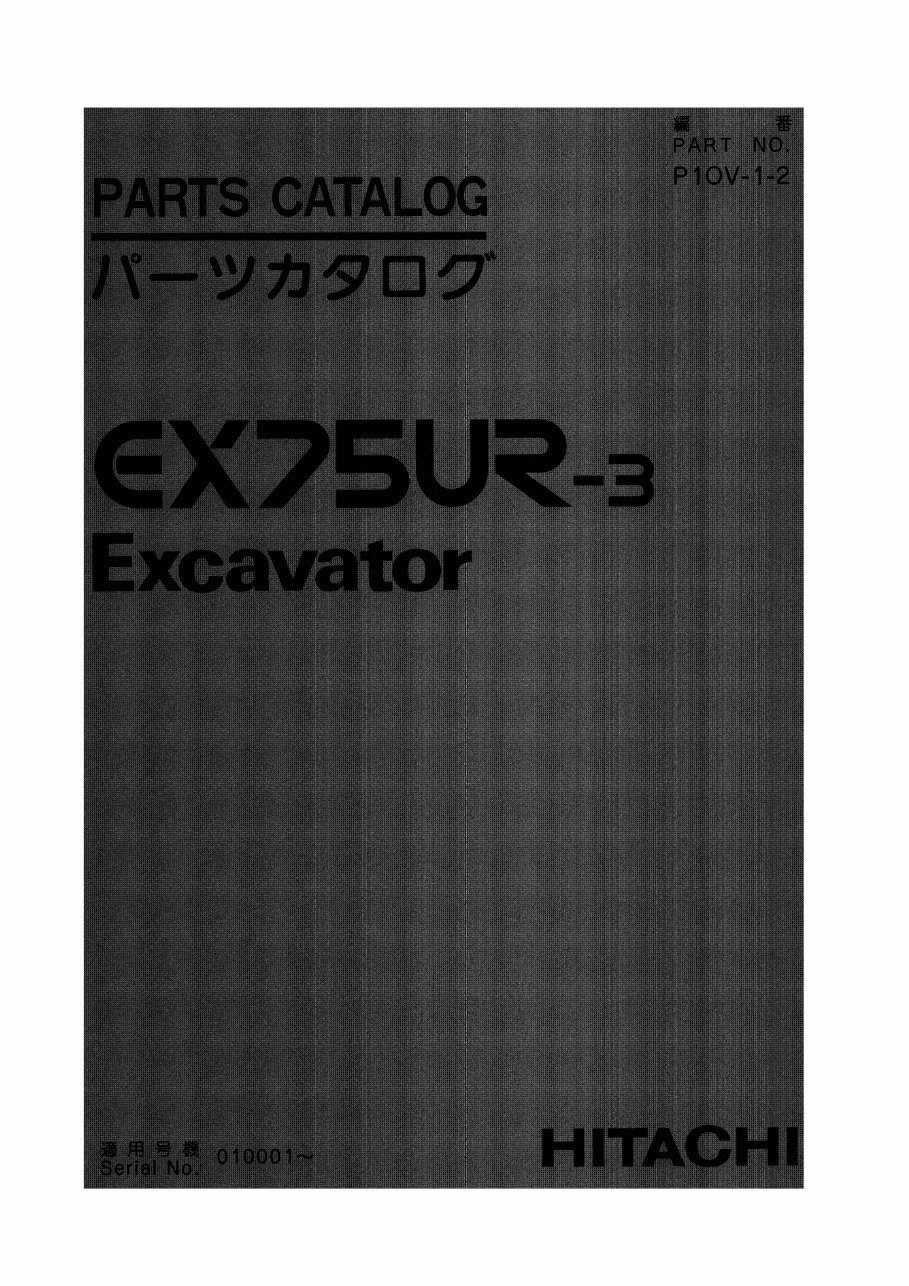

The Hitachi Ex75ur 3 Excavator Equipment Parts Catalog Manual is basically your only lifeline when you need to figure out which hydraulic seal goes where, or when someone swaps a component on the pump assembly and now the machine acts weird. I have gone through more of these than I care to count, usually at 11pm on a Sunday when the dealer is closed and the bucket is stuck in the ground because a $3 O-ring is the problem. Let me explain how the manual is actually structured, because it does not follow any logic that would make sense if you are new to Hitachi equipment. The table of contents groups parts by system — hydraulic, engine, undercarriage, final drive, swing mechanism — but the actual part numbering system runs parallel to that. Every component gets a reference number that ties back to exploded diagrams, and those reference numbers are what you use to cross-reference into the parts list. That is the core mechanic. Everything else is just navigation.

Hitachi Ex75ur 3 Excavator Equipment Parts Catalog Manual: What It Actually Covers

The manual covers the standard configuration of the EX75UR-3, which is the utility version of the 75-class excavator. That means it includes the main boom, stick, bucket cylinders, swing drive, travel motors, the ZAXIS engine — usually the Hitachi EH series or a Deutz depending on the serial number bracket — and all the hydraulic valve blocks. You will find illustrations for the pump Assy, the pilot control system, the monitor panel, and the electrical harness routing. Undercarriage components are listed separately from the body assembly, which matters because some suppliers will sell you a track frame and forget to mention the idler is a different part number between the UR and the standard models. The serial number bracket is the single most important thing to check before you order anything from the manual. Hitachi does not guarantee that a part shown for SN 00001 through 04999 is identical to the one for SN 05000 and up. There were mid-production changes to the main control valve, the travel motor mounting, and the swing bearing bolt pattern. If you skip the bracket check, you will buy the wrong part twice and then blame the manual instead of yourself.

How to Use the Manual Efficiently

Start with the exploded view. Do not jump to the parts list. The exploded diagram shows the assembly order, the spacer orientation, and which retaining rings go where. The parts list tells you the part number and quantity, but it does not tell you that the 12mm spacer between the pump coupling and the gear pump was replaced with a 14mm version on later revisions, which is why your pump shaft seal leaks after 200 hours if you install the wrong spacer. When you find the part number, verify it against the serial bracket table. If your machine falls between two bracket ranges, order both versions and compare them side by side before installing either one. It saves you a trip to the dealership and two days of waiting on a part that will not fit. For hydraulic components, cross-reference the part number with the hydraulic schematic pages. The parts catalog gives you the physical dimensions and the replacement number, but the schematic shows you the flow path and the pressure ratings. I learned this the hard way when I replaced a main control valve spool on a 2008 model. The new spool fit physically, but the flow characterization was different enough that the boom drift increased from 2mm per hour to about 15mm per hour. The schematic would have caught that before I ordered the part.

A Problem I Actually Encountered and How I Fixed It

I was rebuilding the swing motor on an Ex75UR-3 that had intermittent rotation stuttering. The parts catalog showed the swing motor Assy as a single unit with one part number. I ordered it, pulled the old one out, and discovered the housing had been previously repaired with an aftermarket seal kit that used a different O-ring material. The catalog did not list the seal kit as a separate repairable component. It only listed the full motor Assy. The workaround was to take the original motor apart, measure the existing seal groove diameters, and source the individual O-rings from a hydraulic seal supplier rather than replacing the entire motor. I measured the groove for the primary seal at 68.2mm ID and the secondary at 52.8mm ID, then ordered two separate Viton O-rings from Parker Hannifin for roughly $18 total instead of paying over $2,400 for a new swing motor Assy from the catalog. The manual did not include this level of detail, but having the exploded view of the motor housing showed me the groove locations and the ring types. That was the only reason I could solve it without replacing the whole assembly.

Counter-Intuitive Things Beginners Miss

First, the part numbers in Hitachi catalogs are often superseded. A part number you find in the manual may have been replaced by a revised number six months after the book was printed. Always check the supersession table at the back of the catalog. If it lists a supersession, order the new number, not the old one. The old number will either be out of stock or you will receive a part that the factory no longer certifies as compatible with your serial bracket. Second, the undercarriage parts are the most inconsistently numbered across regions. The track shoe, grouser, and link assemblies vary by market because of emissions and equipment certification differences. If you are ordering from a different country than where the machine was originally sold, do not assume the part number in the manual applies. Verify with a dealer using the full machine serial, model designation, and manufacture date. Third, the electrical connectors are not always called out in the parts catalog. You will find wire harness part numbers listed, but individual pin and socket retraction tools, connector seals, and terminal removal tools are usually in a separate service literature section. If you are troubleshooting an electrical fault and need to remove a terminal from a connector, you will not find the correct tool in the parts catalog. It is in the tool list, and it is easy to miss if you are not looking for it.

Limitations of the Manual

The manual is accurate for the configuration it covers, but it does not include field modification bulletins, dealer-installed options, or aftermarket attachments. If the previous owner installed a tilt rotator, a hydraulic hammer line, or an auxiliary hydraulics kit, those components are not in the catalog. You need to refer to the attachment manufacturer's documentation for those parts. Additionally, the manual does not cover every serial number variation. Some machines built for specific markets received different engine calibrations, different cooling packages, or different cab configurations. The serial bracket table in the front of the manual is your boundary. Anything outside those brackets requires a separate supplemental publication or a direct inquiry to Hitachi construction equipment support. If you need a more comprehensive reference, the Hitachi Zaxis service manual series provides torque specs, adjustment procedures, and diagnostic trouble code definitions that the parts catalog does not include. The parts catalog tells you what the part is. The service manual tells you how to install it correctly and what to check after installation.

Getting the Manual

You can obtain the Hitachi Ex75ur 3 Excavator Equipment Parts Catalog Manual through authorized Hitachi construction equipment dealers, the Hitachi Construction Machinery website for registered owners, or third-party document resellers who scan and digitize the originals. The dealer route is the most reliable because they provide the version that matches your exact serial bracket. Third-party sources sometimes distribute outdated editions or incomplete scans. If you buy from a third party, confirm that the file includes the serial bracket table and the supersession pages before completing the purchase. Those two sections are where most of the useful information lives, and missing them makes the rest of the catalog significantly less usable. I keep a printed copy in the shop binder and a digital copy on the tablet in the cab. The printed copy is for reference while working. The digital copy is for searching part numbers when I am trying to remember something without taking the machine apart again. Both have their place. Neither replaces knowing which serial bracket your machine falls into.
