Working with Heavy Equipment Manuals Is Different Than Most People Think

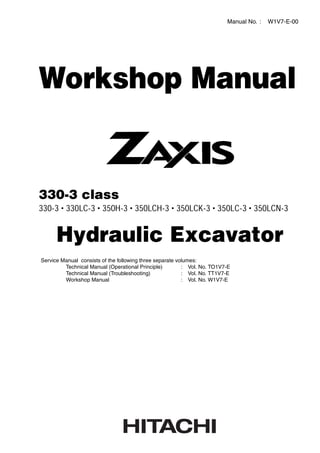

Most guys grab a service manual and start flipping pages like it is a textbook. That is the wrong approach with Hitachi heavy equipment. The hydraulic systems on these machines are not linear, and the documentation reflects that complexity in ways that will frustrate you if you are not prepared. The Hitachi Zaxis 330 3 is a mid-range hydraulic excavator in the 33-ton class, and the service manual for this machine covers everything from engine diagnostics to the travel motor circuit. It is a thick document, usually around 400 to 600 pages depending on the revision and whether it includes the wiring schematic supplements. The manual is organized into sections: general information, engine, undercarriage, swing mechanism, boom and stick cylinders, the hydraulic pump station, the control valve assembly, travel drives, electrical system, and troubleshooting matrices. You will need all of that because failures on this machine rarely announce themselves clearly. Here is what most people do not understand about using this manual effectively. The troubleshooting flowcharts assume you already know how to read hydraulic pressure readings and interpret error codes from the monitor panel. They do not walk you through basic steps like which port to test at the main control valve or what idle pressure should look like before you start chasing a ghost. I learned that the hard way on a Zaxis 330 3 that had intermittent boom drift. The manual pointed me toward a series of pilot pressure checks, but it did not flag that the pilot check valve at the swing lockout solenoid was a common failure point that mimicked a boom cylinder seal problem. I spent two hours measuring at the wrong test ports before someone who had actually worked on these machines pointed out that the pilot line feeding the boom circuit passed through the swing lockout valve first. A simple continuity test on the solenoid revealed the issue in about ten minutes.
The hydraulic schematic section is where the manual earns its weight. It shows the main pump routing, the load-sensing circuit, the relief valve settings, and the compensation paths for each function. The relief valve settings alone are critical. The main pump relief on a properly calibrated Zaxis 330 3 sits around 343 bar for the boom up and bucket curl functions, with slightly lower settings for swing and travel. If your pressure test comes back high, do not just adjust the relief screw blindly. The load-sensing compensator can push apparent relief pressures up during certain combined movements, and you can strip the threads on the valve body if you force it. I have seen that happen twice in three years. Another thing the manual will not tell you is that the electronic control module for the hydraulic system on this generation uses a proprietary connector that is sensitive to moisture and pin spread. If you are pulling connectors for diagnostics, use a proper terminal spreader tool. Pulling by the wires will deform the pins and create intermittent faults that will make you doubt everything in the troubleshooting section. This is not theoretical. I spent a full shift tracing what I thought was a bad pressure sensor on a 330 3 only to find a cracked pin in the connector housing. The replacement connector cost about twenty dollars. The diagnostic time cost me four hours. The electrical section includes wiring diagrams that are accurate but dense. The color coding follows Hitachi standards, but the harness layouts are not always matching to what you see physically on the machine. Connectors get moved during repair work, and aftermarket repairs add their own splices. I keep a digital camera on site and photograph every connector before I disconnect anything. It adds five minutes to the job but saves me from guessing which wire goes where when I reassemble it at midnight with a flashlight.
The undercarriage and final drive sections are straightforward but often overlooked until something is badly worn. The service intervals listed in the manual are baseline numbers. If you are working in abrasive conditions like crushed rock or demolition, cut those intervals roughly in half. The grease analysis and chain wear measurements matter more than the hour meter at that point. One of my machines ran on a schedule from the manual for six months in rock work, and the undercarriage lasted about a third of its expected life. Another one with aggressive maintenance held up nearly to spec. For finding the actual manual, Hitachi dealers can order it directly from the publisher, and it is also available through third-party technical document providers. The digital versions are searchable, which matters when you are trying to find a specific torque value or a pressure specification quickly. The paper versions are more durable on a jobsite but significantly harder to navigate. I prefer the digital format with a tablet protected by a heavy-duty case. It survives dust and vibration better than paper, and the search function cuts down lookup time from minutes to seconds. The manual has limitations that you should expect. Some torque values are given in newton-meters and some in foot-pounds within the same section, and the conversion is not always consistent. Cross-referencing between sections is weak, so if you are working on a repair that involves both hydraulic and electrical components, you will be jumping between chapters a lot. The parts identification section uses exploded views that are technically correct but sometimes do not account for updated part numbers after minor redesigns. Always verify part numbers against the latest dealer bulletin before ordering, or you will end up with components that look right but do not fit.
Get the Full Details
If you are doing major hydraulic work on a Zaxis 330 3, pairing the manual with a hydraulic test kit that includes the proper adapters for Hitachi quick-disconnect ports is essential. The machine uses a specific quick-connect system that standard adapter kits often do not cover. Buying the right hoses and adapters upfront saves time that would otherwise be spent fabricating temporary connections or waiting on parts. The monitoring system on this machine logs fault codes that are not always directly tied to the component that is failing. A code pointing to a low pressure sensor does not always mean the sensor is bad. It can mean there is a restriction in the pilot line, a leaking check valve upstream, or even a contaminated hydraulic filter that is starving the sensing circuit. The manual gives you the diagnostic tree, but it assumes a level of hydraulic system understanding that you build through experience. Until you have that experience, work systematically from the simplest possibility to the most complex, and verify each hypothesis with actual measurements before replacing parts. One last practical note about the engine section. The common rail diesel on the Zaxis 330 3 is sensitive to fuel quality and filter installation procedure. The manual specifies a torque for the fuel filter housing, but it does not emphasize enough that the O-ring must be lubricated with clean diesel before installation. An unlubricated O-ring will roll or pinch during tightening, and you will get air intruding into the high-pressure fuel system. That causes hard starting and rough idle that looks like an injector problem but is actually an air leak. I have reset the wrong injectors on this machine twice because I missed that step. It takes ten seconds to lub the O-ring and prevents an hour of pointless troubleshooting.
