Getting Started with the Hofmann Monty 1620

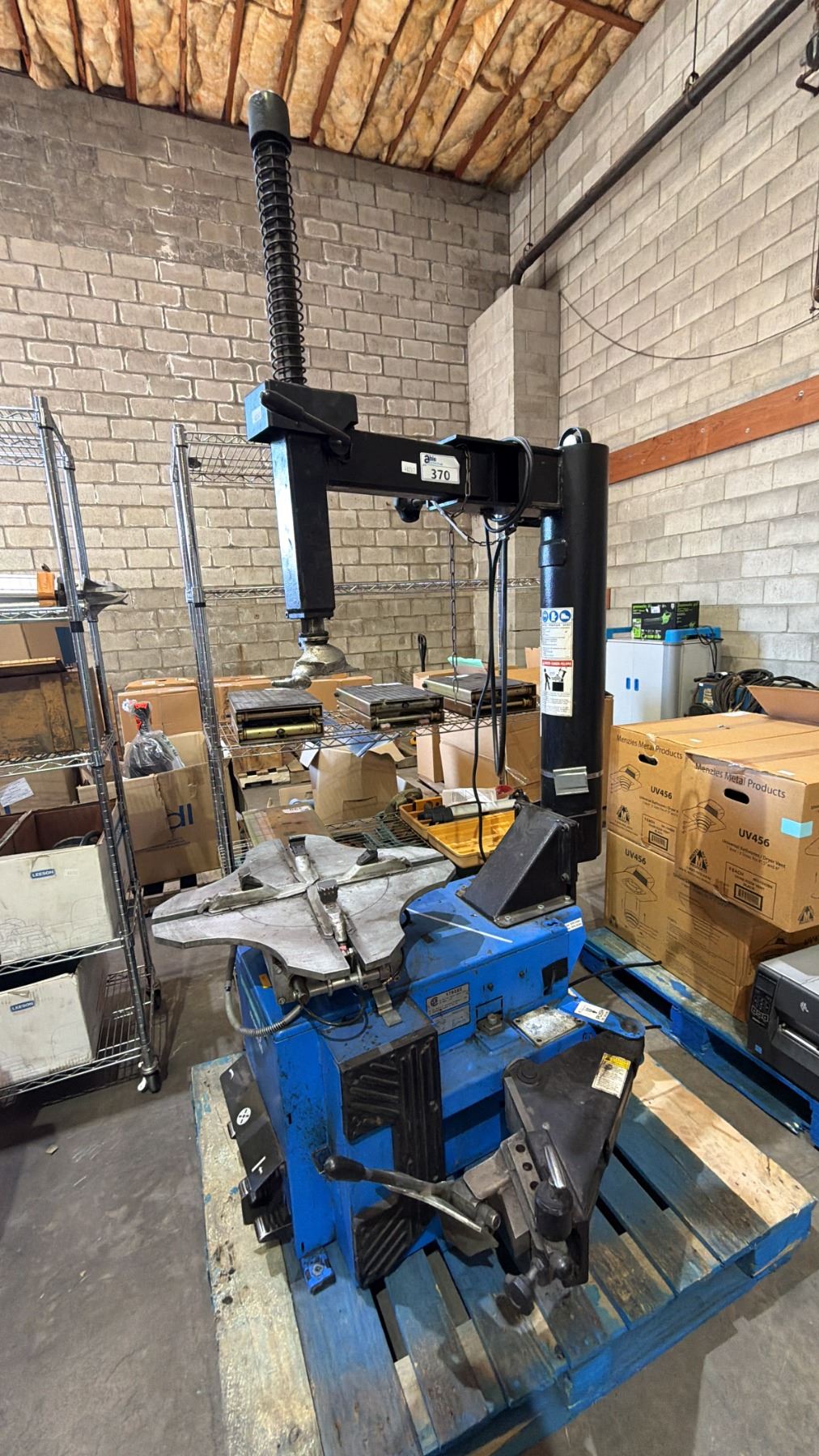

The Monty 1620 is a fully automatic tire changer from Hofmann (now part of Hunter Engineering). It handles everything from 10-inch to 24-inch wheels without manual arm repositioning. The control panel uses a touchscreen interface that looks simple enough at first, but there are enough settings to trip people up if you skip the manual entirely. If you're trying to find the Hofmann Monty 1620 Tire Changer Manual, the official source is through Hunter's website. You'll need to enter your machine's serial number to pull the correct version. Versions vary depending on when your unit was built and what firmware it's running. There's also a quick-start guide that's worth reading before you touch the actual service manual.
Hofmann Monty 1620 Tire Changer Manual
Here's the thing nobody tells you about this machine: the bead break force is adjustable in very small increments, and the default setting out of the box is often too aggressive for modern low-profile tires. I've seen two flat rims in the first month of a new shop's operation because the operator left the bead break at the factory preset and started on 35-series rubber. The manual covers this explicitly—go to the settings menu, find bead break force, and dial it down to around 40-50 percent for anything under a 40 series profile. Test on a scrap tire first. The mounting head has a swing-arm mechanism that locks into place automatically. What's easy to miss in the documentation is the requirement to lubricate the swing-arm pivot points every 500 cycles. If you don't, the arm starts dragging, which throws off the centering accuracy. You'll notice the tire isn't tracking perfectly before the bead even breaks. Grease fitting is on the backside of the arm housing, right where you'd never look. Another detail that trips people up: the clamping sequence. The Monty 1620 uses a ring-style clamp that centers the wheel automatically. But if you load a wheel with a protruding valve stem that's caught in the clamp path, the sensor will reject the cycle. The fix is simple—rotate the wheel so the valve stem sits between clamp fingers—but the manual buries this in a troubleshooting flowchart rather than calling it out upfront.
When the machine reports error codes, write them down before clearing them. Common ones like E-12 (pressure sensor fault) or E-23 (arm position mismatch) are usually minor—loose connections or a dirty sensor. But the manual won't tell you the practical fix for E-23, which is often just wiping down the optical encoder on the lift arm with a clean cloth. Compressed air alone makes it worse by pushing grime deeper into the sensor window. If you're dealing with run-flat tires, the manual's procedure is adequate but not ideal. The standard cycle will almost certainly damage the sidewall if you follow it exactly. I run a modified setup: reduced clamping pressure, no bead break on the second side, and I hand-orient the tire before starting the cycle. It adds about 90 seconds per tire but saves you from replacing a $400 sidewall that the machine just ruined. The download link for the current manual version is on Hunter's support portal under the Monty 1620 product page. Make sure you're getting the one that matches your control panel type—there are two generations and they're not identical. A manual from the older panel won't cover menus that exist on the newer touchscreen, and vice versa.
Get the Full Details
The machine itself is solid. I've had one in my shop for three years with maybe four hours of actual downtime. Most issues are operator-caused. The manual exists for a reason—reading it once takes about 45 minutes and has probably saved me thousands in avoidable mistakes.
