What You Need to Know About the Holz Her 1265 Parts Manual

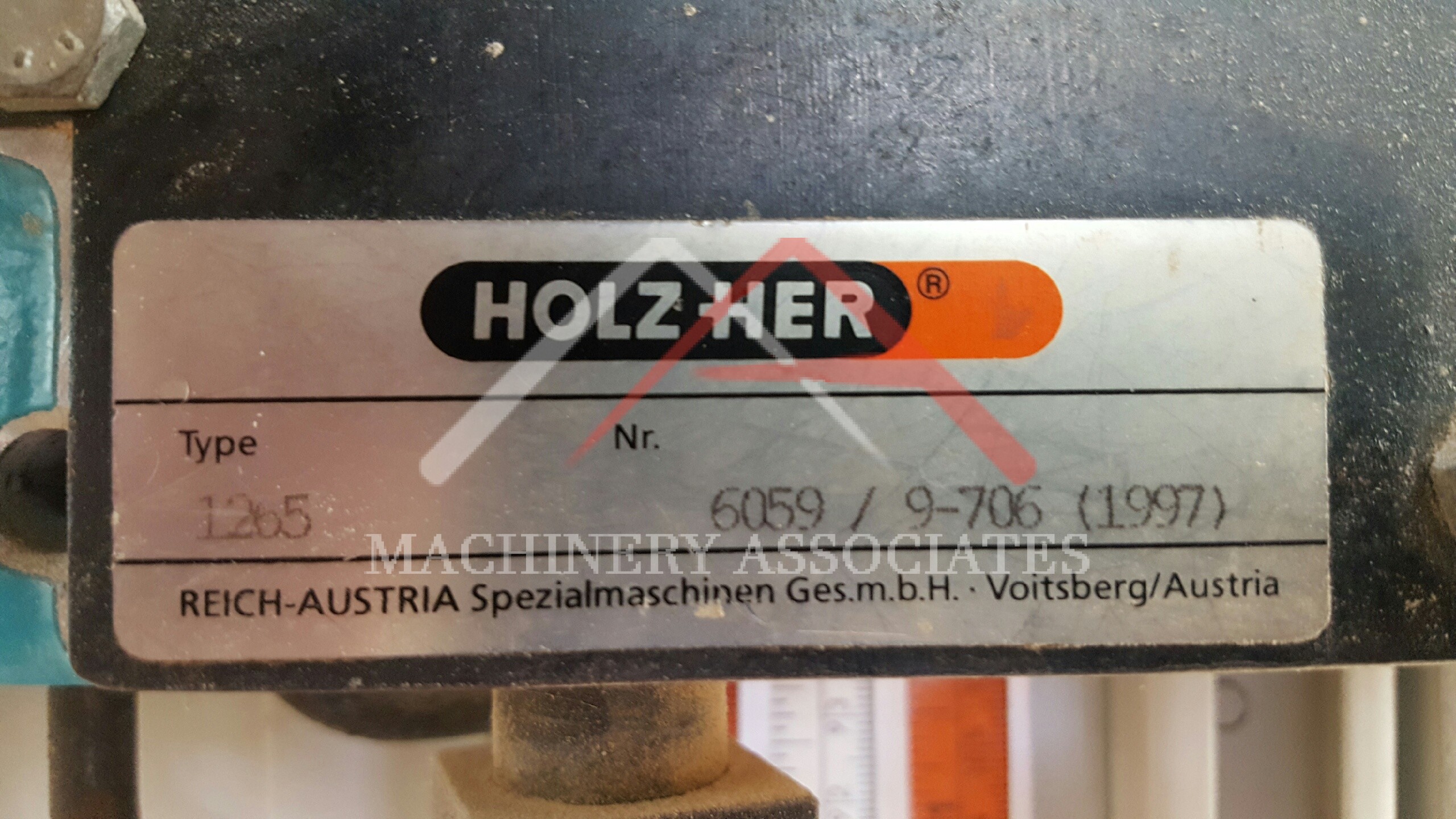

The Holz Her 1265 is an edge bander, and like most of their machines, it has a dense service documentation trail. Finding the right parts manual for this unit can take some actual effort because Holz Her doesn't always make their documentation easy to locate on their own site. What follows is based on how these manuals actually work in a shop environment, not some brochure summary. I ran into a real issue about two years ago where a client had a Holz Her 1265 whose pre-gluing unit was leaking. Not a dramatic leak, just enough to cause tape cocking issues after maybe thirty minutes of running. The machine kept going into alarm every time the glue tank level dropped below a certain point. I pulled up the parts manual, found the pre-glue section, and identified the exact seal part number. The catch was that the manual lists it under a reference number that only matches if you know which revision of the machine you have. I called the local Holz Her distributor with the serial number from the nameplate, and they confirmed I was looking at a 2017 production run, which meant the seal type was different from the earlier 2015 versions. Took them about ten minutes to email the updated BOM. Without that confirmation, I would've ordered the wrong seal and wasted another day waiting on shipping.
Where to Find the Holz Her 1265 Parts Manual
The most reliable route is through an authorized Holz Her dealer. They have access to the internal documentation portal and can send you the PDF for your specific serial number range. If you're working with a newer 1265, it's probably covered under the later documentation set, which tends to be more detailed than the early runs. The older machines sometimes have fragmented documentation where certain sections got revised independently and don't line up cleanly with the main parts listing. You can also try the Holz Her website directly. Navigate to their support or service section and enter your machine model and serial number. It's not the smoothest experience, and the search function occasionally returns results for similar models but not the exact one you need. I've used this route myself when I was stuck between jobs and couldn't call a dealer immediately. It works fine for getting a general overview of the parts catalog, but for actual ordering, a dealer interaction saves headaches later. Third-party machinery documentation sites sometimes carry scanned copies of these manuals. Quality varies. Some are complete, some are missing pages, and a few have OCR text that makes part numbers unreadable. If you go this route, check the file size first. A proper Holz Her parts manual for the 1265 should be somewhere between 15 and 40 megabytes depending on how many sections are included. Anything under 5MB is probably incomplete or poorly scanned.
Once you have the manual, the structure is fairly standard. It breaks down by major assemblies: the tape feed system, the pre-gluing unit, the trimming modules, the scraping units, the cutting-off saws, and the electrical cabinet layout. Each section has an exploded view diagram with reference numbers that correspond to a bill of materials table. The trick is that reference numbers are not always sequential across revisions, and some components share the same reference number in different assemblies. Cross-referencing the assembly number printed at the top of each diagram page prevents mistakes. Another thing people miss: the electrical parts list is separate from the mechanical parts list. If you're troubleshooting a sensor failure or a relay issue and only have the mechanical manual, you're going to waste time flipping between documents. Make sure you have both the mechanical and electrical documentation sets, not just one combined file. The combined versions are usually compiled from service bulletins and aren't always up to date. One practical tip that isn't obvious. Print out the main exploded view diagrams on A3 paper if your shop has a plotter. Laying those flat on the bench while you're pulling parts from the shelf is faster than zooming in and out on a tablet screen, especially when you're trying to match a reference number to a physical component under fluorescent shop lighting. Sounds minor, but it cuts down on part lookup time significantly during a repair.
Get the Full Details
If you're maintaining a parts inventory for this machine, focus on the wear items first: the scraper blades, the trimming knife inserts, the pre-glue roller seals, and the vacuum filter elements. Those go through regularly and having them on hand means a minor issue stays minor. The more exotic components like the servo motor for the tape advancement or the digital readout board tend to last a long time unless you've had an accident or a power event. I keep a small running stock of the wear items and order the rest as needed through the dealer. It works better than trying to stock everything upfront, which ties up capital in parts you'll never use. The manual itself isn't written for first-time users. It assumes you already understand basic edge bander operation and can navigate hydraulic and pneumatic schematics. If that's not you, pair it with the operating manual, which covers the machine from the ground up. The two documents complement each other, but they serve different purposes. Mixing them up or expecting one to cover everything leads to confusion and misidentified parts.
Common Problems When Using the Parts Manual
Serial number ranges matter more than the model name alone. Two 1265s built in different years can have completely different part numbers for the same component due to design revisions. Always verify your serial number against the manual's applicability range before ordering anything. A mismatched part is worse than a delayed part because it stops the machine while you wait for the correct one to arrive. OEM part numbers from Holz Her sometimes change over time. A revised component might replace an older one, and the new part number appears in later manual revisions without a clear note in the old version. If a part number comes back as obsolete when you order it, ask the dealer for the superseded number. They can usually look it up in their internal cross-reference system within a few minutes. The diagrams in the manual show parts in their assembled positions, which makes it hard to visualize how individual components fit together if you're doing a full teardown. I've found it helpful to photograph the assembly before taking anything apart. A few quick shots from different angles with a phone give you a visual reference if you forget how a bracket or a hose routed somewhere. It sounds obvious, but it's the kind of thing people skip when they're already behind schedule and then regret it later.
