So you want to understand the Hulda Clark Device
The Hulda Clark Device refers to a family of bioresonance tools based on the work of Canadian naturopath Hulda Regehr Clark. She claimed that every pathogen and disease had a specific electromagnetic frequency, and that applying that same frequency via a low-voltage electrical circuit could neutralize it. The most well-known implementation is the "Clark Zapper," a handheld or console-based oscillator that outputs pulsed frequencies through electrodes or wrist bands. What most people don't realize is that these devices aren't commercially manufactured products with quality control. They're build-it-yourself circuits, or kits sourced from a handful of hobbyist suppliers, and the frequency tables themselves are not peer-reviewed. They come from Clark's books and lecture transcripts, which have been passed around and modified endlessly.
What the Hulda Clark Device actually does
At its core, the device generates a programmable pulse train, typically in the range of 1 Hz to 200 kHz, delivered at very low current — usually under 1 milliamp — through skin-contact electrodes. The idea is that when the output frequency matches a pathogen's resonant frequency, it disrupts the organism's cellular function. Clark's protocol usually involves cycling through frequencies for set intervals, sometimes starting with what she called the "master frequency" and then moving through parasite, virus, and bacteria bands. In practice, I've seen three main implementations. The original Clark zapper used a 555 timer chip driving a MOSFET, producing a square wave. Clone versions swap in microcontrollers like the ATTiny85 for more flexible frequency stepping. Then there are the Arduino-based reproductions where people code custom sequences and drive a small H-bridge into the load. The circuit simplicity is almost the whole point — you can build a functional version in an afternoon with components costing under twenty dollars.
How to build and use one

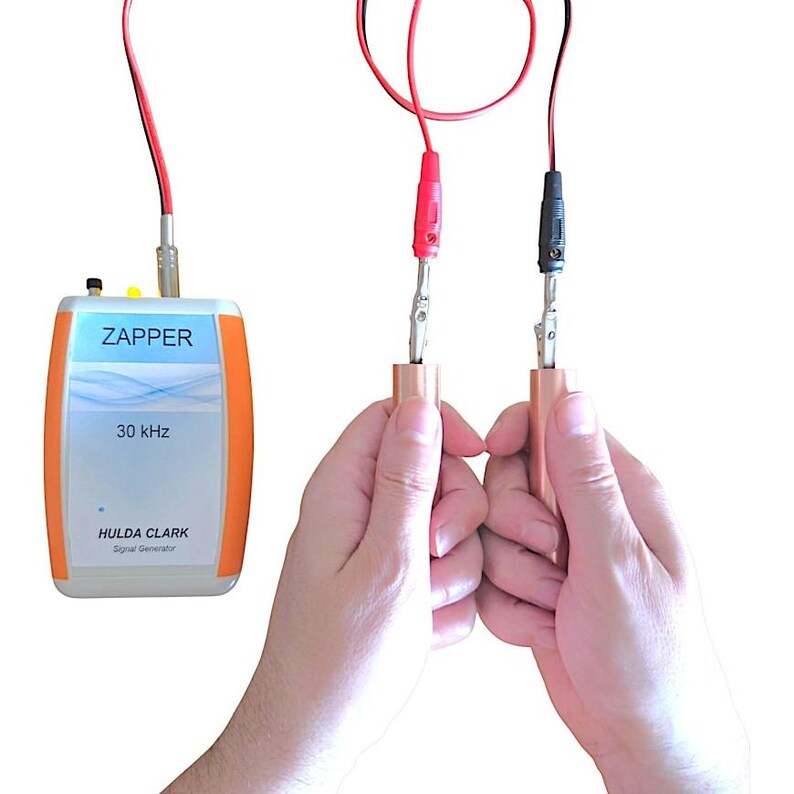

Start with the oscillator stage. A standard 555 timer in astable mode gives you a rough but serviceable square wave. The frequency is set by two resistors and a capacitor using the standard formula f = 1.44 / ((R1 + 2*R2) * C). For the full Clark range, you'll want R2 to be a potentiometer — something like a 1M linear taper — so you can sweep across frequencies rather than jumping between fixed values. Couple the 555 output through a transistor or MOSFET to handle the load, and feed that into your electrode leads. The electrodes are where things get finicky. Clark recommended using aluminum foil wrapped around the wrists or forearms, secured with elastic bandages, and then clamped with alligator clips. I found that foil alone creates inconsistent contact impedance. The workaround I ended up using was layering — medical-grade adhesive electrodes over the foil, or even just soaking cloth wraps in saline solution before wrapping the wrist. Dry skin and dry foil will give you wildly different resistance readings from session to session, which completely undermines any consistency you might be hoping for. Frequency selection follows Clark's published tables, though no two sources agree exactly. Her original parasite sequence typically starts around 0.3 MHz and works downward through various bands. I've seen variations where people start at 70 Hz for general detox, others begin at 190 kHz targeting bacterial frequencies, and some protocols layer in infrared or electromagnetic fields alongside the electrical output. Pick one sequence and stick with it long enough to evaluate it rather than switching every few days.
Get the Full Details
Common problems and what to watch for
The biggest issue I run into is skin impedance variation. If your subject has calloused hands, dry skin, or recent lotions on their arms, the actual current reaching the body can swing by an order of magnitude even when the oscillator output is identical. I solved this by adding a simple current-limiting resistor in series with each electrode lead — something around 10K ohms, 1 watt — and measuring actual current with a multimeter in series. You want the reading to stay consistent across sessions, ideally in the 0.1 to 0.5 mA range. Anything above 1 mA is uncomfortable and potentially irritating to the skin. Another problem is frequency accuracy. The 555 timer's output drifts with temperature and supply voltage. I noticed that on a hot day the oscillator would drift enough to shift my target frequency by several percent, which matters if you're trying to match a specific pathogen band. A regulated power supply or at minimum a 7805 voltage regulator on the 555's Vcc pin fixes most of that. It's a twenty-cent fix that makes a real difference.
Limitations you need to understand before committing
There is no credible scientific evidence that the Hulda Clark Device treats or prevents any disease. The frequency tables were never validated through controlled studies. Bioresonance therapy, as a broader category, has been repeatedly debunked by medical researchers and health regulatory bodies. The FDA has taken action against manufacturers making disease-treatment claims for these devices. This isn't a subtle or nuanced position in the scientific community — it's settled. That said, the devices themselves are electrically harmless at the current levels used. You're not going to damage tissue or cause electrical injury at sub-milliamp outputs. The real risk comes from people using these instead of seeking medical care for conditions that require treatment. I've seen forum threads where people abandoned insulin therapy or cancer treatment in favor of zapper protocols, and the outcomes were predictably bad. If you're approaching this as a curiosity or hobbyist electronics project, it's a reasonable way to learn about oscillator circuits, impedance matching, and signal generation. The circuit is straightforward, the debugging is educational, and you'll learn more about frequency-domain thinking than you probably expected from a 555 timer and some alligator clips. If you're approaching it as a medical intervention, I'd recommend spending that time and money on something with actual clinical evidence behind it instead.
