Working Through Mastering Biology's Chloroplast Questions

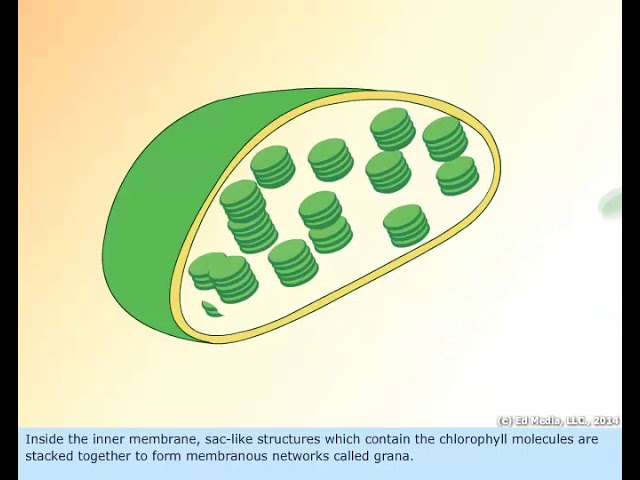

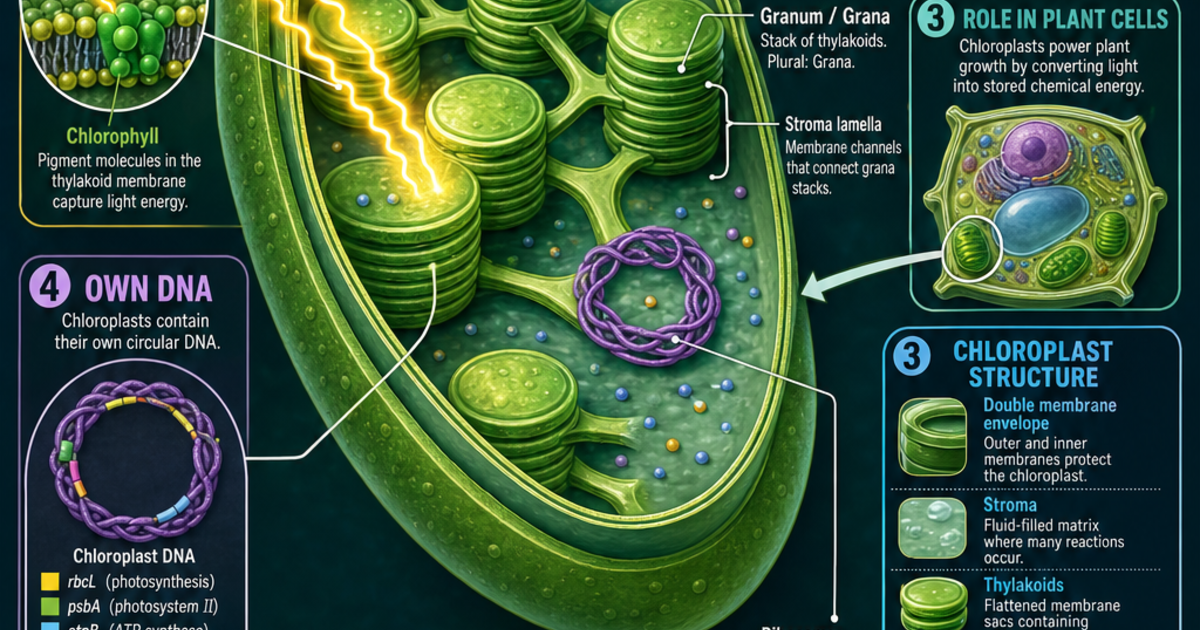

Mastering Biology uses image-based questions where you have to click on parts of a cell diagram. The chloroplast question is one of the more common ones students get stuck on. It usually shows an organelle and asks you to identify its parts — thylakoid, granum, stroma, outer membrane, inner membrane, and so on. The interface gives you drag-and-drop labels or click targets depending on the specific question type. Here's what actually works when you're staring at one of these questions. You need to recognize the chloroplast structure first. It has a double membrane envelope surrounding a fluid-filled space called the stroma. Inside the stroma are stacks of disc-shaped structures called grana (singular: granum), and each individual disc is a thylakoid. The thylakoids contain chlorophyll and are where the light-dependent reactions happen. The stroma is where the Calvin cycle takes place. When the question appears, I usually take a screenshot if the platform allows it, then zoom in to trace the boundaries carefully. The outer membrane is smooth and continuous. The inner membrane sits just inside it and can sometimes be hard to distinguish at low zoom levels. The intermembrane space between them is thin but visible if you look closely.
One thing I ran into repeatedly last semester was that some versions of this question use a three-dimensional electron micrograph rather than a clean textbook diagram. In those cases, the grana look like irregular stacked regions rather than perfect pancakes. I learned to look for the darker green-staining areas within the organelle — those are the thylakoid membranes packed with photosynthetic pigments. The lighter areas around them are the stroma. This distinction matters because if you click the stroma region when it's asking for a thylakoid, you get it wrong and lose a point.
Step-by-Step Labeling Strategy
Start from the outside and work inward. Label the outer membrane first, then the inner membrane, then the intermembrane space if that's an option. After that, identify the stroma as the background matrix. Then find the grana — those are the stacked structures — and finally the individual thylakoids within each granum. The order doesn't technically matter for scoring, but working systematically reduces the chance of mislabeling. I've seen people panic and start clicking randomly from the center outward, which leads to missed targets. The interface sometimes marks things wrong and you have to backtrack, which wastes time and increases frustration.
Get the Full Details
Pitfalls That Cost Points
The most common mistake is confusing the thylakoid lumen with the stroma. The inside of a thylakoid disc is called the lumen, and it's a separate compartment from the stroma. If a question asks specifically for the thylakoid lumen and you click the stroma area next to it, that's a wrong answer. Similarly, some questions differentiate between a single thylakoid and the entire granum stack, so you need to pay attention to whether the label line points to one disc or the whole stack. Another issue is that Mastering Biology sometimes shows cross-sections where the organelle is cut at an angle. A thylakoid that appears as a small circle in cross-section is actually part of a larger flattened sac. Students who don't account for this often misidentify the shape and place labels incorrectly.
Using the Resources Available
Before submitting, use the built-in hints and the textbook reference button if you have access. The platform sometimes links to specific chapters — for chloroplast structure, that's typically Chapter 8 or 10 depending on your edition. The diagrams in the textbook are more detailed than what appears in the quiz, and flipping to them can take about two minutes but prevent a wrong submission. Also check if your course has given access to the interactive 3D models in Mastering Biology. These let you rotate the chloroplast and see the internal arrangement from different angles. It's not available in every version of the question, but when it is, it significantly reduces errors because you can visually confirm which structure you're looking at before placing a label.
When the Question Type Changes
Sometimes the chloroplast question isn't purely identification. It might ask you to match processes to locations — for example, placing "light-dependent reactions" over the thylakoid membrane and "Calvin cycle" over the stroma. In those cases, remembering the functional compartmentalization is more useful than memorizing structural labels. The thylakoid membrane holds the electron transport chain and ATP synthase, while the stroma holds the enzymes for carbon fixation. If you understand why things are where they are, you can answer both structural and functional versions of the question without extra study time. I found that after about four or five attempts across different question variants, the structure becomes automatic. The initial attempts are slow and you'll likely get at least one wrong. But once you've done it enough times, the spatial layout of the chloroplast registers and you can move through these questions in under thirty seconds.
Limits of This Approach
This strategy assumes you're working with standard chloroplast diagrams. There are edge cases — some questions show chloroplasts from non-plant organisms like Euglena or certain algae, and those can have different internal arrangements. In those situations, the standard labeling pattern doesn't apply and you need to refer back to the specific organism's description in your course materials. Don't assume every chloroplast looks the same across all questions. Additionally, if you're using the mobile app version of Mastering Biology, the touch interface makes precise clicking on small structures frustrating. The labels are harder to place accurately on a phone screen. If you're having consistent trouble with placement, switching to a desktop or laptop for these questions saves significant time and reduces errors.
