What Actually Happens During IEC 62817 DQ
The standard is straightforward on paper. Design Qualification under IEC 62817 is the process of proving that a solar tracker's design can survive its intended environment without unexpected failure modes. It sits between type testing and operational monitoring. You build it, you test it, you document it, and you prove the design margin is sufficient. The document is relatively new compared to some of the older solar standards, which means the industry is still figuring out the practical wrinkles. Most people I talk to treat it as a box-ticking exercise. That is a mistake. The qualification process is where you find out whether your actuator sizing is realistic, whether your control logic handles partial shading or sensor failure properly, and whether your structural design actually matches what the wind models predict. I have seen projects skip straight to production because someone on the engineering team read the standard once and decided they understood it. Two years later the foundations were failing in conditions the vendor had claimed were "covered." The cost of rework was roughly four times the price of doing the DQ correctly the first time.
Iec 62817 Design Qualification Of Solar Trackers
Here is how I approach it when a manufacturer or developer asks for guidance. First, you define the site class. IEC 62817 references wind zone categories and environmental conditions. You do not guess this. You pull actual meteorological data from the nearest station, or you commission a short-term weather station at the site if the project is large enough to justify it. A 10 MW installation with incomplete wind data at the design stage will come back to haunt you during qualification. The standard gives you frameworks, but the numbers have to come from somewhere real. Second, you map every critical component. Actuator, gearbox, torque tube, foundation connection points, control cabinet, sensors. Each of these has a different qualification path. The torque tube needs fatigue testing. The actuator needs thermal cycling and ingress protection verification. The control system needs functional safety assessment. You do not group them together. I have seen DQ reports that lumped actuator durability into the general "structural testing" section and then claimed compliance across the board. Auditors catch that now. The standard is specific about separate test methods for separate component classes. Third, you establish the test matrix before you run a single test. This means defining load cases, environmental stressors, duration, acceptance criteria, and failure definitions upfront. If you decide what counts as a failure after you see the results, you have not qualified anything. You have just manufactured a report.
The practical workflow looks like this. You take your baseline design drawings, run finite element analysis on the torque tube and key joints under the design wind loads for your site class, document the factor of safety, then move to physical testing. The physical testing includes static load tests, dynamic cycling tests, and environmental exposure tests. Each test has pass/fail criteria defined by the standard. You document everything with timestamps, load curves, and photographic evidence. Here is something the standard does not emphasize enough and most vendors gloss over. The interaction between the control system and the mechanical structure during extreme wind events. A tracker that passes static load tests can still fail in the field if the stow sequence is too slow or if the wind speed sensor has a blind zone. I worked on a project in the southwestern US where the original DQ passed every mechanical test. The failure mode showed up six months into operation during a dust storm. The anemometer was mounted on the control cabinet roof, not on the tracker row itself. Wind speed readings at the sensor location were underreporting by roughly 15 percent compared to actual speeds at the rotor plane. The trackers did not stow fast enough. Two rows were damaged. The fix was not redesigning the torque tube. It was moving the anemometer to the tracker level and adjusting the stow trigger threshold in the control algorithm. We then ran a supplementary qualification test with the corrected sensor placement and documented it as a design change under IEC 62817 clause 6.3, which covers design changes and their re-qualification. That clause is where most people get sloppy. They treat a sensor relocation as an operational tweak rather than a design modification. It is a design modification. You requalify it.
Get the Full Details
Another counter-intuitive point. Fatigue life calculations based purely on standard wind spectra tend to be non-conservative for tracking structures. The reason is that trackers experience stochastic loading from turbulence and yaw misalignment that is not captured well by IEC 61400-style spectra, which were developed for wind turbines. I usually apply a fatigue enhancement factor derived from measured strain data rather than relying solely on the analytical model. If you do not have measured data, you run a computational fluid dynamics simulation of the wind field around your specific tracker geometry and use that to populate a refined load spectrum. It takes more time upfront but reduces the probability of unexpected fatigue cracks in the field by a significant margin. On the documentation side, IEC 62817 requires a Design Qualification Report. It needs to include the design basis, the test methods used, the test results, the acceptance criteria, and a conclusion stating whether the design meets the standard. Keep it clean. Do not pad it with generic manufacturer brochures or irrelevant material certificates. The people reviewing this report are not looking for reassurance. They are looking for evidence that you tested the right things in the right way.
Where the Process Breaks Down

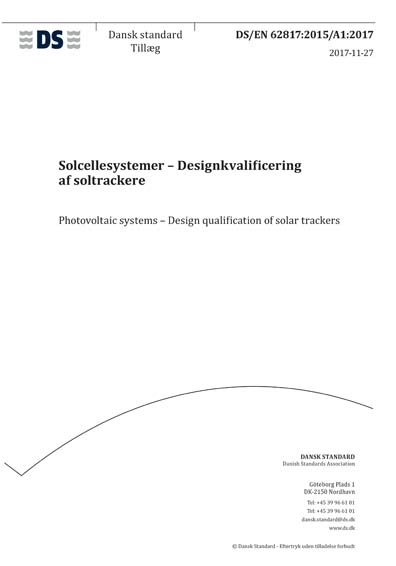

The main weakness of IEC 62817 DQ as currently practiced is that it relies heavily on the manufacturer providing test data. If you are the developer and you do not have independent verification, you are trusting the vendor's lab. That is not inherently bad, but it is a single point of failure in the quality chain. I always recommend having at least the critical tests witnessed or repeated by an accredited third-party lab, especially for the first production batch from a new manufacturing line. Another limitation. The standard does not prescribe specific acceptance criteria for all test types. In some cases, the criteria are left to be defined by the manufacturer. This creates inconsistency across the industry. A torque tube that passes one vendor's fatigue test might not pass another's, even though both claim compliance. The onus is on the developer to set strict criteria in the procurement specification before the testing begins. Do not leave it open-ended. If you need the actual standard document, it is published by the International Electrotechnical Commission. You can purchase it directly from the IEC shop or from your national electrotechnical committee. There is no free legal copy. Some industry groups circulate draft versions, but those are not authoritative. Stick to the published edition.
The qualification process itself usually takes between eight and fourteen weeks from test planning to final report, depending on how many component types you are covering and whether you run tests in parallel. Budget roughly two to three percent of the total tracker package cost for the DQ activities if you are doing it properly with third-party witnessing. Anything significantly cheaper usually means something is being skipped. One final note. DQ is not a one-time event if you change materials, manufacturing sites, or design parameters. IEC 62817 clause 6.3 requires re-qualification for design changes. I see too many projects treat a change in actuator supplier as a minor procurement update. It is not. It triggers a fresh component-level qualification and likely a structural re-analysis. Plan for that in your project schedule and your budget. It will save you from a much more expensive problem later.
