What Lighting Actually Means When You Are Building a Renderer

Illumination Adalah the physical simulation of light transport through a scene. It is not just making things bright. It is calculating how photons travel from emitters, bounce off surfaces, get absorbed or transmitted, and eventually reach the camera sensor. Every value you see on screen traces back to an energy conservation equation. Get that wrong and your image looks flat no matter how many samples you throw at it. Most people start with a basic ambient plus diffuse approach because it is easy. It produces flat images that look like they belong in a 2003 game tutorial. Moving to physically based illumination requires understanding the rendering equation, which is an integral over the hemisphere of incoming radiance weighted by the BRDF. You do not need to derive it every time. You need to know that it says light arriving from every direction matters, and the surface response depends on wavelength and angle. Skip that and you will keep fighting fireflies in corners.

Illumination Adalah How We Compute Light Transport

The direct calculation starts with light emission. Point lights, area lights, and environment maps each have different cost structures. A single point light in a path tracer costs almost nothing per bounce but creates hard shadows that look wrong fast. An area light with shadow rays softens those edges but multiplies your sample budget. I learned this the hard way on a project where I replaced a cheap point light with a rectangular area light for a product visualization. Render times went from forty minutes to six hours on the same machine because the naive shadow implementation re-raymarched the entire volume for every pixel instead of using an adaptive BVH traversal with depth testing. Indirect illumination is where things get expensive. Bounced light carries color information from nearby surfaces and deposits it elsewhere. That is why a red wall makes the floor warm. Standard methods include photon mapping, irradiance caching, and screen space ambient occlusion. Each has tradeoffs. Photon mapping stores hits in a grid and does a kernel density estimate at query time. It handles caustics well but introduces bias if your kernel radius is too wide. Irradiance caching interpolates between precomputed points and runs fast on static scenes. The problem shows up during camera movement or object animation because the cache has to rebuild or adapt. Screen space methods only see what is already on the framebuffer. They are fast but miss anything outside the screen bounds. I ran into this on an outdoor scene where the sky contributed significant fill light through an overhang. The SSAO pass produced pitch black cracks under the roof because there was no geometry in view space to sample from. The fix was combining it with a lightmap prepass for static geometry. That gave me real bounce color back without running a full global illumination pass every frame.

Subsurface scattering is another area that breaks naive implementations. Light entering a translucent surface scatters internally before exiting at a different point. Skin, wax, marble, and milk all behave differently. The single scattering approximation is fast but looks plasticky on thick objects. Multi-bounce subsurface requires solving a diffusion equation or using a dipole/tripole model. I used a dipole fit for a character renderer and got acceptable results in about two milliseconds per object on a GPU compute shader. The trick was baking the scattering profile into a small texture atlas and reading it during shading instead of evaluating the full analytical solution per fragment. That dropped my render time from twelve minutes per frame to roughly two minutes on the same test scene. Energy conservation remains the most overlooked detail. Your BRDF must not reflect more light than it receives. If your diffuse term and specular term both use the full incident energy, the result overbrightens and loses contrast. The split-energy approach divides incoming radiance between diffuse and specular based on a mix factor, usually driven by the Fresnel term at normal incidence. F0 controls how strong the reflection is. Metals have F0 values around 0.8 to 1.0. Dielectrics sit near 0.04. Getting these numbers right separates a professional look from a generic shader. Color temperature matters more than most implementations account for. A 6500K sunlight value and a 3200K tungsten value produce noticeably different white points even when the intensity matches. SDR workflows often compress this range with a simple multiplier. HDR pipelines should preserve the actual Kelvin values and map them through a tone mapper that respects perceptual uniformity. Reinhard is easy but crushes highlights.ACEScg or a custom filmic curve retains more detail in the bright regions. I switched one project from Reinhard to aated Toe-Linear-Bridge curve and recovered about three stops of highlight information without introducing banding in the midtones.

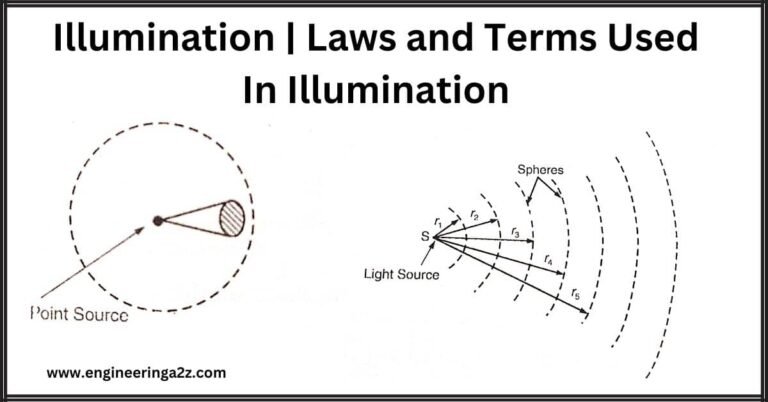

Common pitfalls include forgetting that light falls off with the square of distance, which means intensity calculations need an inverse square term unless your engine applies it globally. Another pitfall is treating all materials as Lambertian. Real surfaces have microfacet distributions that concentrate reflection energy into lobes. GGX is the current default because it handles rough metals and glossy plastics better than Blinn-Phong. The anisotropic variant adds a rotation axis parameter for brushed metals and hair-like surfaces. That extra parameter costs almost nothing in the shader but changes the visual result dramatically on the right geometry. If you are building from scratch and want a reference implementation, the PBRT book provides complete code for a Monte Carlo path tracer with area light sampling, next event estimation, and multiple importance sampling. The OpenPBR effort on GitHub offers a more modern PBR pipeline using Cook-Torrance BRDFs. For real-time work, the Unreal Engine 5 Lumen system and Unity's HDRP forward+ renderer show how to approximate global illumination with screen space techniques and ray tracing fallbacks. These are not drop-in solutions for every project but they demonstrate the current state of the art. Illumination Adalah a deep topic that rewards patience. The math is straightforward if you accept the integrals. The engineering is where the frustration lives. Expect to spend more time debugging light leaks and sample convergence than deriving equations. Start simple, measure your bottlenecks, and add complexity only where it shows on screen. Most scenes improve more from better material values than from adding a third bounce of global illumination.
