Figuring Out Your Vintage Janitrol AC Without Losing Your Mind
Janitrol made solid air conditioning equipment back when the company was its own thing, before Goodman absorbed the brand in the 90s and everything eventually moved to Daikin. If you've got a vintage Janitrol unit sitting in your basement, workshop, or still running in some older apartment building, the manual is going to be your primary reference. Most of these units are twenty to forty years old, and the paperwork that came with them has likely been lost, tossed out, or degraded into unreadable pulp. That is the reality you are dealing with. The search for a Janitrol Air Conditioner Manual usually starts the same way every time. You look at the data plate on the unit, grab the model and serial number, and type them into a search engine. What you will find depends heavily on the age and series of your unit. Early Janitrol products from the 1960s and 70s have sparse documentation online. Units from the late 80s and early 90s tend to have better coverage because Goodmans era produced more standardized paperwork that survives in digital archives.
Where to Find a Janitrol Air Conditioner Manual

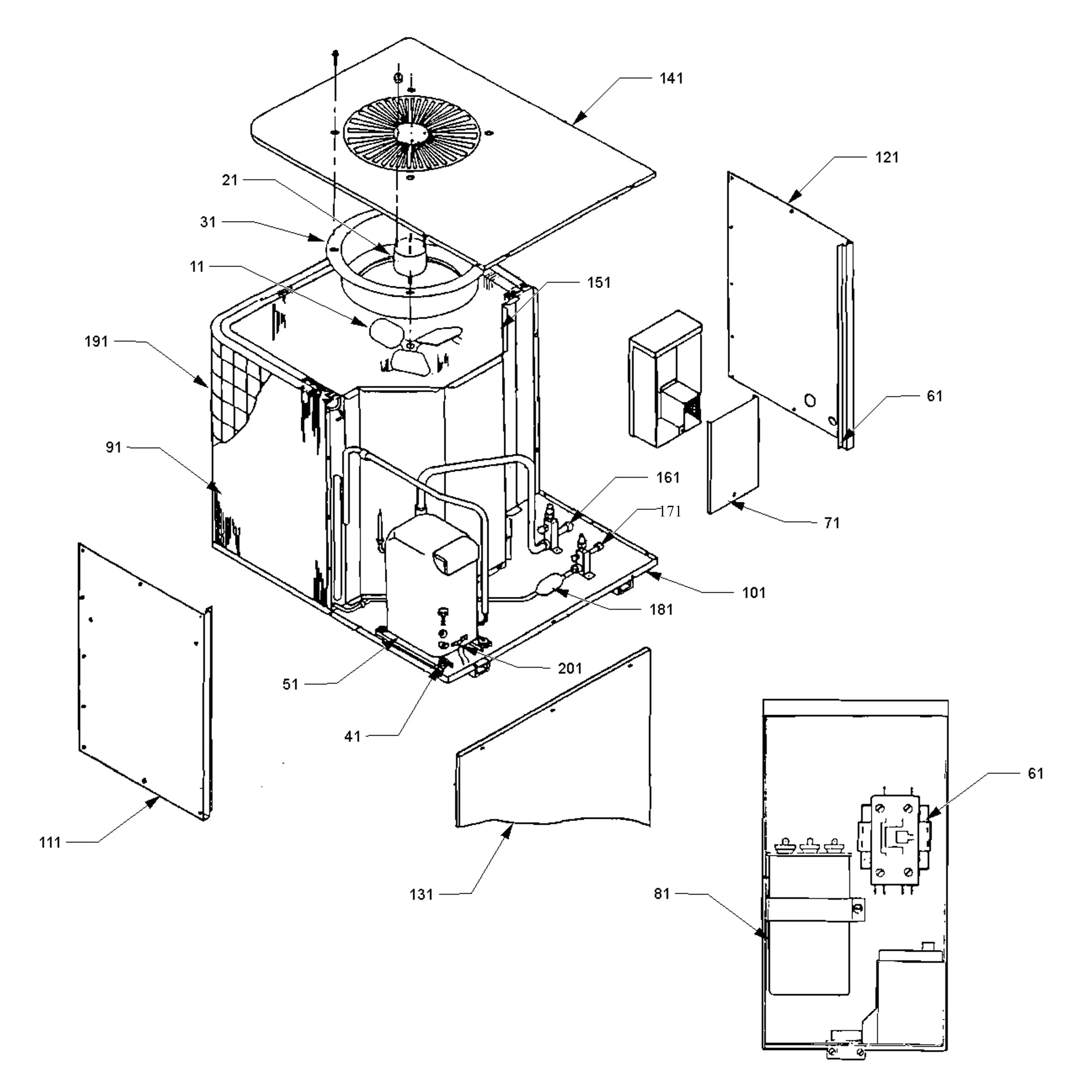

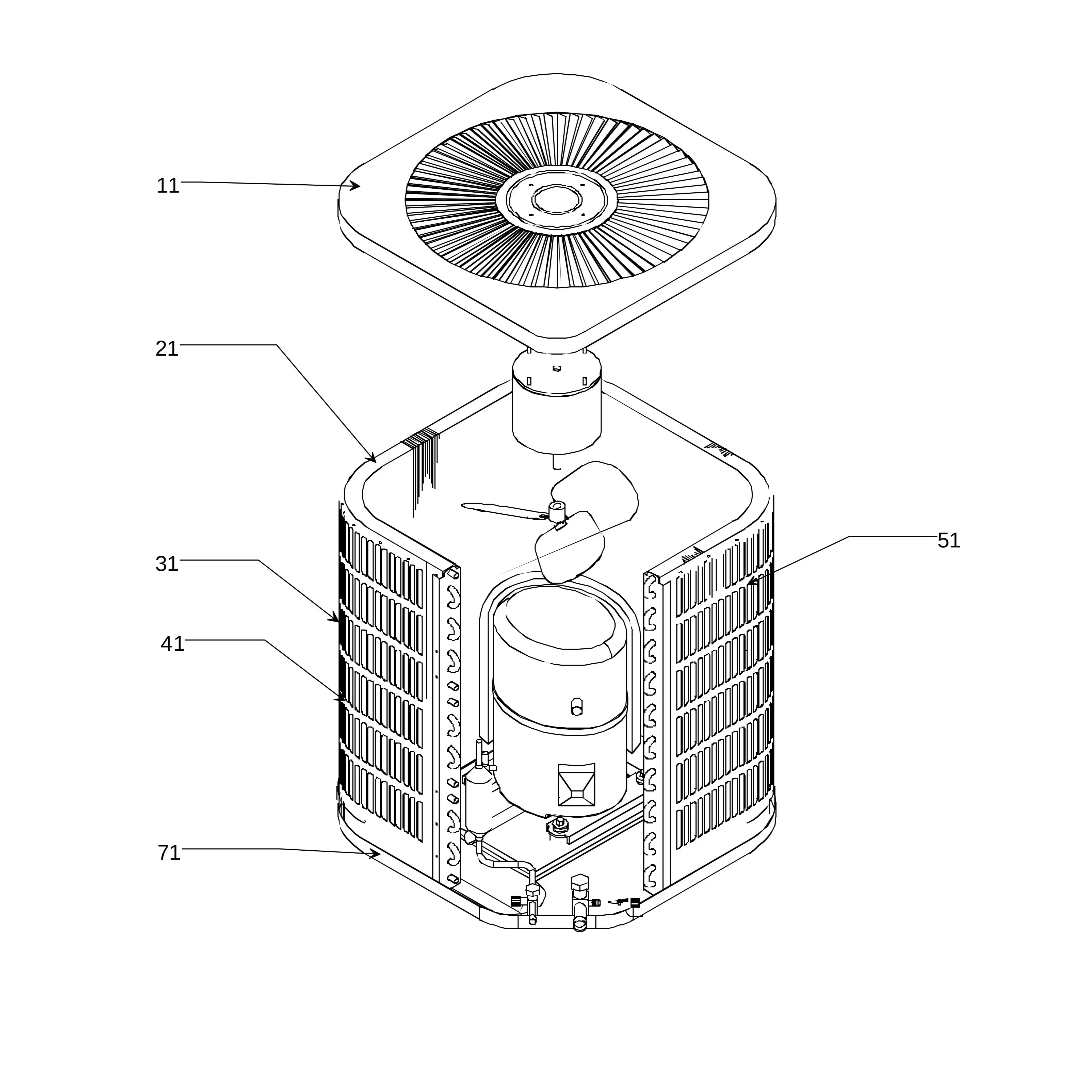

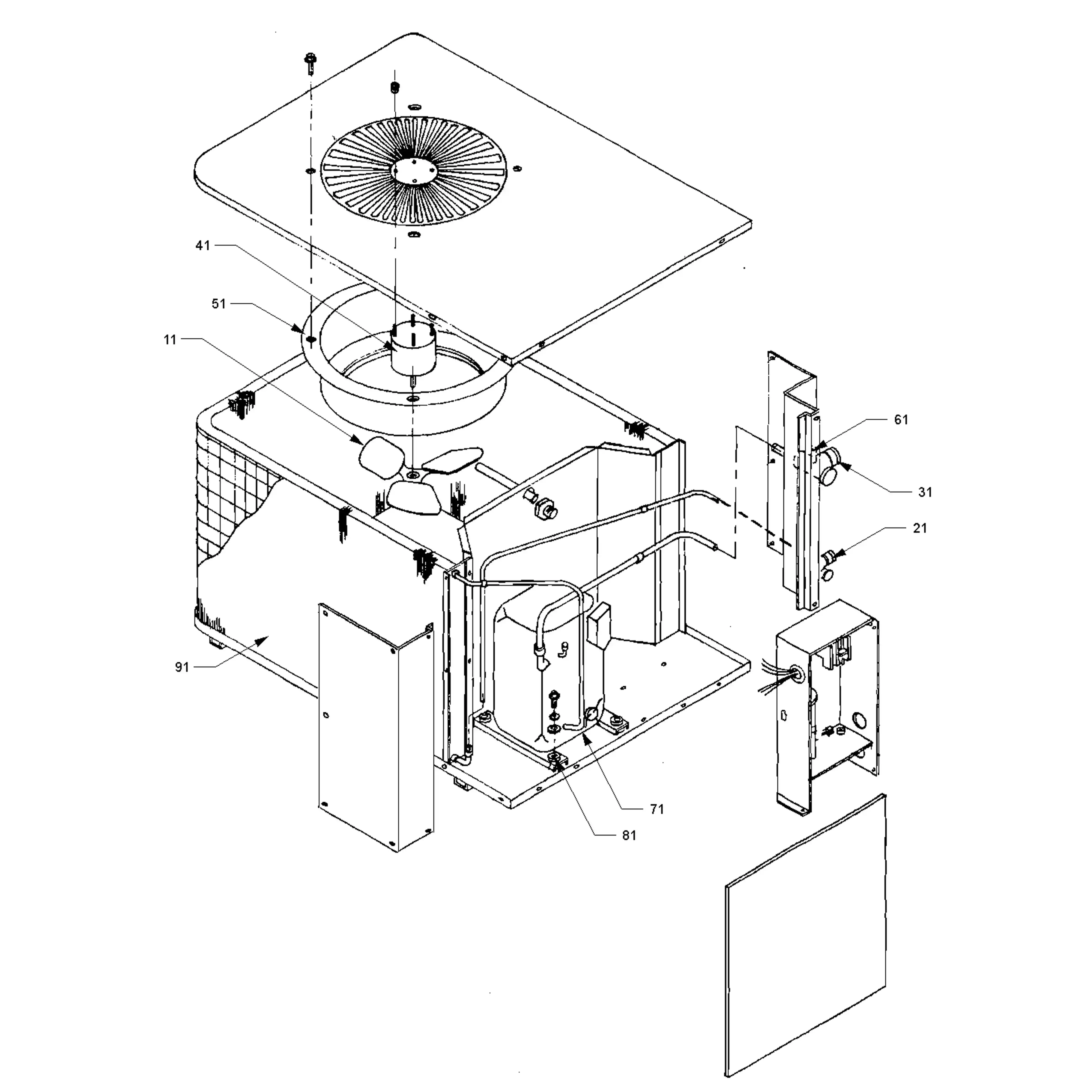

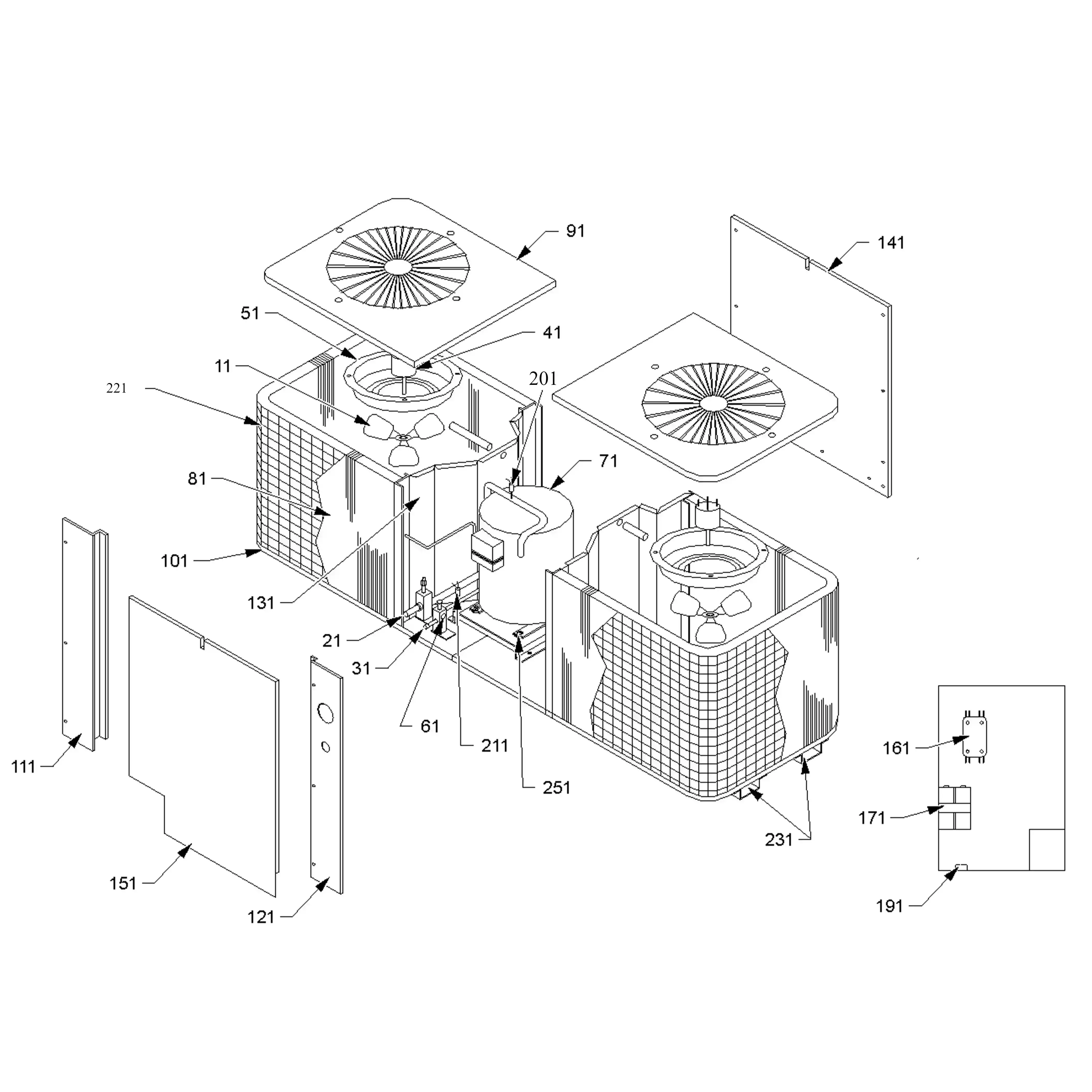

The most reliable sources are not the big consumer forums. They are the HVAC service manual repositories and the Goodman/Daikin parts diagram databases. Janitrol fell under the Goodman umbrella, which means many of the later manuals are filed under Goodman part numbers rather than Janitrol branding. If you have a model number like JTR or JTW series, try cross-referencing it through the Goodman parts lookup. The manual PDF will often be listed under a different name than what you expect. Archive.org has a decent collection of vintage HVAC manuals. I pulled a 1978 Janitrol service guide from there last year. The quality was poor, the scanning was uneven, and half the pages were blurry, but the wiring diagram for a JTR-060 unit matched exactly what I needed. It took me about ten minutes to find the right document after trying five or six different search variations. For more recent units, the Daikin official website has a support section where you can enter model numbers and download manuals. This works for Janitrol units that were rebranded during the transition period. I have used this for several Goodman-era Janitrol packaged terminal units, and the PDFs are clean, complete, and properly indexed. The download is free, no account required, though the site search function is not great. You will need to be precise with your model number.
There are also third-party sites that sell manual PDFs for vintage HVAC equipment. Some of them are legitimate digitizations of original factory documents. Others are scan services that charge money for material you can get for free elsewhere. I tend to verify by checking if the PDF contains actual technical content versus just a cover page and table of contents. A legitimate service manual will have wiring schematics, pressure charts, and troubleshooting flow charts. Anything less is usually not worth the purchase price.
Get the Full Details
What to Expect Inside a Janitrol Service Manual
The structure of these manuals varies depending on whether they are homeowner quick-start guides or full technician service manuals. The homeowner versions are thin documents that cover thermostat settings, filter maintenance, and basic troubleshooting. They are adequate for routine issues but useless when something actually breaks. The technician service manuals are where the real information lives. These typically run between 40 and 120 pages and include electrical schematics, refrigerant charging procedures, component replacement instructions, and fault code listings for later electronic control models. The electrical diagrams in Janitrol manuals are generally clear but follow conventions that are dated by modern standards. Relay logic diagrams use symbols that most current HVAC technicians learned from newer training materials. If you are working from a 1985 manual and your background is in modern variable-speed systems, the transition can be frustrating. The wiring is fundamentally straightforward though. Janitrol used standard residential and light commercial control voltages, so a multimeter and a basic understanding of 24-volt control circuits will take you most of the way. Refrigerant information is another area where these manuals can be misleading if you read them without context. Older Janitrol units were designed for R-22 or R-12 depending on the production year. The charging procedures in the manual assume you are using the original refrigerant. If you have already had the system converted to R-410A or another modern replacement, the pressure-temperature relationships in the manual will not match what your gauges are reading. I ran into this exact problem with a JTW-121 through-wall unit I was servicing last spring. The manual called for 35 psi on the low side at 70 degrees Fahrenheit ambient. My gauges showed 115 psi because the system had been retrofitted with R-410A. I stopped using the manual's pressure chart and switched to superheat-based charging instead, which is the correct approach for R-410A systems regardless of what the original documentation says.
Common Problems and What the Manual Won't Tell You
One thing the Janitrol manuals rarely address is the failure pattern of the outdoor fan motor capacitors in their older single-phase compressors. These units used run capacitors rated for specific microfarad values, and the capacitance drops over time. The manual will list the correct capacitor specification, but it will not warn you that a capacitor reading 80 percent of its rated value can cause the compressor to overheat and trip on high pressure before it causes any obvious performance degradation. I replaced a 35-microfarad capacitor on a JTR-048 that was testing at 28 microfarads. The unit was cooling, just barely, and the owner complained about high electric bills. After the replacement, the compressor drew 4.2 amps instead of 6.8, and the discharge temperature dropped by about 15 degrees. The manual does not connect those dots for you. Another gap in the documentation is the handling of control board failures in the later electronic thermostat models. Janitrol produced units with printed circuit boards that controlled the compressor cycle, fan operation, and defrost timing. When those boards fail, the manual gives you a troubleshooting tree based on voltage measurements at specific test points. In practice, those test points are often recessed behind terminal blocks that require partial disassembly to access. I spent about 45 minutes removing panels and disconnecting wires on a JTRC-060 just to reach the board test terminals. Once I had access, the diagnosis was straightforward, but the physical layout of the control compartment makes maintenance and inspection unnecessarily difficult. Janitrol could have placed the test points on a more accessible header. They did not, and the manual reflects whatever design constraints existed at the time. Corrosion on the evaporator coil is another issue that manifests differently than the manual describes. Janitrol through-wall units are particularly susceptible because the indoor and outdoor sections share a narrow chassis with limited drainage. If the condensate drain becomes partially blocked, water sits in the pan and creates a corrosive environment. The manual mentions cleaning the coil and clearing the drain, but it does not address the fact that aluminum fin corrosion in these units tends to progress from the bottom row upward. By the time you notice reduced airflow, the lower fins are often completely matted down. I have seen units where the top three rows of fins were nearly pristine while the bottom half was crushed and obstructed. Airflow restoration required careful comb work on the lower section, not just a general cleaning pass. A coil comb and some patience handled it, but the manual treats this as a simple maintenance task rather than the repair it often becomes.
When the Manual Is Not Enough
There are scenarios where a Janitrol Air Conditioner Manual will not solve your problem, and it is important to recognize those limits early. If your unit has been modified by a previous technician, the wiring in the field will not match the schematic in the manual. This is more common than you would think. People reroute wires, add auxiliary heat stages, or install replacement controls without documenting the changes. I worked on a JTW-150 where the previous installer had bypassed the factory control board entirely and wired the compressor and fan directly to a wall thermostat. The manual's electrical diagram was completely irrelevant to that configuration. I had to trace every wire individually with a multimeter to understand what was actually connected. That took about an hour and a half, but it was faster than spending time trying to apply a schematic that did not describe the real system. Another limitation is that many Janitrol manuals do not include part numbers for every component. The parts breakdown section lists major assemblies but often skips intermediate hardware like terminal strips, wire connectors, and mounting brackets. If you need a specific small part and the manual does not list a number, your options are to source a compatible generic part, cannibalize a matching unit, or fabricate a solution. I replaced a broken terminal block on an older unit using a generic equivalent from an HVAC supply house. The dimensions were slightly different, so I had to drill new mounting holes, but the electrical connections were identical and the unit ran normally afterward. The most significant limitation is availability. For units manufactured before 1985, complete service manuals may simply not exist in any accessible format. The originals were printed on paper that has not survived well, and no comprehensive digital archive covers the full Janitrol product line from that era. If you have a pre-1985 unit and cannot find a manual through the sources I mentioned above, your best path is to contact Daikin's technical support line with your model and serial number. They occasionally have archived documentation that is not publicly indexed, though they are not always responsive. I had mixed results with this approach. One inquiry about a 1972 model returned no information. Another inquiry about a 1983 unit produced a PDF within a week. The difference likely comes down to whether the documentation was digitized during the Goodman transition period.
If you are dealing with a vintage Janitrol unit and the manual route has not worked, you may need to accept that some diagnostics will rely on general HVAC principles rather than brand-specific guidance. The underlying thermodynamics and electrical systems in these units are not unique to Janitrol. A compressor that draws locked rotor amps instead of running amps is faulty regardless of the manufacturer. A capacitor that tests open is dead regardless of the label. Knowing how to apply those fundamentals reduces the dependency on the manual once you have exhausted the available documentation.
