Working with the Jcb 527 55 Loadall Parts Manual

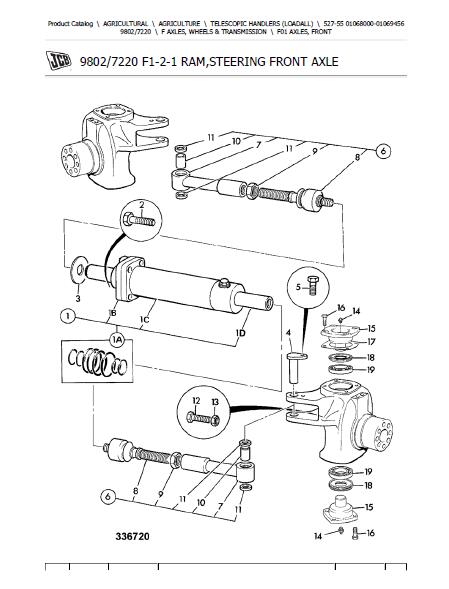

You're probably sitting at a job site with a machine that won't start, or you've just bought a used 527-55 and need to figure out what replaced part number something-or-other. The parts manual is one of those documents that looks simple but trips people up constantly if you don't know how to read it. I've spent more time than I care to admit tracing exploded diagrams back to the actual physical component on a machine, and most of the headaches come from not understanding how Jcb structures their numbering system. When you pull up the Jcb 527 55 Loadall Parts Manual, the first thing you'll notice is that it's organized by assembly, not by function. That's intentional. Jcb groups parts by where they live on the machine — boom assemblies, transmission housing, hydraulic circuit blocks, electrical panels — rather than by what problem you're solving. This matters because if you're looking for a seal in the lift cylinder, you won't find it under "hydraulic seals" or "cylinder maintenance." You'll find it in the boom cylinder sub-assembly section, referenced by a part number that ties back to a specific serial number range.

Jcb 527 55 Loadall Parts Manual: Where to Get It and How to Use It

The official manual comes from Jcb itself, either through their dealer portal or directly from their publishing division. Third-party reprint sellers exist, but be careful. I once ordered a PDF off a random site that turned out to be a scanned copy of a 525-60 manual with the model number altered in the title page. The part numbers were wrong on half the assemblies, and I nearly installed a seal kit that didn't fit because the cross-reference in the back of the book was garbled. Always verify against the serial number plate on the machine. Jcb changes part numbers mid-production run more often than you'd expect. The serial number check is the single most important step. A 527-55 built in 2018 might use a completely different alternator bracket than one built in 2021, even though they share the same model name. The manual will have a section near the front or in each assembly chapter that lists which part numbers apply to which serial ranges. If your machine falls between ranges — which happens frequently — you need to check both entries and determine which revision was in effect at the time of manufacture. There's no shortcut here. I learned that the hard way when I ordered a new steering cylinder for a mid-2019 machine and got a part that physically wouldn't bolt on because the mounting flange had been revised six months before my unit rolled off the line. If you're working offline on a remote site, a printed copy or a properly downloaded PDF on a tablet beats trying to scroll through a dealer website on spotty 3G. The exploded views in the digital version sometimes compress poorly, and you'll miss the fine detail on fastener sizes. I keep a laminated quick-reference sheet next to my machine with the common part number ranges for the top twelve assemblies. It cuts diagnostic time down significantly when you're already elbow-deep in hydraulic lines and need to confirm whether a bolt is M12 or M14 without going back to the cab.

One thing beginners consistently get wrong is assuming that a higher part number means a newer revision. Jcb doesn't always increment sequentially when they update a component. Sometimes they'll issue a service bulletin that supersedes an older number but keep the old number active in the catalog for a transitional period. The manual will mark superseded parts with an asterisk or a note in the column header. If you see two part numbers listed for the same position, the newer one is usually the one in parentheses or flagged with an SBN reference. Always go with the superseded number if you're ordering from a dealer parts counter. They'll reject an order for an obsolete part without the new number attached. The manual also doesn't list torque specs for every fastener. You'll find them scattered throughout, but not consistently. For critical structural bolts — main boom pins, carriage frame fasteners, steering knuckle retainers — cross-reference with the operations manual or Jcb's technical bulletin database. I've seen mechanics torqued a boom pivot bolt to the general spec in the parts catalog only to discover later that a field service bulletin had tightened the requirement by fifteen percent due to a fatigue issue. That kind of detail won't show up in the parts book alone. For ordering, having the machine's full serial number and the assembly number from the manual is essential. Dealers can sometimes work with just the model, but they'll likely call you back asking for more information anyway. If you're ordering online through a Jcb parts portal, entering the serial number upfront filters the catalog to show only applicable parts. Skip that step and you'll see every variant ever produced for that model, which is overwhelming and unreliable. The portal isn't perfect — occasionally it'll show a part as available when it's on backorder for eight weeks — but it's the closest thing to an authoritative source outside of calling a dealer directly.

There are situations where the manual simply won't help you. If you're dealing with a non-standard configuration — aftermarket attachments, a custom cab enclosure, a replaced sub-assembly from a donor machine — the exploded diagram assumes a factory-original build. I worked on a 527-55 that had its original transmission replaced with a remanufactured unit from a different production batch, and the mounts didn't align with anything in the manual. The part numbers for the adapter plate were listed, but the actual hardware on the machine was a mix of Jcb and third-party fasteners that hadn't been documented. In cases like that, you're better off taking measurements and photographing the assembly rather than relying on the catalog. The manual is a starting point, not a complete record of every modification that's ever been made to every machine in the field. If you can't find the manual, the dealer network is your next option. Jcb dealers have access to the same electronic catalogs, and many will email you a relevant section rather than shipping a whole book. It's faster and cheaper if you only need one assembly. Some independent sellers on marketplace sites offer photocopied versions at a fraction of the official price, but the quality degrades quickly and part numbers blur. A misread digit in a part number costs you more in shipping returns than any savings are worth. The manual won't tell you everything about sourcing replacements either. Jcb parts are genuine, but they're not always the cheapest option, and lead times vary by region. Some components — especially electronic control modules and hydraulics — have longer waits than others. If you're facing an extended downtime, check with independent hydraulic specialists and aftermarket suppliers for compatible alternatives. Not everything has a direct Jcb equivalent, and sometimes a reputable third-party seal kit or filter element performs identically at a lower cost. The manual gives you the OEM number for reference, but it doesn't restrict you to buying only from Jcb. Just make sure whatever you source matches the material specifications, particularly for seals and O-rings exposed to hydraulic fluid at temperature. I've had failures from parts that looked right on paper but used the wrong elastomer compound for the operating environment.

Keep the manual organized by assembly section with tabs or bookmarks. When you're diagnosing a problem at 6 PM on a Friday, flipping through two hundred pages isn't productive. A well-marked manual with sticky notes on the chapters you visit most — hydraulic system, electrical, transmission — saves time and frustration. I use a permanent marker to write the most common part numbers directly in the margin next to the exploded view. It's messy, but it works when you need to grab a number and go without hunting.
