Getting Work Done on the Teletruk DG Range
The JCB Teletruk 20DG, 25DG, 30DG, and 35DG telehandlers share a common platform with minor variations in lift capacity and boom length. When something goes wrong on one, it usually goes wrong on all of them. That is why having a proper service manual matters far more than guessing with a multimeter and hope. The official JCB service manual for these models covers the engine, transmission, hydraulic circuit, electrical system, and chassis. It includes torque specifications, wiring diagrams, fault code tables, and fluid capacities. The DG series uses a JCB 4-cylinder diesel, typically the Deutz or JCB-built unit depending on the production year. Hydraulic loadsensing is standard across the range. The control valve assembly and pilot circuits are the same part families between the 20DG and the 35DG. I have used these manuals on-site for over a decade. The ones worth your time are the factory JCB publications, not the third-party reproductions. The factory version has updated circuit revisions that matter when you are tracking down an intermittent signal on a machine that has had previous repairs. Third-party copies sometimes skip those revision notes entirely.

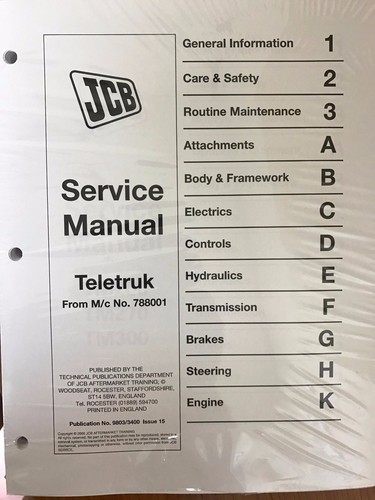

You can find the original service manuals through JCB dealers or from their online parts and documentation portal. Many dealers will email you a PDF if you provide the serial number. Some third-party vendors sell compiled versions at a fraction of the price, but check the table of contents first. If the electrical section does not include the variant wiring for different attachment setups, it is probably not complete.
What the Manual Actually Covers
There are two main divisions in the manual. The diagnostic section comes first, followed by the mechanical and hydraulic procedures. Some technicians read it backwards because they want the teardown steps first. That is fine, but the diagnostic portion contains things that are easy to miss if you skip it. The fault code lookup is not just a list of codes. Each entry specifies the condition that triggers it, the severity level, and whether the machine enters limp mode. The 25DG and 30DG will behave differently under the same code depending on the ECU software version installed. The manual lists the ECU part numbers and their corresponding calibration levels. I once spent three hours chasing a pressure sensor fault on a 35DG only to discover the ECU had been reflashed with an older calibration that reported false overpressure warnings. The fix was a software update, not a sensor replacement. The manual had the calibration cross-reference on page 147 in the electrical section. The hydraulic section covers the closed-center load sensing circuit, the priority valve, the boom and steering circuits, and the attachment controls. Torque values are included for every fitting and bolt. The pump removal procedure alone takes about forty minutes if you follow the manual steps. Doing it without the sequence and missing the pilot line routing can take you half a day and a replaced hose that was never supposed to come off.
Get the Full Details
The engine section details the fuel system, turbocharger, intercooler, and valve adjustments. Injectors are coded. The manual explains how to register a replacement injector with the ECU so the fuel trims reset properly. Without that step, a freshly replaced injector can cause rough running for several hours until the adaptation values drift back. That is not a defect. It is normal ECU behavior.
Practical Walkthrough: Finding a Leak in the Pilot Circuit
Here is a real example from a job last year. A 30DG would not hold the boom in position. The cylinder drifted down slowly over twenty minutes. The operator had already replaced the boom cylinder seals twice. Both times the problem returned within a week. I pulled up the hydraulic schematic in the manual and traced the pilot lines that control the boom holding valve. The diagram showed a pilot feed that runs from the main pump through a shuttle valve and into the holding valve pilot port. There is a small Orifice inside the valve body that can get contaminated. Instead of pulling the cylinder again, I disconnected the pilot line at the holding valve and checked for flow with the engine running and the control lever in the keep-raised position. The flow was minimal. That pointed to a blockage upstream. The manual gave me the location of the pilot filter, which is separate from the main hydraulic filter. Most people do not know it exists. I cleaned it, replaced the element, and tested. The boom held for four hours straight under load. The machine had been sitting in a dusty environment with regular filter changes on the main filter but no attention to the pilot filter. The manual covers this in the hydraulic maintenance schedule on page 89.
That same manual also lists the pilot system operating pressure at approximately 180 bar. Measuring that with a gauge at the test port confirmed the pump was delivering correct pressure. So the issue was not the pump. It was the filter and the pilot circuit integrity. Replacing the cylinder seals was never going to fix that.
Common Pitfalls With These Machines
One thing that catches people out is the alternator wiring. The DG series uses a regulated alternator with a separate excitation circuit. If you see a charging fault but the alternator tests fine on a bench, check the small gauge wire that carries the excitation signal from the ECU. It runs along the engine harness and passes near the exhaust manifold. Heat degradation is common. The manual has the wire gauge and routing diagram in the electrical section. A continuity check on that wire takes two minutes and saves you from replacing a good alternator. Another issue is the transmission oil temperature sensor. It sits in the transmission case near the final drive mount. When it fails, the machine goes into protection mode and derates power. The manual gives you the resistance values across the temperature range so you can verify the sensor before touching anything else. A cold sensor reads around 2500 ohms. Hot at operating temperature it drops to about 300 ohms. Anything outside that range means the sensor is bad. Technicians sometimes blame the ECU first because the fault code points to implausible signal range. It is almost always the sensor. The telelever system on these machines is hydraulic with mechanical linkage. The travel limit switches on the boom can shift during routine maintenance if someone removes the guard panels and does not torque the mounting bolts to spec. The manual lists the bolt torque at 8 to 10 Nm. Over-tightening cracks the switch housing. Under-tightening lets vibration move the switch out of position. Either way you get false limit switch faults that are hard to diagnose because the machine behaves normally until the boom reaches a certain angle.
Electrical Diagnostics
The electrical system uses a standard JCB connector layout. The multi-pin plugs are colour-coded by function. Red for power, black for ground, green for signal return. The manual includes a connector pinout chart for every major plug. If you are probing a connector and the pin assignment in the chart does not match what you see, check the manufacturing date on the harness. JCB changed some pin assignments between the 2008 and 2011 production runs. The manual has a revision note that covers this on page 212. Avoid using a test light on any circuit that connects to the ECU. Use a digital multimeter with high impedance input. A test light draws too much current and can damage the ECU driver circuit. I have seen this happen more than once. The ECU was replaced unnecessarily because someone test-lighted a sensor circuit and blew the internal driver. The manual explicitly warns about this in the electrical safety section.
Fluid Specifications
The hydraulic fluid specification is JCB Fluid Type 369. This is a multi-viscosity fluid designed for the load sensing system. Using a generic hydraulic oil can cause valve sticking in cold weather and accelerated wear in the pump. The transmission oil is SAE 80W-90 gear oil. The engine oil is 15W-40 diesel-grade. Coolant is a silicate-free green OAT formulation. Mixing coolants from different manufacturers can cause gel formation in the heater core. The manual lists the coolant concentration ratios for different climate zones. The online version of the service manual is searchable and updates automatically when JCB releases technical bulletins. The printed version is still useful for site work where connectivity is unreliable. I keep both. The digital copy is faster for looking up part numbers and wiring diagrams. The printed copy is better when you are under the machine with oily hands and need to flip to a page quickly without worrying about a screen reader. The manual does not cover everything. It does not include every aftermarket attachment configuration, and it does not cover engine replacements with non-OEM units. If someone has swapped the original engine for a remanufactured unit from another supplier, the wiring and sensor specifications may not match the manual. In those cases, you need to work from the new engine manufacturer's documentation alongside the JCB manual.
If you are working on a Teletruk DG and do not have the manual, the first step is getting the serial number and requesting the correct publication from a dealer. The part number changes between model variants and production years. Ordering the wrong one is common and wastes time. The serial number lock ensures you get the right revision.
