Understanding the Jeep Cherokee Undercarriage Layout
Most people looking for a Jeep Cherokee undercarriage diagram are either planning suspension work, trying to source replacement skid plates, or diagnosing rattles after hitting something off-road. The underbody of a Cherokee isn't particularly complex compared to some modern SUVs, but knowing exactly what you're looking at saves a lot of guesswork when you're lying on concrete at 11pm with a flashlight. The frame on a XJ Cherokee (1984-2001) is a body-on-frame design with a full ladder chassis. Unlike unibody crossovers that came later, this thing has two solid side rails running the full length with crossmembers bolted between them. The transfer case mounts directly to the transmission tunnel area, and the fuel tank sits between the rails behind the rear axle. If you're chasing a diagram, the key is understanding which generation you're dealing with because the XJ platform ran for nearly two decades with significant changes along the way.
Where to Find a Reliable Jeep Cherokee Undercarriage Diagram
There are a few decent sources out there. The most detailed comes from the factory service manual, specifically the section on frame and underbody structure. Chilton and Haynes both published diagrams in their Cherokee guides that show component positions relative to the frame rails. For free options, the Jeep Cherokee forums like cherokeeworld.com and sjcjep.com have member-contributed undercarriage photos with labels that are often more practical than any printed diagram because they show actual condition and common failure points. I've used the 1991-1995 factory service manual diagrams extensively. They don't cover every bracket and clip, but they give you the major subassembly locations: engine oil pan, transmission pan, transfer case output, differential covers, fuel tank, and the exhaust routing from manifolds to muffler. The 1987-1990 models use a slightly different frame crossmember layout due to the emission system reconfiguration, so make sure your diagram matches your model year range. One thing most diagrams miss entirely is the wiring harness routing underneath. If you're doing anything that involves disconnecting the oxygen sensor or the main ground strap near the rear axle, a proper diagram won't warn you about how close that gray loom runs to the driveshaft slip yoke. I learned that the hard way when a driveshaft vibration turned out to be a chafed wire from the starter solenoid that had rubbed through its insulation against the slip yoke boot. Took me three hours of teardown to find it because no underbody diagram shows electrical content that low.
Key Components and Their Layout
The front subframe area contains the steering gear, lower control arm mounting points, and the front differential if you have the 4WD model. The linkage between the transfer case and the front axle runs along the driver's side frame rail, which means rust in that channel can hide significant corrosion without you ever seeing it from below. I found a front axle chain that had completely parted because the adjustment bolt was seized inside a rusted-through frame pocket. A diagram would show you where that chain runs, but it won't tell you the pocket was gone. The rear leaf springs on the Cherokee attach to the frame via shackle bolts and spring pins. The rear axle is located by the leaves and the trailing brake rod. When you're replacing rear springs, the undercarriage view shows you the clearance between the spring eye and the bracket, which is tighter than it looks. The 4.0L engine oil pan sits pretty low, especially on the manual transmission models because the bellhousing is longer and the pan itself has a deeper sump. I've scored mine twice just doing routine oil changes because I misjudged the clearance from the center crossmember. The fuel tank on the XJ is a stamped steel unit mounted horizontally behind the rear axle. It's held by U-bolts through rubber straps, and the sending unit is accessible from the top without dropping the tank on most model years. The vent line runs up the passenger side frame rail and connects to the charcoal canister under the engine bay. If you're dealing with a fuel smell, that vent line is a common failure point, particularly where the rubber section meets the steel tube near the rear seat area.
Get the Full Details

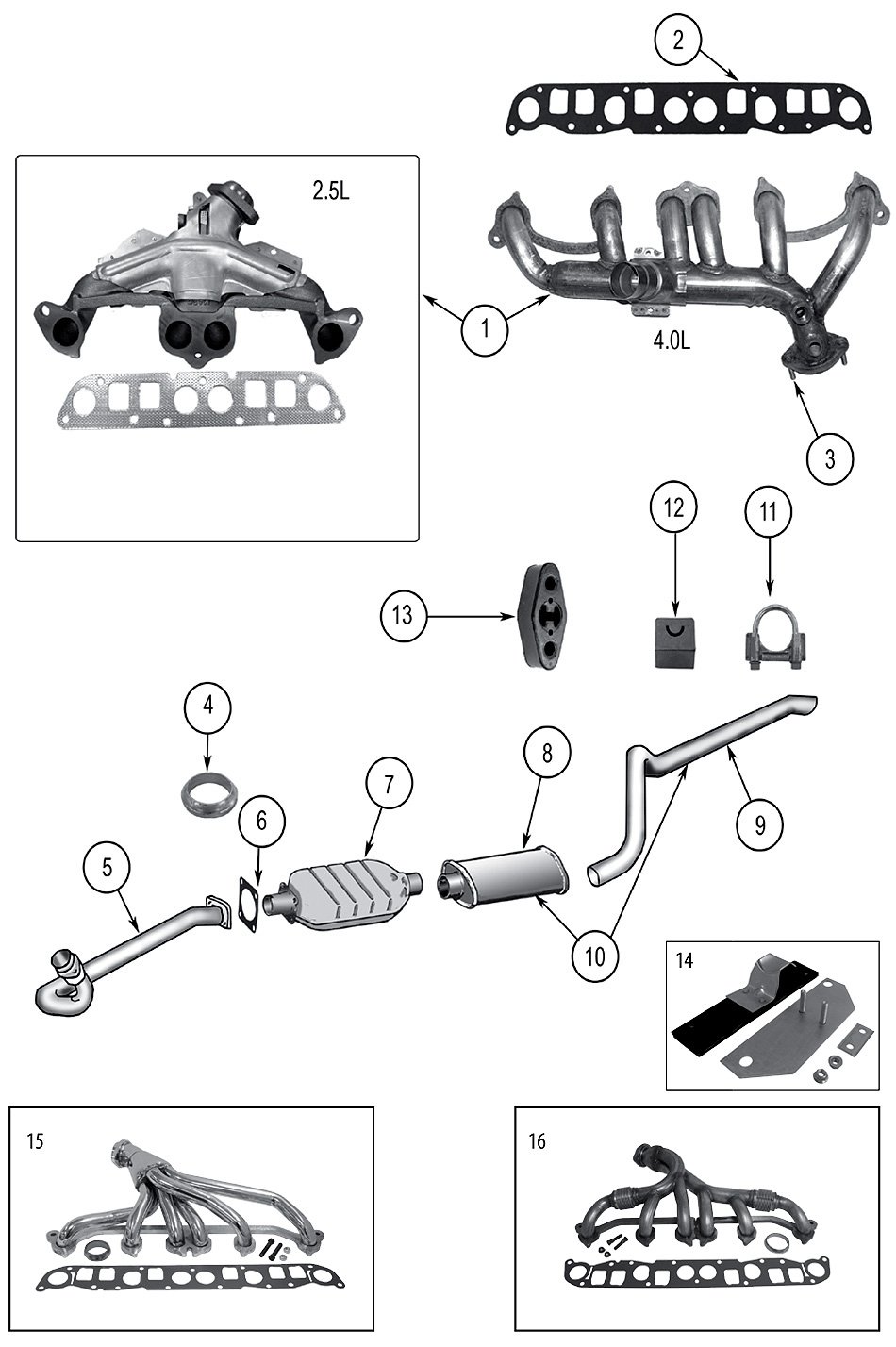

Exhaust routing varies depending on engine and transmission combination. The 4.0L inline-six has a long exhaust system that runs the full length of the driver's side before dropping down to the muffler. The catalytic converter is mounted right behind the manifold on most years, which puts it dangerously close to the front crossmember. If you're welding underneath the Cherokee, you need to move that cat or remove it before you even think about touching the torch. The 2.5L four-cylinder has a shorter system with the converter integrated closer to the midsection, which gives you a bit more working room.
Common Underbody Problem Areas
The front frame rail horns are the first place rust claims a Cherokee. These are the forward extensions where the front suspension mounts bolt in, and they trap road debris and moisture constantly. Inspect them before you commit to any suspension work because a brittle horn will crumble when you torque the control arm bolts. I've seen multiple listings for XJs where the seller showed clean photos from above but the frame horns were paper-thin on the underside. The crossmembers are secondary targets but still worth checking. The center crossmember supports the transfer case and has the front driveshaft bearing bracket welded to its underside. Rust here weakens the whole rear suspension geometry because the transfer case mount shifts under load. Not a safety-critical issue immediately, but it makes the steering feel vague and accelerates wear on the front U-joints. The rear frame rail inside channels are another quiet killer. Water and salt run back along the rail interior and collect at the rear bushing mounts. You won't see it from outside because the rails are boxed sections, but when you remove the rear spring shackle bolts, the thread engagement might be down to a few millimeters. I replaced three shackle bolts on a 1992 that snapped at the thread line because the inside of the rail was packed with rust scale. The bolts looked fine from the outside.
The differential breather tubes are worth a mention. Both the front and rear differentials have small rubber tubes that route the breathers up toward the frame rail. They clog regularly, which causes seal leaks when pressure builds during articulation. I've seen rear axle seals weep oil on Jeeps that never went deeper than a parking lot puddle, and the root cause was a blocked breather tube that had been crushed during a previous underbody repair. The fix is simple, but diagnosing it requires looking at something most diagrams don't highlight.
Working Under a Cherokee Without a Full Diagram
You don't actually need a perfect diagram for most jobs if you take photos as you go. My workflow is straightforward: before I disconnect anything, I shoot the area from three angles with a phone, then label each bolt or fitting with painter's tape as I remove it. This creates a custom visual guide that's actually useful because it shows the specific condition of my vehicle, not a generic rendering. For reference material, the factory service manual has the most accurate component positioning. The parts catalog section shows exploded views of the underbody with part numbers, which is valuable when you're trying to distinguish between a 1989 and a 1994 frame crossmember. They look similar from a distance but have different bolt patterns for the rear leaf spring shackles. If you're searching online, filter results by model year because the XJ platform changed more than most people realize. The 1987 model year introduced the electronic fuel injection on the 4.0L, which moved several components around the engine bay and shifted some underbody routing. The 1991 model year brought a revised rear suspension geometry that moved the parking brake cable routing. A diagram from a 1995 won't match a 1988 perfectly, and trying to use it will cost you time.
The most practical diagram I've found is actually a combination of the factory service manual frame section and detailed photos from real vehicles. Print out the relevant pages, laminate them if you're going to be working in a dirty environment, and keep them under the seat. Plastic sleeves work too, but the lamination survives grease and transmission fluid better over time.
When a Diagram Won't Help
No diagram predicts rust. The XJ underbody is notorious for hidden corrosion, especially in states that use road salt aggressively. A perfect diagram showing a clean frame rail means nothing if the inside of that rail has turned to orange powder. Always physically inspect critical mounting points rather than assuming structural integrity based on visual appearance from accessible angles. Aftermarket modifications also void most reference diagrams. Lift kits, heavy skid plates, winch bumpers, and auxiliary lighting runs all change the underbody landscape. If your Cherokee has any of these modifications, the factory diagram might show a component in a location where it simply doesn't exist anymore. I spent twenty minutes looking for a factory-mounted spare tire carrier on a '96 that had been removed for an auxiliary fuel tank install, and the diagram I was consulting showed it clearly in its original position. The 4WD system component layout is the biggest gap in most diagrams. The front driveshaft, transfer case output, front differential input, and the steering linkage interaction are poorly documented in aftermarket resources. The factory manual covers this thoroughly, but only if you have the correct edition for your model year. The 1987-1990 4WD system uses a different front driveshaft spline count than the 1991-2001 models, and a diagram that doesn't specify this will lead to ordering the wrong replacement part.
One last thing that no diagram really prepares you for is the sound an underbody component makes when it's failing. Rattles from loose heat shields, ticking from a worn transfer case output bearing, and the deep thud of a cracked frame horn all have distinct acoustic signatures. Visual inspection catches some of this, but a lot of underbody degradation announces itself through sound before it becomes visible. Pay attention to what your Cherokee says when you're driving, not just what it looks like when you're underneath it.
