Understanding Jeep 4WD Systems: What You Need to Know Before the 2022 Certification

The 2022 Jeep 4WD system curriculum covers the technical knowledge expected for working on Jeep four-wheel-drive vehicles, primarily the Wrangler JK/JL and Gladiator platforms. It is not a single official exam name that Jeep publishes — the term generally refers to the ASE-style technical certification or dealership training assessment that covers the transfer case, differential, axle, and electronic control systems introduced or updated around that model year. I have spent years working on these systems, and the biggest misconception I see is people treating the 4WD selection process as purely mechanical. It is not. The 2022 models lean heavily on electronic control modules, and if you diagnose only the vacuum and linkage side, you will miss half the problem.

Jeep Exam 22 4wd Systems: Core Topics Covered

The assessment typically breaks into several functional areas. Transfer case operation is always front and center. The NVG-241 and the newer NVT355 are the most common units. You need to know how the shift motor engages the low-range idler gear, how the encoder works on the shift motor, and what fault codes mean when the transfer case refuses to go into 4LO. Differentals and axles come up frequently. The front axle on a Wrangler uses an electronically controlled front drive unit with an electromagnetic clutch pack. Understanding how the EDS (Electronic Disconnecting System) saves fuel by decoupling the front driveshaft in 2H mode is essential. When that system fails, you get binding in dry conditions, premature tire wear, and a Check Engine light that throws codes like C1A30 or U0423. The third major area is the electronic range control module and the dashboard interaction. The 4WD indicator on the dash does not always reflect what the transfer case is actually doing. I once spent two hours chasing a phantom 4WD malfunction on a 2020 Wrangler because the customer had installed a third-party lift kit that changed the front driveshaft angle just enough to cause a binding feedback loop through the encoder. The workaround was replacing the front driveshaft with an offset yoke kit and resetting the transfer case encoder position using a scan tool. Without the reset, the system would never learn the true neutral position.

How the 4WD System Actually Works

At its core, the Jeep 4WD system uses a combination of mechanical linkages and electronic sensors. The driver selects a mode using the rotary dial or buttons on the dash. That signal goes to the IPC or a dedicated 4WD control module, which then commands the transfer case shift motor to move. In automatic 4WD mode, the system uses wheel speed sensors from the ABS module to detect slip and engages the front clutch pack progressively. What most people do not realize is that the system is designed to operate in 4AUTO only on surfaces with some traction variation. Locking 4HI or 4LO on dry pavement will cause significant driveline wind-up. The front and rear axles are mechanically locked together in those modes, and since there is no center differential, the front and rear tires must be rotating at slightly different speeds during a turn. On high-traction surfaces, that difference has nowhere to go, and the system absorbs the stress through the tires or the driveline components. The electronic disconnecting front drive unit on the JL and later JK models adds another layer. When you are in 2H mode, a solenoid retracts the clutch pack, physically disconnecting the front driveshaft. This reduces rotational mass and improves fuel economy by roughly 1 to 2 mpg in real-world driving. But the system is not flawless. If the front driveshaft does not spin at least once every 30 seconds, the ECU assumes the clutch may be stuck and will attempt a retraction cycle. On lifted trucks with longer CV-style front axles, this can fail because the extra weight on the clutch plates sometimes prevents full disengagement.

Common Problems and What They Mean

Transfer case shift motor failure is the most frequent issue. The encoder inside the motor degrades over time, and the module loses track of where the internal gears actually are. The symptom is usually a dash message saying the 4WD system is in a default or failure mode. You can sometimes force a recovery by cycling the ignition and selecting each mode slowly, but if the encoder is shot, the only fix is replacement of the shift motor assembly. After replacement, a proper encoder calibration is mandatory, or the transfer case will still behave erratically. Another common failure point is the front AEV or EDS solenoid valve. When this sticks open, the front axle stays engaged constantly. You will feel the steering becoming heavier at low speeds, hear a whining noise from the front differential, and notice increased fuel consumption. The diagnostic path is straightforward: check for 12 volts at the solenoid connector when the system should be disengaged, and then measure the solenoid resistance. Anything outside the specified range means the valve is gone. Wheel speed sensor issues can also masquerade as 4WD problems. A single faulty ABS sensor will cause the system to default to 2H because it cannot calculate slip reliably. The Check Engine light may not even come on — the 4WD module simply stops engaging the front axle proactively. I once dealt with a JL that would not enter 4WD at all, and after chasing wiring harness damage and module faults, the culprit turned out to be a corroded pin in the rear left wheel speed sensor connector. A small amount of dielectric grease and a terminal rebuild fixed it permanently.

Practical Diagnostic Workflow

When a customer brings in a Jeep with a 4WD complaint, start with a live data scan. Pull the transfer case position, the front clutch apply percentage, and all four wheel speed values. Compare the wheel speeds at a standstill — they should all read zero. Then have someone drive the vehicle slowly in a safe area while you watch the data. The system should show the front axle engaging proportionally when slip is detected. If the transfer case position does not match the selected mode, check the shift motor encoder readings. The position sensor should show smooth, continuous changes as you cycle through the modes. Jerky or stuck readings indicate encoder wear. Listen for the shift motor trying to move — a clicking sound without gear engagement usually means the internal plastic gears are stripped, which is a known issue on high-mileage units. For the electronic disconnect system, monitor the solenoid duty cycle and the front driveshaft speed sensor. When 4WD is disconnected, the front driveshaft speed should read zero while the vehicle is moving. If it shows rotation while the system reports disengaged, the clutch pack is not fully separating.

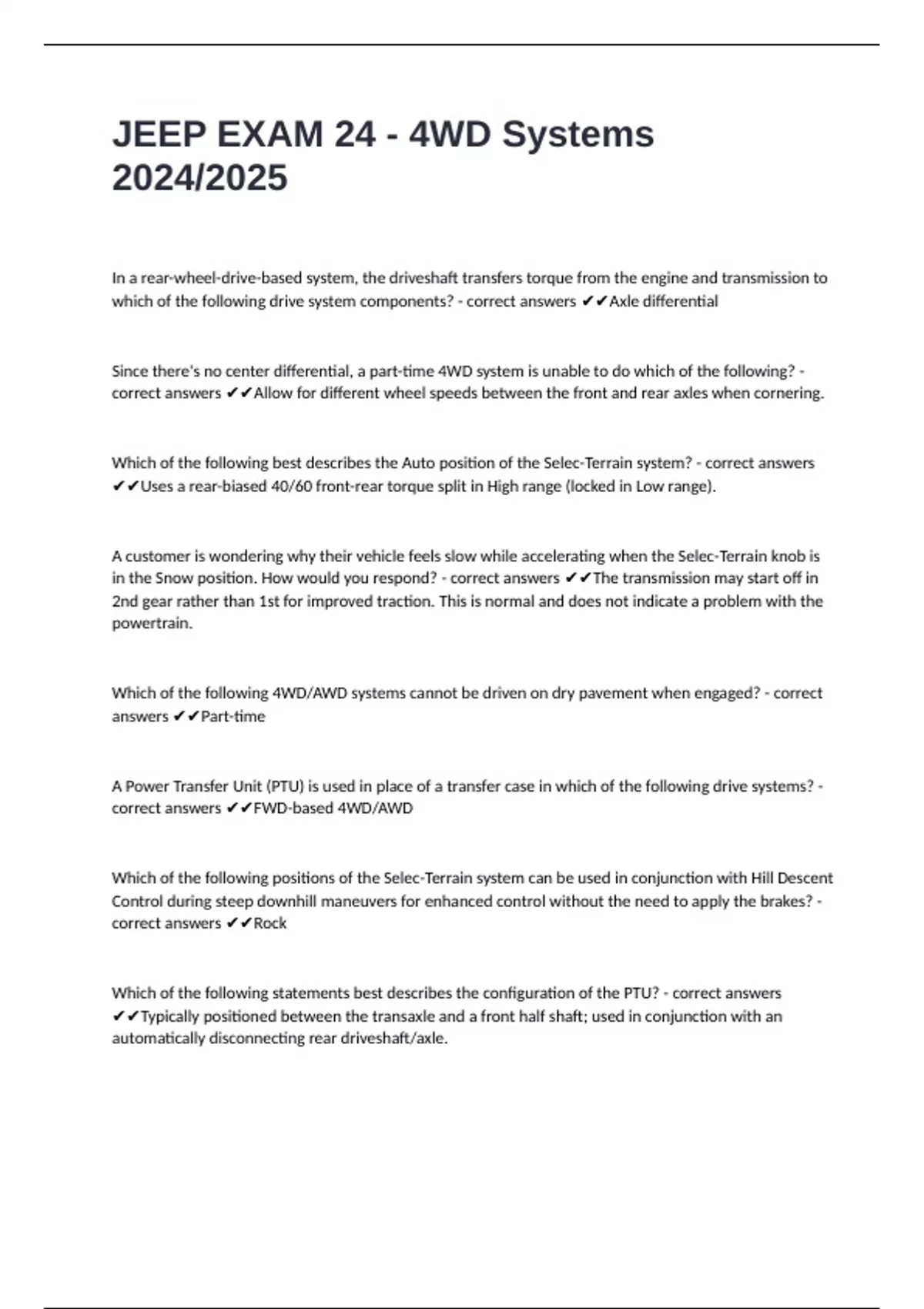

What the Exam Will Test You On

The written and practical components focus on system identification, fault code interpretation, and repair procedures. You should be comfortable reading wiring diagrams for the transfer case shift motor circuit, the front axle disconnect solenoid circuit, and the communication bus between the ABS module and the 4WD control module. Understanding CAN bus behavior is increasingly important because these systems communicate over the network rather than through direct hardwiring in many cases. Practical skills tested include performing the transfer case encoder calibration procedure, replacing and programming the shift motor, diagnosing the EDS solenoid circuit, and interpreting live data from the 4WD system. Knowing the tool requirements matters too — a basic OBD2 scanner will not access the 4WD module on most Jeeps. You need a tool that supports J2534 passthrough or a dedicated Mopar diagnostic interface to communicate with the transfer case control module.

Limitations and Things the System Does Not Handle Well

The 4WD system is not designed for sustained off-road use in automatic mode. The front clutch pack is a limited-slip device, not a locking differential. In deep sand or mud where wheel speed variation is constant, the system will overheat the clutch material. The solution for serious off-roading is installing locking differentials and using 4LO for controlled low-speed crawling. The electronic disconnect system also has a cold-weather limitation. Below freezing, the clutch plates can stick if the vehicle sits for extended periods without the front axle being cycled. Jeep recommends driving in 4WD mode for a few minutes at least once a week during winter months to keep the EDS mechanism lubricated and functional. Ignoring this leads to the exact same symptoms as a failed solenoid — front axle stays engaged or refuses to engage. Aftermarket modifications frequently break the system. Lift kits that change suspension geometry alter the front driveshaft operating angles, which interferes with the encoder calibration and can cause the transfer case to misread its position. Larger tires change the effective gear ratio and can confuse the wheel speed based slip calculations. Both issues are common in the field and are not covered in any basic training material.

Study Approach That Actually Works

Rote memorization of codes and diagrams is less useful than understanding the system logic. When you know why the transfer case module requests a shift and what conditions must be met before it allows engagement, you can diagnose problems without having every code memorized. The system has safety interlocks — vehicle speed must be below a certain threshold to enter 4LO, the transmission must be in neutral for certain shifts, and wheel speed correlation must fall within acceptable parameters. Get hands-on time with a live vehicle if possible. Hook up a scan tool and watch the transfer case position in real time while cycling the mode selector. Do the encoder calibration procedure yourself. Trace the wiring from the shift motor connector back to the module. These activities build pattern recognition that multiple-choice questions alone cannot develop. The practical exam sections reward people who can physically follow the system from input to output. Focus your study on the JL platform first since it represents the current generation with the electronic disconnect system. The older JK platform uses a more traditional mechanical-electrical hybrid approach, so understanding both gives you broader coverage. The core principles are the same, but the fault trees differ significantly between the two generations.

Where to Find Study Materials

Official Jeep training materials are available through the Stellantis University portal, which requires dealership or authorized technician credentials. Third-party resources include forums like JKForum, JeepWrangler Unlimited, and the dedicated 4WD technical sections on specialized automotive forums. These communities contain detailed troubleshooting threads that often cover edge cases not found in any textbook. The service manual PDFs for specific model years are the most accurate reference for wiring diagrams, torque specifications, and calibration procedures. They are sold through Mopar parts channels or found in subscription-based technical databases like AllData or Mitchell1. If you are preparing for a certification exam, the factory service information will align more closely with the test content than aftermarket guides. Hands-on practice remains the strongest preparation. If you have access to a Jeep with a known 4WD issue, troubleshooting it is worth more than reading ten chapters on theory. The real systems have quirks — a loose ground strap causing intermittent encoder faults, a wiring chafe hidden behind the frame rail, a software flash that resolves a recurring shift harrying problem. These are the details that separate someone who has studied the material from someone who can actually fix the vehicle.

Final Notes on System Behavior

The 4WD system on 2022-era Jeeps is competent when functioning correctly, but it is not bulletproof. The reliance on electronic controls means that a single sensor failure or communication error can disable the entire system. Mechanical backups are minimal compared to older full-time 4WD designs. Understanding this architecture and its vulnerabilities is the core of what the examination expects you to know. Approach each diagnostic scenario methodically. Verify the complaint, check live data before tearing anything apart, follow the signal path from the driver input through the control module to the actuator, and confirm the repair with a functional test. The systems are complex enough that guessing will cost you time and money. The ones who pass the exam and more importantly fix the vehicles are the ones who treat the diagnosis as a structured process rather than a series of educated guesses.
