Working on a Jeepster Commando means dealing with a vehicle that was never particularly well-documented in the first place

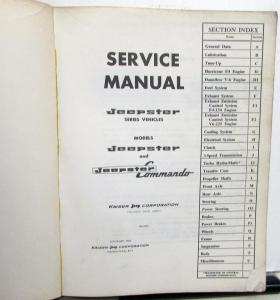

The 1966 to 1973 Jeepster Commando sits in an awkward space between a truck and an SUV, and AMC (which owned Jeep at the time) didn't produce service literature the way modern manufacturers do. You will find yourself hunting for information more than you'll find it waiting for you on a shelf. That is just how it is with these vehicles. The most complete original source is the factory shop manual released by Kaiser-Jeep in the late 1960s. These covered the 1966 through 1971 models with the T448 transfer case and the 232 cubic inch inline-six engine. Later years got supplemental materials rather than full reprints, which is why you will often see sellers bundle multiple documents together. Modern reproductions exist from several publishers. Tomlinson Publishing produced a well-regarded manual a few years back that covers the Commando alongside the CJ series. It is not the original factory book, but it fills gaps that the factory never addressed, particularly around brake system service and electrical troubleshooting for the later models. You can order it directly from their website or find it through classic Jeep parts retailers.
Haynes also published a manual for the Jeepster Commando. It is lighter on the mechanical details than the Tomlinson version but adequate for someone who is mostly doing maintenance and minor repairs. The wiring diagrams in particular are simplified to the point of being occasionally misleading, so I cross-reference those against the factory manual whenever the Haynes version does not look right. Free PDF versions circulate on various forums and archive sites, but the quality is inconsistent. Some are illegible scans with pages in the wrong order. I have found that scanning your own copies or purchasing a clean reproduction is usually worth the cost, because reading a faded photocopied torque spec at 11 PM under a hood light is a particular kind of frustration.
What the manual actually covers and what it leaves out
The factory manual gives you procedures for engine removal, transmission disassembly, transfer case rebuild, and axle work. It has torque specifications, clearance limits, and adjustment procedures that are still valid today since nothing about these components has changed. The 232 Six is straightforward, and the 304 V8 that appeared in later years is equally simple in terms of serviceability. What the manual does not cover well is body work and interior repair. The Commando had a steel cab on a steel frame with very little corrosion protection from the factory. Rust repair procedures are essentially nonexistent in the original literature. If you are working on a rusted frame or body, you are relying on general knowledge of older Jeep construction rather than anything printed in a manual. The electrical section is another area where the factory documentation is sparse. The 12-volt systems across these years went through changes, and the wiring diagram in the manual may not match your particular vehicle depending on the model year and whether it was equipped with the optional heater or different lighting packages. I learned this the hard way when I was troubleshooting intermittent headlight failure on a 1970 Commando. The factory diagram showed a single circuit, but the actual vehicle had an additional relay that was not documented anywhere. I traced the wire physically instead of relying on the diagram, which took about three hours but saved me from replacing good switches and relays based on incorrect information.
Get the Full Details
Common pitfalls when using these manuals
The biggest issue is assuming the torque specs and clearances are universal across all years. They are not. The T448 transfer case used in 1966 has different ring and pinion preload specifications than the one used in 1972, and using the wrong value can lead to premature bearing failure. Always verify which year range your manual section covers before applying any specification. Another issue is the gasket and seal recommendations. The original factory manual specifies many Fel-Pro style paper gaskets and fiber seals that are no longer produced or recommended. Modern silicone RTV and improved gasket materials usually perform better, but the manual will not tell you that. I have replaced original-spec gaskets with modern equivalents without issue, but I always check the application. Some oil pan and timing cover seals benefit from the original material characteristics, so I use a combination approach: modern RTV where appropriate and correct-size paper gaskets where the design depends on compressibility. The manual also lacks some critical adjustment procedures that mechanics of the era learned through experience. Valve lash adjustment on the 232 Six, for example, requires the engine to be at a specific temperature, and the factory manual does not emphasize this as strongly as it should. Cold adjustment will give you incorrect clearance, which leads to valve train noise and potential damage. I set valve lash when the engine is warm but not hot, around 180 to 200 degrees Fahrenheit, and the results are noticeably quieter and smoother.
Practical approach to using whatever manual you end up with
Start with the section that matches your specific problem rather than reading front to back. These manuals are reference documents, not novels. Find the component you are working on, read the removal and installation procedure once, then gather your tools and parts before you begin disassembly. Taking photographs during disassembly helps significantly, especially for electrical connections and hose routing that the manual does not document adequately. The Tomlinson manual includes additional information on cooling system service and fuel system troubleshooting that the factory manual omits, so having both sources available is useful even if one feels redundant. The overlap is minimal, and the combined coverage addresses roughly 90 percent of issues you will encounter on a Commando. If you are doing a full restoration and need authoritative references, I would recommend acquiring the factory shop manual as your primary source and using the Tomlinson reproduction as supplementary material. The factory book gives you the engineering intent, and the reproduction fills in the practical gaps that AMC never thought to document. Together they make the project manageable rather than a constant exercise in guesswork.
