Getting Your Hands on the Right Manual
The Johnson Seahorse 4 hp is one of those outboards that shows up everywhere on small boats and jon alongs the rivers and lakes. It was made in big numbers through the 1960s and into the early 1970s, and it still runs today if someone took care of it. The problem most people hit when they look for documentation is that the internet is full of garbage links that route you through ad farms, and what you actually need is buried under PDFs hosted on sketchy sites from 2008 that won't open. I spent about three hours last winter tracking down a clean copy for a friend's Seahorse 4. What I learned matters more than the file itself.
Johnson Seahorse 4 Hp Outboard Manual

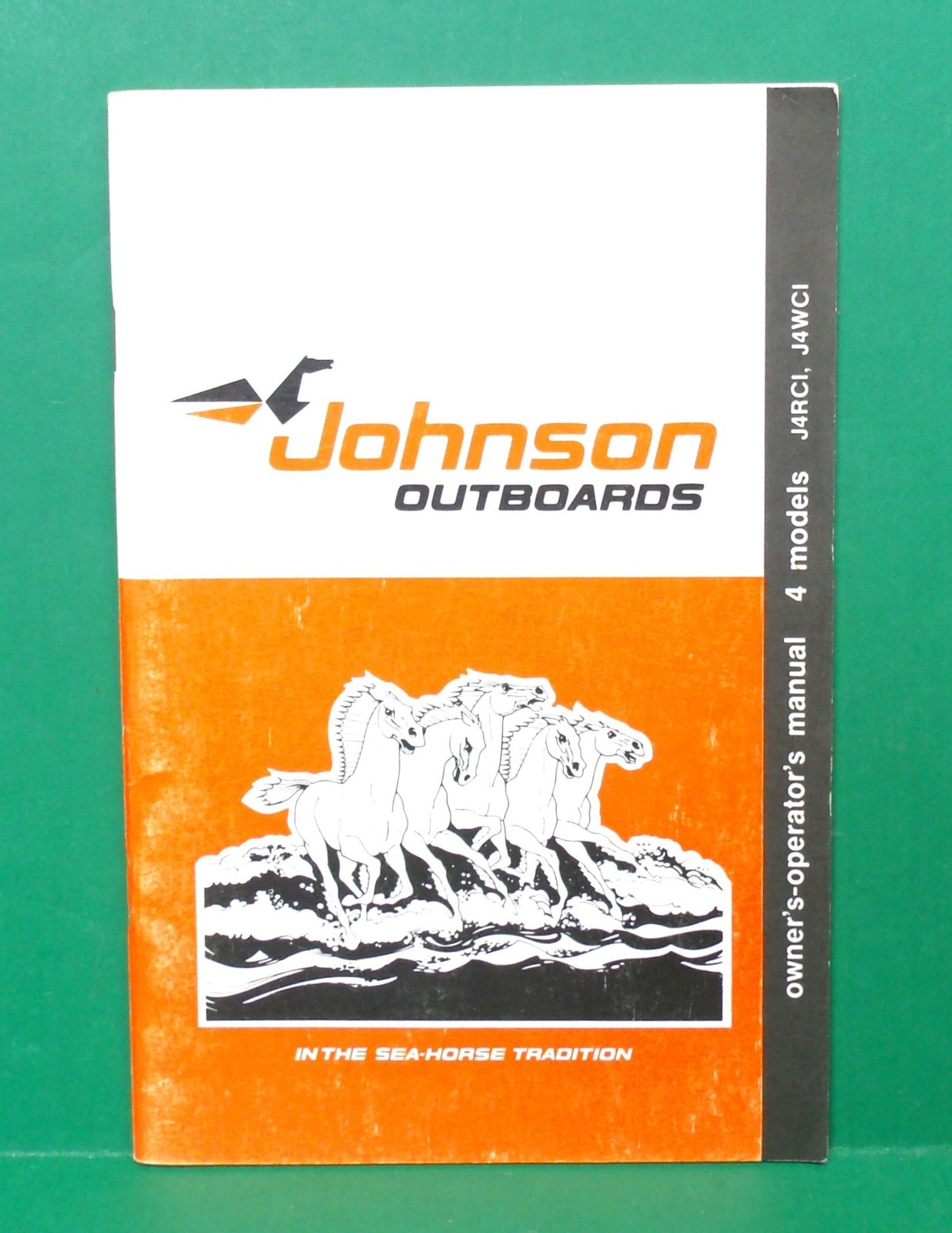

The original factory manual is a slim thing, usually around 30 to 40 pages, covering the carburetor adjustment, ignition timing, troubleshooting charts, and the standard maintenance schedule. It's not detailed the way a modern Yamaha manual is, but it covers what matters for keeping a 60-year-old two-stroke running. Here is where people go wrong right away: there are two different eras of the Seahorse 4, and the manuals are not interchangeable between them. The earlier models, roughly 1961 through 1967, use a CD ignition system called the "Seahorse CD" or sometimes just the points-based system depending on exact year. The later models from about 1968 onward switched to a different carburetor layout and a slightly different flywheel design. If you pull the wrong manual, the timing specs and carb jet sizes will be off, and you will end up tuning by guesswork. That is how people ruin these engines. They assume all Seahorse 4s are the same because they share a name and roughly the same. To verify your model year before downloading anything, check the transom bracket. The early ones have a flat mounting plate with three bolts and a separate tiller handle that flips up. The later models have a more integrated bracket assembly. Also look at the fuel tank setup. Early Seahorses used the built-in tank in the top cowl area. Later versions sometimes had provisions for an external tank with a rubber line, which changes how you approach carburetor issues since venting works differently.
I found a working scan at the Internet Archive's software library section. Search for "Johnson Seahorse outboard manual 4 hp" and filter by year range. The files labeled with part numbers like J-1234 or J-5678 tend to be the correct ones. Anything without a part number on the cover is likely a reprint or a scan of a different engine's manual that someone mislabeled. Always cross-reference the part number with the Johnson parts catalogs available online before you rely on it.
Get the Full Details
What the Manual Actually Covers
For the Seahorse 4 specifically, the sections you need to pay attention to are the carburetor adjustment procedure, the ignition timing specs, and the troubleshooting chart for starting and running issues. The manual gives a wide-open throttle mixture screw setting that is wrong on most engines I have seen. The stated baseline is usually two turns out, but on a Seahorse 4 that has been sitting for any length of time, that setting is almost never correct without adjustments based on idle quality and rpm response. Here is a practical thing the manual does not spell out clearly: the main jet on the Seahorse 4 carburetor is not the standard size you might expect. The factory spec lists it as something in the 38 to 42 range depending on year, but many of these engines have been retuned over the decades with aftermarket jets from Reed Cycles or similar sources. If you pull the carb and the jet numbers don't match what is in your manual, do not assume the manual is wrong. Assume the previous owner swapped the jet. This comes up more often than you would think, especially on engines pulled from boats that were used for bass fishing where people wanted a bit more rpm at wide open throttle. The ignition system is another area where the manual falls short on practical guidance. These engines use a breakermann contact point system with a condenser. The manual gives you a gap specification, usually around 0.016 inches, but the real issue people deal with is condenser failure. A bad condenser makes the engine run roughly at idle and miss under load, and it looks exactly like a carburetor problem. I replaced a condenser on a Seahorse 4 last spring for a customer who had already rebuilt the carb twice. The engine ran perfectly after the condenser swap. He was not happy about spending money on a part he did not know existed.
Starting Problems and the Manual's Limits
When the engine will not start, the troubleshooting section in the manual walks you through spark, fuel, and compression checks in a logical order. But it does not address the most common real-world failure point on these engines: the fuel petcock and the internal fuel pump diaphragm. The Seahorse 4 has a mechanical fuel pump driven by the crankshaft, and the diaphragm cracks over time. When it fails, you get no fuel delivery even if the tank has gas and the line is clear. The manual mentions this in a two-sentence paragraph near the back, which is not enough when you are standing on a dock with a dead engine and no spare parts. My workaround for this has always been to check the fuel pump output before doing anything else. Disconnect the fuel line at the carburetor inlet, crank the engine, and watch for a pulse of fuel. If there is nothing, the pump diaphragm is gone. If there is a weak or intermittent pulse, the diaphragm is partially failed. If there is a strong pulse, then the problem is elsewhere, usually the carburetor or ignition. This test takes about 30 seconds and saves you from tearing apart a carburetor that is actually fine. Another edge case that the manual never covers: the oil mix ratio. The Seahorse 4 is a two-stroke, and the factory recommendation was typically 16:1 with Johnson's own two-stroke oil. If you run it on a different ratio, especially a thinner mix like 50:1 with modern synthetic, the engine runs hotter and the piston can seize faster than you expect. I have seen three Seahorse 4s seized from people using pre-mix that was too lean. The manual does not warn about this because the context of modern oil formulations did not exist when it was printed.
Where to Download Without Wasting Time
The most reliable source I use is the Vintage Marine Engine Manuals collection that some independent archivists maintain. Look for the PDF with the Johnson logo on the cover and the model designation clearly printed as "Seahorse 4 HP." Avoid any site that requires you to click through five pop-ups or install a downloader extension. Those files are often corrupted or the wrong manual entirely. If you cannot find the exact version for your year, the general Johnson Seahorse service manual from the same era covers the 4, 6, and 8 hp models in overlapping detail. The differences between them are mostly in the carburetor sizing and the flywheel magnet strength. The basic engine servicing procedures are the same, so the overlapping manual is usable as a backup. Just note the specifications separately for your exact horsepower rating and do not mix the jet sizes between models.
When to Buy a Reprint Instead

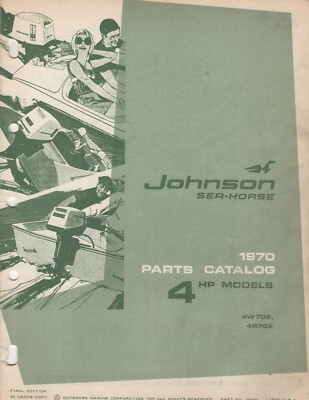

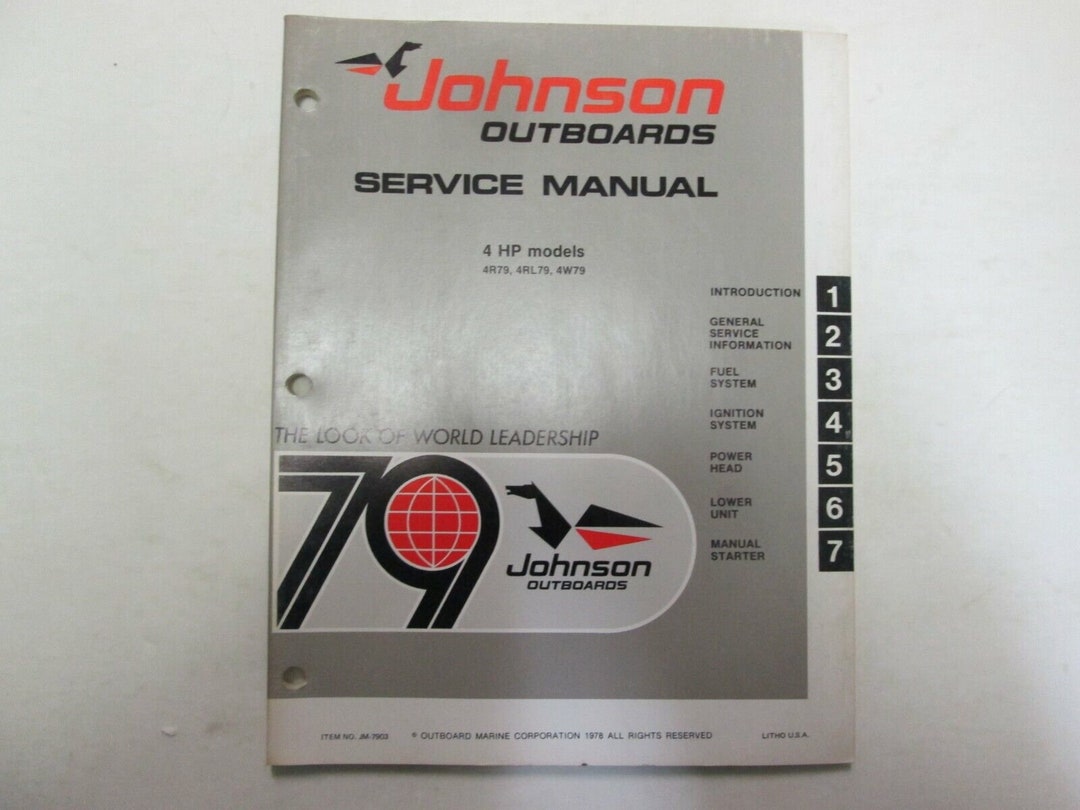

Original manual scans are fine if you have a good screen and can zoom in on the diagrams. The line art on the Seahorse 4 manual is detailed enough for most purposes. But if you are working on the engine without good lighting or in a boat where your phone screen is hard to read, a physical reprint is worth the $15 to $25 you will pay. The copies on eBay and Etsy vary in quality, so check the preview images before buying. A blurred diagram is worse than no diagram because you think you can read it until you realize you cannot. The Seahorse 4 is a simple engine. It does not need a 200-page manual. What it needs is the right information at the right time, and most of the time the original factory document is sufficient if you understand its limitations and know where to look for the details it leaves out. That is the actual value of having a copy, not just the specs on the page.
