Getting the Kamelleo Mobile Whiteboard Assembled Right

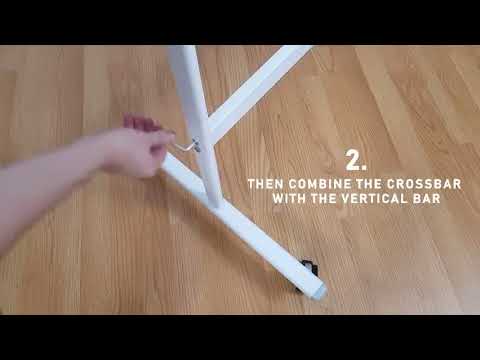

Most people buy a rolling whiteboard and expect it to just work out of the box. The reality is that assembly quality determines whether you end up with a board that stays level or one that wanders across the floor every time you write on it. I put together three of these for our office last year, and the first one was a mess because I didn't read the hardware pack carefully enough. Start by laying everything out on the floor before you do anything else. You will get a board panel, four caster legs, two side rails, a top rail, the mounting brackets, and a hardware bag with bolts, washers, and locking nuts. Count the bolts. The bag usually has slightly more than you need, but if one is missing you will be scrambling. The first step is attaching the caster stems to the bottom of the side rails. The stem goes through the rectangular slot and secures with a washer and nylon-lock nut underneath. Tighten these until the wobble stops, but don't over-torque them. I learned that the hard way when the plastic housing around one of the casters cracked because I used a wrench instead of the provided Allen key. The next step is sliding the board panel into the side rails from the top. The bottom edge drops into the rail channel first, then you push down on the top corners until you hear a solid click. If it feels loose at this stage, the rail may not be fully seated. Pull the board straight up and reinsert it rather than forcing it sideways.
The top rail connects the two side rails at the upper edge. This is the piece that carries the dry-erase markers and keeps the board from racking under pressure. Align the pre-drilled holes, insert the M6 bolts with flat washers, and hand-tighten before you go for final torque. The locking nuts on the caster legs are critical here because they prevent the legs from vibrating loose during normal use. I have seen boards where the legs backed out just from rolling across a carpeted floor for a few weeks. I stopped that problem by switching to thread-locking compound on those particular bolts, which I still don't think the manufacturer mentions prominently enough. Once the frame is assembled, the board needs to be tested for level. Place it on the floor where you plan to use it and roll it a few times. If it consistently drifts in one direction, your casters are not the same height or the floor is uneven. Shim the low side with a thin washer between the caster stem and the rail. This takes about five minutes and saves you from having a writing surface that is tilted enough to make marker ink run downhill.
Common Mistakes and What I Do Differently Now
The biggest issue people run into is skipping the square check. After all four bolts on the top rail are finger-tight, measure both diagonals of the frame. If the measurements differ by more than a quarter inch, the frame is racked and the board will not sit flat. Loosen the bolts slightly, shift the frame until the diagonals match, then retighten in a cross pattern. I waste about ten minutes on this every time instead of trying to eyeball it like I did on the first build. Another thing the manual doesn't really emphasize is the weight capacity of the casters. These boards are heavier than they look once the panel is mounted, especially if you add magnetic accessories or a large supply of markers. The standard casters handle about sixty pounds comfortably. Going over that will compress the wheel bearings and make the board stubborn to roll. I replaced the default casters on two of my boards with heavy-duty six-inch polyurethane wheels rated for two hundred pounds, which cost roughly eighteen dollars each and completely changed how smoothly the board moves across our tile floors. If you are working with a thick wall-mounted whiteboard and also want this as a mobile unit, note that the assembly instructions reference only the standalone rolling version. There is no hybrid mount option unless you fabricate your own brackets. Don't try to bolt the mobile frame to a wall stud without reinforcement. The frame isn't designed for static wall loads and the joints will loosen within weeks.
Get the Full Details
Download the full Kamelleo Mobile Whiteboard Assembly Instructions PDF here. The whole process takes about twenty-five to forty minutes if you have the right tools and lay everything out properly. You will need a Phillips screwdriver, the included Allen key, and possibly a small wrench for the caster nuts. Don't skip the diagonals check. That one step is what separates a board that stays put from one that becomes a rolling puzzle you have to chase around the room.
