Changing the Oil in a Kawasaki FH721V

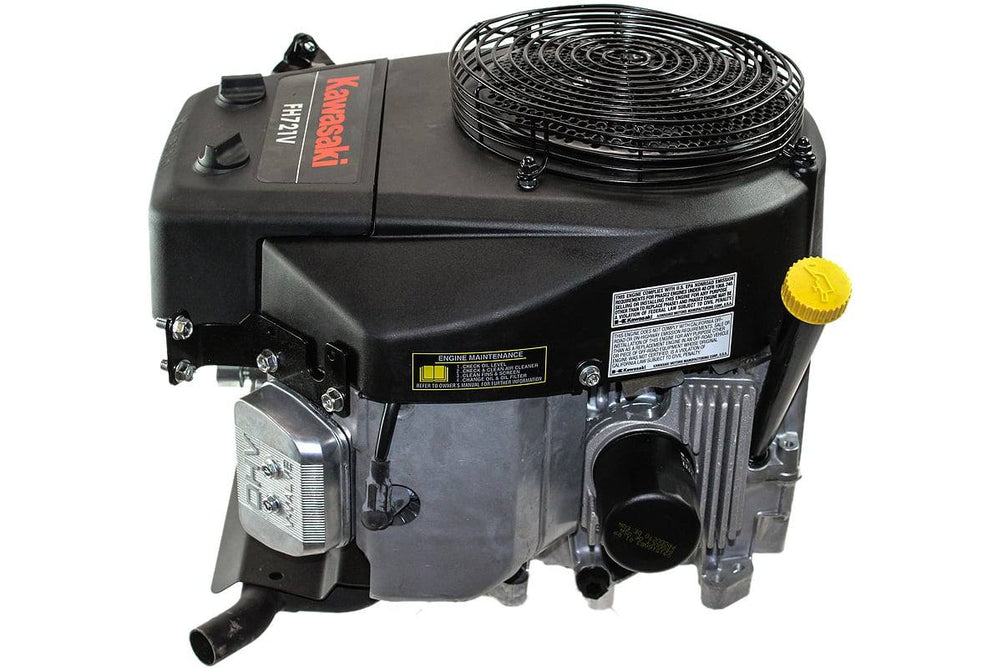

The FH721V is a 25 HP vertical crankshaft engine you will find under a lot of commercial zero-turn mowers and utility vehicles. It is not complicated, but there are a few details people keep getting wrong, and getting them wrong is how you end up with a smoky exhaust and a sludge-filled crankcase six months later. The manual calls for 2.1 quarts of oil with a filter change, though I have seen the dipstick read high if you just pour exactly two quarts in. That is because the sump is shallow and the oil gets trapped in the galleries after a change. Here is how to actually do it right. The Kawasaki manual recommends SAE 10W-30 for general operating temperatures between -20°F and 100°F. If you run the engine in sustained temperatures above 90°F, switch to 10W-40 or a 15W-40 synthetic blend. Multi-grade synthetics are fine, but the FH721V has a relatively loose bearing clearance by design, and cheap synthetic blends with high detergent packages can actually increase oil consumption on older units. I learned that the hard way on a 2018 model that was burning about half a quart every ten hours. Switched back to a conventional 10W-30 with a standard additive package and the consumption dropped to nearly nothing. The oil filter is a Kawasaki 11014-0133-01 spin-on, or any equivalent like the Napa Gold 1515 or Fram PH4967. Do not skimp on the filter. The bypass valve inside these filters is calibrated for the engine's oil pump pressure, and a cheap filter with a weak bypass valve will starve the oil passage during cold starts. Here is the practical way to do a change. Warm the engine up for about ten minutes first. Cold oil is thick sludge in the bottom of the pan and it takes forever to drain. With warm oil, the contaminants are suspended and they actually come out. Remove the dipstick, then pull the drain plug at the bottom of the crankcase. Let it drain completely. That usually takes about three to four minutes. While it is draining, grab a new filter, dip your finger in some fresh oil, and lubricate the rubber gasket on the new filter. Screw it on by hand until the gasket contacts the housing, then give it another three-quarters of a turn. Do not use a filter wrench. Overtightening deforms the gasket and you will get a leak that is a pain to track down.

Replace the drain plug with a new copper washer. I cannot stress this enough. The stock washer is soft aluminum or copper and it compresses on first use. Reusing it is how you get oil weeping from the drain hole every time you park the machine. Refill with 2.0 quarts first, start the engine, let it run for thirty seconds, shut it off, and check the level. Add the remaining quarter quart as needed. The dipstick on this engine reads differently depending on how you insert it. Wipe it clean, insert it without threading it in, check the level, and repeat until you are at the full mark. This takes about two minutes total and saves you from overfilling, which causes aeration and reduced oil pressure. Overfilled engines on this model tend to blow oil past the crankshaft seal because the spinning crank throws excess oil up into the crankcase breather. A detail most people miss: the FH721V has an oil pressure switch on the side of the block, right above the filter housing. When you remove the old filter, that port is exposed. Blow it out with compressed air or wipe it clean before installing the new filter. If old sludge or metal particles are sitting in that port, the pressure switch can give false readings or fail entirely. A bad pressure switch reading silent and high is common on units that have never had a proper oil change. The switch itself costs about twelve dollars and is located where it is annoying to reach but not impossible. You have to remove the air filter housing to get good access. Oil change intervals from the manual say every 100 hours or annually, whichever comes first. In practice, if you are mowing in hot dusty conditions or cutting tall wet grass that packs against the cooling fins, change it every 50 hours. The engine runs hot under those conditions and the oil breaks down faster than the interval suggests. I had a unit run on the same oil for 200 hours once because the previous owner was stubborn. The oil came out black and thin, and when I pulled the valve cover, there was a light varnish coating on the rocker arms. That is not catastrophic but it is not ideal either. The FH721V is durable, but it is not indestructible.

If you need the actual manual, Kawasaki distributes it through their official parts site and through most dealer portals. Search for the FH721V service manual on kawasaki-motors.com or check your dealer's parts counter. Third-party PDFs exist on random forums, but they are often outdated or missing revision notes. The official manual includes torque specs, clearances, and the full troubleshooting flowchart for oil pressure issues. Worth having if you are doing serious maintenance on these engines.
