Where to Actually Find the Manual
The official Kawasaki dealership manual runs about sixty dollars if you order it direct. You can also find free PDF versions floating around a few places online, but most of them are scanned copies that are hard to read or missing pages. The version I use has been through about four different file transfers and is still perfectly legible, mostly because I found the right one early on and stopped searching. I keep mine saved on my phone and also on a cheap USB drive in the toolbox. The one on Kawasaki's own site used to offer downloads but they pulled most of the older ATVs from that section a few years back. Your best bet right now is to search for "Bayou 220 service manual PDF" and look for results from ATV forums or archival sites. The file is usually around eight megabytes. Don't bother with anything larger than that, it's probably been re-scanned unnecessarily and the quality drops. It covers the same ground as any factory manual from that era: torque specs, fluid capacities, valve clearance procedures, carb adjustment, clutch and drive belt service, electrical troubleshooting with wiring diagrams, and the full disassembly sequences for the engine and transmission. The engine is the KE223, a simple air-cooled single. Nothing exotic there. What the manual doesn't tell you is some of the stuff that goes wrong after fifteen years, which is why the forum posts and owner experiences matter just as much as the paperwork.
I don't read it cover to cover. I pull it up when I'm about to do something specific. Valve adjustment is the main one. On the Bayou 220 the valve clearance spec is 0.05 to 0.08 millimeters for both intake and exhaust when the engine is cold. That's in the manual, but the real trick is making sure the piston is actually at top dead center on the compression stroke before you start measuring. If you skip that step your numbers will be off and you'll think your valves are bad when they're fine. I learned that the hard way on my first Bayou. I was measuring valve clearance on a cold engine, got readings that seemed acceptable, reassembled everything, and then the engine sounded rough at idle. Turned out I'd measured on the exhaust stroke instead of compression. Took it back apart, aligned the timing mark properly this time, and everything ran normally. The manual shows the timing mark procedure but it's easy to gloss over if you're in a hurry.
A Few Things the Manual Won't Warn You About
The service manual lists the spark plug gap as 0.7 to 0.8 millimeters, but I run mine at 0.7 on the edge of that range and it fires more consistently in humid conditions. The manual doesn't mention that. Also, the primary clutch springs on these things fatigue over time. The manual tells you the specs for new springs but doesn't really address what happens when they've seen ten thousand miles. I replace the primary spring every other major service even if the belt looks okay. Costs about twelve dollars and prevents the kind of slip that leaves you stranded on a trail. The CVT belt replacement interval in the manual is pretty generous. Real world, if you're doing any serious work or riding in heat, you're looking at belt life somewhere between twelve and eighteen months depending on usage. The manual suggests inspecting at fifty hours and replacing at two hundred. I inspect at fifty, replace around one hundred twenty if I'm using it hard. The belt case comes off with four ten-millimeter bolts and a couple of phillips screws. Takes about twenty minutes if you already have the tools out.
Get the Full Details
Carburetor Work
The carbs are standard Keihin PWK-style. The manual gives you jet numbers and screw turns-out specifications, but the real adjustment comes from watching how the engine responds at altitude and temperature. The idle mixture screw on these tends to get sensitive if you're running the machine at higher elevations. I start with the screw at two turns out from fully seated, then adjust based on throttle response. The manual's base setting assumes sea level and moderate temperature. If your bike is struggling at idle after sitting for a while, 90 percent of the time it's just a dirty pilot jet. Remove the float bowl, take out the jet, and clean it with carb cleaner and compressed air. The jet passage is small enough that dirt from old fuel gums it up fast. This takes about five minutes and fixes more than I care to admit. The manual shows the disassembly sequence but doesn't emphasize how much fuel degradation affects these old carbs.
Electrical

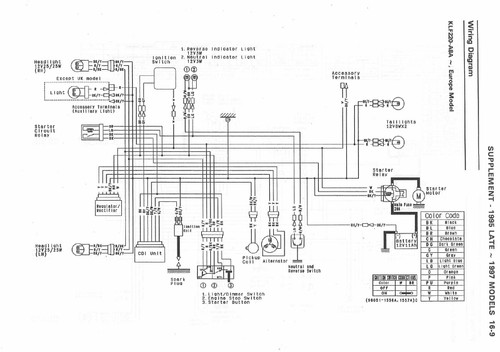

The wiring diagram in the manual is actually decent for what it is. The biggest headache on these is the stator output dropping over time. I check stator output at around eight thousand miles and it's usually still good, but when it does go, it's intermittent. You'll get a no-start condition that comes and goes, and it's easy to blame the battery or the kill switch. The manual tells you the resistance specs for the stator coil but doesn't explain that you should also check the output under load, not just static resistance. A coil can read within spec on a multimeter and still fail when the machine is vibrating at operating RPM. The CDI unit is under the seat near the battery. It's a sealed module. If you suspect it, the only real test is substitution. I keep a used one in my toolbox for this exact reason. They're cheap on the used market and knowing you can rule it out saves a lot of guessing.
Oil Changes
The engine holds about 1.1 liters of 10W-30 automotive oil. That's what the manual says and it works fine. I used to use 20W-50 because that's what everyone recommended back when I got the machine, but 10W-30 flows better on cold mornings and the engine doesn't complain. The filter is a standard spin-on, Honda/Kawasaki part number 16510-60G00 or the aftermarket equivalent. I change it every other oil change. Oil itself costs about six dollars, the filter about four. Total comes to roughly ten dollars and takes twelve minutes. The rear axle seals are a known weak point. The manual gives you the removal and installation procedure but doesn't flag that the seal surface on the axle shaft develops a groove over time, and a new seal will leak right past that groove. The fix is either replacing the axle or wrapping the seal contact area with Teflon tape as a temporary measure. I've done both. The tape works for a season or two but a new axle is the real solution. The front wheel bearings are sealed cartridge type. When they start getting rough, you can't really service them. You replace the bearing and the race is pressed into the hub. Getting the old race out requires a hammer and a punch, or a proper bearing puller if you have one. The manual shows the removal steps but the actual removal of pressed-in races is always the frustrating part that no diagram can fully prepare you for.
If you're working on this machine and you find yourself stuck, the Kawasaki Bayou 220 Service Manual Free versions you find online are a solid starting point. They won't solve everything, but they'll save you hours of trial and error on the things they do cover. Just cross-reference with the forum threads when the manual seems vague. That's where the actual knowledge lives after all these years of people breaking and fixing these things.
