Working with the Kawasaki Vulcan S Service Manual
The factory service manual for the Vulcan S is one of the better ones Kawasaki has put out in recent years. It covers every model year from 2015 through the current run, and it walks you through everything from basic maintenance to transmission teardowns. You can download it for free from Kawasaki's official website. Go to Kawasaki.com, find the parts and manual section, type in Vulcan S, and you will get a PDF that runs roughly 900 pages depending on the model year you pick. I used to waste money on the printed versions when they were still available through motorcycle shops, but there is no reason to do that anymore. The digital version from Kawasaki has the same content, searchable text, and proper diagrams. It costs nothing. The only caveat is that some pages have detailed torque specs and adjustment values that require reading across multiple columns. Print it out if you need it at the bike, but for reference work the PDF works fine on a tablet propped up nearby. One thing the manual does not do well is explain why certain procedures exist. It gives you the steps, which bolt to pull, how many foot-pounds to torque, but you are on your own for understanding the engineering rationale. That is standard for factory manuals across every brand, not just Kawasaki. You will pick up that context by working on the bike and reading forums where people share what went wrong and how they fixed it.
What Is Inside the Manual

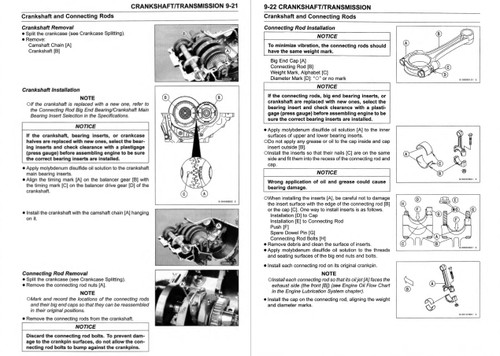

The manual is divided into sections that cover the engine, transmission, electrical system, frame, suspension, and brakes. There are trouble code tables for the ABS and fuel injection system, which matter a lot since the Vulcan S runs a full ride-by-wire setup with an ABS module. The wiring diagrams are actually decent. They are color-coded by circuit and easy to trace if you know how to read them, which takes some practice but is not difficult once you get used to the layout. The most useful part for average owners is the periodic maintenance schedule and the basic troubleshooting chapters. Things like valve clearance checks, clutch cable adjustment, and brake pad inspection are laid out step by step. The manual includes photos of some procedures, but many are line drawings. Line drawings are not ideal for visual learners, but they are not misleading if you pay attention to the labels and reference numbers.
A Few Practical Notes from Real Work
When I tore into the Vulcan S clutch assembly last year to replace a worn throwout bearing, the manual listed the sequence for removing the clutch cover bolts. It did not mention that the bolts are different lengths, and putting a longer one back into a shorter hole will strip the aluminum case. I learned that the hard way after crossing one bolt and barely saving the casing with a thread insert. The manual includes a parts breakdown diagram that shows bolt sizes, so you can cross-reference before you reassemble. Use that diagram. Do not skip it. Another thing: the manual gives torque specs for the cylinder head bolts in three stages. Stage one is 18 ft-lbs, stage two is 36 ft-lbs, stage three is an additional 90 degrees turn. That final angle specification is where people mess up. They use a torque wrench for the angle portion and end up over-torquing because the wrench does not measure angle accurately. Get a simple angle gauge or a timing pointer adapter that clips onto the spark plug hole. This usually cuts the process down from about two hours of guesswork to roughly forty minutes of actual work.
Get the Full Details
Limitations of the Manual
The factory manual assumes you have a clean workspace, basic hand tools, and some mechanical aptitude. It does not cover common failure modes in depth. If your ABS light comes on and the manual gives you the diagnostic procedure, you will get a flowchart that leads you through sensor checks and module tests, but it will not tell you that a corroded connector pin behind the left front wheel is the most common culprit on early models. That kind of information comes from rider communities, not the factory documents. The manual also does not include updated service bulletins unless Kawasaki specifically revises a chapter. Some issues, like the fuel pump relay problem that showed up on a few 2016 bikes, are known but may not appear in the base PDF. Check Kawasaki's recall and service bulletin pages separately if you are working on a pre-2018 model. The bulletin info is free but scattered across their technical service website.
How to Use It Without Losing Your Mind
Do not try to read the manual cover to cover. It is reference material, not a novel. Pick the section you need, print just those pages if you are working on the bike, and keep the rest closed. The manual is large enough that flipping through it constantly slows you down. A quick search in the PDF for the specific component you are working on will usually get you to the right section in under ten seconds. If you are doing a valve clearance check, go straight to the engine chapter, find the valve adjustment procedure, and follow the steps. The manual will tell you the specs, which tool to use, and the order of operation. Use a feeler gauge set that includes 0.07 mm and 0.09 mm blades for the intake and exhaust respectively, and double-check each measurement before you move to the next cylinder. The manual lists the gap spec as 0.07 to 0.09 mm for intake and 0.09 to 0.11 mm for exhaust at cold temperature. Those ranges are tight enough that rounding off matters. Keep your gauge clean and check at least twice per valve. For deeper repairs like a bottom end rebuild, the manual becomes essential because it lists bearing part numbers, seal types, and crankshaft runout specs. The factory manual includes all of that. Aftermarket repair manuals often summarize or skip certain details, but the factory document has everything Kawasaki intended. If you are doing something beyond basic maintenance, stick with the official manual and cross-reference with rider forums only for situational tips, not for core procedures.
