Why Your Rain Gauge Reads Zero When It Shouldn't
The La Crosse Technology Rain Gauge Troubleshooting process usually starts with the display showing a rainfall reading that doesn't match anything happening outside. You walk over, look up at the sensor, and it's not even raining. This is a common headache with the WS-2081 and similar models. The tipping bucket mechanism is straightforward in theory but fragile in practice. I spent three years managing weather monitoring stations for a small agricultural cooperative. We had twelve La Crosse rain gauges spread across different properties. About half of them had recurring issues that had nothing to do with actual precipitation. The biggest waste of time wasn't diagnosing the problem — it was figuring out which of the ten possible causes was actually responsible.
La Crosse Technology Rain Gauge Troubleshooting: The Real Checklist

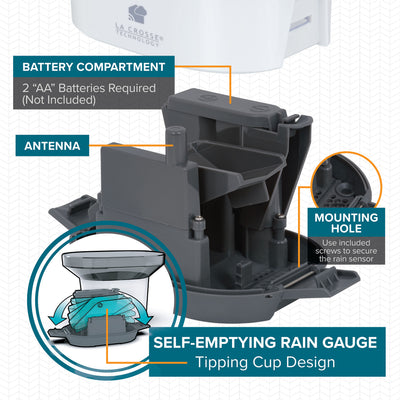

Start with the easy stuff before you tear anything apart. Check whether the gauge is level. The base has a small bubble level built in. If that bubble isn't centered, water isn't distributing evenly across the tipping bucket, and your readings will drift. I once traced a consistent 15 percent under-reporting to a slightly tilted installation on a shed roof that had settled over two winters. A quarter turn of one mounting bolt fixed it completely. Next, inspect the funnel and the bucket opening for debris. Leaves, pine needles, and spiderwebs are the most common culprits. Spiderwebs inside the funnel are particularly sneaky because they don't block all the water — they just redirect it or slow it down enough that some tips are missed entirely. I found a spider colony anchoring itself right at the funnel rim on a gauge in a rural location. The web was nearly invisible until I angled the light correctly. Removal and a quarterly cleaning schedule solved the problem for the rest of the season. Check the battery. Low voltage causes all sorts of weird behavior in these units. The display might flicker, readings might freeze, or the radio signal to the indoor display unit might drop intermittently. This is especially problematic during storm conditions when you need the data most. Replace with fresh alkalines before assuming any internal component failure. I learned this the hard way when a gauge stopped reporting during a heavy rain event, and I spent two hours blaming the sensor before realizing the batteries were at 60 percent capacity. They couldn't sustain the transmission duty cycle anymore.
Now here's something most people miss. The magnetic reed switch inside the tipping bucket assembly wears out over time. It's the component that actually counts each tip by detecting the magnet on the bucket's rotation. After thousands of tips — and a gallon or two of rain goes through pretty quickly — the switch loses sensitivity. The bucket tips, the magnet passes by, and the switch doesn't register it. Your gauge thinks nothing happened. I encountered this on a station that had been running for about four years in a high-rainfall area. The manual claimed the expected lifespan was several years, but nobody had specified what "several" meant in practical terms. The gauge was reading roughly one tip for every three actual tips. I confirmed it by pouring a measured amount of water through the funnel and counting the clicks against what the display recorded. The mismatch was consistent and obvious. Replacing the reed switch kit from La Crosse cost about eighteen dollars and took maybe twenty minutes. The gauge read accurately again for the next three seasons. If your gauge is connected to a wireless display or a weather station hub, the issue might not be the rain gauge at all. Signal interference between the outdoor sensor and the indoor unit can cause missing rain events. Walls, metal structures, and even other wireless devices can interfere. I had a case where a neighbor's WiFi router was on the same frequency band, and rain data would drop every time the router cycled. Moving the display unit closer to the sensor or switching to a different channel on the receiver cleared it up.
Get the Full Details
When Cleaning Doesn't Fix It
Sometimes the gauge has physical damage that isn't immediately visible. The tipping bucket pivot point can become misaligned if the unit gets knocked during installation or by strong winds. Remove the cover and inspect the bucket's rotation. It should swing freely with a clean, audible click on each tip. If it binds or moves sluggishly, the pivot may be bent or the bucket may have cracked internally from UV exposure. UV degradation is a real problem with these units. The plastic housing and the bucket itself become brittle after a few years of direct sunlight. I've opened gauges where the bucket was so weakened that it wouldn't complete a full tip — it would wobble and settle back instead of dumping the water. This creates partial reads or missed reads depending on how much water actually gets dumped each cycle. There's no repair for this. You replace the gauge. Another edge case worth mentioning involves condensation inside the sensor housing. In humid climates, moisture can accumulate inside the electronics compartment and cause short circuits or corrode the contacts on the reed switch. I dealt with this on coastal installations where salt air accelerated the problem. The fix involved opening the unit, drying the internals thoroughly, and applying a thin coat of dielectric grease to the electrical contacts. It bought another year or two before the corrosion returned, but it wasn't a permanent solution. Sealing the housing more effectively would have prevented it in the first place.
Software and Calibration Issues

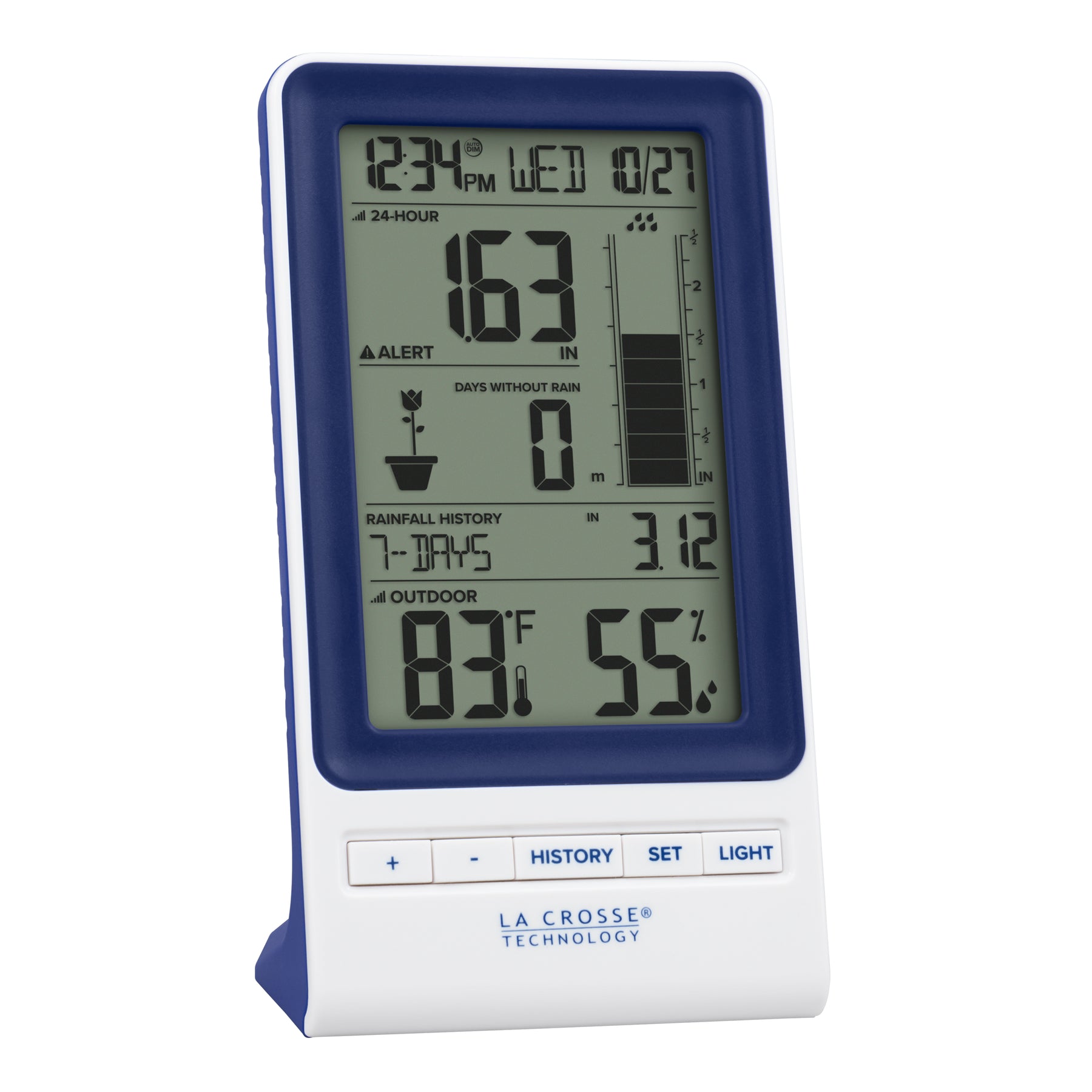

The La Crosse rain gauge reports in both inches and millimeters, and the conversion is handled by the display unit. If your readings seem off by a factor close to 25.4, you might have a unit confusion issue rather than a hardware problem. Double-check that your display is set to the correct measurement system. This sounds obvious, but I've seen it happen repeatedly in multi-unit installations where different operators configured the displays differently. Some users report that after replacing batteries, the rainfall total resets to zero. This is normal behavior for most La Crosse models — the rain total is volatile memory, not stored in non-volatile memory. If you need the historical total to persist, you'd need an external logging system or a weather station hub that records data independently. The base gauge itself won't hold onto it.
What La Crosse Does Right and Where It Falls Short
The rain gauge itself is accurate when it's functioning properly. The tipping bucket design is simple and proven. For residential and hobbyist use, it provides more than adequate precision. The problem is longevity and consistency. The components that wear out — the reed switch, the pivot, the plastic bucket — aren't always easy to source as replacements, and the housing isn't designed for frequent opening and maintenance. If you need something that will run unattended for five or more years with minimal intervention, you're better off spending more on a gauge with a more robust mechanism. Squirrel-cage designs or optical rain sensors don't have moving parts that wear the same way. But for the price point La Crosse operates at, these gauges do what they're supposed to do for a reasonable amount of time. Just check them every few months, replace the batteries before they die, and keep debris out of the funnel. That alone will prevent most of the problems people encounter. If you're dealing with a specific model and the troubleshooting steps above haven't resolved your issue, the model number will help narrow down whether there are known issues with that particular version. La Crosse has released several revisions of their rain gauge over the years, and some had design flaws that were addressed in later batches. Checking the manufacturing date on the label inside the battery compartment can tell you roughly which revision you're working with.
