I spent roughly a week recalibrating a thermal management simulation because my Nusselt number was coming out wrong, and it turned out I had assumed fully developed flow from the inlet when the entrance length was actually dominating the physics. That mistake cost me an iteration cycle and about 12 hours of debugging. It's a common enough error that I want to lay this out plainly so people can avoid it. Laminar Flow Forced Convection In Ducts describes the regime where a fluid is pushed through a confined passage by external means — a pump, a fan, a pressure differential — and the Reynolds number stays low enough that the flow remains orderly and stratified rather than turbulent. The transition point for a circular duct sits around Re = 2300, but that number shifts depending on inlet geometry, surface roughness, and whether you've got bends or expansions in the path. For non-circular ducts, you use the hydraulic diameter, which is four times the cross-sectional area divided by the wetted perimeter. That's a standard substitution, but it's not universally accurate at the entrance region where the velocity profile is still developing.

When the math gets messy: entrance effects and real ducts

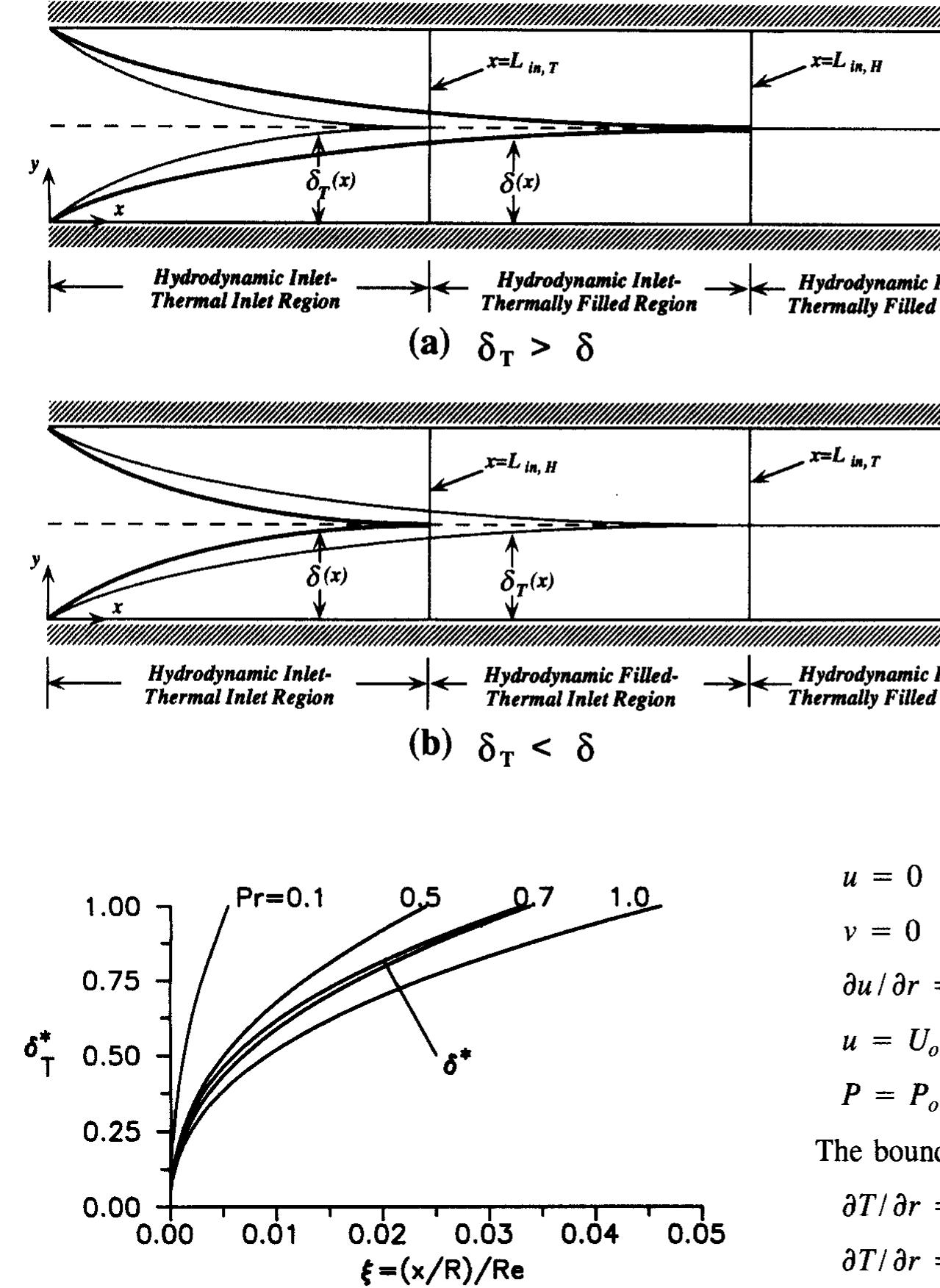

The thermally and hydrodynamically fully developed assumption simplifies everything enormously. You get clean analytical solutions like the classic constant-wall-temperature result of Nu = 3.66 for a circular duct, or Nu = 4.36 for constant heat flux. Those numbers are useful, but they only apply once the boundary layers have merged and the velocity profile stops changing along the flow direction. Before that point, the local Nusselt number is significantly higher because the thermal boundary layer is thinner near the inlet. The entry length for laminar flow is roughly 0.05 times the Reynolds number times the diameter, which for a modest Re of 500 in a 10-millimeter duct gives you about 25 centimeters of developing flow before the solution stabilizes. I ran into a specific problem recently with a rectangular duct where the aspect ratio was about 3:1. The standard correlations from textbooks assumed a circular cross-section, and using the hydraulic diameter directly overpredicted the heat transfer coefficient by roughly 18 percent. The workaround was to use the Shah and London table correlations for rectangular ducts, which account for the aspect ratio explicitly. Those tables aren't always easy to find in a hurry, so I ended up running a short 2D CFD case to generate a correction factor that I applied across the board. It saved me from re-running the entire thermal model. The second thing most people miss is that constant wall temperature and constant heat flux are not interchangeable in laminar flow the way they sometimes appear to be in turbulent flow. In laminar conditions, the difference between those two boundary conditions produces measurably different temperature profiles along the duct, and the Nusselt numbers diverge. If you're designing a heat exchanger or a cooling channel and you pick the wrong thermal boundary condition, your predicted outlet temperature could be off by several degrees. I've seen this play out in a microchannel heat sink design where the assumed boundary condition was closer to constant heat flux, but the actual physical constraint was somewhere in between due to the finite conductivity of the substrate. The model predicted a 60-degree temperature rise, and the data came back at about 72 degrees. That discrepancy traced directly back to the boundary condition mismatch, not to any error in the flow calculations.

Practical calculation steps

Here's how I approach these problems now, after enough iterations to know where the traps are. First, determine the Reynolds number using the hydraulic diameter for non-circular ducts. If Re is below 2300, you're in the laminar regime for forced convection. If it's above that, the correlations change entirely and you need turbulent models instead, so double-check your assumptions before proceeding further. Second, calculate the Graetz number or the dimensionless axial distance x* = x/(Re*D*Pr). This tells you whether the flow is thermally developing or fully developed at the location of interest. If x* is less than about 0.05, you're in the entrance region and you need a correlation that accounts for developing flow, not the fully developed constant Nusselt number.

Third, select the appropriate correlation based on your boundary condition and geometry. For a circular duct with constant wall temperature in the fully developed regime, Nu = 3.66. For constant heat flux, Nu = 4.36. For developing flow in a circular duct, you can use the Hausen correlation or the Sieder and Tate correlation, which includes a viscosity correction factor for large property variations. The Sieder and Tate correlation is Nu = 1.86*(Re*D/L)^(1/3)*(mu_b/mu_w)^0.14, and it's valid for (Re*D/L) greater than about 10. Below that, the entrance effects dominate and the correlation loses accuracy. Fourth, compute the convection coefficient from h = Nu*k/D, where k is the thermal conductivity of the fluid evaluated at bulk mean temperature. Don't neglect the temperature dependence of viscosity in the Sieder-Tate correction. I once skipped that factor on a glycol-water mixture where the bulk temperature was around 40 degrees Celsius and the wall was at 80 degrees, and the viscosity ratio was nearly 2.0. Ignoring it gave me a heat transfer coefficient that was about 8 percent too low, which propagated into a noticeable error in the overall thermal resistance.

Where this approach breaks down

The main limitation is that these analytical correlations assume steady, incompressible, single-phase flow with constant fluid properties. If your fluid properties vary significantly with temperature — and many liquids do — the correlations become approximations at best. For gases, property variation is usually less severe unless you're dealing with large temperature differences exceeding 100 kelvins, in which case you should evaluate properties at the film temperature or use an iterative approach. Another hard limitation is surface roughness. In laminar flow, roughness elements don't trip the flow into turbulence the way they do in turbulent flow, but they do disturb the velocity profile and can locally enhance heat transfer in ways that standard correlations don't capture. If your duct walls are machined or additive-manufactured with measurable roughness, you should treat any calculated Nusselt number as a lower bound. The third limitation that deserves emphasis is that these correlations assume the duct is long compared to the entrance length. If your duct is short — say, a microchannel where the length is only a few millimeters — the developing flow region dominates the entire domain and no fully developed correlation applies. In that case, you need either a numerical solution or a correlation specifically derived for short ducts, such as the entry-length corrections from Shah or the integral method solutions.

For cases where these assumptions break down, the practical alternative is a numerical simulation. A steady-state laminar solver in a tool like OpenFOAM or ANSYS Fluent with a mesh refined near the walls will give you results in the order of 15 to 30 minutes for a simple duct geometry, depending on your hardware. That's faster than debugging why your hand-calculated result doesn't match test data, which is the route most people take before learning to simulate. The key takeaway is that Laminar Flow Forced Convection In Ducts is straightforward when the assumptions hold and frustratingly imprecise when they don't. Know your entrance length, pick the right boundary condition, check your property evaluation temperature, and verify that your duct isn't so short that the correlations are out of their depth. Most errors come from applying fully developed solutions to developing flow or from ignoring the aspect ratio correction for non-circular passages.
