Blackbody Radiation Isn't As Simple As The Textbooks Make It Look

The Laws Of Blackbody Radiation describe how an idealized object emits electromagnetic radiation based solely on its temperature. A blackbody absorbs all incident radiation and re-emits it with a characteristic spectrum. That is the textbook definition. In practice, nothing in the real world is a perfect blackbody, and treating things as if they are tends to produce errors that compound quickly. There are four main pieces here, and they all connect to each other. Planck's law gives the spectral radiance at every wavelength for a given temperature. It looks like this: B(,T) = (2hc²/) · 1/(e^(hc/kT) 1). Stefan-Boltzmann law says the total power per unit area scales as T, specifically T where is 5.67 × 10 W·m²·K. Wien's displacement law tells you the peak wavelength shifts as _max = b/T with b 2.898 × 10³ m·K. The Rayleigh-Jeans law is the classical approximation that works at long wavelengths but diverges completely at short ones, which was exactly what drove Planck to quantization in the first place. I learned to treat these as a connected system rather than memorizing formulas in isolation. If you need the spectral radiance at a specific wavelength and temperature, you use Planck's law directly. If you need total emitted power, Stefan-Boltzmann is faster. If you need to know where the emission peaks, Wien's law is your answer. The trick is knowing which one to pull without second-guessing yourself.

Here is a practical scenario that caught me off guard during a calibration run last year. I was working with an infrared sensor system that needed to be characterized against a laboratory blackbody source at around 800 K. The source had a stated emissivity of 0.995, which seemed close enough to treat as a perfect blackbody. The problem was that at 800 K, the peak emission sits around 3.6 micrometers, and my sensor's spectral response wasn't flat across that region. When I compared the measured radiance to what Planck's law predicted for a perfect blackbody, there was a systematic deviation of about 7 percent at the short-wavelength edge of the sensor's band. The emissivity correction alone didn't account for it because the mismatch was spectral, not scalar. What fixed it was integrating Planck's law weighted by the actual spectral responsivity curve of the detector rather than using a single correction factor. That adjustment brought the readings into agreement within 0.5 percent, which was the specification I needed to hit.

Common Mistakes That Wreck Real-World Calculations

Most people stop at the formulas and never think about emissivity as a function of wavelength, angle, and surface condition. Emissivity is not a single number you look up in a table and apply everywhere. A polished aluminum surface might have an emissivity of 0.03 at normal incidence in the visible range, but that climbs to roughly 0.07 in the mid-infrared and changes significantly if the surface is oxidized or roughened. If you are doing thermal imaging of metal surfaces, assuming a constant emissivity is one of the fastest ways to get garbage results. Another thing that trips people up is the difference between radiance and irradiance. Planck's law gives spectral radiance, which is power per unit area per unit solid angle per unit wavelength. If you need the total power hitting a surface, you have to integrate over the relevant solid angle and wavelength range. Skipping that step or confusing the two quantities will throw off your numbers by orders of magnitude depending on geometry. I had a colleague who used the Stefan-Boltzmann equation directly to estimate the power received by a distant sensor and got a result that was forty times too high because he forgot to account for the geometric spreading and the cosine projection factor. The Rayleigh-Jeans approximation is another trap. It works fine for radio and microwave frequencies at room temperature, which is why it still appears in antenna temperature calculations. But as soon as you move into the infrared or visible, it predicts infinite radiance. Using it outside its valid regime is a textbook error that still shows up in homework and, occasionally, in actual engineering work when someone rushes through a calculation.

Get the Full Details

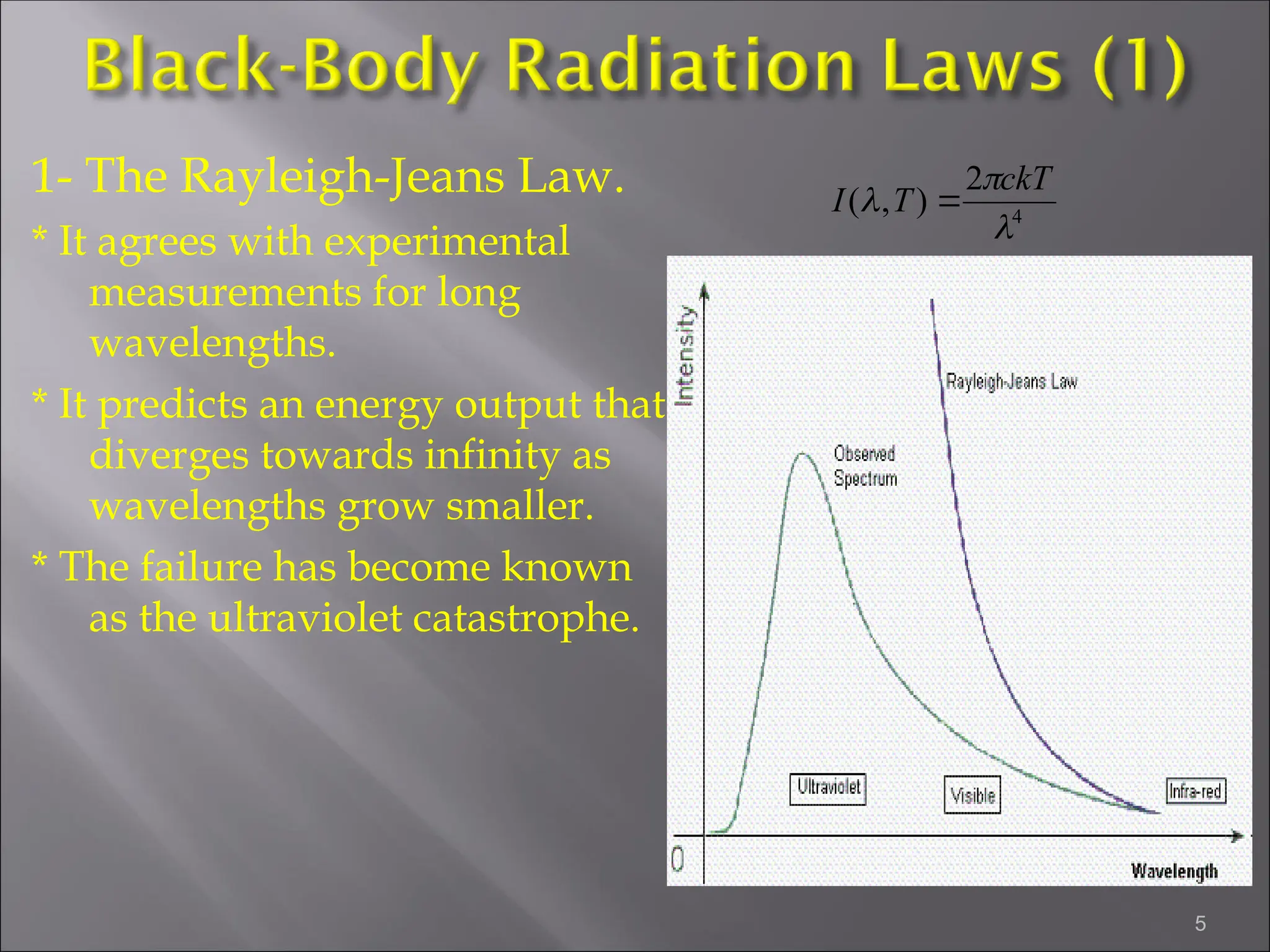

PPT - Blackbody Radiation PowerPoint Presentation, free download - ID:3894983
PPT - Blackbody Radiation PowerPoint Presentation, free download - ID:3894983

When Blackbody Models Break Down

Not everything that glows from heat is a blackbody. Selective emitters like certain ceramics and engineered metamaterials can have very low emissivity at some wavelengths and high emissivity at others. If you are designing a thermal management system and need to control radiative heat transfer, assuming blackbody behavior for a selective surface can lead to designs that miss their targets by a wide margin. In those cases you need spectral emissivity data measured under conditions close to your application, not from a generic handbook. High temperatures introduce additional complications. At temperatures above 2000 K, some materials begin to emit light from electronic transitions that are not purely thermal in origin. Incandescence and luminescence can coexist, and separating the two requires spectroscopic analysis rather than fitting a Planck curve. I ran into this with a furnace port window that was expected to behave as a gray body but was actually showing spectral lines from sodium contamination. The fitted temperature from the continuum was off by about 150 K until I filtered out the contaminant emission. For most practical engineering work, treating objects as gray bodies with a constant emissivity less than one is a reasonable first approximation. This means scaling the blackbody results by a single emissivity factor across all wavelengths. It is not exact, but it is good enough for rough thermal analysis and often for preliminary design. If you need precision, you go to spectral data and integrate properly.

How To Actually Use These Laws In Practice

Start by identifying what quantity you need: spectral radiance at a wavelength, total power, peak wavelength, or something else. Then check whether your object is close enough to a blackbody or if you need emissivity corrections. Look up or measure the spectral emissivity at the wavelengths and angles relevant to your setup. If emissivity varies significantly across your band, do not use a gray body approximation and integrate Planck's law weighted by the actual spectral response. For quick estimates, Wien's law and the Stefan-Boltzmann law together give you the peak wavelength and total power. A rough rule of thumb: a surface at 300 K emits roughly 460 W/m² and peaks around 9.7 micrometers, which is why thermal cameras operate in the 8 to 14 micrometer band. A surface at 1000 K emits about 56,700 W/m² and peaks near 2.9 micrometers. The T dependence means small temperature changes produce large power changes at higher temperatures, which matters a lot for any system dealing with radiative heating or cooling. If you need a reference, the NIST database has spectral emissivity data for many materials. It is not complete for every surface condition, but it is a better starting point than assuming unity emissivity. For custom geometries, you will also need view factor calculations, which are a separate but related problem. Combining blackbody radiation with proper view factors is where the real work happens in thermal analysis, and it is where most shortcuts lead to mistakes.
