Low Pressure Boiler Testing: What You Actually Need to Know

Low pressure boilers are defined as any boiler operating at pressures below 15 psi for steam or 160 psi for hot water. The ASME codes that govern these units are straightforward, but the field tests and certification exams catch people out regularly because they assume textbook answers apply universally. They don't. I spent over a decade running inspections on commercial and industrial low pressure steam boilers across the Midwest. The most common reason guys fail the practical portions isn't because they can't recite the code requirements. It's because they can't identify a failed component when it sits right in front of them. The written test is easier than the hands-on section every time.

Common Low Pressure Boiler Test Questions And Answers

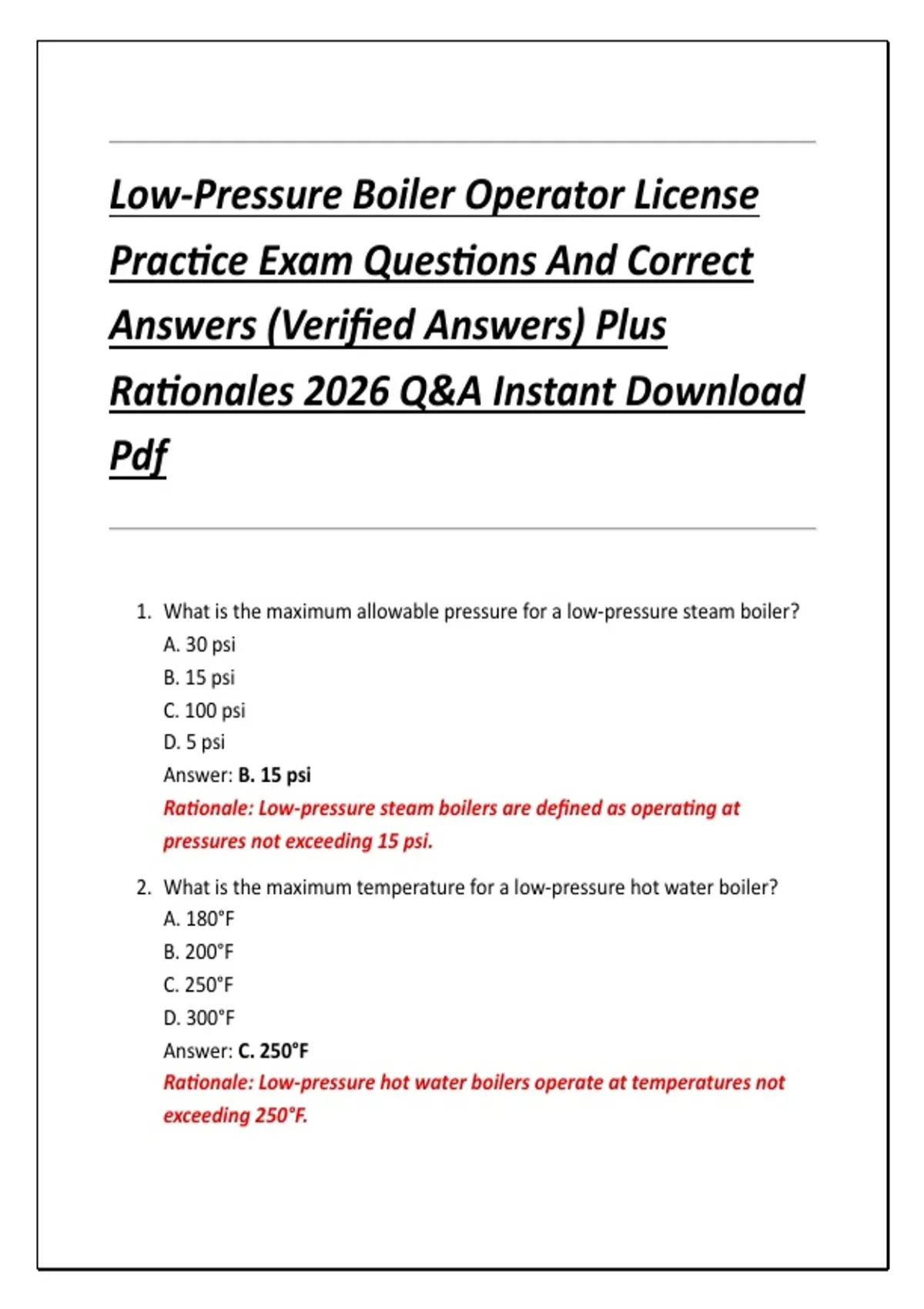

Here are the questions that actually show up on certification exams, along with what they're really testing you on. Question: What is the maximum allowable working pressure (MAWP) for a low pressure steam boiler? Answer: 15 psi. That's the ASME Section I definition. But here's the catch a lot of people miss. The MAWP stamped on the boiler nameplate might be lower than 15 psi. The code maximum is 15 psi, but the individual unit's rating depends on its design pressure. If the nameplate says 12 psi, you don't test or operate it at 15. I had a guy once fail his practical because he set the safety valve blowdown at 15 psi on a boiler rated for 12. He knew the code definition but ignored the actual equipment markings. That's the whole point of that question.

Question: How many safety valves are required on a low pressure steam boiler? Answer: At least two, or one if the boiler's generated capacity doesn't exceed the valve's rated capacity. The trick is knowing what "generated capacity" means versus "fired capacity." A 500 MBH boiler might only produce 350 pounds of steam per hour depending on the fuel type and efficiency. If one safety valve is rated for 400 pounds per hour at the set pressure, one valve satisfies the requirement. Most inspectors and test writers count the number of valves, not whether a single valve can handle the load. Know both angles. Question: What is the purpose of a low water fuel cutoff?

Answer: It shuts off the fuel supply when the water level drops below a safe point. Simple enough. The deeper you go, the more ways this goes wrong. There are two main types: probe-style and float-style. Probe-style sensors scale up over time, especially in hard water areas, and give false low-water readings that can either flood the system or trip the burner unnecessarily. I once spent three hours chasing a nuisance shutdown on a school boiler. The low water cutoff was fine. The problem was a ground fault in the probe wiring that was causing intermittent trips. The boiler was holding water the entire time. The test answer is correct, but in practice you need to understand the failure modes. Question: When performing a bottom blowdown, how long should it typically be? Answer: Usually between 30 seconds and 2 minutes depending on the boiler size and condition. The proper technique is to open the quick-opening valve first, then modulate with the slow-opening valve. This protects the slow valve from erosion. Closing the sequence is reversed: close the slow valve first, then the quick. If you reverse the closing order, you can cause water hammer or damage the seating surfaces. I've seen new technicians blow down for 5 to 10 minutes because they were told "get it clean" without understanding the thermal shock risk. Opening the blowdown valve on a hot boiler while the feedwater is cold can crack a tube sheet or a tube itself. One minute of blowdown at the right interval beats five minutes of aggressive blowdown done poorly.

Question: What is the normal water level in a glass gauge? Answer: At the center of the gauge, or halfway up. Some codes specify the midpoint, others allow a range. The important thing is that the water level must be visible at all times during operation. If you can't see the water, you close the fuel and investigate before attempting anything else. Never attempt to add water to a boiler when the water level is below the sight glass. Introducing cold water to a hot exposed drum can cause catastrophic thermal stress.

How the Practical Test Actually Works

The written portion covers code sections, mostly ASME Section IV for hot water boilers and ASME Section I for steam. You'll also see questions from the state-specific regulations, which vary widely. California uses different criteria than Texas. Florida has requirements that don't exist anywhere else. Always study the jurisdiction you're testing in. The practical exam typically involves performing a series of tasks under observation. You might be asked to conduct a blowdown test on a safety valve, inspect a pressure gauge, verify the operation of a low water cutoff, or perform a visual inspection of a boiler's internal components through the manway. The examiner is watching your technique, not just your results. If you skip the flush cycle on a pressure gauge before taking a reading, that's a fail regardless of whether the gauge reads correctly afterward. One specific scenario I want to highlight comes from a real inspection I conducted on a 1970s-era package boiler in a hospital. The owner had been reporting intermittent high pressure trips during winter months. The safety valve would lift and reseat repeatedly, sometimes every 10 to 15 minutes during peak demand. Standard troubleshooting pointed to a failing pressure regulating valve on the feedwater system. We replaced it. The problem persisted.

What we eventually found was that the boiler's expansion tank was waterlogged. The diaphragm had failed, and the tank was filled with water instead of air. When the boiler heated up, the expanding water had nowhere to go. Pressure climbed until the safety valve lifted. When it reseated, the cycle repeated. A $200 expansion tank fix solved a problem that had the maintenance crew pulling their hair out for six months. The test question about expansion tanks usually asks you to identify the air-to-water ratio or the pre-charge pressure. The real-world version asks you to recognize the symptom pattern and check the one component nobody thinks to look at.

Counter-Intuitive Things That Beginners Miss

First, a boiler can be at zero pressure and still be dangerous. Just because the gauge reads 0 psi doesn't mean the system is safe to work on. Residual heat, trapped steam pockets, and pressure that can build rapidly when water is introduced are all real hazards. I've seen people open a steam trap station thinking the line was dead because the pressure gauge was at zero. Steam blew through and caused a serious burn. Always verify isolation with a calibrated meter, not just the boiler-mounted gauge. Second, the hydrostatic test pressure is not the same as the operating pressure. ASME Section I requires hydrostatic tests at 1.5 times the MAWP. For a 15 psi boiler, that's a test pressure of 22.5 psi. Some states have adopted higher requirements. Section IV hot water boilers are tested at 1.5 times the operating pressure or 30 psi, whichever is greater. These numbers matter on the exam, and they matter in the field when you're scheduling a test and need to make sure your test pump can handle the requirement. Third, scale buildup of less than one-sixteenth of an inch can reduce efficiency by 10 to 15 percent. The intuitive answer is that scale is bad. The non-obvious part is that even thin scale is significant. Most inspectors I know carry a simple scale gauge and check it during every inspection. If you're only looking for heavy scaling, you're missing the early warning signs that prevent expensive damage down the line.

Limitations of Low Pressure Boiler Testing

Visual inspection alone cannot detect tube thinning from internal corrosion. Ultrasonic thickness gauging is required for that, and most routine inspections don't include it. If a boiler is over ten years old and hasn't had UT measurements taken, that's a gap in the inspection regime, not a sign that everything is fine. Bottom blowdown valves are the most common source of leaks in low pressure boilers, and they're also the most frequently neglected component during routine maintenance. A leaking blowdown valve will slowly drain the boiler over days or weeks, potentially leading to a low water condition that a faulty low water cutoff won't catch if it's also degraded. Testing the low water cutoff monthly is standard practice. Testing the blowdown valve seating integrity quarterly is what separates a thorough maintenance program from a compliance checklist. For boilers that will be out of service for extended periods, wet layup with a neutralizing amine treatment is the preferred method. Dry layup with desiccant is an alternative but requires the boiler to be completely dry inside, which is harder to achieve than most people expect. I've seen multiple boilers develop internal corrosion during summer shutdowns because someone just drained the water and left it open. Leaving the system wet without treatment causes more damage than leaving it empty without proper preparation.

If you're studying for a low pressure boiler certification, focus on understanding the why behind each procedure, not just memorizing the numbers. The exams are designed to weed out people who can recite code but can't apply it. The field tests exist for the same reason. Get good at both, and you'll be fine.
