Reading a wiring diagram from a machine repair manual is less about understanding symbols and more about not getting lied to by the person who drew it forty years ago.

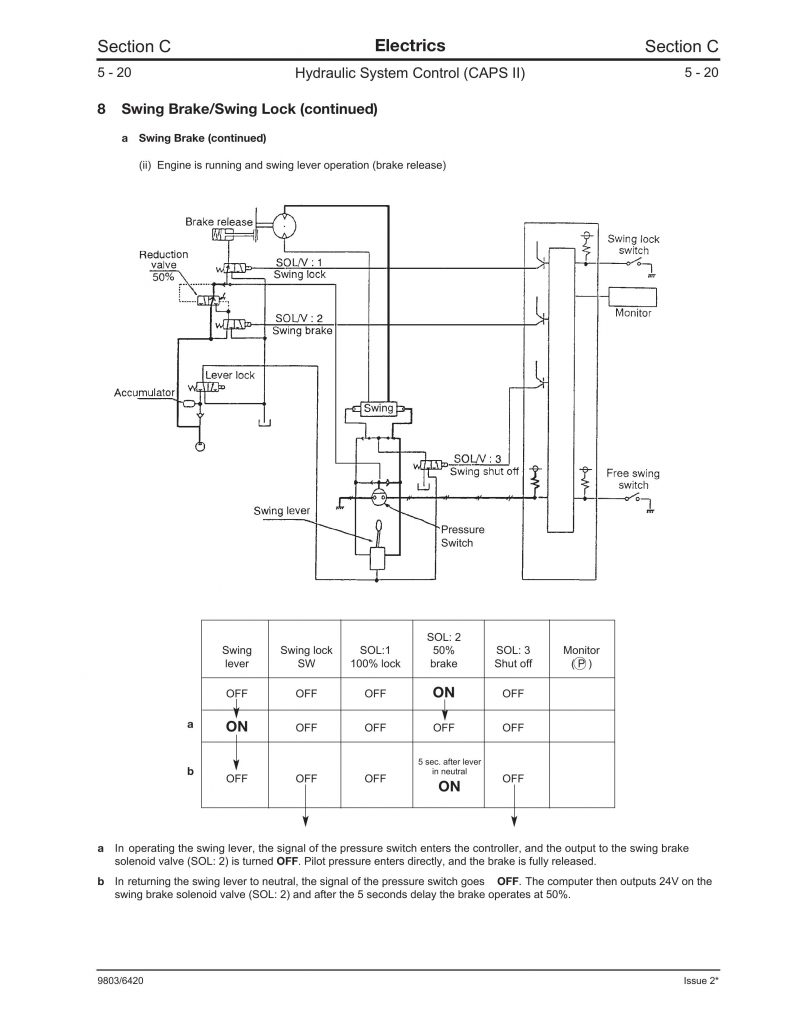

I've spent more time than I care to admit tracing a single wire through a diagram where the component reference designator on the page didn't match the stencil on the actual control panel. This happens. It's not your fault. The manuals these days are often just PDFs ripped from paper binders that were themselves poorly reproduced from original shop drawings. I found a fan motor circuit once where the overload relay was shown as normally closed on the diagram but the actual relay was wired normally open. The machine would trip every single time because the diagram told me to bypass the safety. That sort of thing can waste half a day if you're not paying attention to the physical hardware. A wiring diagram in a repair manual is a functional representation of how power and control signals move through a machine. It is not the same thing as a wiring schematic, which shows electrical relationships. It is also not a layout drawing, which tells you where things are physically mounted. These get mixed up constantly. When I pull a diagram out of a manual, I need to know right away which type I'm looking at before I start picking up a multimeter. Here is how I actually use one when a machine is down and nobody wants to hear excuses.

I start with the cover page and the table of contents. Many manuals will list a diagram index with revision dates. If the revision date is older than the machine's serial plate, there is a chance the diagram doesn't reflect field modifications that were never documented. I cross-reference the serial number against the revision. Some manufacturers like Haas and Fanuc keep their diagrams separate from the main manual and host them online. Older machines from companies that went out of business or stopped maintaining documentation are the worst. You're flying blind. Once I've confirmed the diagram version, I identify the main power path first. Three-phase incoming, disconnect, main breaker, contactors, fuses, thermal overloads. I trace that path across the entire diagram, noting every node where power splits. This tells me where to expect voltage during operation and where it should be dead during service. I mark those points on a piece of paper. Physical notes matter because when I'm six hours into a repair and my eyes are burning, I don't want to hunt back through forty pages of diagrams. After the power path, I trace the control circuit. This is usually 120VAC or 24VDC depending on the machine age and origin. Japanese machines from the eighties and nineties run everything on 100VAC control. European machines tend toward 24VDC. American machines are a mess of both, sometimes on the same panel. I look for the transformer or power supply that feeds the control side and trace from there through all the interlocks, limit switches, and safety relays.

The part I see technicians skip most often is the ground circuit. A diagram might show earth ground connected to the chassis at a single point, but real machines have ground loops everywhere. If I'm troubleshooting an intermittent fault, I check ground continuity before I check anything else. A bad ground can make a perfectly good PLC input look like it's floating. I measured a CNC lathe last year that would randomly lose its Z-axis reference. Turned out the ground strap between the controller cabinet and the machine frame had corroded. The diagram showed the ground connection as solid. It wasn't. Replacement ground strap fixed it in twenty minutes after two days of searching. When the diagram uses proprietary symbols, I don't guess. I look for a legend in the front of the manual or on a separate sheet. If there's no legend and the symbols are obscure, I search the manufacturer's website for a symbol reference guide. Some companies like Omron and Allen-Bradley publish their own symbol standards. If the manual is for a generic industrial machine built by a small fab shop, there probably won't be any legend at all. In that case I rely on IEC 60617 and NEMA standards as a fallback, but I always verify against the actual component because a lot of these shops just drew whatever they felt like. One thing that trips people up constantly is ladder logic diagrams mixed in with power wiring diagrams. A lot of modern repair manuals include the PLC program printout alongside the electrical diagram. These are not the same thing. The ladder logic shows how the processor interprets inputs to drive outputs. The wiring diagram shows how those inputs and outputs are physically connected. If a sensor isn't triggering, I check the wiring diagram to confirm the sensor is wired to the correct input terminal, then I check the ladder logic to confirm that input is referenced correctly in the program. Skipping either step means I'm solving the wrong problem.

There is a practical workaround I use when the diagram is clearly wrong or incomplete, which is more common than I'd like to admit. I photograph the actual component labels on the machine, then photograph the wiring at each terminal block. I map the physical wire colors and gauge to the reference designators in the diagram. Over time I build my own corrected version. I've done this for machines where the official diagram had maybe sixty percent accuracy. My hand-corrected diagrams have saved me countless hours because I know exactly what the real wiring looks like, not what the manufacturer claimed it looked like. Downloading a Machine Repair Manual Wiring Diagram from the internet is straightforward but you need to be careful about which source you trust. Manufacturer websites are the best option. Haas Automation, Mazak, Doosan, and Makino all have support sections where you can enter your serial number and download the correct manual. If the machine is older and the manufacturer no longer exists, third-party sites sometimes have scanned copies. I've used those. They're hit or miss on readability. A blurred PDF of a four-color schematic is worse than no diagram at all because you'll misread a wire gauge or a fuse rating. I also keep a folder of diagrams I've personally redrawn in CAD. It takes more time upfront but the clarity improvement is immediate when I'm doing field work. I use AutoCAD Electrical or even just LibreCAD for this. Redrawing forces you to actually understand the circuit, which catches errors in the original that you'd otherwise miss. I've caught three separate miswired interlock circuits this way on machines I picked up used.

The biggest limitation of relying on these diagrams is that they are static documents for dynamic systems. Machines get modified. People add sensors, bypass safeties, reroute wires, and the diagrams never get updated. I've seen diagrams where an entire section was drawn but the components it referenced had been removed years earlier. The remaining diagram fragments are still there, cluttering the page, and they confuse anyone who trusts them blindly. I always assume something has changed since the diagram was printed. My default is to verify, not assume. Another issue is that many diagrams omit wire color codes entirely or use codes that were specific to a single factory's wiring practices. A yellow wire might mean something different on a 1995 Okuma than on a 2002 Okuma. I've traced the wrong wire because I assumed the color standard was universal. It isn't. When in doubt, I use a multimeter to verify continuity rather than trusting color alone. Wire color is a hint, not a guarantee. If the diagram you have is useless and you can't find a replacement, the alternative is to reverse-engineer the wiring. Start at the power source and work outward. Document each connection as you go. Label every wire with a tag on both ends. It takes longer than reading a good diagram, but it produces something more reliable than whatever came in the manual. I've done this on machines where the original diagram was lost in a flood and the replacement manual from the dealer was for a different model. The reverse-engineered diagram was accurate enough that I could run the machine safely within a week.

The bottom line is that a repair manual wiring diagram is a starting point, not the final word. Treat it like a map from someone who drove the route once twenty years ago. Useful, but you still need to look out the window and verify what's actually there.
