The Reality of Getting Replacement Parts From Manuals
Most people look at an equipment manual and see directions for using the thing. They miss the section that would actually save them hundreds of dollars when something breaks. The replacement parts section is usually buried near the back, often in a completely different format than the rest of the document. You have to know how to read it fast because the person on the phone at the parts counter is not going to wait around. The first thing you need to understand is that machine user manuals do not always list replacement parts in a way that makes sense to the average owner. They use part numbers, exploded view diagrams, and sometimes completely different naming conventions than what you will see on the shelf. I spent three hours once trying to order a simple gasket for a 2014 industrial water pump, only to realize the manual used a superseded part number that had been replaced twice since it was printed. The answer was in a service bulletin linked from the manufacturer's site, but finding it required opening the PDF, searching for the model number, clicking through four levels of sub-pages, and then cross-referencing a table that was formatted in a way that made copy-pasting impossible. I ended up calling the distributor directly and reading the diagram over the phone while they looked it up. Took six minutes. That should have been step one.Machine User Manual Replacement Parts: Where to Actually Look

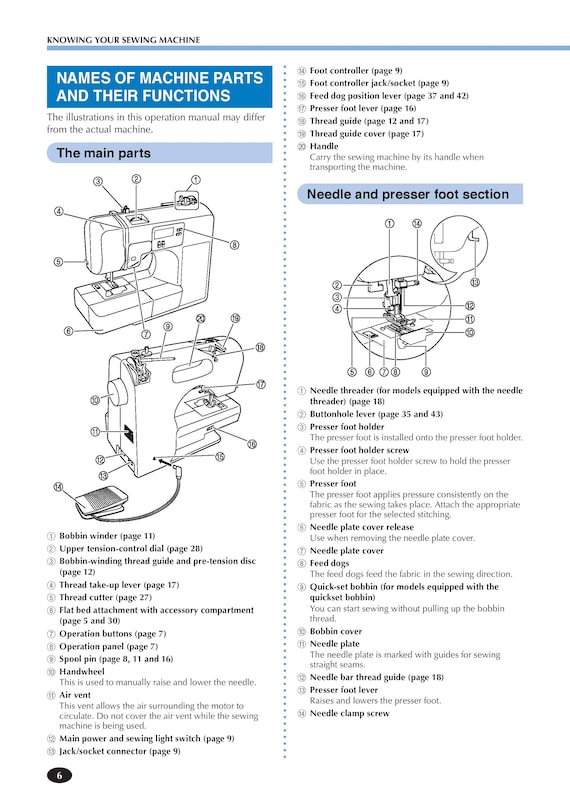

Start by identifying your exact model number. Not the product name, the full alphanumeric model identifier. It is usually on a metal plate or printed on a label somewhere on the machine. If you are looking at a manual that covers multiple model variants, you need to find the parts list that corresponds to your specific configuration. Some manuals merge models that use different components, and if you order based on the wrong variant, you will get something that looks right but does not fit. The parts section typically follows one of three formats. Exploded view diagrams with callout numbers. Tables listing part numbers alongside descriptions. Or a hybrid where the diagram provides the visual reference and the table provides the actual orderable part numbers. The most useful format is the hybrid. It tells you exactly where the part sits on the assembly and gives you the number you need to type into a parts database. The worst format is when the manual only provides diagrams without corresponding tables, which forces you to match callout numbers to a separate catalog that may not even be in the same document. When I deal with a manual that has poor parts documentation, my workaround is to use the exploded view as a map and search for the visual by image. I take a screenshot of the diagram, run it through a reverse image search or upload it to the manufacturer's support portal, and often find the parts breakdown that was updated in a later revision. Manuals go out of date. Revised editions come out with corrected part numbers all the time, especially for consumer appliances and smaller industrial equipment. The original printed manual you found on your shelf may be version one while the actual current parts list is version four.The Ordering Process Nobody Warns You About
Having the part number is only the first step. The next problem is that part numbers change, get discontinued, or are bundled into kits that make no sense for a single failure. I once needed a single wheel bearing for a commercial floor buffer. The parts manual listed it as part of a complete hub assembly kit that cost three times as much as the bearing alone. The bearing was not sold separately through the primary channel. I found it available as an individual component from a third-party bearing supplier by matching the dimension numbers printed in the manual's specifications section. The manual gave me the inside diameter, outside diameter, and width. I did not need the OEM part number at all. I needed the physical dimensions. This is a broader point that most guides skip. Machine user manuals provide information that serves two masters. They are written for certified technicians who follow strict procedures, and they are also the only reference most end users ever see. The parts sections assume you have access to proprietary ordering systems. They rarely account for someone who owns a single unit and just needs one replacement part to keep it running. When you hit that wall, you shift tactics. Use the part number to search across multiple distributors. Check aftermarket suppliers. Look at salvage yards for the same model. Often the part exists outside the official channel at a fraction of the price. Another common issue is ambiguity in the parts list itself. A manual might list "bearing 6205" without specifying whether it is sealed or open, metal shielded or rubber sealed, standard tolerance or precision grade. Two bearings with the same basic designation can have completely different performance characteristics. The manual assumes you already know which variant your machine requires. It does not always tell you. If you are unsure, measure the old part, note the markings on the races, and cross-reference with bearing catalogs from multiple manufacturers. SKF, NSK, Timken, and FAG all publish dimensional cross-reference tables that make it possible to find equivalents.Practical tip on timelines: Ordering from the official manufacturer channel typically takes five to fourteen business days for domestic parts, longer for international units or parts that need to be special-ordered from a warehouse. Aftermarket and third-party suppliers often ship within one to three days. If your machine is down and downtime costs money, the faster route is usually not the cheapest route. Budget accordingly.
