What Actually Comes With a 2004 Honda Pilot and How to Use It

The 2004 Pilot is one of those SUVs that sits between a CR-V and an Odyssey in terms of complexity. It has V6 engines, all-wheel drive systems with clutch packs, and transmissions that either work perfectly for 200,000 miles or develop mysterious shudder issues around 90,000. Knowing which is which usually depends on whether you had the owner's manual in the glovebox or you're hunting for the full service documentation online. I've worked on three of these over the years and every one of them taught me something I didn't find in the quick reference guides. Honda published two main documents for this model year. The Owner's Manual covers basic controls, maintenance schedules, warning lights, and what to do when something goes wrong on the road. The Service Manual goes much deeper — it has torque specs, wiring diagrams, troubleshooting trees, and teardown procedures. If you're doing basic maintenance like oil changes or brake pads, the owner's manual is probably enough. If you're pulling the transmission out or chasing an intermittent electrical gremlin, you need the service manual. You can find digital copies scattered across Honda's own archives, forums like Honda-Tech and Piloters.net, and third-party documentation sites. The factory Service Manual for the 2004 Pilot is sometimes labeled under part number RHD-04 or similar. When searching, make sure you're getting the right one — Honda also made a 2003 model that shares most of the platform but has different sensor locations and some revised wiring, so a manual labeled just "Pilot" without a year can occasionally lead you astray.

The most reliable free source I've found is the PDF hosted on Honda's official global documentation portal, though it requires creating an account. Third-party sites like ManualsLib have clean, searchable versions uploaded by users. I usually recommend the ManualsLib version for quick lookups because the search function actually works, whereas the official PDF sometimes has broken bookmarks depending on how it was scanned.

Maintenance Schedule — The Stuff That Actually Matters

Honda's maintenance intervals for the 2004 Pilot are reasonable if you follow them, but the schedule in the manual is optimized for mild driving conditions. If you tow, drive in dusty areas, or do a lot of short trips where the engine never fully warms up, you should cut those intervals roughly in half. The owner's manual lists oil change at 7,500 miles under normal conditions, but I've seen sludge build-up in the 3.5L J35A1 engine at under 5,000 miles on vehicles that were mostly used for grocery runs in cold climates. The oil filter there is a standard Honda part — number 15400-PLC-A02 or the aftermarket equivalent — and it holds about 4.5 quarts with the filter replacement. The timing belt interval is listed at 105,000 miles or 10 years in the manual, which is actually quite conservative for this engine. The J35 series is an interference engine, meaning if the belt breaks while running, valves and pistons collide. I replaced the timing belt on a 2004 Pilot at 112,000 miles and the old belt looked barely worn — the rubber hadn't glazed, the teeth were sharp, and the tensioner still had plenty of travel. That said, I wouldn't push past 90,000 miles on the original belt without replacing it, because the real failure mode isn't the belt itself — it's the water pump bearing and the tensioner seals. The water pump on these pilots tends to leak from the weep hole around 80,000 to 100,000 miles, and when it starts dripping, you've got maybe another 10,000 miles before the belt gets contaminated and slips. Transmission fluid is another area where the manual is technically correct but practically incomplete. Honda says "inspect and adjust as necessary" for the automatic transmission fluid, which is their way of saying it doesn't have a scheduled drain-and-fill. The 5-speed automatic in the 2004 Pilot does benefit from a fluid change every 60,000 to 80,000 miles if you want it to last. Use Honda DW-1 fluid, not ATF-Z1 or the cheaper universal substitutes. I learned this the hard way on a pilot that had been flushed with generic ATF — the shudder on light acceleration at around 40 mph went away after the flush but came back worse two months later. A proper drain and fill with DW-1 fixed it within a week as the friction modifiers stabilized.

Common Problems the Manual Doesn't Warn You About

The second-row power outlet recall is one of those things the manual mentions in passing but doesn't emphasize enough. Honda recalled certain 2004 Pilots because the socket could overheat and melt the surround. If your pilot was built between April and September 2003, check the VIN against Honda's recall database. The fix was a simpler socket redesign, and it's a free dealer service. I had one come up on my own 2004 — the plastic around the cigarette lighter was discolored and slightly soft to the touch, which is the early sign before it gets to the point where it actually melts. The front differential clutch pack on the AWD models is another quiet failure point. The manual tells you to check the AWD system indicator light and listen for unusual noises, but it doesn't mention that the front differential fluid should be changed every 30,000 to 50,000 miles if you live somewhere with road salt or heavy rain. The fluid in there is a special Honda AWD fluid (part number 08798-9013), and when it gets contaminated with moisture, the clutch plates start dragging. The symptom is a slight pulling to the left or right on dry pavement during turns, especially at low speeds. It's easy to mistake for a wheel bearing or alignment issue, and I spent two weekends on one pilot chasing a pull that turned out to be dried-out differential fluid. A single fluid change — about 1.1 quarts, $18 for the fluid, 20 minutes of labor if you have a jack and a socket set — fixed it completely. The HVAC blend door actuators fail more often than people expect. The manual covers filter replacement and basic climate control operation, but it doesn't address the fact that the plastic gears inside the actuator strip after about eight years. You'll notice one temperature setting works — usually hot or cold — but the other direction makes a clicking sound from behind the dashboard. Replacing the actuator is a 45-minute job if you know where it is. On the 2004 Pilot, the passenger-side blend door actuator is behind the lower dash panel on the right, and the driver-side one is slightly harder to reach but still doable without removing the whole console. OEM Honda actuators are around $35 each; the cheap aftermarket ones tend to break again within a year because they use the same weak plastic gears.

Using the Service Manual Effectively

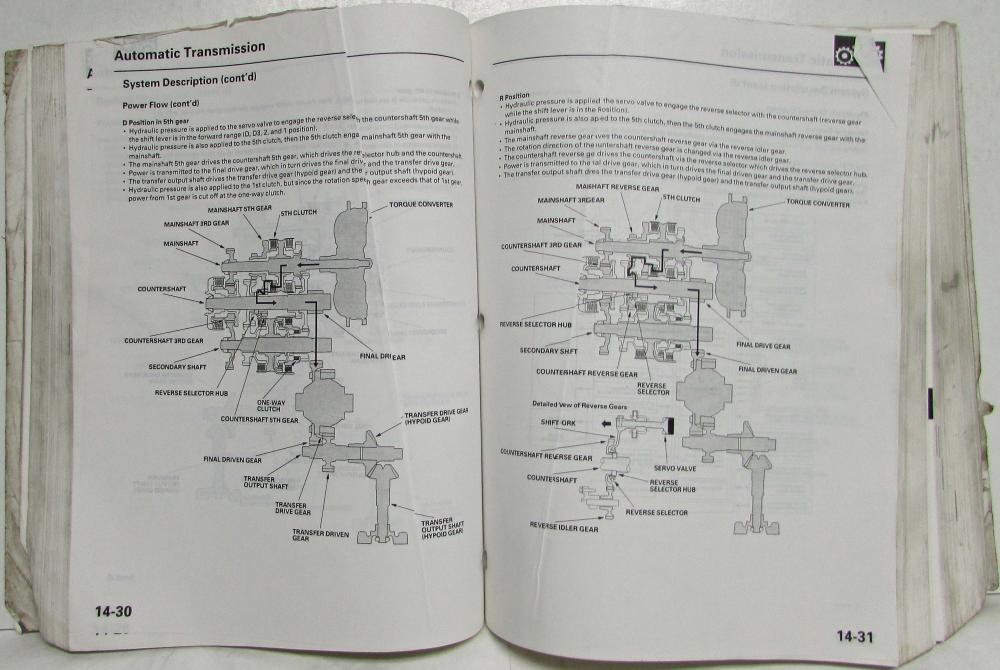

The service manual is organized by system, not by symptom, which makes it frustrating if you're trying to diagnose something specific. I usually flip to the troubleshooting section first, which cross-references symptoms to possible causes, then go to the relevant system chapter for the detailed procedure. The wiring diagrams in the manual are color-coded by circuit, which helps enormously when you're tracing a parasitic drain or an intermittent no-start condition. Just remember that the diagram numbers don't always match the physical wire colors on every vehicle — Honda sometimes changed harness colors mid-production year, so cross-reference with the actual harness tag under the dash. Torque specifications are critical on this platform, especially for the cylinder head bolts and the crankshaft pulley. The head bolts on the J35 engine are torque-to-yield, meaning they stretch during installation and cannot be reused. The manual gives the three-stage tightening sequence — 13 foot-pounds, 22 foot-pounds, then a angle turn of 70 degrees plus another 70 degrees — and if you skip any stage or reuse old bolts, you'll get a head gasket failure within a few thousand miles. I've seen this happen twice on pilots where a DIYer skipped the angle turns because they didn't have a torque angle gauge, using only a standard torque wrench. The gasket looked fine when reassembled but started leaking coolant into the oil gallery within six months. One practical tip that the manual buries somewhere in the suspension chapter: the rear control arm bushings on the 2004 Pilot wear unevenly, and replacing just the bushing isn't always worth it. Honda sells the complete control arm assembly with new bushings pre-installed, and while it costs more upfront, it saves you from having to press the old bushing out and deal with the alignment that follows. A complete rear control arm runs about $80 to $120 per side at parts stores, and the job takes about 40 minutes with basic tools. If you're doing a full suspension refresh anyway, this is the part where you save time rather than lose it.

Manual For Honda Pilot 2004 — Where to Download and What to Verify

When you download a copy, verify it's the full version by checking the page count. The owner's manual should be around 200 to 250 pages depending on the trim level and market. The service manual is typically 800 to 1,200 pages split across multiple volumes — Engine, Chassis, Body Electrical, and so on. Some incomplete uploads online skip the electrical sections entirely, which are the most useful for diagnosis. A complete set will also include the maintenance checklist at the front, which Honda uses for warranty and service interval tracking. If you're working on the vehicle regularly, I'd recommend printing the wiring diagrams and torque specs on cardstock and keeping them in a folder in the truck. PDFs on a phone are fine for looking up a fluid capacity, but they're useless when your hands are greasy and you need to see a connector pinout at 2 in the morning. The diagrams print cleanly on letter-size paper if you set the scaling to fit, and having them physically nearby cuts diagnosis time significantly compared to scrolling through a screen. The 2004 Pilot isn't a complex vehicle by modern standards, but it has enough systems — AWD, V6, 5-speed automatic, dual-zone climate — that having the right documentation makes the difference between a 3-hour job and a 3-day job. The manual does its job well when you know how to use it, and once you've gone through the procedures a couple of times, you stop flipping pages and start going straight to the section you need. That's the real value — not having every spec memorized, but knowing exactly where to find it when something breaks.
