Manual For Mitsubishi Diamante

Getting Your Hands on the Right Manual

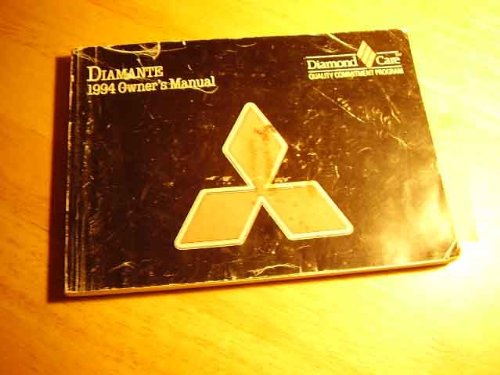

The Mitsubishi Diamante was sold from roughly 1990 to 2005 across three generations, which means there isn't one single manual you can just grab. You need to match the manual to your exact model year and market. A 1994 V6 ES is going to have a very different dash layout and warning system than a 2002 SEHR with the 3.5-liter V6. Get that wrong and you'll be chasing your tail. The OEM shop manual is available through Mitchell1 or Alldata, but those are subscription services aimed at professional shops. If you just want the owner's manual, Mitsubishi itself used to host PDFs on their site but they've since pulled most of them down. The most reliable free source I've found is the Mitsubishi Owners Club forum, where members upload scanned copies organized by year and trim. There's also ManualLib and Scribd, but those tend to have outdated or blurry scans that are hard to read at night when you're trying to figure out how to reset the trip computer. I ran into a specific problem with a 1998 Diamante ES last year. The owner's manual had been stripped of the section on the AWC (all-wheel control) system because Mitsubishi issued a technical service bulletin that changed the maintenance intervals, and the published manual didn't get updated. The TSB said to check the AWD coupling fluid every 30,000 miles. The manual said nothing about it. I ended up finding the actual service interval in a scanned copy of the 1999 factory service manual, which I downloaded from a Japanese auto forum using a Wayback Machine archive of a now-dead Mitsubishi technical page. It cost me about an hour of digging. If you own an AWD Diamante, do that search before you need it.

What the Manual Actually Covers

For the first generation (1990-1994), the manual is basic by modern standards. It covers fuel recommendations — 91 AKI minimum for the 3.0-liter V6 — tire pressure specs, fuse locations, and basic maintenance intervals. The 1992 model year introduced the 3.5-liter V6 in the SE trim, and if you have that engine, the manual's maintenance schedule is where you find the timing belt replacement interval at 60,000 miles. That one matters. I've seen two Diamantes with snapped timing belts because the previous owner followed the 100,000-mile "inspect only" recommendation that appeared in later printings for the 3.0-liter version. The 3.5-liter is an interference engine. Snapped belt means bent valves. I replaced four valves on a guy's 1994 3.5L last fall. He didn't know the difference between the two engine manuals. The second generation (1995-2000) added a lot more electronics. The dashboard got a digital display that shows maintenance reminders, tire pressure warnings (on some trims), and drive mode selection for the AWD system. The manual is thicker and the fuse box diagram is actually useful — the inline fuse block under the hood has a printed diagram on the cover, but the interior fuse panel reference in the manual is what you need when something electrical acts up. Third generation (2000-2005) is the one most people are looking for. The SEHR and ES models share most of the same content, but the SEHR adds documentation for the Variable Cylinder Management system on the 3.5L 6G75 engine. That system deactivates three cylinders under light load to save fuel. The manual explains how to tell if it's working — you listen for a distinct change in engine note when cruising at highway speeds, and the ECU switches back to six-cylinder mode when you press harder on the throttle. If your VCM isn't activating and you're getting a P1400 code, the manual won't help you fix it. It just tells you the system exists. You need the factory service manual for diagnostics on that.

Maintenance Intervals You Should Actually Follow

Here's what I've learned from working on these over the years. The manual's oil change interval says 7,500 miles. Don't follow that. These engines run hot and the oil breaks down faster than Mitsubishi admitted. I stick to 5,000 miles maximum, and if you're doing short trips or the car sits for long periods, drop that to 3,000. The 6G72 and 6G75 engines are generally durable, but sludge buildup in the oil passages is the number one killer and it's entirely preventable with shorter intervals. Transmission fluid is another place the manual undersells things. The automatic transmission in the Diamante is a 4-speed on most models, a 5-speed on later ones. The manual says "inspect" at 50,000 miles and "replace if necessary." That's not helpful. I drain and refill every 40,000 miles using Mitsubishi DIAMOND SP III fluid. Using the wrong fluid causes the solenoids to stick and you'll get harsh shifts within a few hundred miles. I learned that the hard way on a 2001 Diamante where someone had used generic ATF. The car was shuddering between third and fourth gear. One fluid change with the correct fluid fixed it completely. The power steering fluid specification in the manual is vague — it just says "Mitsubishi power steering fluid or equivalent." The equivalent part is where people go wrong. These systems are sensitive to friction modifiers. Most aftermarket "universal" power steering fluids contain friction modifiers that cause the pump to chatter and whine. Use the real Mitsubishi stuff or ATF+4. The whining goes away immediately with the right fluid.

Common Issues the Manual Doesn't Warn You About

The manual will list the obvious things — check engine light, low oil pressure, brake wear indicators. It won't tell you about the alternator mounting bracket problem on the 3.0-liter V6. The bracket corrodes from the inside out where the windshield washer fluid passes through a tube near the mounting point. I've pulled three alternators off because the bracket snapped, and the manual has zero mention of it. If your alternator belt starts walking off periodically, check that bracket before you buy a new alternator. Another thing: the rear window defroster grid on second and third generation models fails frequently. The manual shows you how to check the fuse, but it doesn't mention that the real failure point is usually the connector at the back of the rear window. The pins corrode and lose contact. I fix this by cleaning the connector pins with electrical contact cleaner and applying dielectric grease. Takes five minutes. The manual would have you replacing the entire defroster element assembly, which is expensive and often unnecessary. The manual also doesn't cover the AWD system's tendency to develop a clicking sound when turning sharply at low speeds. That's the center differential wearing out, and it's common on high-mileage AWD Diamantes. The manual describes the AWC system in the driving section but doesn't mention this as a known failure mode. If you hear it, you're looking at either a center differential rebuild or a complete transfer case swap. Neither is cheap.

One more practical thing — the cabin air filter location isn't prominently featured in the manual for many model years. On the second generation, it's behind the glove box. On the third generation, it's on the passenger side under the dash, behind a plastic cover that pops off with your fingers. The manual has a diagram but no photo, and the cover is easy to crack if you're not gentle with it. I use a flathead screwdriver wrapped in tape and work it around the edges slowly. Five minutes, no tools required beyond that.

When the Manual Isn't Enough

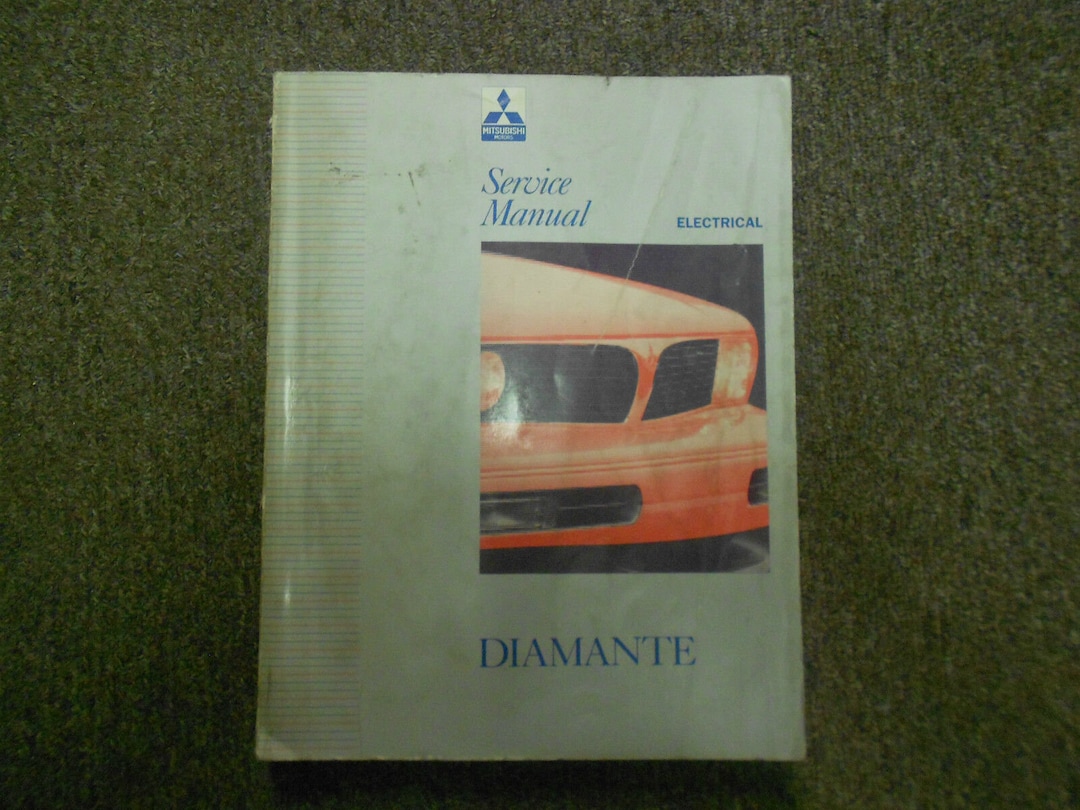

For basic maintenance and troubleshooting, the owner's manual is adequate. But if you're dealing with electrical gremlins, AWD system faults, or engine management codes, you need the factory service manual. Those are available as PDFs from a few sources — the Mitsubishi factory service manual for the Diamante is well organized by system and includes wiring diagrams, torque specs, and diagnostic flowcharts. The wiring diagrams alone are worth having. The color-coded connectors and ground point locations save hours of tracing wires with a multimeter. I keep a printed copy of the fuse and relay diagrams on my workbench and the full service manual on a tablet in the shop. The owner's manual stays in the glove box where it belongs. If you're looking for the Manual For Mitsubishi Diamante to understand how to change your own oil, check your fluids, or replace wiper blades, the owner's manual in your car is sufficient. If you're diagnosing a persistent check engine light or a transmission that shifts roughly, you need more than that.
