Understanding the Manual Sewing Machine Diagram

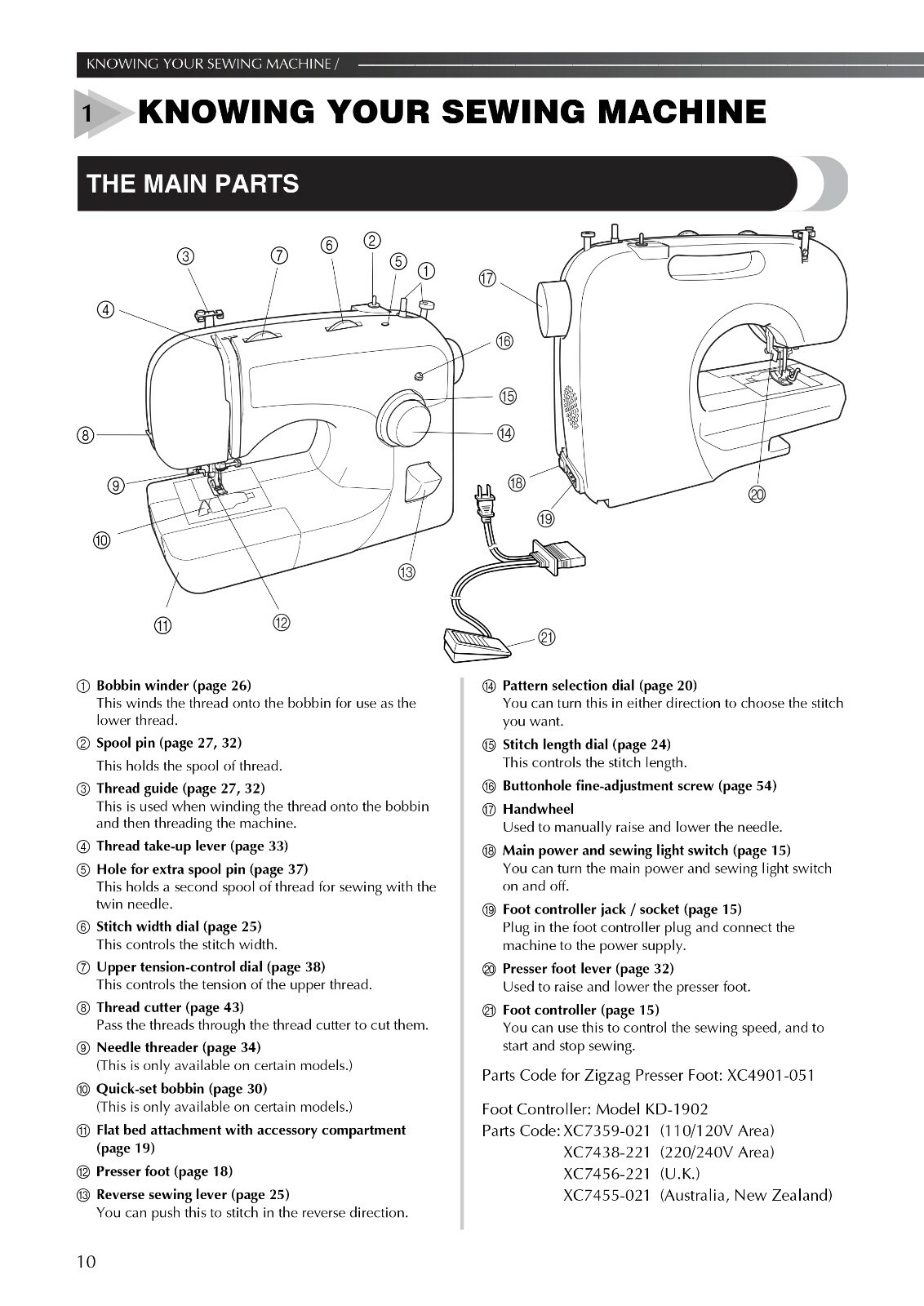

Most people buying a vintage or hobby manual sewing machine stumble over the timing and threading diagram in the manual. The diagrams vary wildly between brands, and the ones that come with Chinese reproduction machines are often flat-out wrong. I ended up tracing a complete hook-timing procedure for a 1970s Singer 15-91 after the diagram showed the needle bar at the wrong mark relative to the bobbin case rotation. Start by identifying which part of the machine the diagram is trying to show you. A typical manual sewing machine diagram breaks down into four zones: the needle bar position and its relationship to the presser foot, the hook or shuttle path around the bobbin case, the thread take-up lever trajectory, and the feed dog timing relative to needle position. These four zones determine whether your stitches are clean or a tangled mess. The critical detail beginners miss is the relationship between the needle bar's lowest point and the hook point as it passes the thread loop. On a standard vertical-shaft machine, the hook should sweep past the needle eye approximately 1.5 to 2 millimeters after the needle begins its upward travel. If you're following a diagram and the needle bar is marked at "top dead center," that is just a reference point. It does not tell you the timing. You need the needle position relative to the hook, and that requires knowing where the take-up lever sits when the stitch forms.
I worked through this on a Kenmore 158 that had been reassembled by someone who clearly did not read the diagram carefully. The thread take-up lever was mounted on the wrong hole in its arm. The machine would sew, but it produced loose stitches on lightweight cotton and the upper thread would constantly knot underneath. Tightening the tension dial did nothing. Once I matched the lever position against the original diagram and re-mounted it one hole closer to the shaft, the problem disappeared immediately. The diagram mattered more than any tension adjustment.
What the Diagram Won't Tell You
A manual sewing machine diagram is a static representation of a moving mechanism. It cannot convey the tolerance stack-up that occurs in a machine that has been used for decades. Bearing wear in the handwheel, play in the needle bar clamp, and even the thickness of the thread you are using will shift the timing by fractions of a millimeter. That is why two identical machines running the same thread can produce different results even when both have been set according to the same diagram. Another thing the diagram rarely addresses is needle selection and how it interacts with the hook timing. A thicker needle deflects more as it passes through fabric, which shifts the position of the thread loop. If you are sewing heavy denim with a #18 needle on a machine dialed in for a #14, you may need to adjust the hook clearance slightly or you will get skipped stitches. The diagram assumes a standard needle size. It does not account for your actual setup.
Get the Full Details
When a Diagram Is Not Enough
There are scenarios where relying solely on a manual sewing machine diagram will get you nowhere. First, reproduction machines sold as "vintage style" often ship with incorrect diagrams because the original specifications were lost and someone guessed. Second, converted electric machines where the original hand-crank timing was altered during the conversion will frequently have mismatched diagrams. Third, European models like the Pfaff 130 series use a different hook geometry than the Singer-style rotary hook, and mixing up the timing procedure between the two systems will damage the machine. My recommendation when the diagram is unclear or likely incorrect is to use a manual indexing method instead. Remove the needle, rotate the handwheel slowly by hand, and watch the hook point approach the needle eye. Use a magnifying glass or a phone camera on macro mode to see the exact moment the loop forms and gets caught. Mark the handwheel position with a piece of tape so you can reference it consistently. This takes about ten minutes and is more reliable than trusting a printed diagram that may have been simplified or error-prone. The diagrams are useful as a starting reference. They show you the general layout and help you understand how the parts relate to each other. But the actual timing has to be verified by observation. A diagram will never replace watching the mechanism move in real time, especially on older machines where wear has changed the geometry from the original design.
