Manual Television Calibration Manual

The Real Problem With

Every manufacturer ships TVs with the same default profile. Bright, oversaturated, and completely wrong for any real room. I spent three years doing AV installations before I realized most people never calibrate past the preset modes. The results are predictable — washed out blacks, skin tones that look orange, and text that hurts to read after twenty minutes. Manual Television Calibration Manual is not a single document you download. It is a set of procedures that vary by brand, panel type, and year. What works on a 2019 Sony OLED destroys a 2023 Samsung QLED if you apply it blindly. I learned that the hard way on a client's living room setup.

What Manual Television Calibration Manual Actually Means

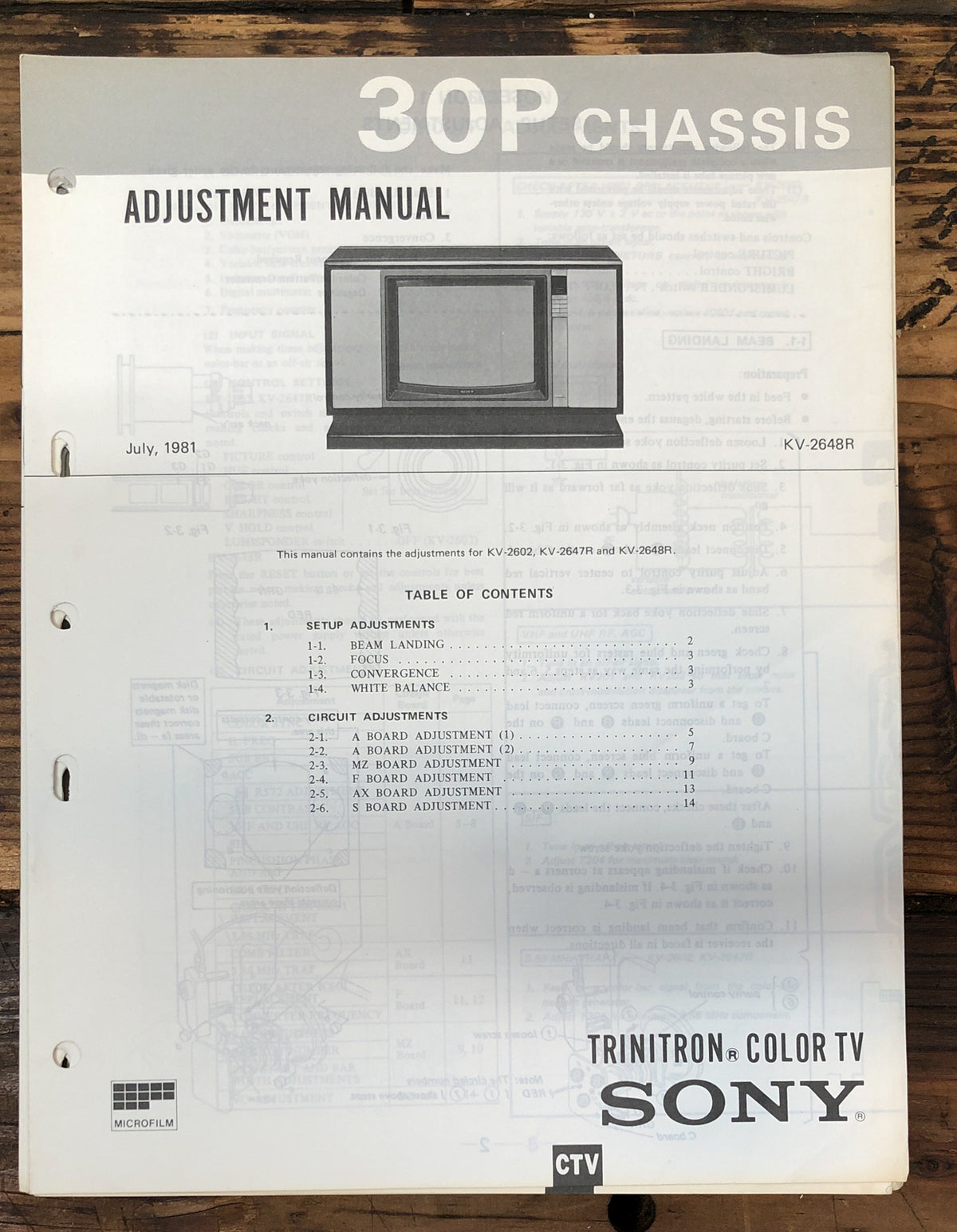

The phrase appears in two contexts. The first is the official service manual that manufacturers release to authorized repair centers. These contain test patterns, voltage references, and adjustment ranges that regular users should not touch. The second context is the community-built guide that explains which picture settings to change and in what order. That is what most people actually need. I keep a folder of the second kind because the first kind will void your warranty and can damage the panel if you adjust the wrong voltage trim. The community guides are scattered across forums, but they follow the same basic sequence regardless of brand.

Step One: Pick the Right Picture Mode

Start with ISF Night or Movie Warm mode. These are the closest to the Rec.709 standard that manufacturers target for reference monitoring. Avoid Vivid, Dynamic, or Natural presets. They boost saturation and contrast artificially to impress shoppers in a loud retail environment, not to display accurate color. Turn off every motion smoothing feature first. Auto Motion Plus, TruMotion, Motionflow — these all add interpolation that makes film look like a cheap soap opera. Disable them before adjusting anything else. Then disable local dimming if your TV has it. It causes clouding and black level shift that makes calibration impossible to trust.

Step Two: Adjust Brightness and Contrast

Brightness controls the black level signal. Set it so you can barely distinguish the darkest steps in a test pattern without lifting into gray. Most panels want this between 40 and 50 out of 100. Contrast controls the white clip point. Set it to the highest value before detail starts clipping in a highlight test pattern. Here is where people go wrong. They trust their eyes in a lit room and end up with a picture that looks fine next to the other TV on display but is technically wrong. Do this in a dark room with a test pattern playing for at least ten minutes. Let your eyes adapt.

Step Three: Color and Tint

Color usually needs to drop significantly from the default. Factory settings run around 50 to 55. Drop it to 40 or lower and check skin tones against a reference image. If a face looks like a sunset, the saturation is too high. Tint sits at neutral unless the panel has a known green or magenta shift. Leave it at zero. I had a 2020 LG OLED where the green channel drifted in warm modes. I solved it by setting Tint to +3 and locking the color temperature to Warm 2 instead of Warm 1. The official spec sheet said Warm 1 was more accurate, but the unit I measured was an outlier. Panel matching is not as consistent as marketing materials suggest.

Step Four: Sharpness and Noise Reduction

Sharpness adds edge enhancement that creates halos around text and faces. Set it to zero or the lowest possible value. Noise reduction should stay on for streaming content but turn off for Blu-ray sources. The problem is most TVs apply it automatically and you cannot disable it per input. I use an external media player for disc content and feed it through a scaler when possible. Some TVs cannot be calibrated past a certain point because the firmware hard-locks settings in certain modes. Budget models often disable back light control in all but Vivid preset. High-end sets may require a service menu login that changes every year. I spent two hours on a 2022 Hisense ULED trying to access its calibration menu through the support code sequence. The codes changed mid-cycle and the menu was already removed. In those cases, the alternative is a hardware calibrator. A Spyder or Klein meter connected to a laptop will measure what the TV outputs and generate a correction LUT. This costs around $400 for the meter and another $100 for the software, but it beats guessing with sliders. For professional installs, I budget for the meter and skip the manual approach entirely.

Testing After You Finish

Run a full pattern suite. Check grayscale tracking, gamma at multiple luminance steps, and color saturation targets. If you do not have a test disc, the Signal Source generator on a laptop running the Spears & Munsil Ultimate HDR setup disc works well enough for basic verification. The key metric is whether shadows look black instead of gray and whether white surfaces look white instead of blue or yellow. A properly calibrated TV in a controlled room will look flat compared to the factory default. That is normal. Once you spend a few hours with it, your eyes adjust and the factory mode starts looking harsh and wrong again. Give it a week before deciding it looks bad.

Manual Television Calibration Manual Reference

If you want the complete procedure documented, the Society of Motion Picture and Television Engineers publishes SMPTE RP 166 and RP 188 for reference viewing conditions. THX also has a public calibration guide that covers both SDR and HDR setups. These are free PDFs and they cover everything from room lighting requirements to target luminance levels. The manufacturer service manuals are not freely distributed and downloading them from third party sites often gets you outdated versions for the wrong model. The practical shortcut most installers use is the CalMAN or Colorimetry software combined with an i1Display Pro. Even the budget Spyder X Elite does a decent job for SDR calibration in under thirty minutes. HDR requires a separate meter and more time because the luminance targets are much higher than what most home setups can achieve.

What Not to Touch

Do not adjust the RGB gain or offset trims unless you have a service manual for your exact model and a variable power supply. These are factory set during panel binning and moving them without proper measurement tools will push your grayscale tracking further from the target. Do not mess with the degauss coil or flyback transformer settings on older rear projection sets. Those carry lethal voltages even when unplugged. Also leave alone the OEM color space overrides. Some TVs let you select DCI-P3 or sRGB modes, but switching between them without recalibrating will throw off your white balance. If you change the color gamut, go back to the grayscale adjustment step and recheck. Calibration is not a one-time task either. Panel characteristics shift over time, especially on OLED sets where different subpixels degrade at different rates. Revisit your settings every six months if you watch a lot of content, or once a year for casual use. The process takes about twenty minutes if you already know what you are doing.
