Switches and Layouts — A Reference That Actually Fits on One Screen
I've been building and maintaining mechanical keyboards for roughly a decade, and the most common question I see in forums is just figuring out what's under the keycap. The Mechanical Keyboard Cheat Sheet Minimalist version I'm describing here is meant to be printed or kept open as a quick reference when you're trying to identify switches, understand layout differences, or pick components without wading through three hundred Reddit threads. Here's the thing nobody really explains upfront: linear and tactile switches are not the only categories that matter. You're going to run into clicks, optical options, and hot-swap sockets that behave differently depending on the board. A Kailh Box White switch feels nothing like a Cherry MX Brown even if they share the same stem profile on the surface. The cheat sheet approach works best when you think in layers — actuation force first, then travel distance, then sound profile.
How to Use a Mechanical Keyboard Cheat Sheet Minimalist
Start by mapping what you already have. If you're replacing switches on a board, note the stem type before anything else. Most modern switches use Cherry-compatible stems, but Gateron and Kailh sometimes differ in tolerance enough that a supposedly universal swap can feel noticeably scratchy or loose after installation. I once spent two hours desoldering and resoldering Kailh Hot Swap sockets onto a PCB because the board specified CHERRY-compatible but the sockets had slightly thicker pins. The switches physically fit, but the contact resistance was inconsistent across row 3. I ended up using a continuity tester at 10k ohms and replaced the whole socket strip rather than troubleshoot each one individually. For the cheat sheet itself, organize it into three sections: Section one: switch types and actuation specs. List the major families — Cherry MX, Gateron, Kailh, Omron, TTC — with their linear, tactile, and clicky variants. Include actuation force in grams and travel distance in millimeters. The typical values are 45g–65g force and 2.0mm–4.0mm total travel, but individual models vary enough that the exact numbers matter when you're comparing something like a Gateron Ink Black (67g linear) against a Holy Panda (67g tactile with a much different feel curve). Don't rely on the name alone. The feeling is in the spring and the housing texture.

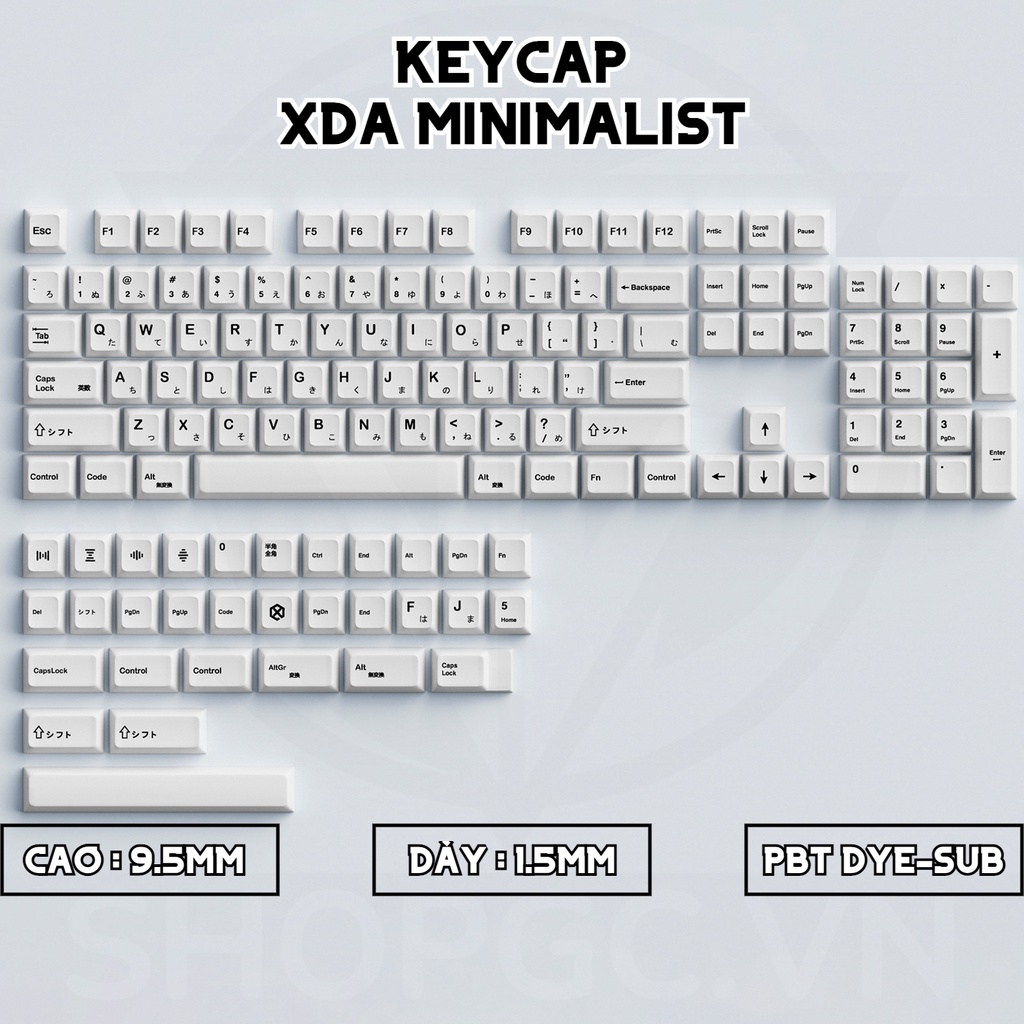

Section two: layout geometry. This is where most people get confused. Full-size, tenkeyless, 75%, 65%, 60%, and 40% are not interchangeable terms even though some vendors use them loosely. A 75% layout keeps function keys and most arrow clusters but removes the number pad. A 65% removes F-keys entirely and compresses navigation keys. A 60% removes arrows and navigation altogether, usually replacing them with layer keys accessed via Fn combos. A 40% is essentially a compact rectangle with custom layer mapping. The real distinction that matters for daily use is whether your thumb cluster — spacebar, modifiers, and any navigation keys — stays within natural reach without wrist extension. If your current keyboard forces you to lift your wrist for arrow keys, you're already at a layout that's too large for comfortable typist ergonomics. Section three: keycap profiles and compatibilities. OEM, Cherry, SA, MT3, DSA, XDA, and KAT are the most common. Profile height and angle change feel more than most people realize. OEM is the default on most boards and is moderate in height with a slight curve. Cherry profile is flatter with less finger travel per keystroke. SA is tall and rounded, which some people prefer for typing rhythm but which causes finger fatigue during rapid gaming. The important compatibility detail is stem spacing and stabilizer design. Not every keycap set fits every board's stabilizers. DSA and XDA are uniform in height across the entire kit, which means they work with almost any layout, but they also remove the natural grouping that helps touch typists find home row without looking. If you type without looking, stick with OEM or Cherry profiles.
Get the Full Details
What the Cheat Sheet Doesn't Cover (And Why That Matters)
A minimalist reference has to leave things out, and what it leaves out is usually where problems start. It won't tell you about lube thickness affecting actuation smoothness, or about how foam dampening changes the sound profile more than switch brand ever will. I've seen people spend $120 on premium switches only to have the keyboard sound hollow and pingy because nobody put any interior foam in the case. The foam matters more than the switches in most budget builds. Line your case with 2mm acoustic foam or even thick felt between the PCB and the case bottom, and the sound character changes from metallic to thocky almost immediately. This is the first thing I check when someone complains about a keyboard sounding bad — the switches are rarely the actual problem. Another gap in most cheat sheets is the topic of gasket mounts versus plate mounts. A gasket-mounted board uses rubber o-rings or silicone strips to suspend the plate inside the case, which reduces vibration transfer and changes the typing feel significantly compared to a plate-mounted board where the PCB is screwed directly to the case. Gasket mounts are not inherently better, but they are different, and the difference is noticeable within a few days of switching between the two. If you're building from a parts list, check the mount style before ordering cases and plates. Hot-swap sockets have their own failure mode that rarely gets mentioned. After roughly 1,000 to 1,500 insertions and removals per socket, the internal metal contacts degrade and you'll get intermittent key misses. This is most obvious on the keys — spacebar, enter, shift, and the main alphabetic row. The fix is to rotate which switches go into which positions so worn sockets get less-used switches, or to accept that hot-swap boards are replacement parts with a finite lifespan. Soldered boards don't have this issue, but they also don't let you experiment without a soldering iron.
Putting the Mechanical Keyboard Cheat Sheet Minimalist Together
Build yours as a single page — printable PDF or a clean table in a notes app — with the three sections I described above. Add a column for common use cases next to switch types: typing, gaming, hybrid. Linear switches generally suit gaming because the smooth travel with no tactile bump allows faster repeated presses. Tactile switches suit typing because the physical feedback confirms actuation without bottoming out. Clicky switches are divisive and unnecessary for almost anyone — they're loud and add no functional benefit over tactile switches for either gaming or typing. Include actuation point information if you can find it. Most Cherry-compatible switches actuate around 2.0mm of the 4.0mm total travel. Some optical switches actuate much earlier, around 1.0mm, which makes them faster for competitive gaming but can cause accidental key presses during normal typing if your desk surface vibrates or if you press keys with excessive force. The actuation point is what determines responsiveness, not the total travel distance. Keep the cheat sheet updated. New switch releases come out every quarter, and the naming conventions shift. A "Brown" from one manufacturer does not feel the same as a "Brown" from another. I maintain mine as a living document with a revision date at the top, and I cross-reference every new switch against existing entries using three criteria: actuation force, tactile bump position, and housing material. If all three match an existing entry, the new switch is functionally equivalent and doesn't need its own row. This cut my reference sheet from forty rows down to about twenty without losing any useful information.
The version I use personally fits on one A4 page front-and-center and takes about ten seconds to scan when I'm choosing components for a build. It's not comprehensive, and it won't help you decide between a $200 boutique board and a $40 Amazon special. But for identifying what you're looking at and understanding why a particular combination of parts might or might not work together, it does the job without the noise.
