Material Classification That Actually Matters on the Floor
I deal with incoming material lots every week, and the Metallic vs Non Metallic split is one of those things that seems obvious until a shipment arrives that doesn't behave like either category should. Here is how I actually separate them in practice, what goes wrong, and what to do when the specs don't tell you everything. The basic distinction comes down to electron bonding. Metals have delocalized valence electrons that move freely through the lattice structure. This gives them electrical conductivity, thermal conductivity, malleability, and that characteristic luster. Non-metals form covalent or ionic bonds instead, so they tend to be insulators, brittle, and chemically stable across a wider temperature range. That is the textbook version. The floor version involves a handheld XRF gun, a magnet, and sometimes a lot of guesswork.

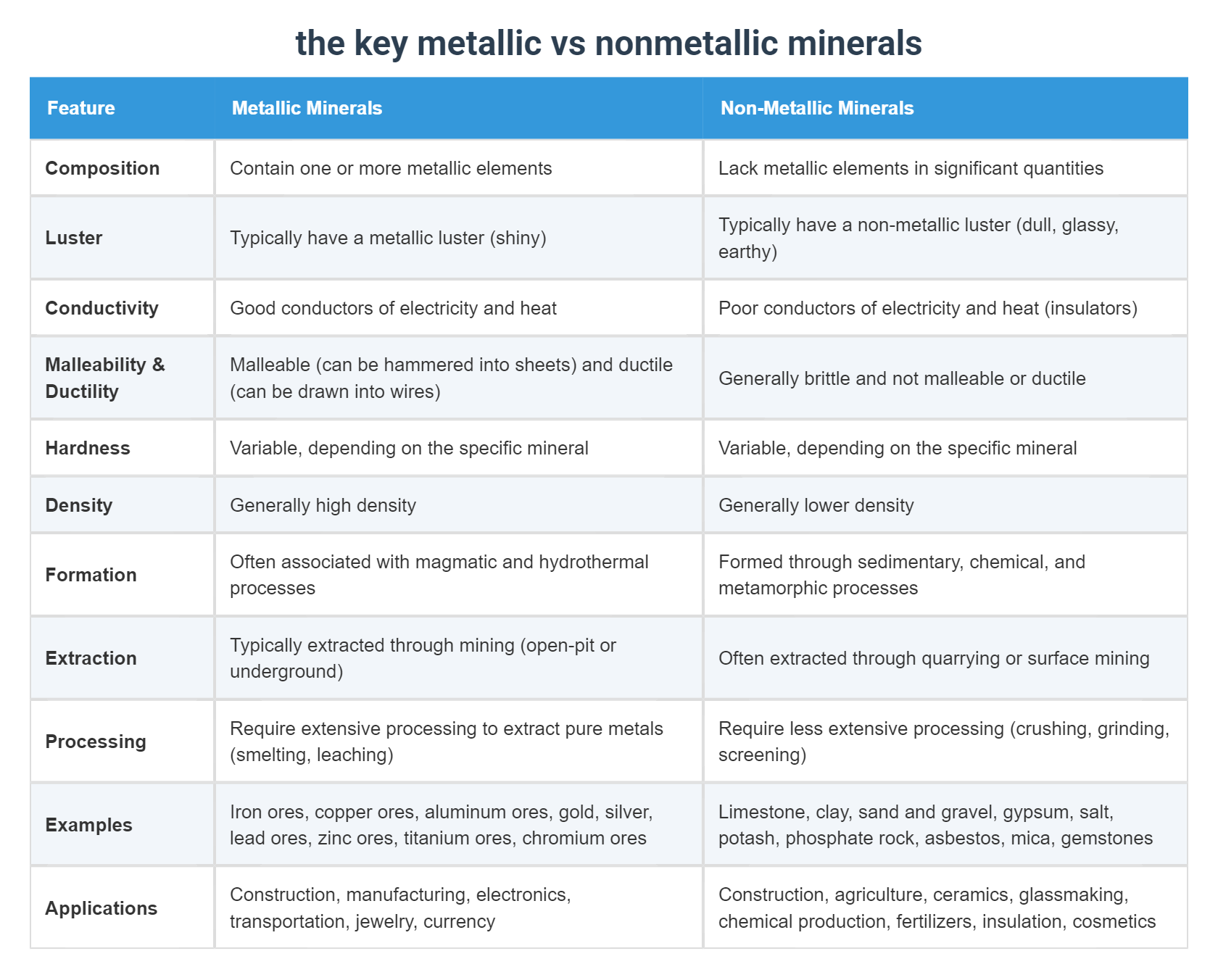

Metallic Vs Non Metallic in Real Testing Conditions
I run spectral analysis first when possible. An X-ray fluorescence unit gives you elemental composition in about thirty seconds per sample. If the reading shows iron, aluminum, copper, or any alloying elements above trace levels, you are looking at something metallic. If the spectrum reads carbon, oxygen, silicon, nitrogen with no metals, you are in non-metal territory. It sounds straightforward. It is not always. The problem hits when you have coated or plated materials. I once pulled a batch of what the supplier listed as stainless steel fasteners. The XRF read fine on the surface — chromium and nickel showed up in the right ratios. But when I ground through the plating and tested the substrate, the core was mild carbon steel. The parts passed my initial inspection and went into production. Two weeks later, a corrosive cleaning solution reached the bare steel underneath the plating through micro-fractures. Half the lot failed torque tests and started rusting from the inside out. That cost us about three days of line downtime and a replacement order at roughly double the original price because of the expedited shipping. Now I always grind or section-verify any plated or coated metallic sample before accepting it. Takes about four minutes per lot sampling. Non-metals require a different testing approach entirely. You are usually looking at polymers, ceramics, composites, or glass. FTIR spectroscopy identifies polymer types by their molecular absorption bands. A DSC scan tells you glass transition and melting points, which distinguishes thermoplastics from thermosets. For ceramics, you rely on XRD for crystalline phase identification since XRF alone cannot tell you whether silica is in a quartz or fused form, and that matters enormously for thermal expansion behavior.
One thing beginners consistently miss is that "non-metallic" does not mean "insulating." Carbon fiber composites conduct electricity along the fiber axis. Graphite is a non-metal that conducts heat and electricity better than some metals. If you are designing for EMI shielding or grounding paths, assuming a material is non-conductive just because it is not a metal will get you into trouble. Always measure resistance directly rather than assuming from classification. Another nuance that causes problems is the transition zone between categories. Some materials are intermetallic compounds or metallic glasses that behave partially like ceramics. Amorphous metals produced through rapid solidification have some of the brittleness you expect from non-metals while retaining electrical conductivity. Standard hardness testing methods calibrated for crystalline metals can give misleading results on these materials. Vickers hardness testing works better across the boundary because the smaller indenter geometry reduces cracking artifacts. When you need a quick field identification without lab equipment, here is what actually works. Magnet test for ferrous metals — simple but it misses aluminum, copper, brass, and austenitic stainless steels. The acid spot test discriminates aluminum from steel reliably in under a minute. A drop of diluted hydrochloric acid on steel produces bubbling as hydrogen releases. On aluminum, nothing visible happens unless you wait several minutes for a very slow reaction. Scratch test on a ceramic tile for hardness — non-metals like hardened tool steel or tungsten carbide will leave a darker streak on the tile compared to softer metals. None of these replacements are precise. They are fast filters that tell you whether to pull the sample for proper testing.
Get the Full Details
The biggest bottleneck in this process is documentation. You can run every test correctly and still fail an audit because the material certificate does not match the actual received lot. Every metallic and non-metallic incoming inspection I do now gets its own traceable record with lot number, supplier certification, test method, and timestamp. I stopped relying on verbal confirmation from purchasing about six months ago. One supplier had switched a non-metallic gasket material from EPDM to nitrile without updating the paperwork. The dimensional specs were identical. The chemical compatibility was completely different. We caught it because I ran a simple solvent resistance check against the actual fluid in the system before assembly. If you are starting out and do not have access to XRF or FTIR equipment, a differential scanning calorimeter at a local university lab or contract testing facility will cover most polymer identification needs for under fifty dollars per sample. Basic metallurgy labs at community colleges often have optical microscopy and hardness testers you can book by the hour. For routine metallic identification, a portable magnetic conductivity meter combined with a spark test rig costs roughly two hundred dollars and covers eighty percent of day-to-day classification work. The classification system itself breaks down when you encounter organic metal-organic frameworks or conductive polymers that blur the line intentionally. These are engineering materials designed to occupy that gray area. If your application requires a strict binary decision, you need to define your acceptance criteria around function — conductivity thresholds, corrosion resistance levels, mechanical strength requirements — rather than around the material category label alone. The label is useful for ordering and basic sorting. It stops being useful the moment you hit an edge case.
