Why This Book Is Still Everywhere (And What Actually Works With It)
Sedra and Smith's textbook shows up in almost every university microelectronics course and stays there because it covers ground methodically. The 4th edition is the version most people reference these days. It walks through device physics, small-signal models, bias design, frequency response, and feedback in a sequence that assumes you know basic circuit analysis but nothing beyond that about semiconductors. The problem is that reading it and being able to use it are two different things. The derivations are clean but they skip over the cases that trip people up in practice. I spent more time debugging my own misunderstandings than the book actually taught me directly.
What You Actually Get From Microelectronics Of Sedra Smith 4th Edition

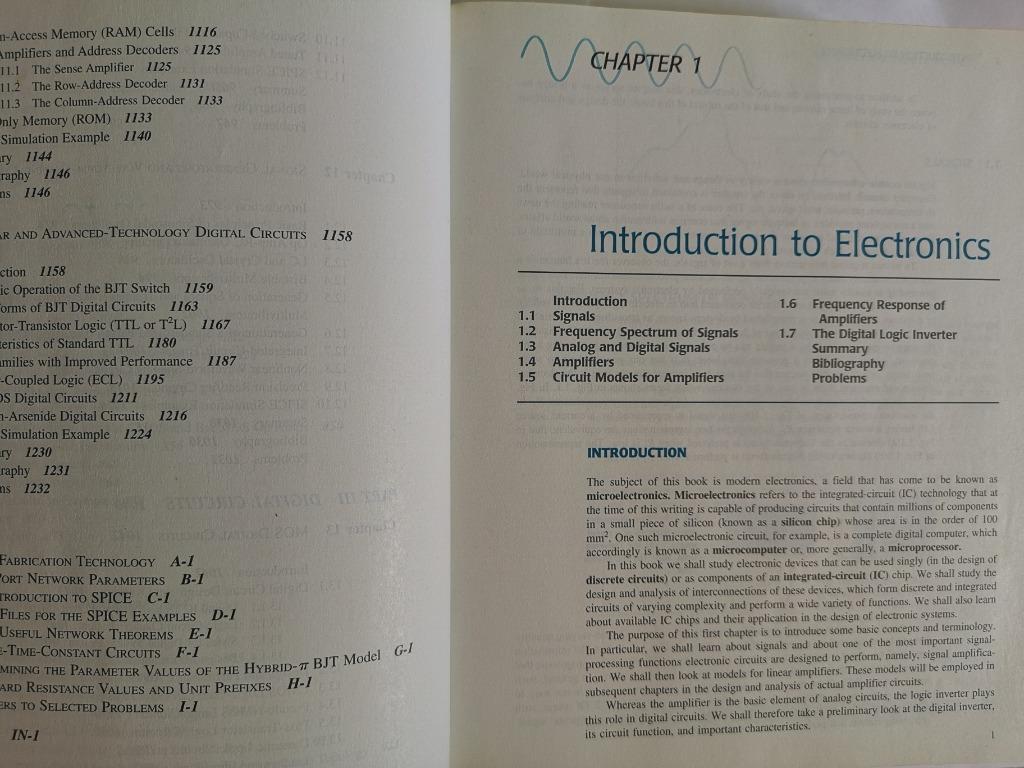

The chapter breakdown follows a predictable arc. You start with semiconductor physics and the pn junction. Then you move to MOSFETs and BJT small-signal models. After that comes biasing topologies, single-transistor amplifiers, differential pairs, active loads, and feedback. It ends with frequency response and multistage design. The strength of the book is in the worked examples. They are deliberate and show the full algebra. That is also the weakness. Real circuits in a lab or on a test bench do not follow the ideal assumptions the examples make. You will encounter finite output resistance, body effect, parasitic capacitance, and bias-point drift. The book mentions them in later chapters but does not always connect them to the earlier design problems where they matter most.
How To Actually Use This Book Instead of Just Reading It
Most people read the chapters straight through and get lost in the math. That is backwards. Start with the small-signal model chapter and understand what gm, r_pi, ro, and C_gs actually represent before you touch bias design. If you skip that, every amplifier problem looks like a puzzle you cannot solve because the parameters change without explanation. Work the example problems before the end-of-chapter problems. The examples are where the assumptions are laid out explicitly. The end-of-chapter problems often stack those assumptions without restating them. I used to skip this step and waste two or three hours on problems that could have been solved in twenty minutes if I had just seen the intended simplification first. Draw the circuit. Then draw the small-signal equivalent. Then solve. Doing the analysis in your head works until it does not, and when it fails you cannot go back and find the error. I have a habit of sketching the dc bias path first, confirming the operating point makes sense, and only then switching to AC analysis. That routine catches about half the mistakes I used to make.
Get the Full Details
A Problem I Ran Into With Microelectronics Of Sedra Smith 4th Edition
One specific case that cost me a lot of time was a common-source amplifier with source degeneration. The problem assumed the bypass capacitor was large enough to short the source resistor at signal frequencies. I designed the circuit assuming full bypass and got a gain of roughly 12 dB in the book solution. When I simulated it in SPICE with a real 100 nF bypass capacitor at 1 kHz, the gain dropped to about 4 dB. The issue was that the capacitor impedance was not negligible at the frequency the problem targeted, and the book never stated the test frequency. The workaround was straightforward. I recalculated the bypass capacitor impedance at the intended midband frequency and verified that X_C was at least ten times smaller than the source resistance. If it was not, I either reduced the frequency target or increased the capacitor. This is not a trick. It is the standard design check that the textbook glosses over in that chapter. Another edge case came up with the two-port feedback analysis in the later chapters. The book uses the A circuit and beta circuit method consistently, but it does not always make clear when the loading effects of the feedback network are significant enough to break the approximation. I found that for transistor-level feedback with low open-loop gain, the simplified beta calculation gave results off by nearly 20 percent. The fix was to include the feedback network loading in the A circuit explicitly instead of treating it as an ideal voltage divider.
Counter-Intuitive Things The Book Does Not Stress Enough
Small-signal analysis is a local linearization. It is only valid around the bias point. People treat it as a general amplifier model and apply it to large swings. That breaks immediately. If your signal moves the operating point by more than a few percent of V_T for a MOSFET or a few millivolts for a BJT, the linear model stops being accurate. I learned this the hard way when designing a common-drain stage where the output swing looked fine on paper but distorted heavily in simulation because the overdrive voltage was too small relative to the signal amplitude. The second thing is that gm does not care about transistor size the way people think it does for MOSFETs in saturation. It scales with the square root of width for a fixed current density, but if you scale both W and L together while keeping the current constant, gm actually decreases because the overdrive voltage increases. That is a detail that shows up in design problems but rarely gets emphasized during the initial device physics chapters.
Where The 4th Edition Falls Short
The book is thorough on discrete and integrated circuit design from a classical perspective. It does not cover modern integrated-process effects well. Body effect is introduced but not drilled into design routines. Mismatch and layout parasitics are almost absent. If you are designing actual ICs today, you will need additional references for matching, layout-aware simulation, and process design kits. Another gap is that the treatment of current mirrors assumes ideal matched devices for most of the early chapters. Real current mirrors have finite output impedance, channel-length modulation, and Early voltage effects that shift the ratio significantly. The book addresses this later but the initial examples train you to ignore them during design. If you need something more modern on integrated circuit behavior and mismatch, Razavi is a better companion for those topics. For a broader view of analog design from a practical integrated-circuit standpoint, Gray and Meyer covers the missing pieces. The 4th edition is solid for fundamentals but incomplete for contemporary IC work.
Practical Notes On Using The Material
The problem sets are dense. A typical chapter has between sixty and one hundred problems. You do not need to do all of them. Focus on the ones that combine multiple concepts, usually the numbered problems in the higher range. Skip the purely numerical plug-and-chug problems unless you need practice with calculator work, which is rare in real design. When you get stuck on a problem, check the solutions manual only after you have attempted a full analysis. I used to flip to the answer immediately and miss the point of the exercise. The struggle is where the understanding forms. The answer key is useful for verifying your method, not for learning it. SPICE simulation helps but it is easy to rely on it too much. I run simulations to verify hand calculations, not to replace them. If your hand analysis and simulation disagree, the hand analysis is usually the part you misunderstood. Fix that first. Simulations will hide errors in your setup just as easily as they reveal circuit behavior.
Microelectronics Of Sedra Smith 4th Edition Download And Usage Notes
There are many unofficial sources online for digital copies. I am not going to point you at any of them. The legitimate route is through the publisher or an authorized academic retailer. If you are a student, check whether your university library has an e-book license. Many do, and that saves the cost while giving you searchable text and quick access to cross-references. Using a pirated copy is common, but the edition differences matter. Later editions add problems and update some model parameters. If you are following a course, make sure the edition matches the syllabus. The core theory is the same across editions, but the problem numbering changes, which matters if your instructor assigns specific exercises.
When This Book Will Not Help You
If you are looking for a quick reference on CMOS digital design, this is the wrong book. It is analog-focused. If you need layout rules, DRC checks, or process-specific design flow, you need a different resource. If you are preparing for an interview and want fast problem-solving tricks, this book will make you slow. It teaches method, not shortcuts. The material is not difficult. It is dense. You will read a chapter in two to three hours if you work through the examples. You will understand it better if you spend four or five hours doing the problems. The difference is noticeable when you reach the feedback and multistage amplifier sections. The earlier chapters carry you. The later chapters require that you actually did the work.
